Water Pump Impeller Kit – Fits Yamaha 4-Stroke 75-115 HP (Replaces 68V-W0078-00-00, 68V-W0078-01-00, 68V-W0078-02-00)
Water Pump Impeller Kit – Fits Yamaha 4-Stroke 75-115 HP (Replaces 68V-W0078-00-00, 68V-W0078-01-00, 68V-W0078-02-00) is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Water Pump Impeller Kit – Fits Yamaha 4-Stroke 75-115 HP (Replaces ...
Water Pump Impeller Kit – Fits Yamaha 4-Stroke 75-115 HP (Replaces 68V-W0078-00-00, 68V-W0078-01-00, 68V-W0078-02-00) is backordered and will ship as soon as it is back in stock.
Product Details
This Water Pump Impeller Kit – Fits Yamaha 4-Stroke 75-115 HP (Replaces 68V-W0078-00-00, 68V-W0078-01-00, 68V-W0078-02-00) provides all necessary components to restore your engine’s cooling system. It is designed for a precise fit on Yamaha 4-stroke F75, F80, F90, F100, F115, LF115, and VF115 outboard engines manufactured between 2000 and 2017.
It serves as a direct replacement for Yamaha OEM part numbers 68V-W0078-00-00, 68V-W0078-01-00, and 68V-W0078-02-00, as well as Sierra equivalents like 18-3523-1, 18-3523, 18-3442, and GLM Marine 12067.
- Installation Method: Installs as a direct OEM-equivalent replacement.
- Durability: Features a marine-grade metal housing with durable plastic inserts.
- Complete Service: Includes impeller, gaskets, O-rings, Woodruff key, and all necessary hardware for a full replacement.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 68V-W0078-00-00 |
| Yamaha | 68V-W0078-01-00 |
| Yamaha | 68V-W0078-02-00 |
| Sierra | 18-3523-1 |
| Sierra | 18-3523 |
| Sierra | 18-3442 |
| GLM Marine | 12067 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F75B | 75 | 4-Stroke | 2017 | 68V-W0078-00-00 | |
| Yamaha | F80B | 80 | 4-Stroke | 2005–2015 | 67F-W0078-00-00 | Different kit required |
| Yamaha | F90B | 90 | 4-Stroke | 2016–2017 | 68V-W0078-00-00 | |
| Yamaha | VF90A | 90 | 4-Stroke | 2018 | 68V-W0078-00-00 | |
| Yamaha | F100 | 100 | 4-Stroke | 2014 | 68V-W0078-00-00 | |
| Yamaha | F115 | 115 | 4-Stroke | 2002–2017 | 68V-W0078-00-00 | |
| Yamaha | LF115 | 115 | 4-Stroke | 2002–2017 | 68V-W0078-00-00 | |
| Yamaha | VF115 | 115 | 4-Stroke | 2015–2017 | 68V-W0078-00-00 | |
| Yamaha | F130 | 130 | 4-Stroke | 2015 | 68V-W0078-00-00 | |
| Yamaha | F125 | 125 | 4-Stroke | 2017 | 68V-W0078-00-00 |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- OEM Direct Replacement
- Housing Material
- Marine-Grade Metal with Plastic Inserts
- Housing Color
- Silver/White
- Other Technical Attributes
- Complete kit with impeller, gaskets, O-rings, key and hardware

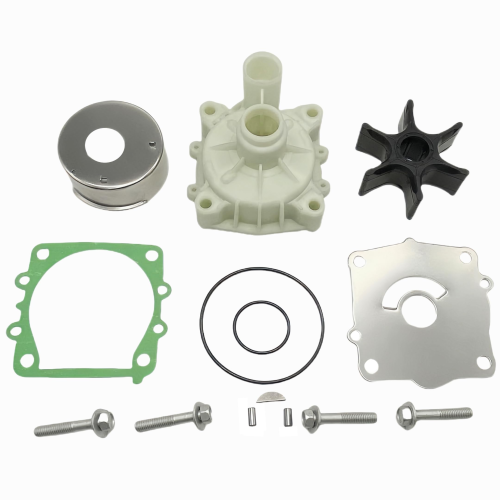

What’s in the Box
- 1 x Water Pump Impeller (6E5-44352-01-00)
- 1 x Woodruff Key (90280-04M05-00)
- 1 x Water Pump Gasket (6E5-44315-A0-00)
- 1 x Outer Plate, Cartridge (68V-44323-00-00)
- 1 x Cartridge Insert (61A-44322-02-00)
- 2 x Dowel Pin (93606-12019-00)
- 1 x O-Ring (93210-37M67-00)
- 1 x O-Ring (93210-86M38-00)
- 4 x Bolt With Washer (90119-08M14-00)
Installation Notes
- Disconnect the negative battery cable for safety.
- Drain the gear lube from the lower unit.
- Remove the bolts securing the lower unit to the outboard and carefully detach it.
- Unbolt and remove the existing water pump housing.
- Take note of the component order as you remove the old impeller, key, gaskets, and plates.
- Thoroughly clean all mating surfaces, removing any old gasket material or corrosion.
- Install the new gasket, plate, and cartridge insert from the kit.
- Slide the new Woodruff key into the driveshaft slot and install the new impeller, turning the shaft clockwise to seat the vanes.
- Install the new O-rings, applying a thin coat of marine grease.
- Reassemble the housing and tighten the bolts to the manufacturer’s recommended torque specification.
- Reinstall the lower unit, refill with fresh gear lube, and reconnect the battery.
- Start the engine in the water and confirm a steady stream of water from the tell-tale outlet.
Troubleshooting & FAQ
How do I know if this kit fits my Yamaha outboard?
This kit is designed for select Yamaha 4-Stroke models including the F75, F90, F100, F115, LF115, and VF115 from 2000–2017. Always verify your specific model and year against our compatibility table before ordering. Note that it does not fit the F80B (2005-2015), which requires a different kit (67F-W0078-00-00).
What are the signs of a failing water pump impeller?
Common symptoms include the engine overheating at idle or low speeds, a weak or non-existent water stream from the "tell-tale" outlet, and in some cases, a high-temperature alarm from your engine's monitoring system.
How often should I replace the water pump impeller?
For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of operation. Replacement intervals can vary based on usage conditions, particularly in saltwater or silty environments.
Can I replace just the impeller instead of the whole kit?
While you can replace only the impeller, this complete kit includes all necessary gaskets, O-rings, and hardware. Replacing all wear-and-tear components at once ensures a proper seal, prevents leaks, and restores optimal cooling performance, which is critical for engine health.
The kit includes parts I don’t think I need. Why?
This kit is designed to cover multiple model years and variations within the 75-115 HP range. It may include extra O-rings or bolts to ensure it services all compatible applications. Use only the components that match your specific unit's original parts.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
