Water Pump Impeller Kit – Fits Yamaha F75-F100 4-Stroke (Replaces 6...
Water Pump Impeller Kit – Fits Yamaha F75-F100 4-Stroke (Replaces 67F-W0078-00-00, 18-3451) is backordered and will ship as soon as it is back in stock.
Product Details
This complete Water Pump Impeller Kit – Fits Yamaha F75, F80, F90, F100 4-Stroke Outboards is designed for Yamaha 4-stroke outboard motors from 75–100 HP, covering models from 1999–2016. It includes the essential impeller, gaskets, and hardware required to rebuild your water pump assembly, ensuring reliable engine cooling and performance.
This kit serves as a direct interchange for several part numbers, including Yamaha 67F-W0078-00-00, Sierra 18-3451, Quicksilver 8M6012802, GLM 12275, and AM AM67F-W0078-00.
- Direct OEM-replacement fit for straightforward installation.
- Kit includes all necessary gaskets, seals, and hardware for a full service.
- Manufactured to meet or exceed original equipment specifications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 67F-W0078-00-00 |
| Sierra | 18-3451 |
| Quicksilver | 8M6012802 |
| GLM | 12275 |
| AM | AM67F-W0078-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha engines, please verify your model and year range for a perfect fit.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Yamaha | F75BET, TR, TLR | 75 | 4-Stroke | 2005 | 67F-W0078-00-00 |
| Yamaha | F75LA | 75 | 4-Stroke | 2012–2016 | 67F-W0078-00-00 |
| Yamaha | F75TLR | 75 | 4-Stroke | 2004–2011 | 67F-W0078-00-00 |
| Yamaha | F75TLRB | 75 | 4-Stroke | 2003 | 67F-W0078-00-00 |
| Yamaha | F75TLRC/D | 75 | 4-Stroke | 2004–2005 | 67F-W0078-00-00 |
| Yamaha | F80A, AET, TLR, TJR | 80 | 4-Stroke | 1999–2003 | 67F-W0078-00-00 |
| Yamaha | F80B, BET | 80 | 4-Stroke | 2005–2015 | 67F-W0078-00-00 |
| Yamaha | F80TJRA/B | 80 | 4-Stroke | 2002–2003 | 67F-W0078-00-00 |
| Yamaha | F80TLRA/B | 80 | 4-Stroke | 2002–2003 | 67F-W0078-00-00 |
| Yamaha | F80TLRX/Y/Z | 80 | 4-Stroke | 1999–2001 | 67F-W0078-00-00 |
| Yamaha | F80TXRX/Y | 80 | 4-Stroke | 1999–2000 | 67F-W0078-00-00 |
| Yamaha | F90 (68V, 68V0, 68W0) | 90 | 4-Stroke | 2003–2011 | 67F-W0078-00-00 |
| Yamaha | F90JA | 90 | 4-Stroke | 2012–2016 | 67F-W0078-00-00 |
| Yamaha | F90LA | 90 | 4-Stroke | 2012–2016 | 67F-W0078-00-00 |
| Yamaha | F90TJR | 90 | 4-Stroke | 2004–2007 | 67F-W0078-00-00 |
| Yamaha | F90TJRB/C/D | 90 | 4-Stroke | 2003–2005 | 67F-W0078-00-00 |
| Yamaha | F90TLR | 90 | 4-Stroke | 2004–2011 | 67F-W0078-00-00 |
| Yamaha | F90TLRB/C/D | 90 | 4-Stroke | 2003–2005 | 67F-W0078-00-00 |
| Yamaha | F90TXR | 90 | 4-Stroke | 2004–2011 | 67F-W0078-00-00 |
| Yamaha | F90TXRD | 90 | 4-Stroke | 2005 | 67F-W0078-00-00 |
| Yamaha | F90XA | 90 | 4-Stroke | 2012–2016 | 67F-W0078-00-00 |
| Yamaha | F100A, AET, TLR, TRZ | 100 | 4-Stroke | 1999–2006 | 67F-W0078-00-00 |
| Yamaha | F100DET (68V, 68V0, 68W0) | 100 | 4-Stroke | 2005–2015 | 67F-W0078-00-00 |
| Yamaha | F100TLRA/B | 100 | 4-Stroke | 2002–2003 | 67F-W0078-00-00 |
| Yamaha | F100TLRX/Y/Z | 100 | 4-Stroke | 1999–2011 | 67F-W0078-00-00 |
| Yamaha | F100TXRA/B | 100 | 4-Stroke | 2002–2003 | 67F-W0078-00-00 |
| Yamaha | F100TXRX/Y/Z | 100 | 4-Stroke | 1999–2001 | 67F-W0078-00-00 |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Direct OEM replacement
- Connection
- Mechanical drive via impeller key
- Other Technical Attributes
- Manufactured to OEM specifications
- Warranty
- 1-year against manufacturing defects (aftermarket version)

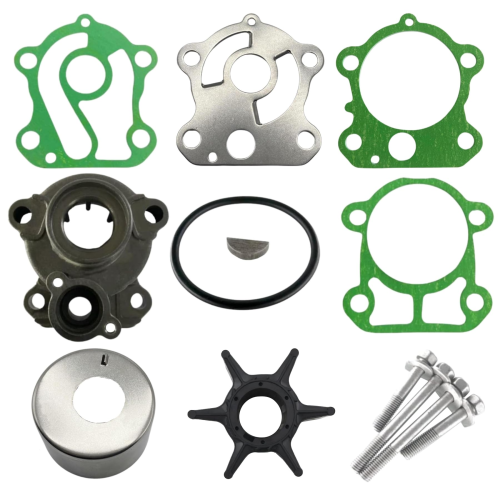

What’s in the Box
- 1 x Water Pump Impeller (67F-44352-00-00)
- 1 x Wear Plate (67F-44323-00-00)
- 1 x Insert Cup (67F-44322-00-00)
- 1 x Impeller Key (90280-04M04-00)
- 1 x O-Ring (93210-46044-00)
- 3 x Gasket, Water Pump (688-44315-A0-00, 688-44324-A0-00, 688-44316-A0-00)
- 2 x Bolt (90119-08M87-00)
- 2 x Bolt (90119-08M13-00)
- 4 x Washer, Bolt (90209-08M02-00)
Installation Notes
- Disconnect the battery and remove the engine cover.
- Place the outboard in neutral and drain the lower unit gear lube.
- Remove the bolts securing the lower unit (gearcase) to the upper casing and carefully lower it.
- Unbolt and remove the water pump housing to access the impeller.
- Take note of the old components' orientation before removing the old impeller, key, wear plate, and gaskets.
- Clean all mounting surfaces thoroughly, removing any old gasket material or sealant.
- Install the new wear plate, gaskets, impeller key, and impeller. Lubricate the new impeller and housing interior.
- Reinstall the water pump housing, torquing bolts to manufacturer specifications.
- Re-attach the lower unit, ensuring the driveshaft and water tube align correctly.
- Refill the gearcase with fresh lube, reconnect the battery, and test the engine with a proper water supply. Check for a strong, steady stream from the tell-tale port.
Troubleshooting & FAQ
How do I know if this water pump kit will fit my engine?
The most reliable method is to match your engine's model and year to our compatibility table. If your model is listed, this kit is a confirmed fit. Avoid matching by horsepower alone, as different models can share the same power rating but use different parts.
What are the signs of a failing water pump impeller?
Common symptoms include a weak or intermittent water stream from the tell-tale (water discharge) port, engine overheating alarms, or visible steam from the exhaust. A damaged impeller cannot provide sufficient cooling water to the engine.
How often should I replace my impeller?
As a general maintenance rule, it is recommended to inspect and/or replace the water pump impeller every 1 to 2 years or every 100-200 hours of use, whichever comes first. This interval can be shorter if you frequently operate in sandy, silty, or saltwater conditions.
Is everything I need for the job included in this kit?
Yes, this is a comprehensive repair kit that includes the impeller, wear plate, insert cup, gaskets, o-ring, key, and all necessary bolts and washers for a complete water pump overhaul.
Can I install this kit myself?
Many boat owners with mechanical experience can perform this replacement. However, it requires lowering the gearcase and following specific torque sequences upon reassembly. If you are not comfortable with this process, we recommend professional installation to ensure safety and proper function.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
