Water Pump Impeller Kit – Fits Yamaha F75, F80, F90, F100 4-Stroke ...
Water Pump Impeller Kit – Fits Yamaha F75, F80, F90, F100 4-Stroke Outboards (Replaces 67F-W0078-00-00) is backordered and will ship as soon as it is back in stock.
Product Details
This aftermarket Water Pump Impeller Kit – Fits Yamaha F75, F80, F90, F100 4-Stroke Outboards (Replaces 67F-W0078-00-00) is designed for Yamaha 4-Stroke outboard motors including F75, F80, F90, and F100 models manufactured from 1999–2015. This is a complete water pump repair kit without the housing.
It provides a direct interchange for Yamaha 67F-W0078-00-00, Sierra 18-3451, Quicksilver 8M6012802, GLM 12275, and AM67F-W0078-00.
- Enables direct OEM replacement for straightforward installation.
- Includes all essential gaskets, impeller, plate, cup, and hardware for a full repair.
- Engineered to meet or exceed original equipment manufacturer (OEM) specifications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Yamaha | 67F-W0078-00-00 |
| Sierra | 18-3451 |
| Quicksilver | 8M6012802 |
| GLM | 12275 |
| AM | AM67F-W0078-00 |
Engine & Model Compatibility
Confirm your engine model and year in the table below to ensure accurate fitment.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F75BET, TR, TLR | 75 | 4-Stroke | 2005 | 67F-W0078-00-00 | |
| Yamaha | F75LA | 75 | 4-Stroke | 2012–2016 | 67F-W0078-00-00 | |
| Yamaha | F75TLR | 75 | 4-Stroke | 2004–2011 | 67F-W0078-00-00 | |
| Yamaha | F75TLRB | 75 | 4-Stroke | 2003 | 67F-W0078-00-00 | |
| Yamaha | F75TLRC/D | 75 | 4-Stroke | 2004–2005 | 67F-W0078-00-00 | |
| Yamaha | F80A, AET, TLR, TJR | 80 | 4-Stroke | 1999–2003 | 67F-W0078-00-00 | |
| Yamaha | F80B, BET | 80 | 4-Stroke | 2005–2015 | 67F-W0078-00-00 | |
| Yamaha | F80TJRA/B | 80 | 4-Stroke | 2002–2003 | 67F-W0078-00-00 | |
| Yamaha | F80TLRA/B | 80 | 4-Stroke | 2002–2003 | 67F-W0078-00-00 | |
| Yamaha | F80TLRX/Y/Z | 80 | 4-Stroke | 1999–2001 | 67F-W0078-00-00 | |
| Yamaha | F80TXRX/Y | 80 | 4-Stroke | 1999–2000 | 67F-W0078-00-00 | |
| Yamaha | F90 (68V, 68V0, 68W0) | 90 | 4-Stroke | 2003–2011 | 67F-W0078-00-00 | |
| Yamaha | F90JA | 90 | 4-Stroke | 2012–2016 | 67F-W0078-00-00 | |
| Yamaha | F90LA | 90 | 4-Stroke | 2012–2016 | 67F-W0078-00-00 | |
| Yamaha | F90TJR | 90 | 4-Stroke | 2004–2007 | 67F-W0078-00-00 | |
| Yamaha | F90TJRB/C/D | 90 | 4-Stroke | 2003–2005 | 67F-W0078-00-00 | |
| Yamaha | F90TLR | 90 | 4-Stroke | 2004–2011 | 67F-W0078-00-00 | |
| Yamaha | F90TLRB/C/D | 90 | 4-Stroke | 2003–2005 | 67F-W0078-00-00 | |
| Yamaha | F90TXR | 90 | 4-Stroke | 2004–2011 | 67F-W0078-00-00 | |
| Yamaha | F90TXRD | 90 | 4-Stroke | 2005 | 67F-W0078-00-00 | |
| Yamaha | F90XA | 90 | 4-Stroke | 2012–2016 | 67F-W0078-00-00 | |
| Yamaha | F100A, AET, TLR, TRZ | 100 | 4-Stroke | 1999–2006 | 67F-W0078-00-00 | |
| Yamaha | F100DET (68V, 68V0, 68W0) | 100 | 4-Stroke | 2005–2015 | 67F-W0078-00-00 | |
| Yamaha | F100TLRA/B | 100 | 4-Stroke | 2002–2003 | 67F-W0078-00-00 | |
| Yamaha | F100TLRX/Y/Z | 100 | 4-Stroke | 1999–2001 | 67F-W0078-00-00 | |
| Yamaha | F100TXRA/B | 100 | 4-Stroke | 2002–2003 | 67F-W0078-00-00 | |
| Yamaha | F100TXRX/Y/Z | 100 | 4-Stroke | 1999–2001 | 67F-W0078-00-00 |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Direct OEM replacement
- Housing Material
- Not included - kit only
- Other Technical Attributes
- Manufactured to OEM specifications

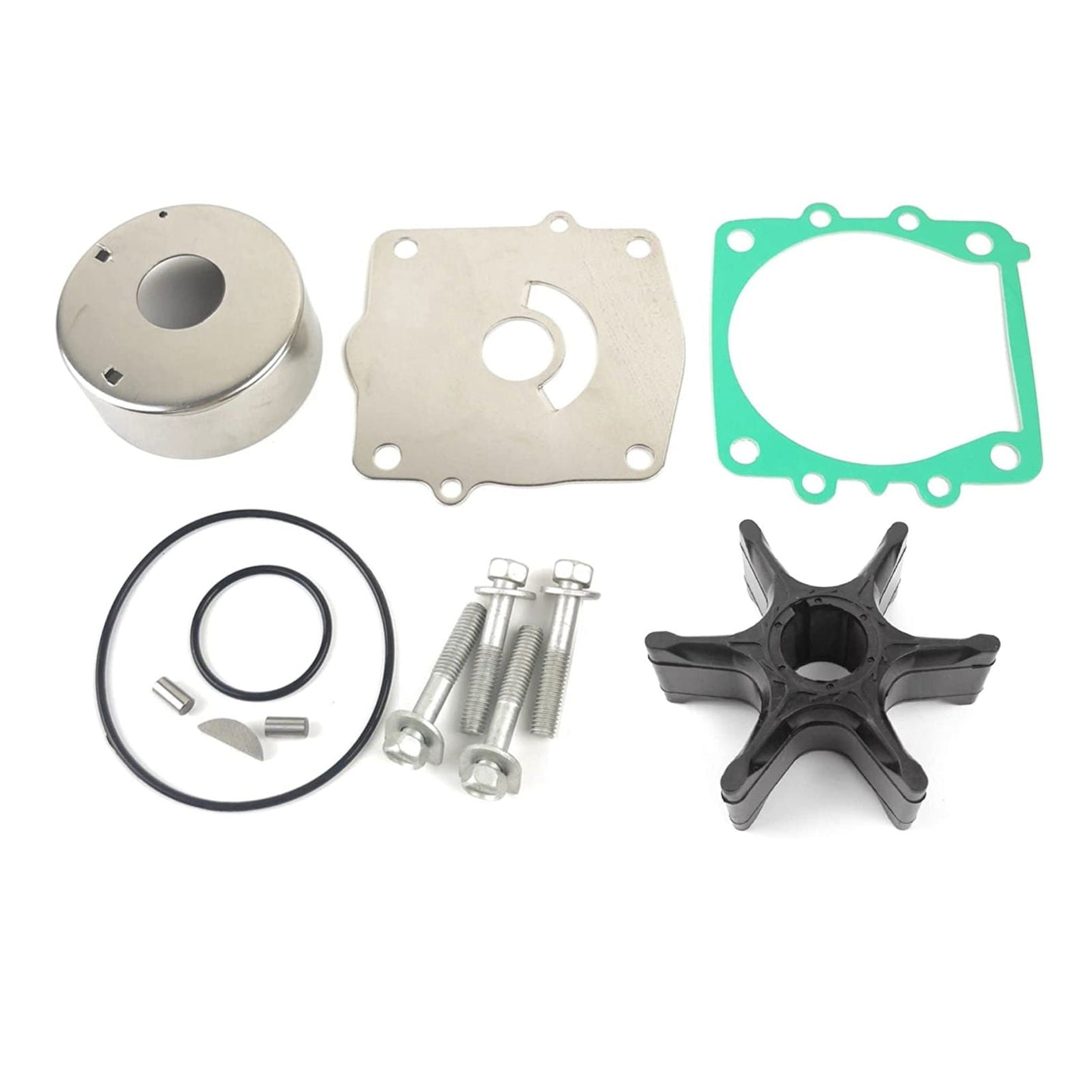

What’s in the Box
- 1 x Water Pump Impeller (67F-44352-00-00)
- 1 x Wear Plate (67F-44323-00-00)
- 1 x Insert Cup (67F-44322-00-00)
- 1 x Impeller Key (90280-04M04-00)
- 1 x O-Ring (93210-46044-00)
- 2 x Bolt (90119-08M87-00)
- 2 x Bolt (90119-08M13-00)
- 1 x Gasket, Water Pump (688-44315-A0-00)
- 1 x Gasket, Water Pump (688-44324-A0-00)
- 1 x Gasket, Water Pump (688-44316-A0-00)
- 4 x Washer, Bolt (90209-08M02-00)
Installation Notes
- Disconnect the battery and remove the engine cover for safety.
- Drain the gearcase oil from the lower unit.
- Remove the bolts securing the lower unit (gearcase) and carefully detach it from the upper casing.
- Unbolt and remove the water pump housing to access the impeller.
- Take note of the old impeller's orientation, then remove it, the wear plate, gaskets, and key.
- Thoroughly clean all mating surfaces, removing any old gasket material or corrosion.
- Install the new gaskets, wear plate, impeller key, and impeller. Ensure the vanes are oriented correctly.
- Install the new insert cup and o-ring into the housing.
- Re-install the water pump housing, tightening bolts to the manufacturer's specified torque.
- Apply a light waterproof grease to the driveshaft splines and reinstall the lower unit.
- Refill the gearcase with fresh oil. Reconnect the battery.
- Test the engine using a water supply (flushing muffs) to confirm water is pumping correctly from the tell-tale port.
Troubleshooting & FAQ
How do I find my engine model to check for a fit?
Your Yamaha outboard's model and serial number are typically on a sticker located on the transom clamp bracket. Match this information against our compatibility table to ensure this kit is correct for your motor.
What are the common signs of a failing water pump impeller?
Key symptoms include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, and in severe cases, steam from the exhaust. Reduced top speed can also indicate poor cooling.
How often should I replace my impeller?
As a best practice for preventative maintenance, replace the impeller every 1-2 years or every 100-200 hours of use, whichever comes first. Frequency should increase if you operate in sandy, silty, or saltwater environments.
Is the water pump housing included in this kit?
No, this is an impeller repair kit and does not include the metal water pump housing. This kit is intended for when your existing housing is still in good condition without corrosion, warping, or scoring.
What is the difference between this aftermarket kit and the OEM version?
Our aftermarket kit is engineered to meet or exceed OEM specifications for fit, form, and function. It uses comparable, high-quality materials to ensure reliable performance and cooling, offering a cost-effective alternative to the original manufacturer's part.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
