Water Pump Impeller Kit with Housing – Fits Yamaha 150-300 HP V6 (Replaces 61A-W0078-A2-00, 61A-W0078-A3-00)

Product Details

This comprehensive Water Pump Impeller Kit with Housing – Fits Yamaha 150-300 HP V6 Outboards provides all necessary components for a complete lower unit service. It is engineered for a wide range of Yamaha 2-stroke V6 engines (150–300 HP, 1997–2015) and 4-stroke outboards including F150–F250 models from 2002 to current.

This assembly serves as a direct replacement for Yamaha OEM part numbers 61A-W0078-A2-00, 61A-W0078-A3-00, and 61A-W0078-A4-00, as well as Sierra 18-3396 and Mallory 9-48618.

• Installation Location: Mounts in the lower unit (gearcase) to restore cooling system performance.
• Durable Materials: Features a high-strength Nylon PA66 housing, a flexible neoprene rubber impeller, and stainless steel hardware for corrosion resistance.
• Complete Kit: Includes the housing, impeller, gaskets, plates, O-rings, and all required hardware for a full overhaul.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit fits a broad range of Yamaha 2-Stroke and 4-Stroke V6 outboard engines. Please verify your specific model and year before ordering.

Technical Specs

Product Type

Water Pump Impeller Kit with Housing

Installation

Lower Unit / Gearcase

Housing Material

Nylon PA66 Plastic (Water Pump Housing)

Housing Color

Black

Components Material

Stainless Steel (hardware), Neoprene Rubber (impeller and O-rings)

Package Weight

0.45 kg (16 oz)

Warranty

6 Month

OEM Compatibility

Yamaha 150-300 HP 2-Stroke and 4-Stroke V6 Outboards

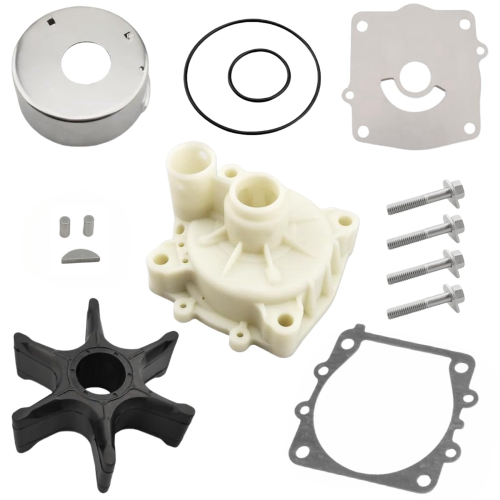

What’s in the Box

• 1 x Water Pump Impeller (6E5-44352-01-00)
• 1 x Cartridge Insert (61A-44322-02-00)
• 1 x Cartridge Outer Plate (6G5-44323-01-00)
• 1 x Water Pump Gasket (6E5-44315-A0-00)
• 2 x O-Rings (93210-86M38-00, 93210-37M67-00)
• 2 x Dowel Pins (93606-12019-00)
• 4 x Bolts with Washers (90119-08M14-00)
• 1 x Impeller Key/Woodruff Key (90280-04M05-00)

Installation Notes

1. Disconnect the battery and remove the engine cowling. Drain the gearcase oil into a suitable container.
2. Unbolt and carefully lower the gearcase (lower unit) from the outboard's midsection, disconnecting the speedometer tube if present.
3. Locate and unbolt the water pump housing (typically four bolts). Slide the housing up and off the driveshaft.
4. Remove the old impeller, wear plate, gaskets, and woodruff key. Clean all mating surfaces thoroughly.
5. Install the new woodruff key, gasket, and wear plate. Lightly grease the new impeller and slide it onto the driveshaft while turning it clockwise to seat the vanes.
6. Install the new housing, insert, gaskets, and O-rings. Apply marine-grade grease to the new bolts and tighten them to the manufacturer's specified torque.
7. Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are correctly aligned. Re-fill the gearcase with fresh oil.
8. Once assembled, start the engine in water and verify a steady stream of water from the "telltale" outlet.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
