Product Details
This complete Water Pump Impeller Repair Kit is designed for Yamaha 2-stroke and 4-stroke outboard engines ranging from 150 to 300 HP. It offers broad compatibility with various V6 HPDI, V6 OX66, and V6 F-series outboard models, ensuring a precise fit for restoring your engine's cooling system performance.
This kit serves as a direct replacement for Yamaha part numbers 61A-W0078-A2-00, 61A-W0078-A3-00, and 61A-W0078-A4-00, as well as Sierra equivalents 18-3396-1 and 18-3395.
- Engineered for direct OEM-replacement installation.
- Constructed with durable neoprene, Nylon PA66, and 316 stainless steel for marine environments.
- Includes all necessary gaskets, O-rings, and hardware for a full service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Yamaha | 61A-W0078-A2-00 | 61A-W0078-A3-00 |
| Yamaha | 61A-W0078-A3-00 | 61A-W0078-A4-00 |
| Yamaha | 61A-W0078-A4-00 | |
| Sierra | 18-3395 | |
| Sierra | 18-3396-1 |
Engine & Model Compatibility
Confirm your engine model in the table below.
For Yamaha Owners: This kit fits a wide range of V6 outboards. Please verify your specific model and part number before ordering, as year ranges can vary.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Yamaha | 150 HPDI | 150 | 2-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | 175 HPDI | 175 | 2-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | 200 HPDI | 200 | 2-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | 250 HPDI | 250 | 2-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | 150 OX66 | 150 | 2-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | 200 OX66 | 200 | 2-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | 225 OX66 | 225 | 2-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | F150 | 150 | 4-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | F175 | 175 | 4-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | F200 | 200 | 4-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | F225 | 225 | 4-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | F250 | 250 | 4-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
| Yamaha | F300 | 300 | 4-Stroke | 61A-W0078-A2-00 | Superseded by 61A-W0078-A3-00 |
Technical Specs
- Product Type
- Complete Water Pump Impeller Repair Kit
- Installation
- Direct OEM replacement
- Housing Material
- Nylon PA66 plastic
- Impeller Material
- Neoprene marine rubber
- Other Materials
- 316 stainless steel (cup and wear plate), non-asbestos gaskets, NBR O-rings
- Warranty
- 1 Year

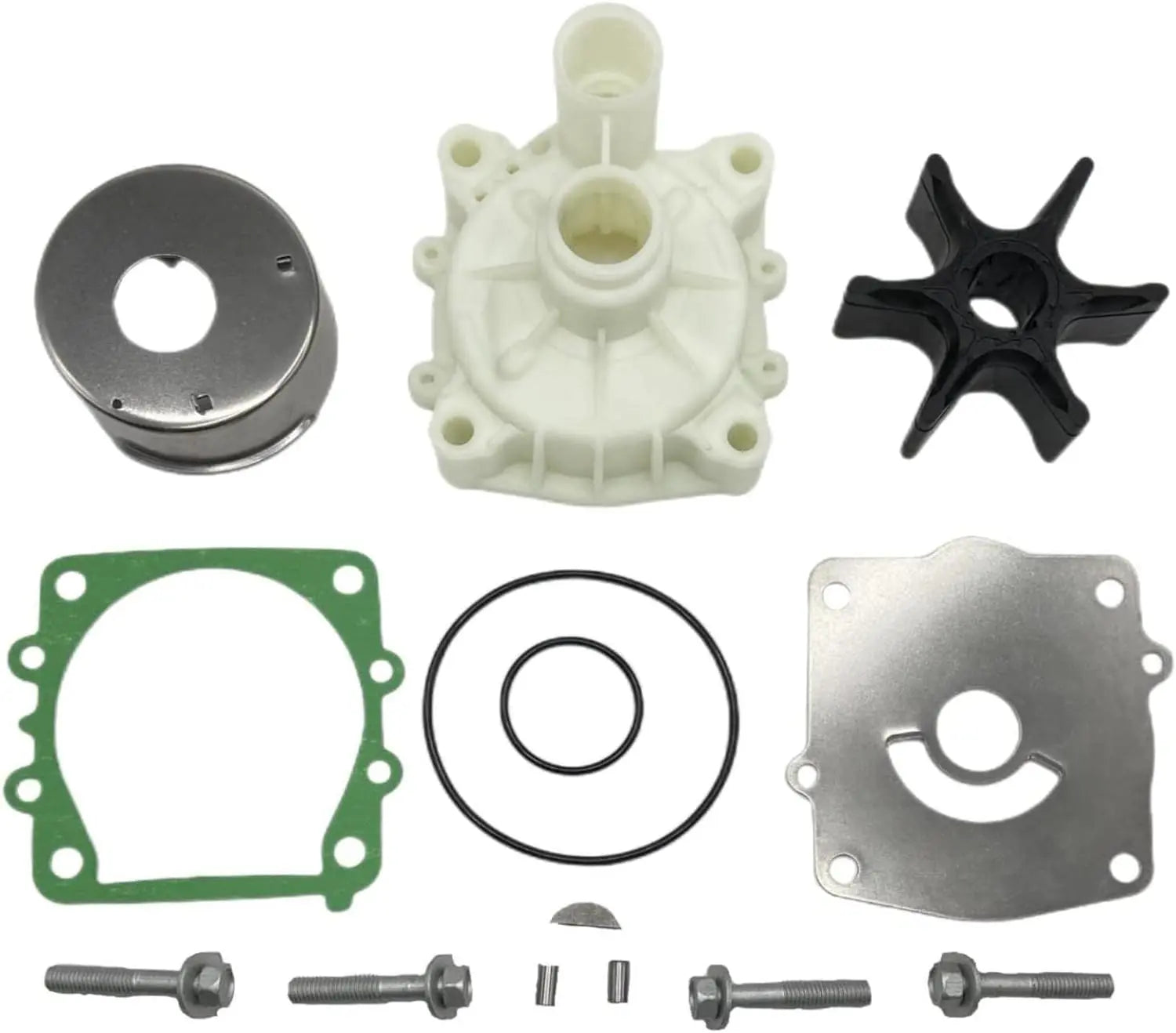

What’s in the Box
- 1 x Woodruff Key (90280-04M05-00)
- 1 x Outer Plate, Cartridge (6G5-44323-00-00)
- 1 x With Washer Bolt (90119-08M14-00)
- 1 x Insert (Cartridge) (61A-44322-01-00)
- 1 x O-Ring (93210-86M38-00)
- 1 x Water Pump Gasket (6E5-44315-A0-00)
- 1 x O-Ring (93210-37M67-00)
- 1 x Impeller (6E5-44352-00-00)
- 1 x Dowel Pin (93606-12019-00)
Installation Notes
- Disconnect the battery and remove the engine cover.
- Place a drain pan under the lower unit and drain the gearcase oil.
- Remove the bolts securing the lower unit (gearcase) to the upper casing and carefully lower it.
- Locate the water pump housing on top of the gearcase. Remove the bolts securing the housing.
- Slide the housing up and off the driveshaft, exposing the impeller and wear plate.
- Remove the old impeller, key, gaskets, and seals. Clean all mating surfaces thoroughly.
- Install the new components from the kit in reverse order of removal, ensuring the impeller vanes are oriented correctly.
- Lightly grease the new impeller and insert it into the housing while turning the driveshaft clockwise.
- Re-install the housing, lower unit, and refill with fresh gearcase oil.
- Reconnect the battery and test the engine's cooling system at the dock before heading out.
Troubleshooting & FAQ
How can I tell if my water pump is failing?
Common signs of a failing water pump include a weak or nonexistent water stream from the "telltale" outlet, engine overheating alarms, and a noticeable drop in water pressure on your gauges. A visual inspection may also reveal a melted housing or brittle, cracked impeller vanes.
How often should I replace my water pump impeller?
For preventative maintenance, it is recommended to inspect your impeller annually and replace the entire water pump kit every 2-3 years or 200-300 operating hours, whichever comes first. Usage in saltwater or sandy/silty conditions may require more frequent service.
Is this kit compatible with both 2-stroke and 4-stroke engines?
Yes, this kit is designed to fit a wide range of Yamaha V6 engines from 150-300 HP, covering both 2-stroke (HPDI, OX66) and 4-stroke (F-series) models. Always check the compatibility table to confirm your specific engine model.
What's the difference between OEM and aftermarket parts?
This listing is for a high-quality aftermarket replacement, not an original equipment manufacturer (OEM) part. It has been engineered to meet or exceed OEM specifications using comparable materials and is manufactured in an ISO 9002 certified facility with rigorous quality control.
How fast do you ship?
We ship worldwide, with most orders arriving in 5-15 days via standard shipping. Expedited shipping options are available at checkout for most regions. All orders are processed quickly to get you back on the water faster.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal marine use. If you encounter an issue, please contact our support team with your order details. We accept returns on unused items in their original condition within our standard return window.
Safety & Important Info
- Verify images and specifications against your original part before purchase. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement part, not an OEM component.
- Professional installation is highly recommended for safety and optimal performance.
