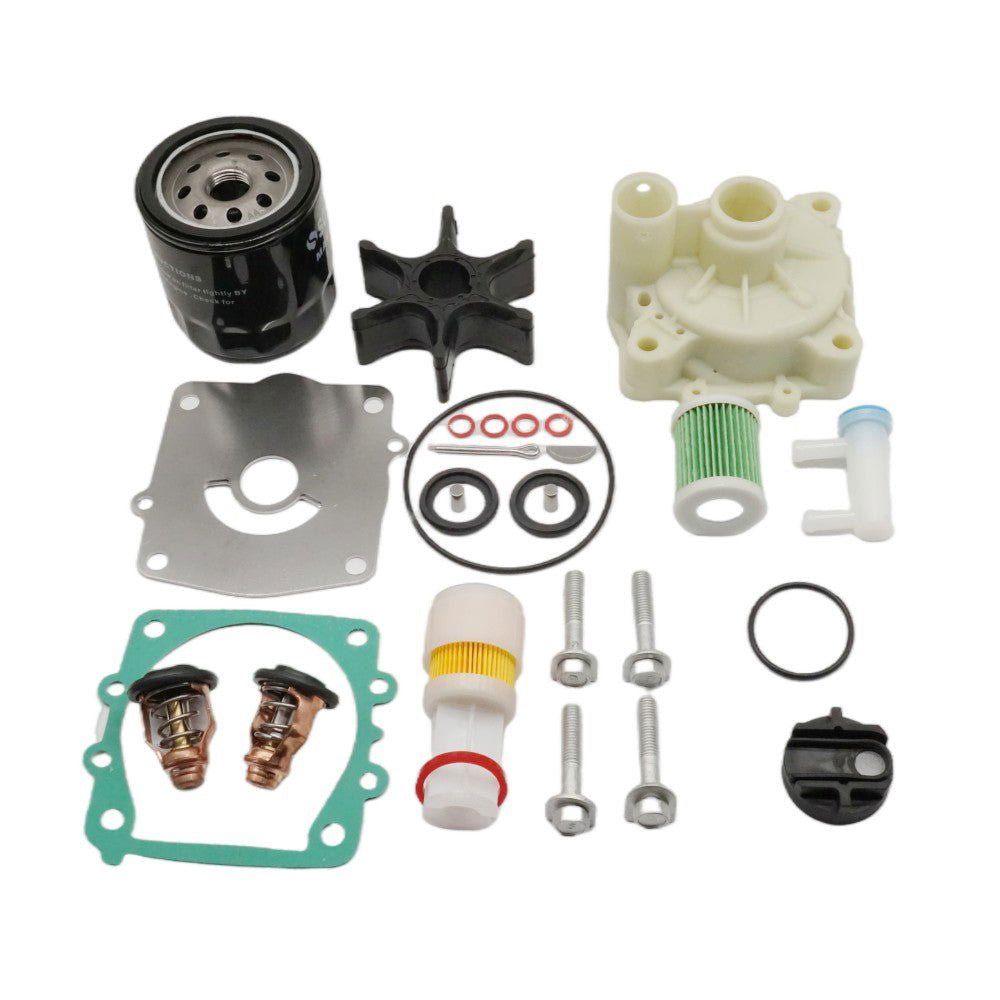

Water Pump Repair Kit – Fits Yamaha Outboard F150/F200/F225/F250 (Replaces 61A-W0078-A3-00, 61A-W0078-A4-00)

Product Details

This Water Pump Repair Kit – Fits Yamaha Outboard F150/F200/F225 provides all necessary components to service the cooling system on a wide range of Yamaha outboards, including F150, F200, F225, and F250 4-stroke models from 2004 to present, as well as many 2-stroke models dating back to 1992. It is a critical component for the 100-hour and 300-hour service schedules.

This kit is a direct replacement for Yamaha OEM part numbers 61A-W0078-A3-00 and the current supersession, 61A-W0078-A4-00.

• Engineered for direct OEM-replacement installation.
• Maintains proper engine temperature and prevents overheating.
• Includes key components such as the impeller, gaskets, and housing plates.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit fits a wide variety of Yamaha outboard engines. Please check your model and year range carefully.

Technical Specs

Product Type

Outboard Water Pump Repair Kit

Installation

Direct OEM replacement

Housing Material

Composite/Plastic with metal components

Application

Marine outboard cooling system

Service Schedule

Every 100 hours or annually (recommended)

Required Service

Every 300 hours or 3 years (mandatory)

Other Technical Attributes

Includes impeller, housing plates, gaskets, seals, and mounting hardware

What’s in the Box

• 1 x Insert, Cartridge (61A-44322-02-00)
• 1 x O-Ring (93210-86M38-00)
• 1 x O-Ring (93210-37M67-00)
• 1 x Impeller (6E5-44352-01-00)
• 1 x Outer Plate, Cartridge (6G5-44323-01-00)
• 1 x Gasket, Water Pump (6E5-44315-A0-00)
• 2 x Pine, Dowel (93606-12019-00)
• 4 x Bolt, With Washer (90119-08M14-00)
• 1 x Key, Woodruff (90280-04M05-00)

Installation Notes

1. Disconnect the battery and ensure the engine is tilted to a safe working position.
2. Place a drain pan under the lower unit and remove the gearcase drain and vent screws to drain the lubricant.
3. Remove the bolts securing the lower unit (gearcase) to the upper casing and carefully lower it.
4. Unbolt and remove the old water pump housing assembly. Note the orientation of all parts.
5. Clean the mounting surfaces and inspect the driveshaft for any wear or damage.
6. Install the new components from the kit in the reverse order of disassembly. Ensure the new impeller vanes are turned in the correct direction (typically clockwise when viewed from above).
7. Lubricate the new impeller and internal housing surfaces with a marine-safe lubricant.
8. Reinstall the water pump housing, ensuring all gaskets and seals are seated properly. Torque bolts to manufacturer specifications.
9. Reattach the lower unit to the engine, making sure the driveshaft, shift shaft, and water tube align correctly.
10. Refill the gearcase with the specified lubricant, reinstall the battery connection, and test the engine in the water, confirming a steady stream of water from the tell-tale port.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
