Stainless Steel Exhaust Elbow – Fits Yanmar 6LY Series Marine Engin...
Product Details

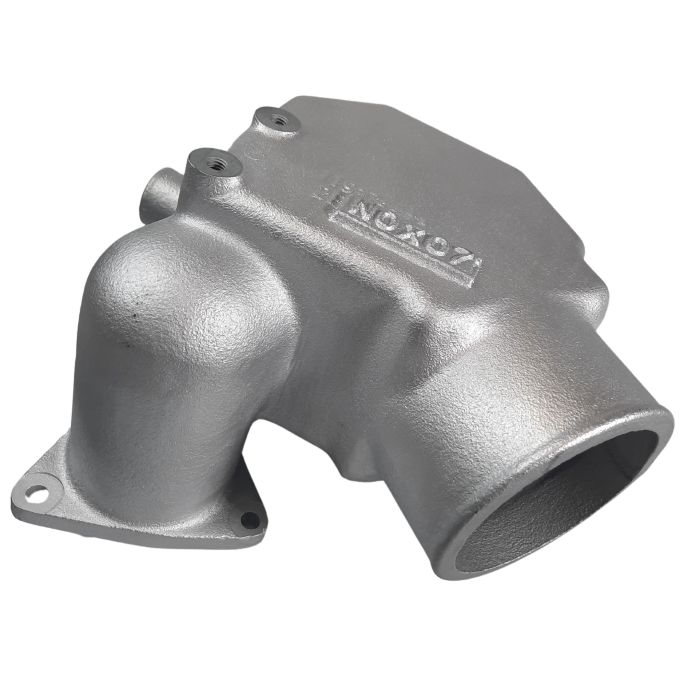

This is a high-quality aftermarket Stainless Steel Exhaust Elbow – Fits Yanmar 6LY Series Marine Engines (Replaces 119574-13530). It is designed for Yanmar 6LY2, 6LY3, and 6LYA 6-cylinder diesel engines from 315 to 420 HP, offering a durable, corrosion-resistant alternative to the original cast iron part.
It serves as a direct replacement for Yanmar part numbers 119574-13500, 119574-13501, 119574-13510, 119574-13530, and HDI Marine BVB.
- Engineered for direct bolt-on installation.
- Superior corrosion resistance in marine environments.
- Includes one stainless steel exhaust elbow.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Yanmar | 119574-13500 | OEM reference |
| Yanmar | 119574-13501 | OEM reference |
| Yanmar | 119574-13510 | OEM reference |
| Yanmar | 119574-13530 | Primary OEM reference |
| HDI Marine | BVB | Aftermarket reference |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This exhaust elbow is designed for various Yanmar 6LY series engines.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Yanmar | 6LY3-ETP | 315-420 | 4-Stroke | 119574-13530 | Diesel marine engine |
| Yanmar | 6LYA-UTE | 315-420 | 4-Stroke | 119574-13530 | Diesel marine engine |
| Yanmar | 6LYA-UTEP | 315-420 | 4-Stroke | 119574-13530 | Diesel marine engine |
| Yanmar | 6LYA-STE | 315-420 | 4-Stroke | 119574-13530 | Diesel marine engine |
| Yanmar | 6LYA-STEP | 315-420 | 4-Stroke | 119574-13530 | Diesel marine engine |
| Yanmar | 6LYA-STP | 315-420 | 4-Stroke | 119574-13530 | Diesel marine engine |
| Yanmar | 6LY2A-STP | 315-420 | 4-Stroke | 119574-13530 | Diesel marine engine |
| Yanmar | 6LY2-STE | 315-420 | 4-Stroke | 119574-13530 | Diesel marine engine |
Technical Specs
- Product Type
- Marine Exhaust Elbow/Manifold
- Installation
- Direct bolt-on replacement
- Fuel Type
- Diesel
- Connection
- Inlet: 1-1/2" (38.10mm), Outlet: 5" (127.00mm)
- Housing Material
- Stainless Steel (INOX) with galvanization coating
- Housing Color
- Silver/Metallic
- Product Length
- 23.8
- Product Width
- 14.7
- Product Height
- 15.8
- Weight
- 6.70 kg (14.77 lbs)
- Manufacturing Process
- Investment cast (lost wax technique) with CNC machining
- Expected Lifespan
- 10+ years (compared to cast iron originals)
- Warranty
- 3 years
- Other Technical Attributes
- Corrosion-resistant for marine environments
What’s in the Box
- 1 x Stainless Steel Exhaust Elbow (119574-13530INOX)
Installation Notes
- Ensure the engine is completely cool and disconnect the battery.
- Close the raw water seacock and drain the existing exhaust system.
- Carefully disconnect the hoses and remove the bolts securing the old exhaust elbow.
- Thoroughly clean the mating surface on the exhaust manifold, removing all old gasket material and debris.
- Place a new gasket (not included, sold separately) onto the manifold.
- Position the new stainless steel elbow and hand-tighten the mounting bolts.
- Torque the bolts to the engine manufacturer's specifications in a star or crisscross pattern.
- Reconnect all hoses and clamps securely.
- Open the seacock, reconnect the battery, and start the engine.
- Inspect carefully for any signs of exhaust or water leaks around the new elbow and connections.
Troubleshooting & FAQ
How do I know if this elbow is the correct fit for my engine?
This elbow is designed for Yanmar 6LY series engines. The best confirmation method is to match your existing part number to one of the numbers listed in our Part Number Matrix. Also, visually compare your current elbow to our product images and specifications before ordering.
What is the advantage of stainless steel over the original cast iron elbow?
Stainless steel offers significantly better resistance to corrosion and rust, especially in saltwater environments. This leads to a much longer expected lifespan (10+ years) compared to the original cast iron parts, which are prone to internal rusting and blockage over time.
How often should this part be inspected?
It is good practice to inspect the exhaust elbow annually for any signs of leaks, corrosion, or blockages as part of your regular engine maintenance schedule. While its lifespan is significantly longer than cast iron, preventative checks ensure optimal engine performance.
What are the signs of a failing exhaust elbow?
Common symptoms include engine overheating, steam in the exhaust, water leaks (either externally or internally into the cylinders), reduced engine power, and a visible increase in corrosion or rust on the elbow's exterior.
Is a gasket included with this elbow?
No, this product includes only the exhaust elbow as shown. We strongly recommend purchasing and installing a new, high-quality gasket to ensure a proper seal and prevent dangerous exhaust leaks.
Why is the elbow galvanized if it's already stainless steel?
The galvanization coating on the stainless steel provides an additional layer of protection against galvanic corrosion and harsh saltwater environments, further enhancing its durability and longevity.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 3-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
