Intake Manifold Gasket – Fits Yanmar 4LH/4LHA Series Marine Engines (Replaces 119100-12113)
Intake Manifold Gasket – Fits Yanmar 4LH/4LHA Series Marine Engines (Replaces 119100-12113) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Intake Manifold Gasket – Fits Yanmar 4LH/4LHA Series Marine Engines...
Product Details

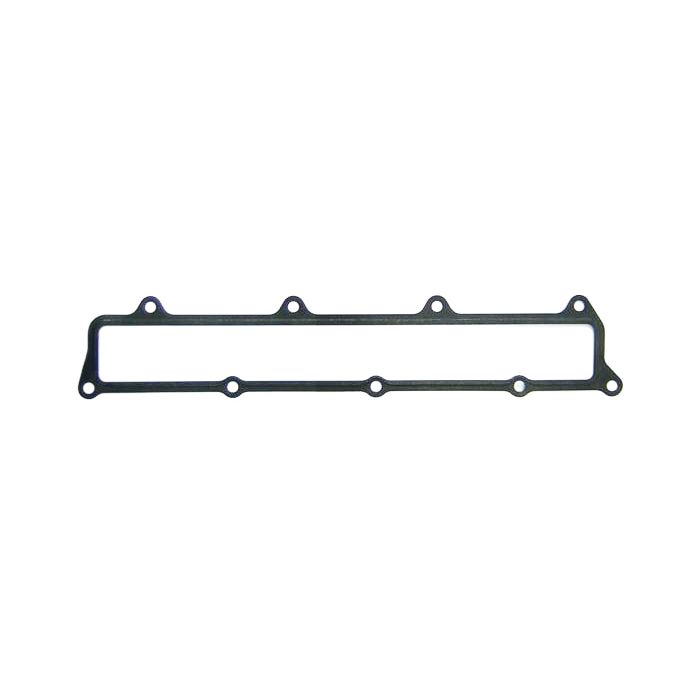

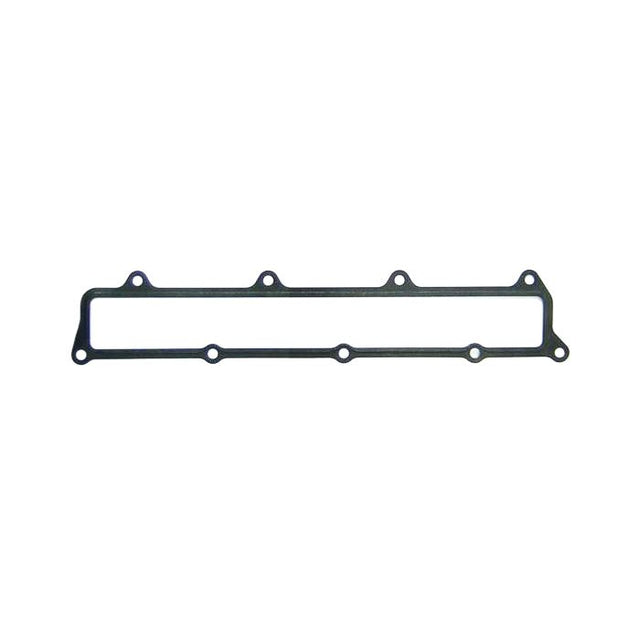

This high-temperature composite Intake Manifold Gasket is engineered to create a reliable seal between the intake manifold and engine block on Yanmar 4-stroke marine diesel engines. It is designed for a direct fit on Yanmar 4LH and 4LHA series engines, which typically range from 125–300 HP.
This component is a direct replacement for Yanmar part number 119100-12113.
- Designed for direct, hassle-free installation.
- Made from high-temperature resistant composite material for durability in marine diesel environments.
- Ensures a proper seal to prevent intake leaks and maintain engine performance.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yanmar | 119100-12113 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This gasket is designed exclusively for Yanmar marine engines listed in the compatibility chart.
| Brand | Model | Stroke | OEM Part No. |
|---|---|---|---|
| Yanmar | 4LH-DTE | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-DTZ | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-HT | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-HTE | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-HTZ | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-HTZAY | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-ST | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-STE | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-STZ | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-STZAY | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-TE | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-UT | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-UTZ | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-UTZAY | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-WST | 4-Stroke | 119100-12113 |
| Yanmar | 4LH-WSTZY | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-DTE | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-DTP | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-DTZE | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-DTZP | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-HTE | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-HTP | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-HTZE | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-HTZP | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-STE | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-STP | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-STZE | 4-Stroke | 119100-12113 |
| Yanmar | 4LHA-STZP | 4-Stroke | 119100-12113 |
Technical Specs
- Product Type
- Intake Manifold Gasket
- Installation
- Direct replacement
- Fuel Type
- Diesel
- Housing Material
- Composite
- Dimensions
- 44.0 cm (L) x 8.5 cm (W) x 0.1 cm (H)
- Weight
- 0.01 kg (0.022 lb)
- Function
- Seals between intake manifold and engine block
- Warranty
- Manufacturer's warranty against defects
- Other Technical Attributes
- High-temperature resistant
What’s in the Box
- 1 x Intake Manifold Gasket (119100-12113)
Installation Notes
- Disconnect the vessel's battery and close the raw water seacock.
- Drain the engine coolant to a level below the intake manifold.
- Carefully remove any components obstructing access to the intake manifold, then unbolt and remove the manifold itself.
- Thoroughly clean both the cylinder head and the manifold mating surfaces. Ensure all old gasket material and residue are gone.
- Position the new gasket, verifying it aligns correctly with all bolt holes and ports.
- Reinstall the intake manifold, tightening the bolts in the sequence and to the torque specified in your engine's service manual.
- Reconnect all components, refill the cooling system, and check for leaks after starting the engine.
Troubleshooting & FAQ
How do I confirm this gasket fits my exact engine?
This part fits all models in the Yanmar 4LH and 4LHA series. Please cross-reference your engine model with our compatibility table and verify against the OEM part number 119100-12113.
What are the signs of a failing intake manifold gasket?
Common symptoms include visible coolant leaks around the manifold, engine overheating, rough idling, or a loss of engine performance. A diagnostic check can confirm a leak.
Is this gasket reusable?
No. This is a single-use gasket. It is designed to crush and seal once. If the manifold is removed for any reason, the gasket must be replaced.
Do I need to use sealant with this gasket?
This gasket is designed to be installed dry. Applying sealant is generally not recommended unless explicitly specified by your engine's service manual for your specific model.
What is the recommended replacement interval?
Gaskets should be replaced whenever the intake manifold is removed for service or during a major engine overhaul. They do not have a fixed service hour interval but should be inspected for signs of degradation.
What is the difference between OEM and aftermarket parts?
This listing is an aftermarket replacement (not OEM). It's built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, it's batch-inspected for consistency and quality.
What are your shipping speed and cost?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
