Product Details

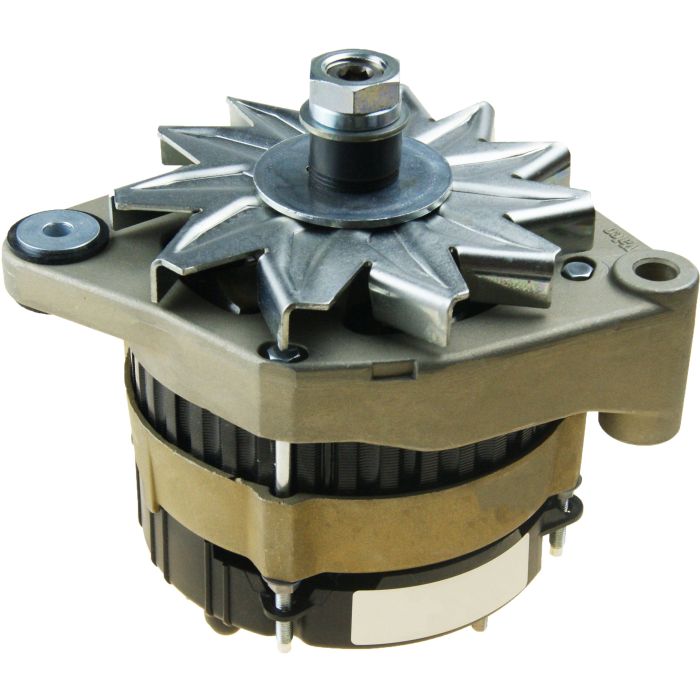

This high-quality 12V 60A Alternator – Fits Volvo Penta & Nanni Marine Engines (Replaces 873770, 48200932) is a direct replacement for a wide range of Volvo Penta diesel and gasoline models from 1963–2007, including D1, D2, MD, TMD, TAMD, KAD, and AQD series engines. It is also compatible with select Nanni diesel engines.
This alternator serves as a direct interchange for numerous part numbers from brands including Volvo Penta, Nanni, Champion, Valeo, and Paris Rhone, ensuring broad compatibility.
- Engineered for direct OEM replacement and installation.
- Features a standard tachometer terminal for instrument connection.
- Constructed from marine-grade aluminum for durability in harsh environments.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Volvo Penta | 873770 |
| Volvo Penta | 3803227 |
| Volvo Penta | 3803260 |
| Volvo Penta | 3803444 |
| Volvo Penta | 841765 |
| Volvo Penta | 856516 |
| Volvo Penta | 858838 |
| Volvo Penta | 872018 |
| Volvo Penta | 872019 |
| Volvo Penta | 872235 |
| Volvo Penta | 872926 |
| Volvo Penta | 873633 |
| Nanni | 48200932 |
| Champion | MA23 |
| Valeo | 2541451 |
| Valeo | 2541827C |
| Valeo | 436638 |
| Valeo | 436676 |
| Valeo | 439067 |
| Valeo | 439185 |
| Paris Rhone | A13N234 |
| Paris Rhone | A13N285M |
| Paris Rhone | A13N285N |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This alternator fits a comprehensive range of Volvo Penta diesel and gasoline engines. Please verify your specific model and original part number before ordering.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Volvo Penta | D1-20 | 20 | 4-Stroke | 2005–2007 | 873770 | Diesel |
| Volvo Penta | D1-30 | 30 | 4-Stroke | 2005–2007 | 873770 | Diesel |
| Volvo Penta | D2-40 | 40 | 4-Stroke | 2005–2007 | 873770 | Diesel |
| Volvo Penta | D2-55A | 55 | 4-Stroke | 2005–2007 | 873770 | Diesel |
| Volvo Penta | D2-75A | 75 | 4-Stroke | 2005–2007 | 873770 | Diesel |
| Volvo Penta | 2001, 2002, 2003 | Various | 4-Stroke | 1963–2007 | 873770 | Diesel |
| Volvo Penta | MD2010, MD2020, MD2030, MD2040 | Various | 4-Stroke | 1980–2007 | 873770 | Diesel |
| Volvo Penta | MD7, MD11, MD17 | Various | 4-Stroke | 1975–2000 | 873770 | Diesel |
| Volvo Penta | D21, D31, D32, D41, D42, D43, D44 | Various | 4-Stroke | 1975–2000 | 873770 | Diesel |
| Volvo Penta | D63, D71, D72, D73, D74, D75, D300 | Various | 4-Stroke | 1980–2007 | 873770 | Diesel |
| Volvo Penta | MD22A, MD22L-A, MD22L | Various | 4-Stroke | 1980–2000 | 873770 | Diesel |
| Volvo Penta | TMD22A, TMD22-A | Various | 4-Stroke | 1980–2000 | 873770 | Diesel |
| Volvo Penta | TAMD40B | Various | 4-Stroke | 1980–2000 | 873770 | Diesel |
| Volvo Penta | KAD44P-B-C, KAMD44P-A-C | Various | 4-Stroke | 1990–2005 | 873770 | Diesel |
| Volvo Penta | KAMD300-A, KAMD300-B, KAD300 | Various | 4-Stroke | 1990–2005 | 873770 | Diesel |
| Volvo Penta | KAD32, KAD43, KAMD43 | Various | 4-Stroke | 1990–2005 | 873770 | Diesel |
| Volvo Penta | AQD21A, AQD21B | Various | 4-Stroke | 1975–1990 | 873770 | Diesel |
| Volvo Penta | Various Petrol 4 cyl, V6, V8 models | Various | 4-Stroke | 1965–1998 | 873770 | Gasoline engines |
Also compatible with Nanni diesel engines that specify part number 48200932.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Nanni | NK2.4ECO | Various | 4-Stroke | 48200932 | Diesel |
| Nanni | NK2.50HE | 50 | 4-Stroke | 48200932 | Diesel |
| Nanni | NK3.100HE | 100 | 4-Stroke | 48200932 | Diesel |
| Nanni | NK3.75HE | 75 | 4-Stroke | 48200932 | Diesel |
| Nanni | NK4.150HE | 150 | 4-Stroke | 48200932 | Diesel |
| Nanni | NK4.200HE | 200 | 4-Stroke | 48200932 | Diesel |
| Nanni | NK4.220HE | 220 | 4-Stroke | 48200932 | Diesel |
| Nanni | NK5.250TDI | 250 | 4-Stroke | 48200932 | Diesel |
| Nanni | NK5.2800HE | 280 | 4-Stroke | 48200932 | Diesel |
Technical Specs
- Product Type
- Marine Alternator
- Installation
- Direct OEM Replacement
- Voltage
- 12V
- Amperage
- 60A
- Rotation
- Clockwise (CW)
- Pulley
- Without pulley (reuse existing or purchase separately)
- Regulator
- Internal
- Mounting Hole Distance
- 175 mm
- Overall Depth
- 125 mm (from fan face to back of body)
- Housing Material
- Marine-grade aluminum
- Terminal Type
- Standard marine electrical connections
- Other
- With tachometer terminal
- Product Dimensions
- 27 cm (L) x 27 cm (W) x 25 cm (H)
What’s in the Box
- 1 x Alternator (Replaces 873770/48200932)
Installation Notes
- Disconnect the battery terminals to prevent short circuits.
- Loosen the alternator belt tensioner and remove the serpentine belt.
- Disconnect the wiring harness and any other terminal connections from the old alternator.
- Remove the mounting bolts securing the old alternator and carefully lift it out.
- Compare the new alternator with the old one to ensure the mounting points and connections match.
- Install the new alternator, securing it with the original mounting bolts. Do not fully tighten yet.
- Reattach the wiring harness and terminal connections.
- Reinstall the pulley from your old unit onto the new alternator if required.
- Install and tension the serpentine belt according to manufacturer specifications.
- Tighten all mounting bolts to the correct torque.
- Reconnect the battery terminals and start the engine to test the new alternator's function.
Troubleshooting & FAQ
How do I know if this alternator fits my engine?
The best way to ensure compatibility is to match your original part number to one listed in our Part Number Matrix. You should also check our Engine & Model Compatibility tables for your specific engine model and production year. Pay close attention to mounting points and electrical connections.
Does this alternator come with a pulley?
No, this alternator is sold without a pulley. You will need to reuse your existing pulley or purchase a compatible one separately (such as Volvo Penta part 841812 or 841813).
What are the signs of a failing alternator?
Common signs include dimming dashboard lights, a battery warning light on your console, a weak or dead battery that won't hold a charge, or a grinding/whining noise coming from the engine bay.
Some parts are listed as 61A, but this is 60A. Will it work?
Yes. This 60A alternator is a direct replacement for parts listed as 60A or 61A. The minor difference in amperage does not affect performance or compatibility for the listed engine applications.
What is the "W" or tachometer terminal for?
The tachometer terminal is a connection point used to send a signal to your boat's tachometer (RPM gauge). This alternator includes one for vehicles that require this type of connection.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
