Ball Bearing – Fits Yamaha F2.5 2-Stroke Outboard (Replaces 93316-0...
Product Details

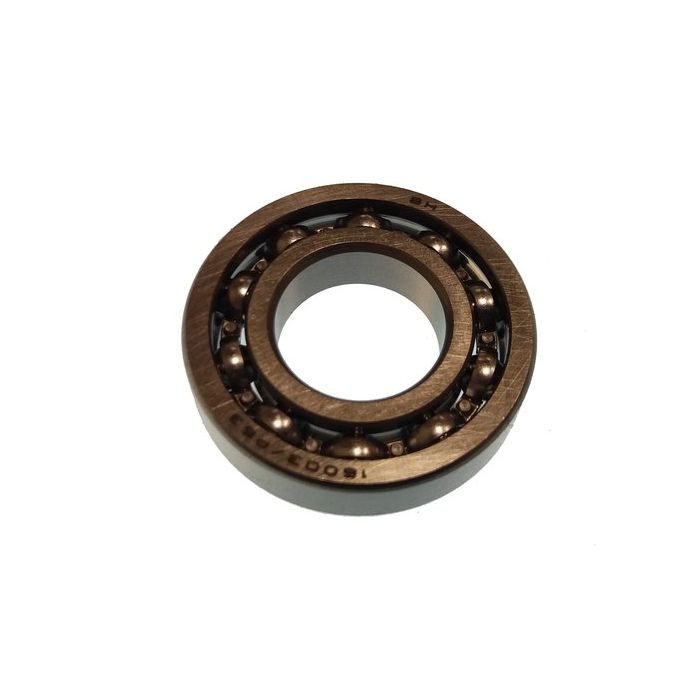

This high-quality aftermarket Ball Bearing is designed to fit Yamaha F2.5 series 4-stroke outboard engines from 2003 to present. Engineered to meet Japanese Industrial Standard 6003JP, it ensures reliable performance within the lower casing drive assembly.
It serves as a direct replacement for Yamaha part numbers 93316-003Y0-00 and 93316003Y000, and is also cross-referenced to Parsun equivalents PANTN16003EY and GB/T276-62/22/P6.
- Installation Method: Press-fit
- Material: Durable Steel Construction
- Standard: Conforms to Japanese Industrial Standard 6003JP
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 93316-003Y0-00 |
| Yamaha | 93316003Y000 |
| Parsun | PANTN16003EY |
| Parsun | GB/T276-62/22/P6 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This bearing is verified for select Yamaha F2.5 HP models (2003+) located in the Lower Casing Drive 1 assembly.
It is also a compatible fit for several Parsun F2.5 HP models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F2.5MSHB | 2.5 | 4-Stroke | 2003+ | 93316-003Y0 | Lower Casing Drive 1 |
| Yamaha | F2.5MSH | 2.5 | 4-Stroke | 2003+ | 93316-003Y0 | Lower Casing Drive 1 |
| Yamaha | F2.5MSHC | 2.5 | 4-Stroke | 2004+ | 93316-003Y0 | Lower Casing Drive 1 |
| Yamaha | F2.5MSHD | 2.5 | 4-Stroke | 2005+ | 93316-003Y0 | Lower Casing Drive 1 |
| Yamaha | F2.5LMHA | 2.5 | 4-Stroke | 2003+ | 93316-003Y0 | Lower Casing Drive 1 |
| Yamaha | F2.5LMHB | 2.5 | 4-Stroke | 2003+ | 93316-003Y0 | Lower Casing Drive 1 |
| Yamaha | F2.5SMHA | 2.5 | 4-Stroke | 2003+ | 93316-003Y0 | Lower Casing Drive 1 |
| Yamaha | F2.5SMHB | 2.5 | 4-Stroke | 2003+ | 93316-003Y0 | Lower Casing Drive 1 |
| Parsun | F2.5AMH | 2.5 | 4-Stroke | 2003+ | GB/T276-62/22/P6 | Compatible |
| Parsun | F2.5MLH | 2.5 | 4-Stroke | 2003+ | GB/T276-62/22/P6 | Compatible |
| Parsun | F2.5MSH | 2.5 | 4-Stroke | 2003+ | GB/T276-62/22/P6 | Compatible |
| Parsun | F2.5MHA | 2.5 | 4-Stroke | 2003+ | GB/T276-62/22/P6 | Compatible |
Technical Specs
- Product Type
- Ball Bearing
- Installation
- Press-fit
- Housing Material
- Steel
- Housing Color
- Silver/Metallic
- Fitting Type
- Internal
- Other Technical Attributes
- Japanese Industrial Standard 6003JP
- Product Dimensions
- 4.0" (L) x 2.0" (W) x 3.4" (H)
- Box Dimensions
- 4.0" (L) x 2.0" (W) x 3.4" (H)
What’s in the Box
- 1 x Ball Bearing (93316-003Y0)
Installation Notes
- Disconnect the engine's battery and spark plug wire for safety.
- Drain the gearcase oil from the lower unit.
- Disassemble the lower unit to access the drive assembly, following your service manual's instructions.
- Use an appropriate bearing puller to carefully remove the old bearing from its housing. Avoid damaging the housing surface.
- Thoroughly clean the bearing seat and surrounding area to remove any debris or metal shavings.
- Using a press or certified bearing installation tool, evenly press the new bearing into place until it is fully seated. Do not use a hammer directly on the bearing.
- Reassemble the lower casing drive components.
- Reassemble the lower unit, replace seals, and refill with fresh gearcase oil to the correct level.
- Reconnect the spark plug and battery, then test the engine at low RPMs to ensure smooth operation.
Troubleshooting & FAQ
How do I confirm this bearing is the right part for my motor?
Verify your engine's model and year against our compatibility table. The surest method is to match the part number (93316-003Y0) with the one in your engine's service manual or on the original part itself.
What are common signs of a failing lower unit bearing?
Symptoms often include a grinding or whining noise from the gearcase, excessive vibration felt through the tiller or hull, or finding metal shavings (especially large or numerous ones) in the gear oil during a change.
Is this a sealed bearing?
Given its placement in the lower casing drive assembly, this bearing is designed to be lubricated by the gearcase oil. It is not a self-contained, pre-greased sealed unit.
Can I install this bearing myself?
This repair requires specialized tools, such as a bearing press and pullers, to avoid damaging the component and housing. For a safe and reliable repair, professional installation is strongly recommended.
How is an aftermarket part different from OEM?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
What are your shipping speed and cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is the warranty and return policy?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
