Bearing 93306-00519 – Fits Yamaha 5-20HP (Replaces 93306-00519-00)
Product Details

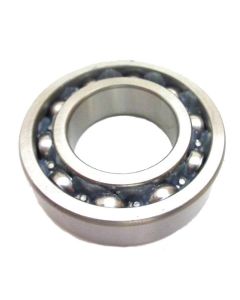

This is an aftermarket Bearing 93306-00519, engineered for various crankshaft and driveshaft applications in Yamaha engines. It fits a wide range of Yamaha 5-20HP 2-Stroke (1982–2020) and 8-20HP 4-Stroke (1984–2017) outboard motors, as well as select motorcycles, ATVs, and snowmobiles.
This part directly replaces Yamaha OEM part numbers 93306-00519-00, 93306-005Y8-00, 93306-00518-00, 93306-00510-00, and 93306-00506-00.
- Engineered for press-fit installation.
- Constructed from high-strength steel for durability.
- Features a C3 clearance rating for high-speed engine applications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket parts.
| Brand | Part Number | Superseded By |
|---|---|---|
| Yamaha | 93306-00506-00 | 93306-00519-00 |
| Yamaha | 93306-00510-00 | 93306-00519-00 |
| Yamaha | 93306-00518-00 | 93306-00519-00 |
| Yamaha | 93306-005Y8-00 | 93306-00519-00 |
| Yamaha | 93306-00519-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This bearing fits a variety of Yamaha outboard motors. Please verify your model and year range for correct fitment.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | YT60L, TRI ZINGER YT60N, 4 ZINGER YF60S | 5-8 | 2-Stroke | 1984–1986 | 93306-00519-00 | Used in rear wheel |
| Yamaha | BADGER YFM80N | 5-8 | 2-Stroke | 1985 | 93306-00519-00 | Used in drive shaft |
| Yamaha | E8D, E8DMH, E8DMHL, E8DMHS | 8 | 2-Stroke | 1984–2017 | 93306-00519-00 | |
| Yamaha | F8BM, F8AM | 8 | 4-Stroke | 1986–1989 | 93306-00519-00 | |
| Yamaha | FT8D, FT8DEL, FT8DEPL, FT8DEX | 8 | 4-Stroke | 2001–2013 | 93306-00519-00 | Thrust model |
| Yamaha | CV80 RIVA 80 | 9.9 | 2-Stroke | 1983–1987 | 93306-00519-00 | Used in clutch |
| Yamaha | SV80 SNOSCOOT (Standard & Electric Start) | 9.9 | 2-Stroke | 1988–1990 | 93306-00519-00 | Used in clutch, snowmobile application |
| Yamaha | 9.9D, F9.9A, F9.9B | 9.9 | 2 & 4-Stroke | 1984–2001 | 93306-00519-00 | |
| Yamaha | FT9.9A | 9.9 | 4-Stroke | 1998–2001 | 93306-00519-00 | Thrust model |
| Yamaha | F13.5A, F13.5AMHL, F13.5AMHS | 13.5 | 4-Stroke | 2002–2009 | 93306-00519-00 | |
| Yamaha | 15D, F15A, F15B, F15C | 15 | 2 & 4-Stroke | 1984–2017 | 93306-00519-00 | Various trim/control configurations |
| Yamaha | FJR1300, FJR1300A, FJR1300ES | 15-20 | 4-Stroke | 2003–2020 | 93306-00519-00 | Used in middle drive gear, motorcycle application |
| Yamaha | F20B, F20BEHPL, F20BEL, F20BMHS | 20 | 4-Stroke | 2007–2017 | 93306-00519-00 | |
| Yamaha | YXZ1000R EPS | 20 | 4-Stroke | 2016–2020 | 93306-00519-00 | Used in middle drive gear, ATV/side-by-side application |
This bearing is also used in various Yamaha motorcycles, ATVs, and snowmobiles as detailed below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | XJ700 MAXIM, MAXIM X | 4-Stroke | 1985–1986 | 93306-00519-00 | Used in middle drive gear | |
| Yamaha | SR250, SR500, TT500, TX500 | 4-Stroke | 1973–1981 | 93306-00519-00 | ||
| Yamaha | DS6, YL1 | 2-Stroke | 1966–1970 | 93306-00519-00 | ||
| Yamaha | RAPTOR YFM700 | 4-Stroke | 2006–2020 | 93306-00519-00 | ATV | |
| Yamaha | PZ50 PHAZER/VENTURE | 4-Stroke | 2007–2017 | 93306-00519-00 | Snowmobile |
Technical Specs
- Product Type
- Ball Bearing
- Bearing Type
- 6005
- Clearance Rating
- C3
- Housing Material
- Steel
- Housing Color
- Silver/Metallic
- Dimensions
- 25mm ID × 47mm OD × 12mm Width
- Weight
- 0.4 kg (0.88 lbs)
- Installation
- Press-fit
What’s in the Box
- 1 x Bearing (Replaces 93306-00519-00)
Installation Notes
- Thoroughly clean the housing and shaft before installation to remove any dirt or debris.
- Use a suitable bearing press or a driver tool that matches the bearing race diameter.
- When pressing the bearing into a housing, apply force only to the outer race. When fitting onto a shaft, apply force only to the inner race.
- Never strike the bearing directly with a hammer, as this can cause permanent damage.
- Ensure the bearing is seated squarely and fully into its housing or onto its shaft.
Troubleshooting & FAQ
How do I confirm this bearing fits my specific model?
The most reliable method is to cross-reference the OEM part number from your engine's service manual. If your manual lists 93306-00519-00 as the required part, this bearing is a direct replacement. You can also check the detailed compatibility tables on this page.
What are the signs of a failing driveshaft or crankshaft bearing?
Symptoms of a worn bearing include a grinding or rumbling noise from the engine or lower unit, excessive vibration during operation, or noticeable looseness (play) in the associated shaft.
Can I install this bearing myself, or do I need a mechanic?
Installation requires specialized tools, including a bearing press and appropriate drivers, to ensure it is seated correctly without causing damage. To guarantee safety and performance, professional installation is strongly recommended.
What does the C3 clearance rating mean?
A C3 rating signifies that the bearing has slightly more internal clearance than a standard bearing. This extra space accommodates thermal expansion, making it ideal for high-speed and high-temperature environments found in many engine applications.
Is this an original Yamaha part?
This listing is for a high-quality aftermarket replacement, not an original equipment manufacturer (OEM) part. It is engineered to meet or exceed OEM specifications for fit, material, and performance and is produced in an ISO 9002 certified facility.
What are the shipping speed and cost?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is the warranty and return policy?
This part is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
