Bearing, Wrist Pin – Fits Johnson/Evinrude 120-300hp (Replaces 434844, 348495, 18-1298)

$0.00

Shipping calculated at checkout.

Bearing, Wrist Pin – Fits Johnson/Evinrude 120-300hp (Replaces 434844, 348495, 18-1298) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This is a high-quality aftermarket Bearing, Wrist Pin designed for a broad range of Johnson/Evinrude V4, V6, and V8 90-degree looper engines. It fits various 2-Stroke (including FFI, DI) and E-Tec models from 120hp to 300hp, covering model years from 1985 to 2012.

This component is a direct interchange for Johnson/Evinrude part numbers 434844 and 348495, as well as aftermarket equivalent 18-1298.

Designed for gasoline-fueled, 2-Stroke marine engines.
Fits V4, V6, and V8 90-degree looper models.
Caged design offers an easier installation alternative to loose needle bearings.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Notes
Johnson/Evinrude	434844	Supersedes 348495
Johnson/Evinrude	348495	Original Part
Aftermarket	18-1298	Interchange Part

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Fits a wide array of Johnson/Evinrude 2-Stroke engines, including standard carbureted, FFI, DI, and E-Tec variants from 1985 through 2012.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Johnson/Evinrude	All	120	2-Stroke	1985–1989	434844	Original Part
Johnson/Evinrude	All	140	2-Stroke	1985–1998	434844	Original Part
Johnson/Evinrude	All (FFI, DI)	200	2-Stroke	1985–2004	434844	Original Part
Johnson/Evinrude	E-Tec (90-deg)	200	2-Stroke	2005–2012	434844	Original Part
Johnson/Evinrude	E-Tec	225	2-Stroke	2005–2012	434844	Original Part
Johnson/Evinrude	All (DI)	250	2-Stroke	2001–2005	434844	Original Part
Johnson/Evinrude	E-Tec (3.3L)	250	2-Stroke	2005–2012	434844	Original Part
Johnson/Evinrude	All	275	2-Stroke	1985–1997	434844	Original Part
Johnson/Evinrude	All	300	2-Stroke	1985–1997	434844	Original Part
Johnson/Evinrude	E-Tec	300	2-Stroke	2008–2012	434844	Original Part

Technical Specs

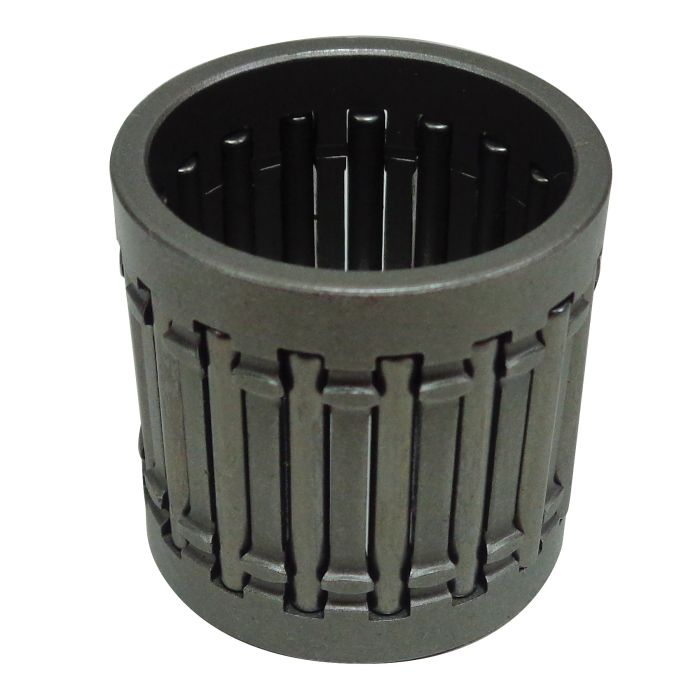

Product Type: Bearing, Wrist Pin (Caged)
Fuel Type: Gasoline
Other Attributes: Fits V4/V6, V8 90-degree looper models; Can be used as an easier installation alternative to loose needles.
Product Dimensions: 6.0 in (H) x 7.13 in (W) x 0.75 in (L)

What’s in the Box

1 x Wrist Pin Bearing (Replaces 434844 / 348495)

Installation Notes

Professional installation is recommended. These are general, non-specific guidelines for replacing a wrist pin bearing:

Safely disconnect the battery and all fuel lines before beginning work.
Disassemble the engine block as required to gain access to the cylinder, piston, and connecting rod assembly.
Carefully remove the wrist pin retaining clips (circlips) from the piston.
Press the old wrist pin out of the piston and connecting rod to remove the old bearing.
Thoroughly clean and inspect the piston bore and connecting rod small end for any signs of scoring, wear, or damage.
Generously lubricate the new caged wrist pin bearing with fresh 2-stroke oil.
Install the new bearing into the connecting rod's small end.
Align the piston with the connecting rod and gently press the lubricated wrist pin through both components until centered.
Install new wrist pin retaining clips, ensuring they are fully seated in their grooves.
Reassemble the engine according to the manufacturer's service manual, paying close attention to all torque specifications.

Troubleshooting & FAQ

How do I know if my wrist pin bearing is failing?

Common signs of a worn wrist pin bearing include a distinct metallic knocking or rattling sound from the engine, especially under load or during RPM changes. A noticeable loss of power, increased engine vibration, or metal shavings in the oil can also indicate a problem.

Is this caged bearing a direct replacement for loose needle bearings?

Yes, this caged wrist pin bearing is designed as a direct, easier-to-install alternative to loose needle bearings for the specified engine models. The cage prevents individual needles from falling out during the assembly process.

What is the difference between part numbers 434844 and 348495?

Part number 348495 was the original part number, which was later superseded by 434844. They are functionally identical, and this aftermarket part is a direct replacement for both OEM numbers.

When should a wrist pin bearing be replaced?

Wrist pin bearings do not have a fixed service interval and are typically replaced during a top-end service or a complete engine rebuild. Replacement should be considered if the engine has high hours or if signs of wear are present during inspection.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
