CDI Ignition Module – Fits Yamaha 2-Cylinder 6-8 HP Outboards (Repl...
Product Details

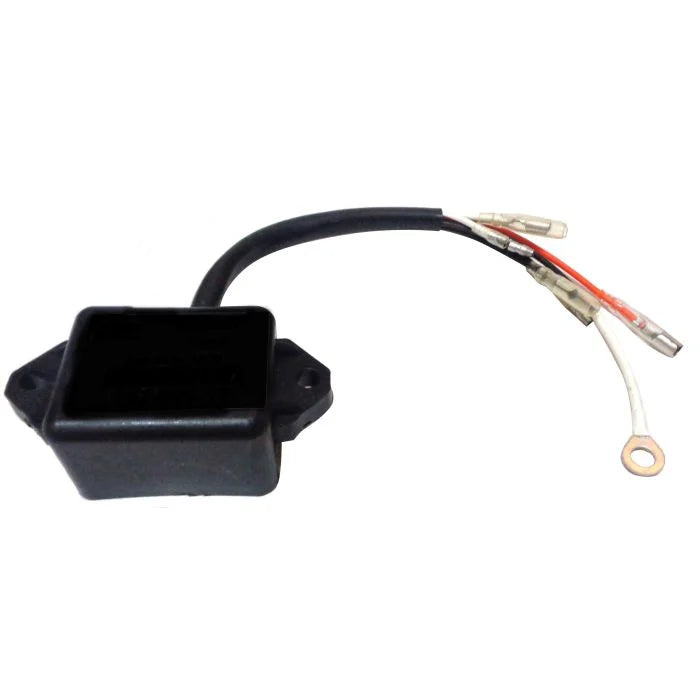

This aftermarket CDI Ignition Module (Power Pack) is designed for a wide range of Yamaha 6-8 HP 2-stroke outboard engines manufactured between 1984 and 2004. It also fits select Yamaha 48 HP models (1995-2000) and some Mariner-branded engines. It serves as a reliable replacement for failed or underperforming ignition components, restoring spark and engine timing.
This unit directly replaces Yamaha OEM part numbers 696-85540-10-00, 696-85540-11-00, and 696-85540-12-00, as well as Mercury Marine 41305M and CDI Electronics 117-696-12.
- Engineered for direct plug-and-play installation.
- Features a durable, epoxy-sealed housing to protect electronics from moisture and vibration.
- Manufactured by CDI Electronics (USA) and includes a 2-year warranty.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 696-85540-10-00 |
| Yamaha | 696-85540-11-00 |
| Yamaha | 696-85540-12-00 |
| Mercury Marine | 41305M |
| CDI Electronics | 117-696-12 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Fits various 2-cylinder Yamaha outboard models from 6 HP to 8 HP, plus select 48 HP versions.
Also compatible with certain Mariner outboards using Mercury parts; verify your engine corresponds to the listed cross-reference numbers.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Yamaha | 6 HP (LD, LF, LG, LK, LN, ML, MS, SD, SF, SG, SK, SN) | 6 | 2-Stroke | 1986–1995 | 696-85540-12-00 |
| Yamaha | 6 HP (MS, ML) | 6 | 2-Stroke | 1996–2000 | 696-85540-12-00 |
| Yamaha | 8 HP (SN, LN, SK, LK, LJ, SJ, SH, LH, SG, LG, LF, SF, LD, SD, MS, ML) | 8 | 2-Stroke | 1984–2004 | 696-85540-12-00 |
| Yamaha | 48 HP (E48) | 48 | 2-Stroke | 1995–2000 | 696-85540-12-00 |
| Mariner | Various models | 6-8 | 2-Stroke | 1986–1999 | 41305M |
Technical Specs
- Product Type
- CDI Ignition Module (Power Pack)
- Installation
- Direct replacement; plug and play
- Housing Material
- Epoxy-sealed electronic module
- Housing Color
- Black
- Dimensions
- 9.5" L x 11.0" W x 6.5" H
- Warranty
- 2 years (when manufactured by CDI Electronics)
- Application
- 2-cylinder ignition systems
- Manufacturer
- CDI Electronics (USA) / Replaces OEM
What’s in the Box
- 1 x CDI Module (696-85540-12-00)
Installation Notes
- Ensure the engine is off and the battery is disconnected before starting.
- Locate the existing CDI module. Take a photo or label the wiring connections for reference.
- Carefully disconnect the wiring harness and remove the mounting bolts securing the old module.
- Mount the new CDI module in the same location, ensuring it is secure.
- Reconnect the wiring harness to the new module, matching the original configuration.
- Reconnect the battery and test the engine in a safe, well-ventilated area.
Troubleshooting & FAQ
How do I know if my CDI module has failed?
Common signs of a faulty CDI module include no spark, intermittent spark, engine misfiring, hard starting, or a complete failure to start. You can test the existing module with a multimeter by checking its resistance values against the specifications in your service manual.
Is this a direct plug-and-play replacement?
Yes, this module is designed for a direct fit and uses the same connectors as the original OEM part, requiring no modification for installation.
Will this fit my 4-stroke engine?
No, this particular module is specifically designed for the 2-stroke, 2-cylinder ignition systems listed in the compatibility table.
What is the difference between this part and the original Yamaha part?
This is an aftermarket part manufactured by CDI Electronics, a leading name in marine ignition. It is built to meet or exceed OEM specifications for performance and reliability but at a more accessible price point.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
