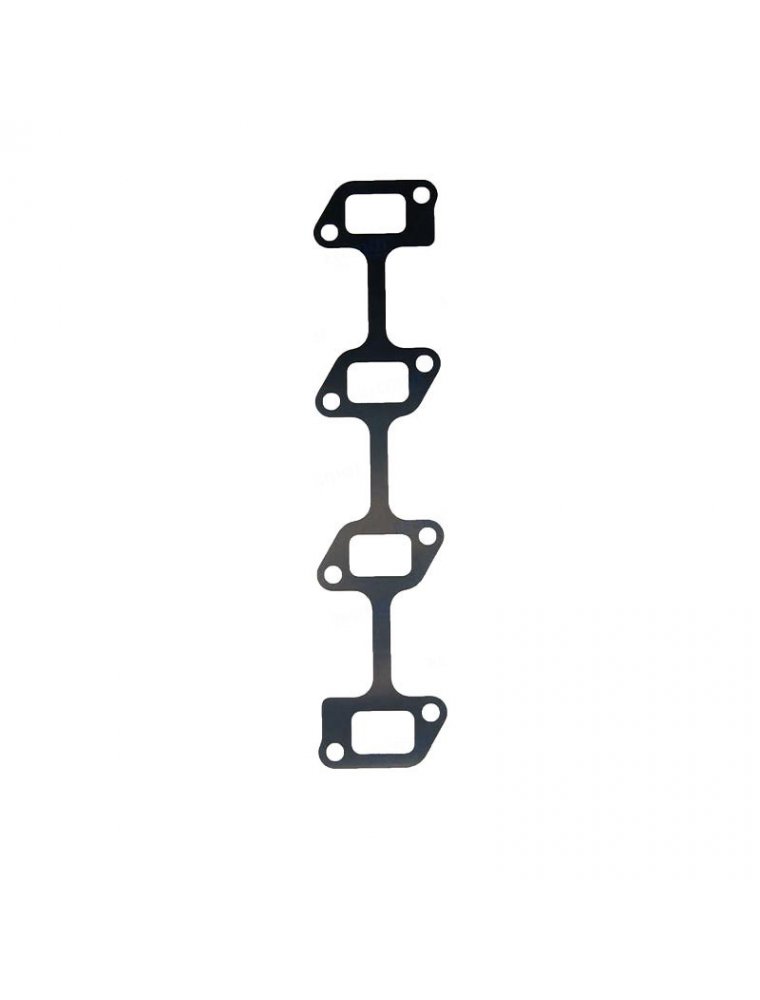

Exhaust Manifold Gasket – Fits Yanmar 4JH Series Marine Diesel Engines (Replaces 129550-13110)
Exhaust Manifold Gasket – Fits Yanmar 4JH Series Marine Diesel Engines (Replaces 129550-13110) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Exhaust Manifold Gasket – Fits Yanmar 4JH Series Marine Diesel Engi...
Product Details
This high-quality Exhaust Manifold Gasket – Fits Yanmar 4JH Series Marine Diesel Engines (Replaces 129550-13110) creates a secure seal between the exhaust manifold and the cylinder head. It is designed for a precise fit on a wide range of 4-cylinder Yanmar marine diesel engines from 2000 to present, including the 4JH, 4JH2, 4JH3, 4JH4, and 4JH5 series. It is also compatible with select Yanmar industrial engines and tractors.
This gasket is a direct replacement for Yanmar part number 129550-13110 and aftermarket equivalent AM129550-13110, ensuring a perfect match for your repair or maintenance needs.
- Installation Method: Direct replacement for a straightforward fit.
- Operating Environment: Engineered for high-temperature diesel exhaust applications.
- Included Components: Comes with one exhaust manifold gasket.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yanmar | 129550-13110 |
| Aftermarket | AM129550-13110 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This gasket is designed for various Yanmar marine engines, industrial engines, and tractors. Please check your specific model for compatibility.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Yanmar | 4JH, 4JH-HTZ, 4JH-HTZAE, 4JH-TZ | 4-Stroke | 2000–present | 129550-13110 | |
| Yanmar | 4JH2-DTE, 4JH2E, 4JH2-HTE, 4JH2-TE, 4JH2-UTE | 4-Stroke | 2000–present | 129550-13110 | |
| Yanmar | 4JH3, 4JH3E, 4JH3-CE, 4JH3-ZA, 4JH3-TCE, 4JH3-TE, 4JH3-DTE, 4JH3-HTE | 4-Stroke | 2000–present | 129550-13110 | |
| Yanmar | 4JH4E, 4JH4AE | 4-Stroke | 2000–present | 129550-13110 | |
| Yanmar | 4JH5E | 4-Stroke | 2000–present | 129550-13110 | |
| Yanmar | 4JH45 | 45 | 4-Stroke | 2000–present | 129550-13110 |
| Yanmar | 4JH57 | 57 | 4-Stroke | 2000–present | 129550-13110 |
| Yanmar | 4JH80 | 80 | 4-Stroke | 2000–present | 129550-13110 |
| Yanmar | 4JH110 | 110 | 4-Stroke | 2000–present | 129550-13110 |
| Yanmar | 4LH-DTE | 4-Stroke | 2000–present | 129550-13110 | |
| Yanmar | 4LHA-DTP, 4LHA-HTP, 4LHA-STP | 4-Stroke | 2000–present | 129550-13110 | |
| Yanmar | 4LV150, 4LV195, 4LV230, 4LV250 | 150-250 | 4-Stroke | 2000–present | 129550-13110 |
| Brand | Model | OEM Part No. |
|---|---|---|
| Yanmar | 3TNE84, 3TNE68 | 129550-13110 |
| Yanmar | 4TNE84T, 4TNE88 | 129550-13110 |
| Yanmar | 4TNV88-BDHQ, 4TNV88-BDHQ(T), 4TNV88-BDSA | 129550-13110 |
| Yanmar | 4TNV88-BDSA(T), 4TNV88-BDSAC, 4TNV88-BDSA2 | 129550-13110 |
| Yanmar | 4TNV88-BDSA2T, 4TNV88-BDWI, 4TNV88-BDYE | 129550-13110 |
| Yanmar | 4TNV88-BNYE883, 4TNV88-BNYE883T, 4TNV88-BPHB | 129550-13110 |
| Yanmar | 4TNV88-GNP, 4TNV88-XMS | 129550-13110 |
| Brand | Model | OEM Part No. |
|---|---|---|
| Yanmar | FX26, FX28, FX32, FX42 | 129550-13110 |
| Yanmar | FX285, FX305, FX335, FX435 | 129550-13110 |
Technical Specs
- Product Type
- Exhaust Manifold Gasket
- Installation
- Direct replacement
- Fuel Type
- Diesel
- Housing Material
- Composite/Fiber
- Dimensions
- 32.0 × 7.0 × 0.1 inches (812.8 × 177.8 × 2.54 mm)
- Operating Temperature
- Rated for high-temperature exhaust applications
What’s in the Box
- 1 x Exhaust Manifold Gasket (Replaces 129550-13110)
Installation Notes
- Ensure the engine is completely cool and disconnect the battery.
- Drain the engine coolant to below the level of the exhaust manifold.
- Carefully disconnect any sensors or hoses attached to the manifold.
- Remove the mounting bolts and detach the old exhaust manifold and gasket.
- Thoroughly clean both the cylinder head and manifold mating surfaces. Remove all old gasket material and carbon deposits.
- Position the new gasket onto the cylinder head, aligning it with the bolt holes.
- Reinstall the exhaust manifold and tighten the bolts in the sequence and to the torque specifications recommended by the manufacturer.
- Reconnect all sensors and hoses.
- Refill the cooling system.
- Reconnect the battery, start the engine, and carefully check for any exhaust or coolant leaks around the manifold.
Troubleshooting & FAQ
How do I know if my exhaust manifold gasket is failing?
Common signs of a bad gasket include loud ticking or tapping noises from the engine bay (especially when cold), a noticeable decrease in engine performance and fuel efficiency, the smell of exhaust fumes in the cabin or engine bay, and visible soot or black marks around the manifold mating area.
Is this gasket compatible with turbocharged Yanmar engines?
Yes, this gasket is compatible with many turbocharged Yanmar 4JH series engines, such as the 4JH-HTZ, 4JH2-DTE, and 4JH3-TCE models. Always verify your specific model in our compatibility list before ordering.
Does this gasket require any sealant during installation?
No, this gasket is designed to be installed dry. Applying sealants can interfere with the seal and may cause premature failure. Always install on clean, dry, and flat surfaces.
What is the recommended replacement interval?
There is no fixed replacement interval for an exhaust manifold gasket. It should be replaced whenever the manifold is removed or if signs of a leak are detected. It is a good practice to replace it during any major engine overhaul.
Will this fit my Yanmar industrial engine model 4TNV88-B?
Yes, our compatibility list includes several variations of the 4TNV88 engine, such as the 4TNV88-BDHQ and 4TNV88-BDSA. Please check the full model number as fitment can be very specific.
What is the difference between OEM and this aftermarket part?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials and performance. Our parts are manufactured in an ISO 9002 facility and are batch-inspected for quality and consistency.
What are your shipping speed and cost?
We ship worldwide quickly—typical transit time is 5–15 days. Standard shipping is free to most regions, with expedited options available at checkout where applicable.
What is the warranty and return policy?
This part is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter any issues, please contact our support team with your order details. Returns are accepted within our standard window for items that are unused and in their original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
