Product Details
This Sea Sierra Whale Tail Hydrofoil Stabilizer is designed for 8-40 HP outboard motors, compatible with both 2-stroke and 4-stroke engines. It enhances performance by improving handling, providing better maneuverability, cutting planing time, and helping maintain plane at lower speeds. This hydrofoil is a direct mount to the anti-cavitation plate and is constructed from UV-resistant marine-grade nylon.
This part directly replaces SeaSierra FO2002, NorthBoat FO2003, SE Sport SE200, StingRay Classic JR2, and UanofCn FO2002.
- Installation is a bolt-on process that requires drilling.
- Made from high-strength, UV-resistant Marine Grade Nylon PA66 Plastic.
- Package includes all necessary stainless steel mounting hardware and a drill bit.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| SeaSierra | FO2002 |
| NorthBoat | FO2003 |
| SE Sport | SE200 |
| StingRay | Classic JR2 |
| UanofCn | FO2002 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Yamaha | Outboards | 8-40 | 2- & 4-Stroke | FO2002 | |
| Mercury | Outboards | 8-40 | 2- & 4-Stroke | FO2002 | Except Mercury 40, 50, 60 four strokes |
| Johnson | Outboards | 8-40 | 2- & 4-Stroke | FO2002 | |
| Evinrude | Outboards | 8-40 | 2- & 4-Stroke | FO2002 | |
| Honda | Outboards | 8-40 | 2- & 4-Stroke | FO2002 | |
| Suzuki | Outboards | 8-40 | 2- & 4-Stroke | FO2002 | |
| Tohatsu | Outboards | 8-40 | 2- & 4-Stroke | FO2002 |
Note: Will also fit most outboards and stern drives larger than 40 HP except Mercury 40, 50, and 60 four strokes. There are also some smaller outboards (down to 4 HP) that it will fit.
Technical Specs
- Product Type
- Whale Tail Hydrofoil Stabilizer
- Installation
- Bolt-on (requires drilling)
- Connection
- Direct mount to anti-cavitation plate
- Housing Material
- Marine Grade Nylon PA66 Plastic
- Housing Color
- Blue
- Dimensions
- 13.39" × 13.7" (340mm × 348mm)
- Weight
- 2.94 lbs (1.33 kg)
- Fitting Type
- Bolted with provided hardware
- Warranty
- 30-day Amazon return policy
- Other Technical Attributes
- UV-resistant reinforced material
What’s in the Box

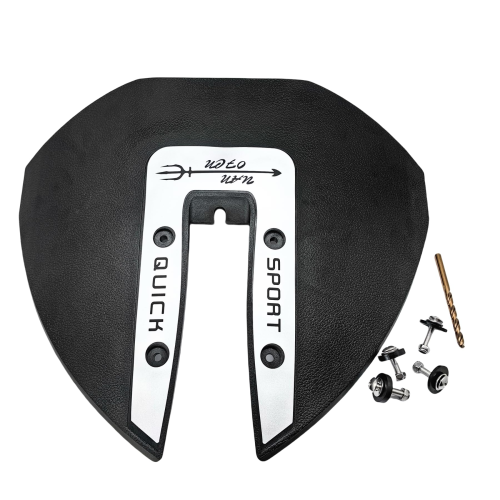

- 1 x Hydrofoil Stabilizer (FO2002)
- 4 x Sets of Stainless Steel Screws and Nuts
- 1 x 6.5mm Drill Bit
- 1 x Installation Instruction
Installation Notes
- Ensure the engine is off and the battery is disconnected for safety.
- Position the hydrofoil onto the anti-cavitation plate, ensuring it is centered and level.
- Use a marker to carefully mark the positions for the four mounting holes through the hydrofoil.
- Remove the hydrofoil and use the provided 6.5mm drill bit to drill the marked holes through the cavitation plate.
- Place the hydrofoil back onto the plate, aligning it with the newly drilled holes.
- Insert the stainless steel screws from the top and secure them with the nuts from the bottom. Tighten all hardware evenly.
- Double-check that the hydrofoil is secure and does not move before reconnecting the battery and operating the engine.
Troubleshooting & FAQ
Will this fit my 15 HP outboard?
Yes, this hydrofoil is specifically designed for outboards in the 8-40 HP range, making it an ideal fit for a 15 HP motor. It will also fit some engines as small as 4 HP.
Is drilling required for installation?
Yes, this is a bolt-on hydrofoil that requires drilling four holes into your outboard's anti-cavitation plate. All necessary stainless steel mounting hardware and the correct size drill bit are included in the package.
Will this fit a Mercury 40 HP four-stroke engine?
No. The compatibility notes specifically state that this hydrofoil will not fit Mercury 40, 50, and 60 HP four-stroke models, despite fitting most other outboards in the 8-40 HP range.
What performance benefits can I expect?
This hydrofoil is designed to help your boat get on plane faster, stay on plane at lower speeds (improving fuel efficiency), and enhance overall handling and maneuverability by providing greater stern lift and stability.
What is the hydrofoil made of?
It is constructed from a high-strength, durable Marine Grade Nylon PA66 plastic, which is reinforced and UV-resistant to withstand harsh marine environments.
When should I consider replacing my hydrofoil?
Inspect your hydrofoil regularly for any signs of cracking, significant warping, or physical damage from impacts. If you notice a decline in the performance benefits it once provided, it may be time for a replacement.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
