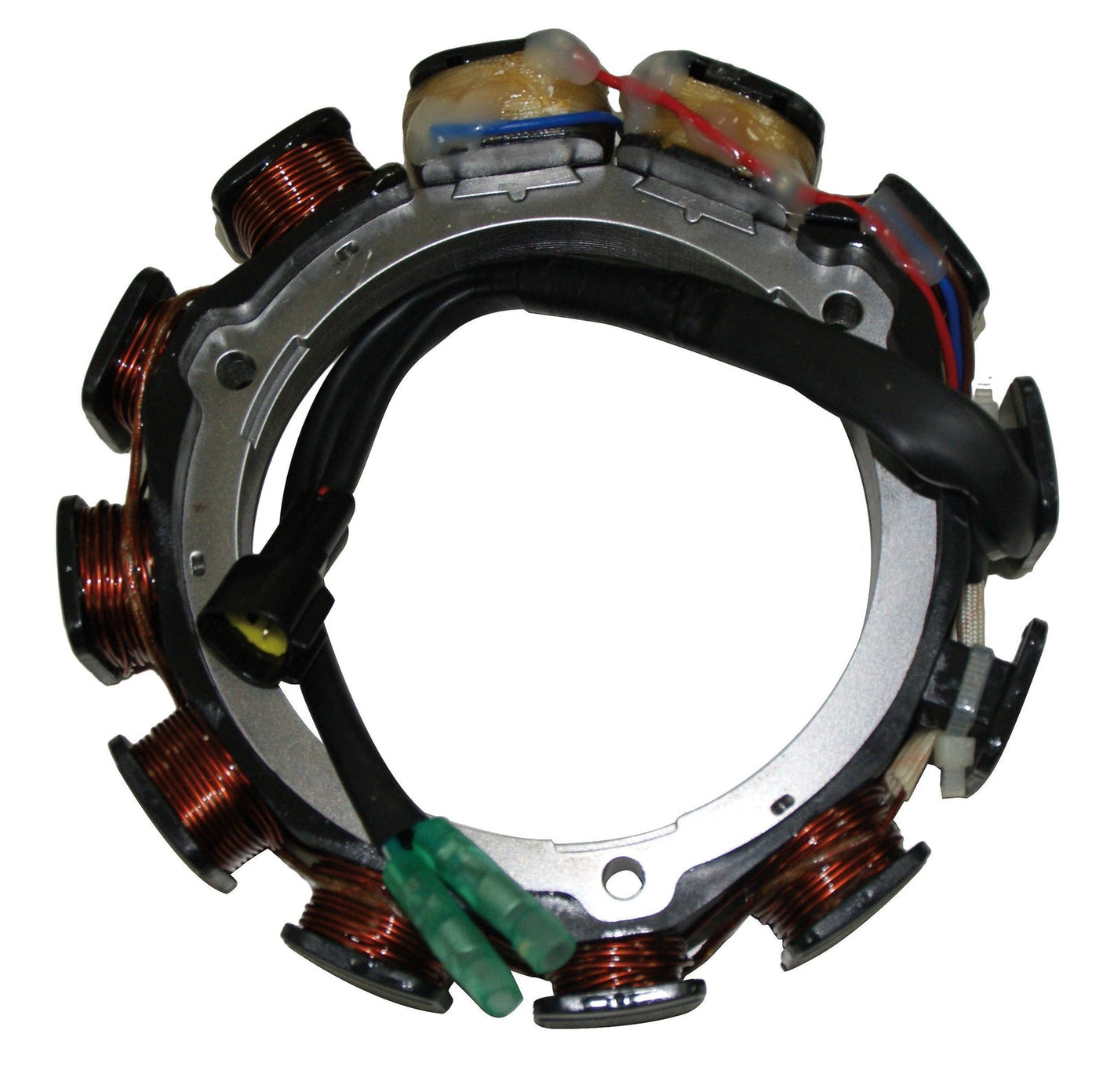

Stator Assembly – Fits Yamaha 75HP, 85HP, 90HP 2-Stroke Outboards (Replaces 688-85510-01, 688-85510-00)

Product Details

This aftermarket Stator Assembly – Fits Yamaha 75HP, 85HP, 90HP 2-Stroke Outboards is designed for reliable ignition performance. It is a direct-fit component for Yamaha 75HP (1988–1996), 85HP (1989–1996), and 90HP (1984–1990) 2-Stroke models, as well as compatible Parsun outboards.

It serves as a direct interchange for Yamaha part numbers 688-85510-00, 688-85510-10, 688-85510-11, 688-85510-01, and Parsun reference T85-05000100.

• Engineered for bolt-on installation with three fixation holes.
• Features a 12-pole design with a 3-pin triangle female plug connector.
• Built to withstand the harsh marine environment.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model and year in the table below.

For Yamaha Owners: This part fits a wide range of 75HP, 85HP, and 90HP 2-stroke models. While primary compatibility is focused on the 1980s and 1990s, some sources suggest fitment on later models. Please verify your specific part number before ordering.

For Parsun Owners: This stator is compatible with Parsun engines that are clones or equivalents of the specified Yamaha models. It directly replaces Parsun part T85-05000100.

Technical Specs

Product Type

Stator Assembly

Installation

Bolt-On

Fitting Type

Bolt-On, 3 fixation holes

Connection

1 x 3-Pin Triangle Female plug

Pole Design

12-Pole design, 5 wires, 3+1+1 pins

Fuel Type

Gasoline (2-Stroke)

Housing Material

Steel alloy with copper wire windings

Dimensions

7.0" L x 19.5" W x 19.5" H (17.8cm x 49.5cm x 49.5cm)

Inner Diameter

108mm

Weight

1.7kg (3.75 lbs)

Warranty

1 Year (varies by seller)

What’s in the Box

• 1 x Stator Assembly (Replaces 688-85510-01/688-85510-00)

Installation Notes

1. Disconnect the main battery cables to prevent electrical shorts.
2. Remove the engine cowling and flywheel cover to access the flywheel and stator.
3. Use a flywheel puller to safely remove the flywheel. Do not strike the flywheel or crankshaft.
4. Note the wiring path and disconnect the old stator's electrical connectors.
5. Unbolt and remove the old stator assembly from the engine block.
6. Clean the mounting surface on the engine block before installing the new part.
7. Position the new stator assembly, ensuring it is correctly oriented.
8. Apply thread locker to the mounting bolts and torque them to the manufacturer's specifications.
9. Route the new stator wires along the original path and securely connect them.
10. Reinstall the flywheel and torque the flywheel nut to the specified value.
11. Reinstall the flywheel cover and engine cowling. Reconnect the battery and test the engine.

Troubleshooting & FAQ

Safety & Important Info

• Verify images and specifications against your original part before purchase. If anything differs—even if your model is listed as compatible—do not order.
• This is an aftermarket replacement part, not an original equipment manufacturer (OEM) component.
• Professional installation is strongly recommended for safety, performance, and to prevent damage to the component or engine.
