692-W0078-02 Water Pump Kit for Yamaha 60, 70, 75, 80, 85, 90 HP C8...
692-W0078-02 Water Pump Impeller Repair Kit for Yamaha 60, 70, 75, 80, 85, 90 HP C85, CV85, C90 | SeaSierra
Product Details
- SKU: 183371
- Manufacturer: SeaSierra
- Brand: SeaSierra
- Category: Cooling Systems / Pump/Pump Kits
- Part Type: Water Pump Impeller Repair Kit
- Item Weight: 0.8301 pounds
- Package Dimensions: Height 3.6001 x Depth 4.9001 x Width 5.5001 inches
- Materials: Marine and chemical corrosion-resistant metal alloy and high-performance neoprene rubber
Compatibility
This kit is compatible with the following Yamaha 2-Stroke Outboard models:
- 60 hp: 2004-2005
- 70 hp: 2004-2009
- 75 hp: 1994-1999
- 80 hp: 1997
- 85 hp (C85): 1991-1996
- 85 hp (CV85): 1989-1990
- 90 hp: 1984-2009
- 90 hp (C90): 1997-2001
Part Numbers and Replacements
-
Replaces Yamaha Part Numbers:
- 692-W0078-02-00
- 692-W0078-A0-00
- 692-W0078-00-00
- 692-W0078-01-00

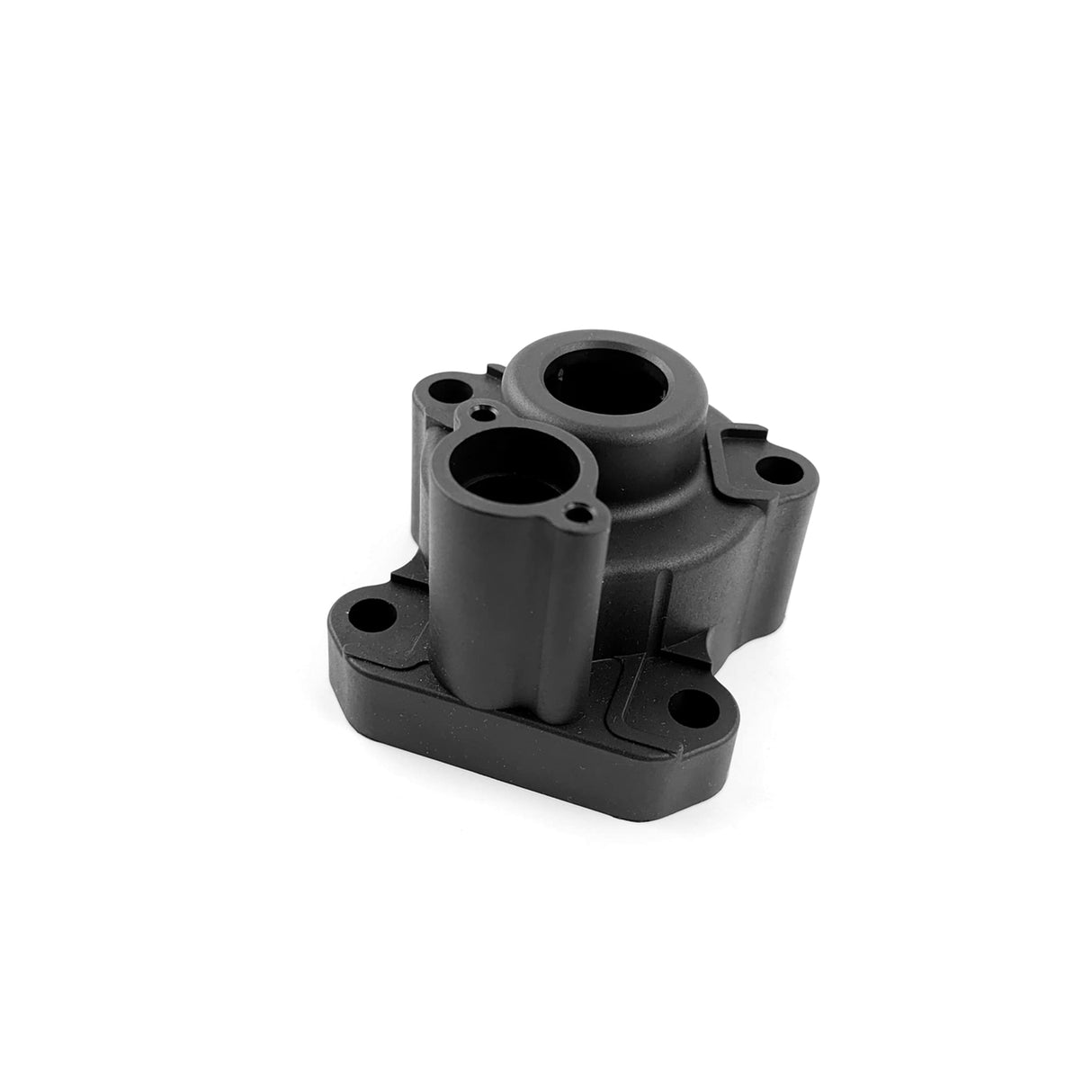

- Equivalent Kit: 18-3370 (includes water pump housing)
- Replaces Sierra Part Numbers: 18-3370, 18-3371

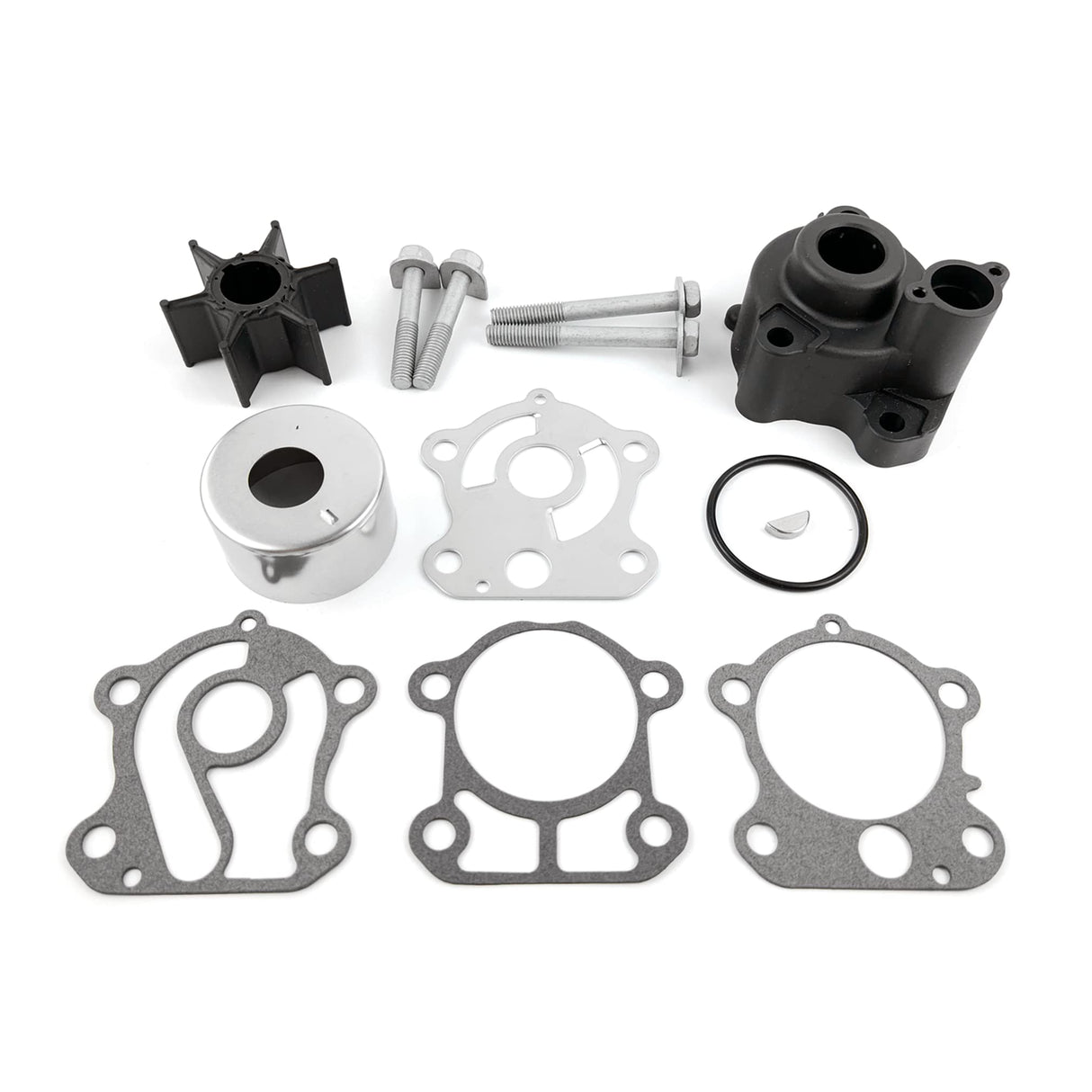

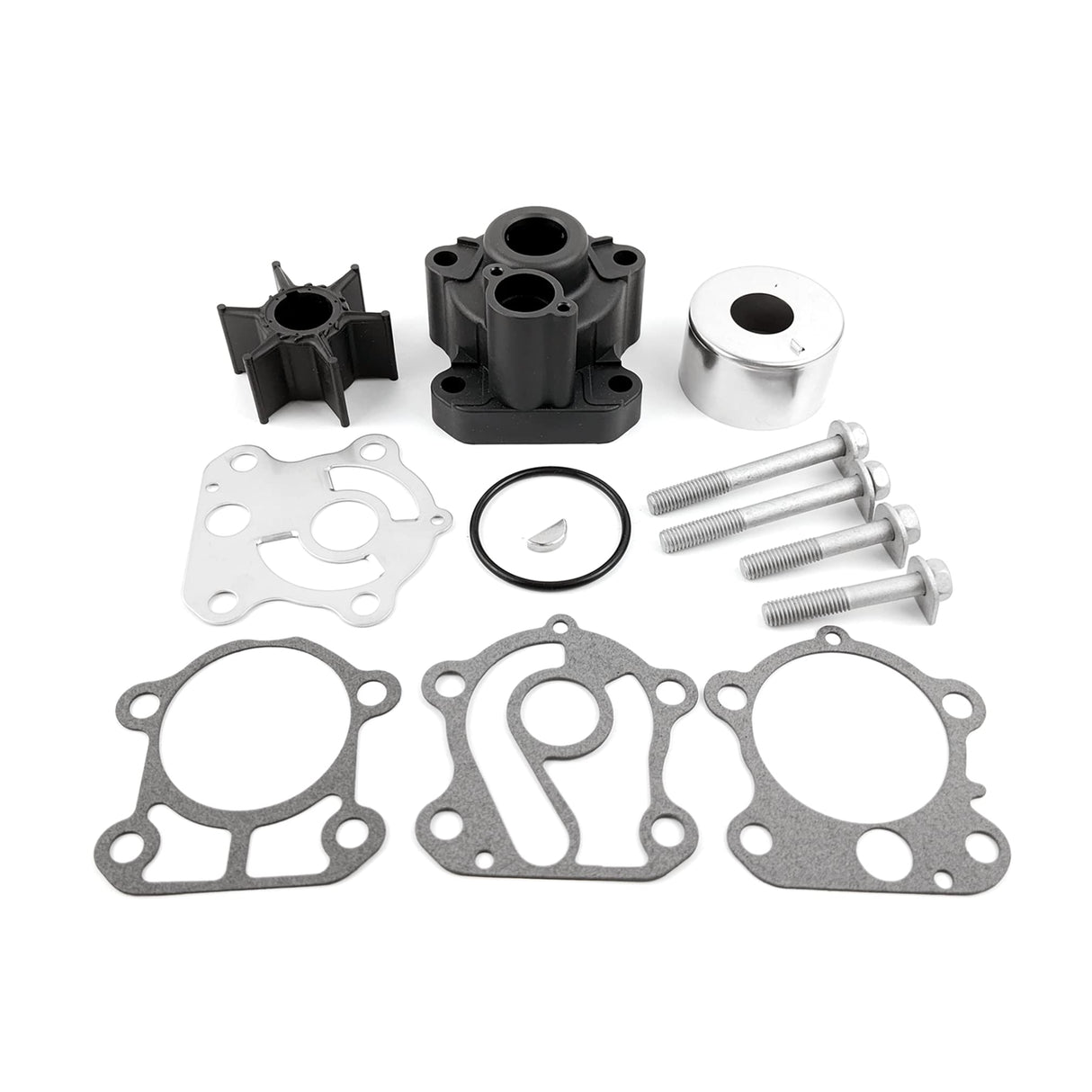

Kit Components
The package includes the following items:
- Water Pump Impeller (688-44352-03-00)
- Woodruff Key Driveshaft (90280-04M04-00)

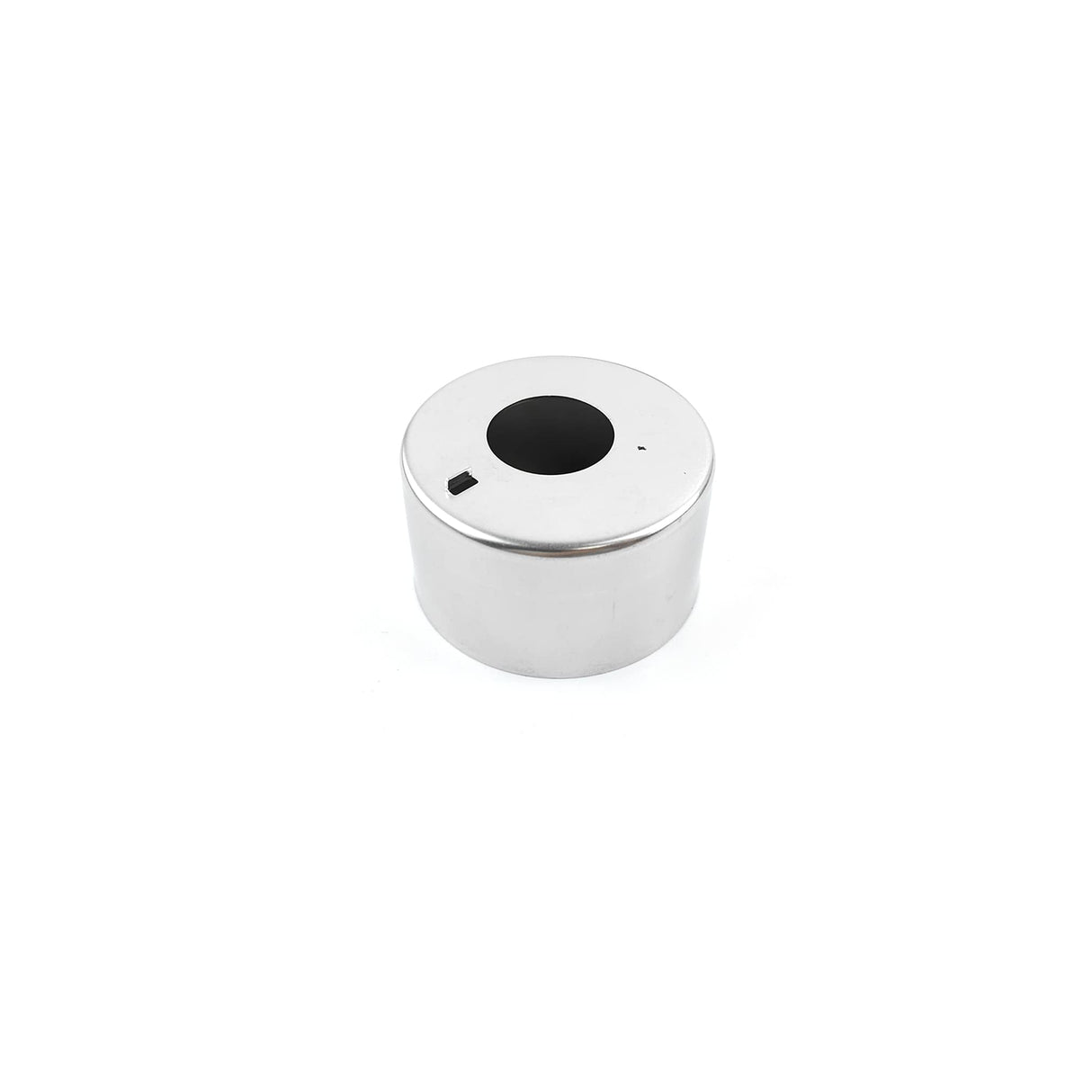

- Cartridge Insert (688-44322-00-00)
- Cartridge Outer Plate (688-44323-00-00)
- Cartridge Gasket (688-44324-A0-00)
- Water Pump Gasket (688-44315-A0-00)

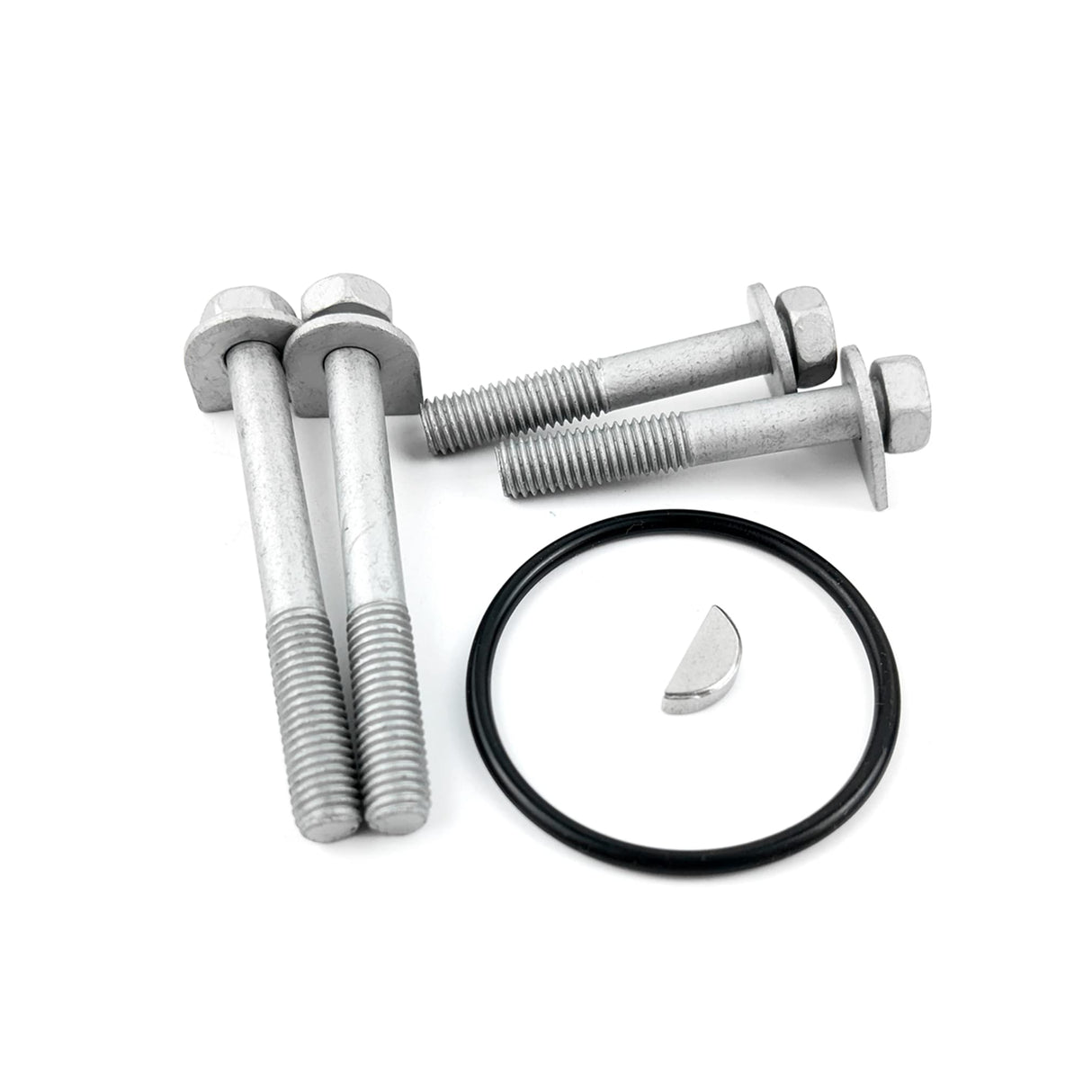

- O-Ring (93210-46044-00)
- 2x Bolt With Washer (90119-08M16-00)
- 2x Bolt With Washer (90119-08M13-00)
