Inline Fuel Filter – Fits Mercury Marine 30-200 HP Outboards (Replaces 35-816296Q2, 398327, 65W-24251-00, 3852224)
Inline Fuel Filter – Fits Mercury Marine 30-200 HP Outboards (Replaces 35-816296Q2, 398327, 65W-24251-00, 3852224) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Inline Fuel Filter – Fits Mercury Marine 30-200 HP Outboards (Repla...
Product Details
This Inline Fuel Filter – Fits Mercury Marine 30-200 HP Outboards (Replaces 35-816296Q2) is engineered for a wide range of Mercury Marine 2-stroke and 4-stroke outboard motors that utilize a 5/16" (8mm) fuel line. It provides crucial protection by filtering out harmful contaminants before they can reach sensitive engine components, ensuring reliable performance on the water.
It serves as a direct interchange for numerous OEM and aftermarket parts, including Mercury Marine 35-816296Q2, Sierra 18-7830, Johnson/Evinrude 398327, and Yamaha 65W-24251-10.
- Installs inline under the engine cowling for easy access.
- Designed for standard 5/16" (8mm) inside diameter fuel lines.
- Includes hose clamps for a complete and secure installation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury Marine | 35-134301 |
| Mercury Marine | 35-164941 |
| Mercury Marine | 35-816296-1 |
| Mercury Marine | 35-8162961 |
| Mercury Marine | 35-816296B1 |
| Mercury Marine | 35-816296B2 |
| Mercury Marine | 35-816296K2 |
| Mercury Marine | 35-816296Q1 |
| Mercury Marine | 35-816296Q2 |
| Mercury Marine | 35-816296T1 |
| Sierra | 18-7830 |
| GLM | 40150 |
| Mallory | 9-37959 |
| Johnson/Evinrude | 398327 |
| Johnson/Evinrude | 3852224 |
| Yamaha | 65W-24251-00 |
| Yamaha | 65W-24251-10 |
| Volvo Penta | 3852224 |
| EMP | 35-01227 |
| Wix | 33012 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This filter fits a wide array of Mercury and Mariner outboards from 30 to 200 HP. Please verify your model against the list below.
This part is also a compatible replacement for certain Johnson/Evinrude, Yamaha, and Volvo Penta models that use the part numbers listed in the cross-reference matrix above.
| Brand | Model | Rated HP | Stroke | OEM Part No. |
|---|---|---|---|---|
| Mercury | 30, 30 JET | 30 | 3 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury/Mariner | 40, 40 JET | 40 | 3 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury/Mariner | 45, 45 JET, 45 BODENSEE | 45 | 3 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury/Mariner | 50, 50 BIGFOOT | 50 | 3 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury/Mariner | 55, 60, 60 BIGFOOT | 55-60 | 3 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury/Mariner | 65 JET | 65 | 3 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury/Mariner | 70, 75, 80, 90 | 70-90 | 3 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury/Mariner | 75, 90 | 75-90 | 4 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury/Mariner | 80 JET, 100, 115, 125 | 100-125 | 4 Cylinder 2-Stroke | 35-816296Q2 |
| Mercury | V-135, V-140, V-150 | 135-150 | 2.5L 2-Stroke | 35-816296Q2 |
| Mercury | MAGNUM III, XR-6, V-175, V-200 | 175-200 | 2.5L 2-Stroke | 35-816296Q2 |
| Mercury | 105 JET, 140 JET | 105-140 | 2.5L 2-Stroke | 35-816296Q2 |
| Mercury | 40, 50, 50 BIGFOOT | 40-50 | 4-Stroke | 35-816296Q2 |
Technical Specs
- Product Type
- Inline Fuel Filter
- Installation
- Inline, under cowling on outboard engine
- Fuel Type
- Gasoline
- Connection
- 5/16" (8mm) ID fuel line
- Housing Material
- Plastic
- Housing Color
- White/Clear
- Fitting Type
- Barbed hose connection
- Thread Size
- N/A (non-threaded)
- Other Technical Attributes
- Includes hose clamps for installation

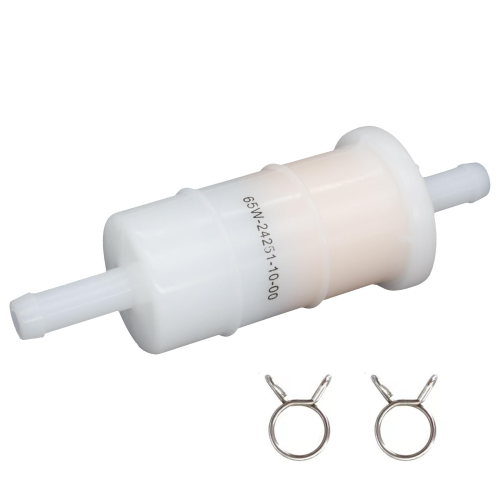

What’s in the Box
- 1 x Inline Fuel Filter (Replaces 35-816296Q2)
- 2 x Hose Clamps
Installation Notes
- Ensure the engine is off and completely cool before starting.
- Locate the existing fuel filter, typically found under the engine cowling along the fuel line.
- Place a rag or small container under the filter to catch any residual fuel.
- Carefully loosen the clamps on the inlet and outlet hoses of the old filter.
- Gently twist and pull the hoses off the filter. Note the fuel flow direction, usually marked with an arrow on the filter housing.
- Position the new filter with the flow arrow pointing towards the engine (away from the fuel tank).
- Connect the fuel hoses to the new filter and secure them firmly with the provided clamps.
- If your engine has a primer bulb, squeeze it several times until it feels firm to fill the new filter with fuel.
- Start the engine and carefully inspect the filter and hose connections for any signs of leaks.
Troubleshooting & FAQ
How do I know if this filter fits my engine?
This filter is designed for many Mercury/Mariner 30-200 HP outboards and other engines using a 5/16" fuel line. To confirm fitment, first check your model against the compatibility table. Second, cross-reference your existing part number with the numbers in our Part Number Matrix.
What is the recommended replacement interval?
For optimal engine performance and protection, we recommend replacing your inline fuel filter annually or every 100 hours of operation, whichever comes first. This interval can be shorter if you frequently use fuel of unknown quality.
What are the signs of a clogged or failing fuel filter?
Common symptoms include the engine hesitating, sputtering, having difficulty starting, running rough at idle, or experiencing a loss of power at high speeds. If you notice these issues, a blocked filter is a likely cause.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
