18-3382 Water Pump Impeller Kit for Johnson Evinrude OMC Outboards 20 25 30 35 HP | SeaSierra
18-3382 Water Pump Impeller Kit for Johnson Evinrude OMC Outboards 20 25 30 35 HP | SeaSierra is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
18-3382 Water Pump Impeller Kit for Johnson Evinrude OMC Outboards ...
Product Details
- SKU: 183382
- Brand & Manufacturer: SeaSierra
- Part Type: Water Pump Impeller Repair Kit
- Item Weight: 0.71
- Package Dimensions: HEIGHT: 2.8, DEPTH: 4.6, WIDTH: 4.9
Compatibility
This kit is compatible with the following Johnson Evinrude OMC Outboards:
- 20hp: 1985 & Later
- 25hp: 1985 & Later
- 25hp Commercial: 1998-2001
- 30hp: 1980-1982, (2 Cyl) 1983 & Later
- 35hp: 1980-1982, (2 Cyl) 1983 & Later
Part Numbers and Replacements
- Replaces OEM Part Numbers: 393630, 0777803, 0393509, 0390344, 0391636
- Replaces Sierra Part Number: 18-3382, 18-3381
- GLM Part Number: 12070
- Other Replaced Part Numbers: Mallory Marine 9-48211, 9-48205; OBR Red Rhino JE-393; SEI 96-362-01K; Johnson/Evinrude Outboard 0393630

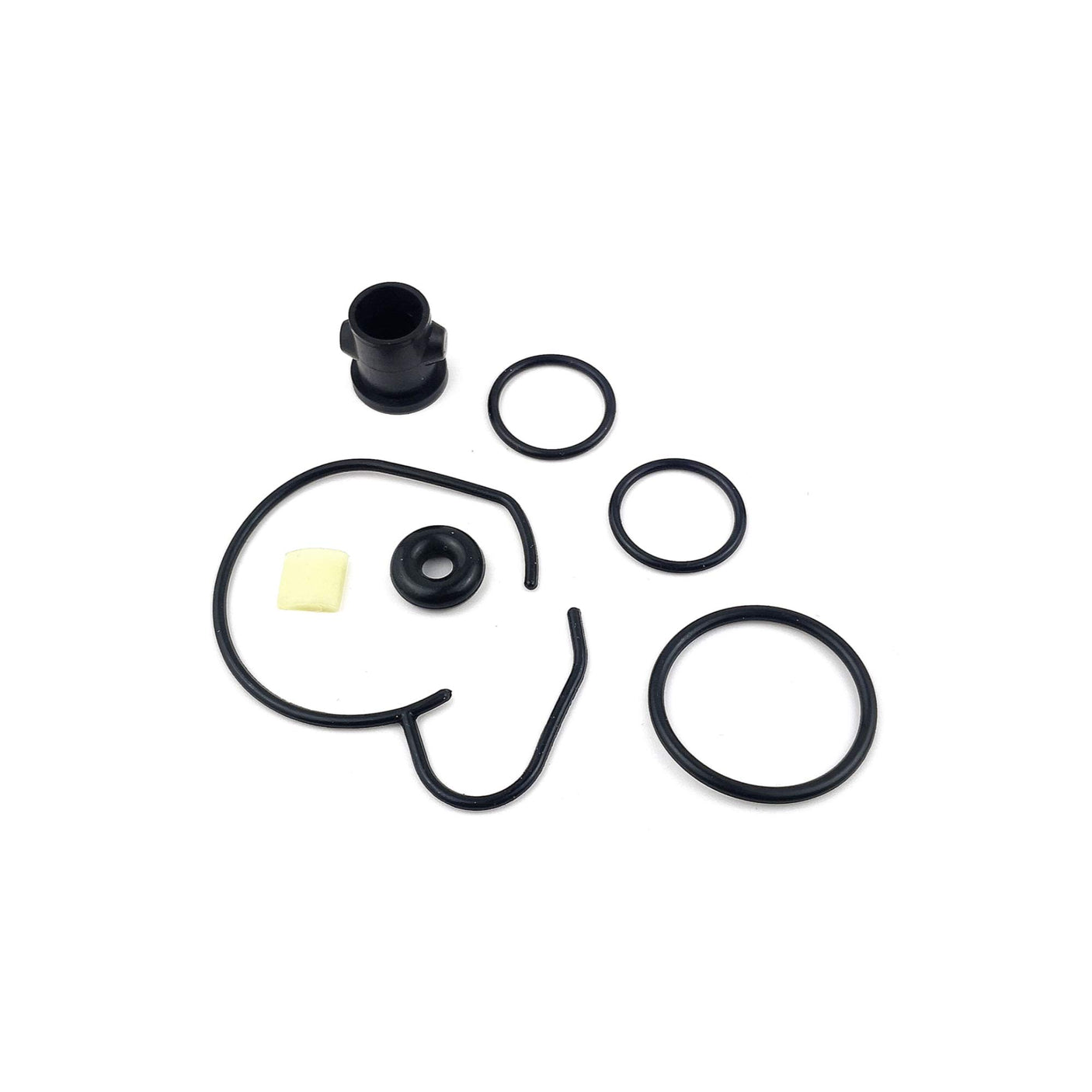

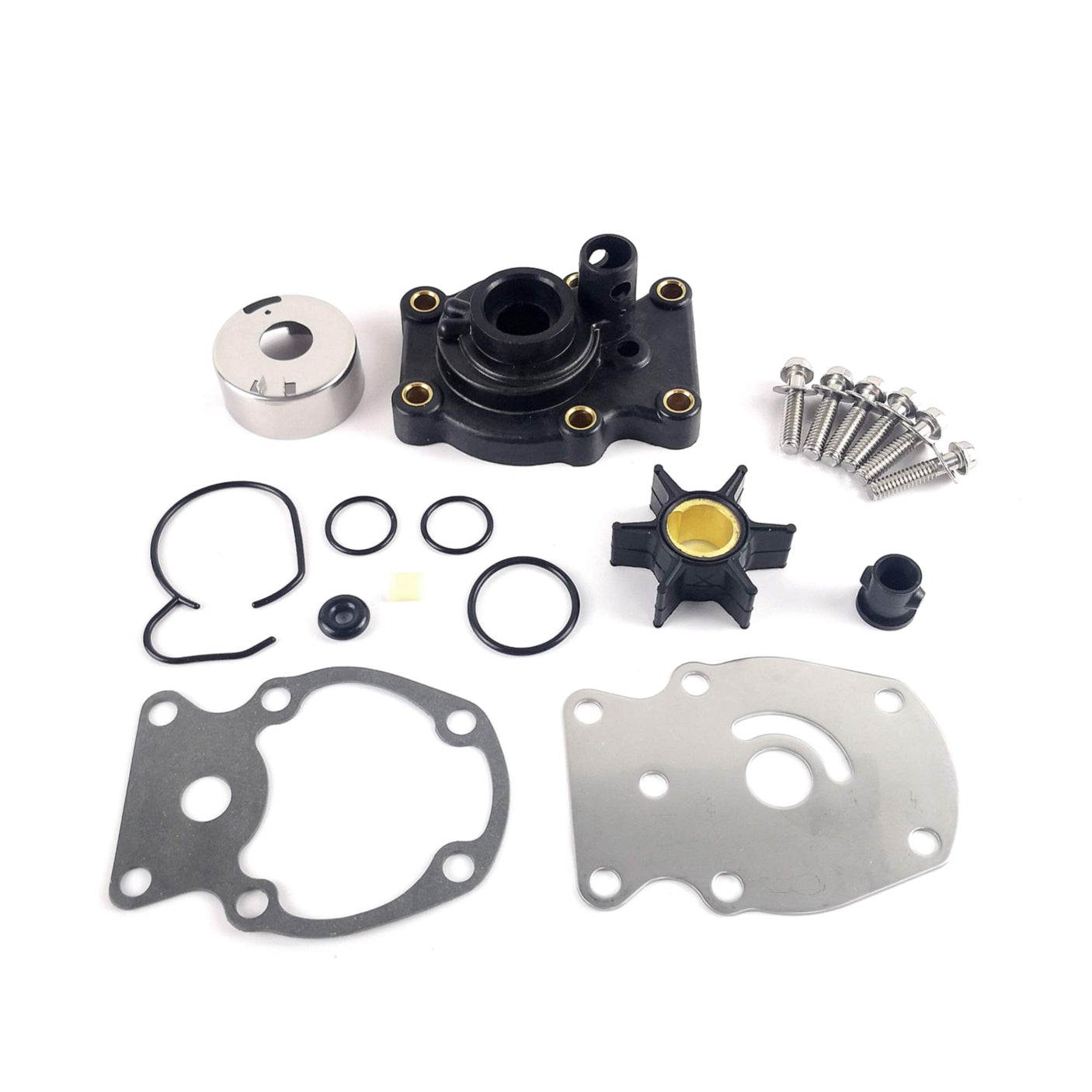

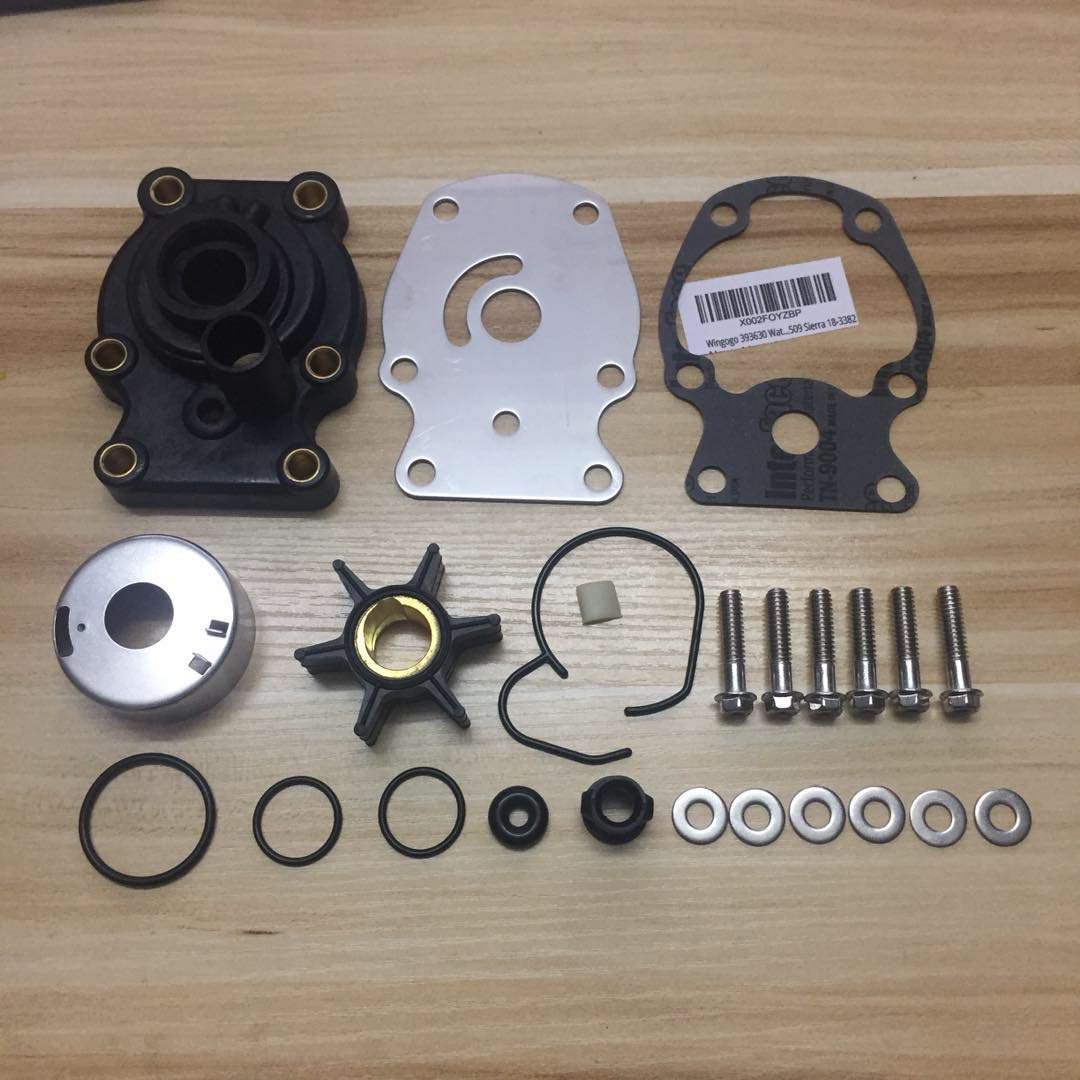

Kit Components

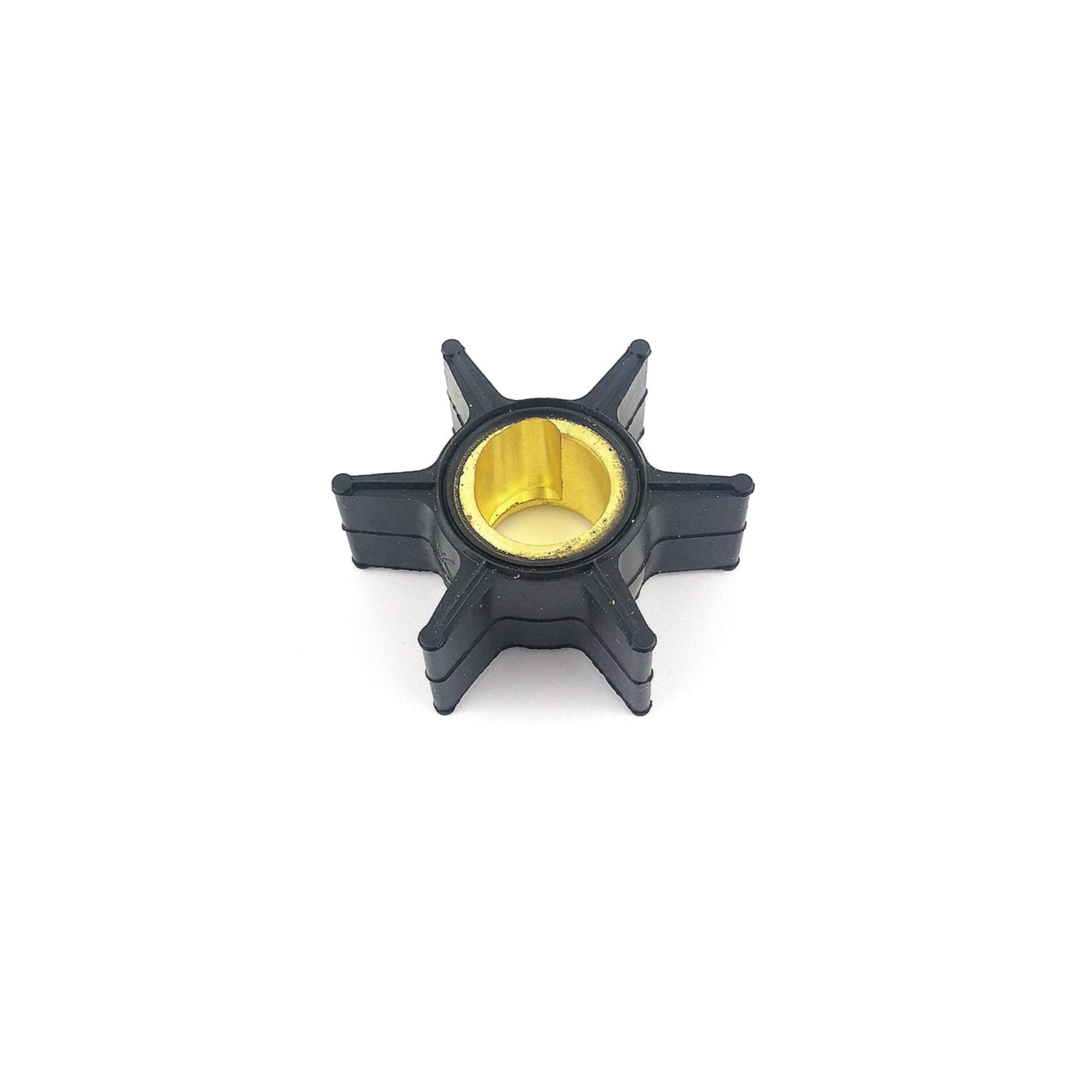

- Neoprene Impeller (395289) - Suitable for engines with 20-35HP

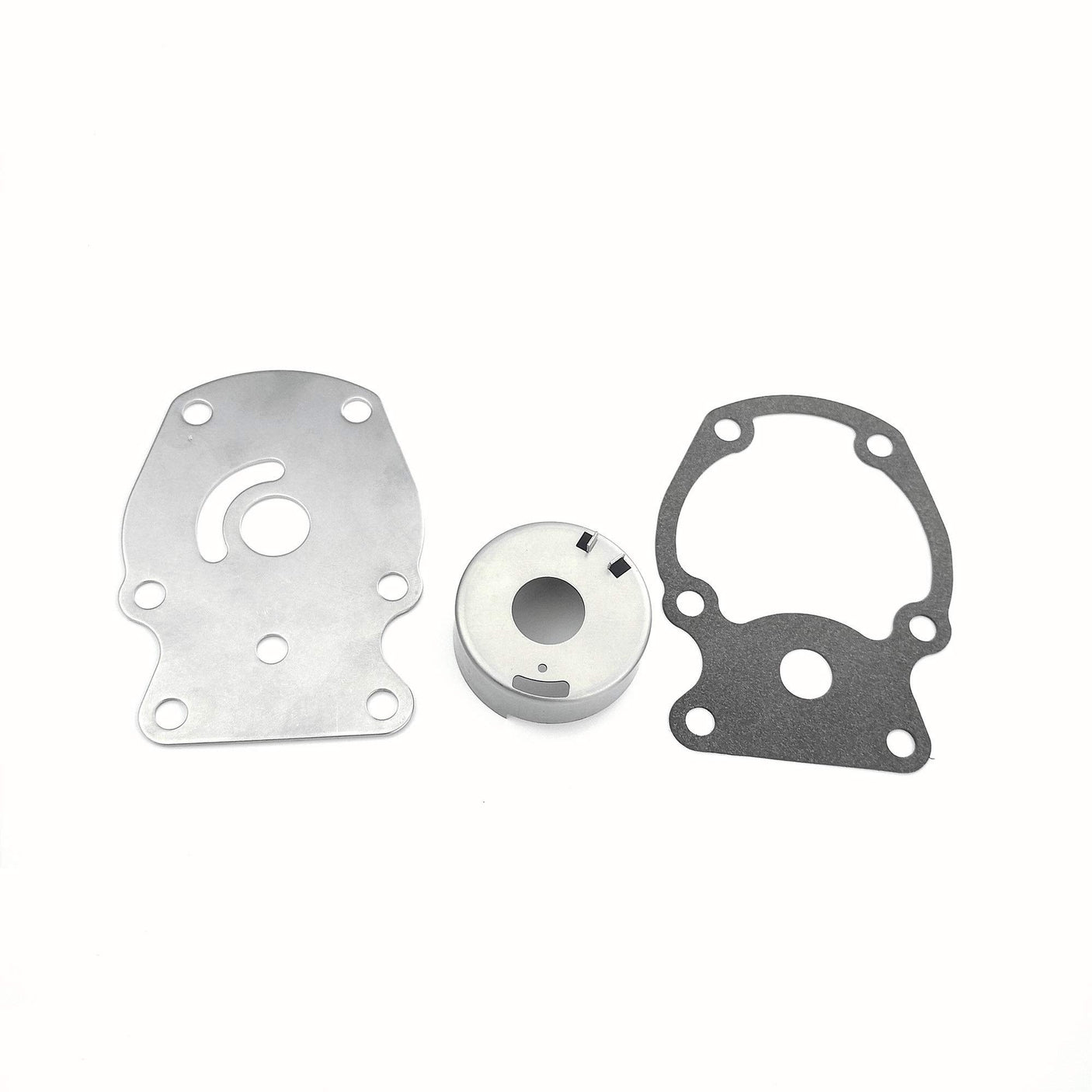

- Wear Plate (328755) - Suitable for engines with 20-35HP

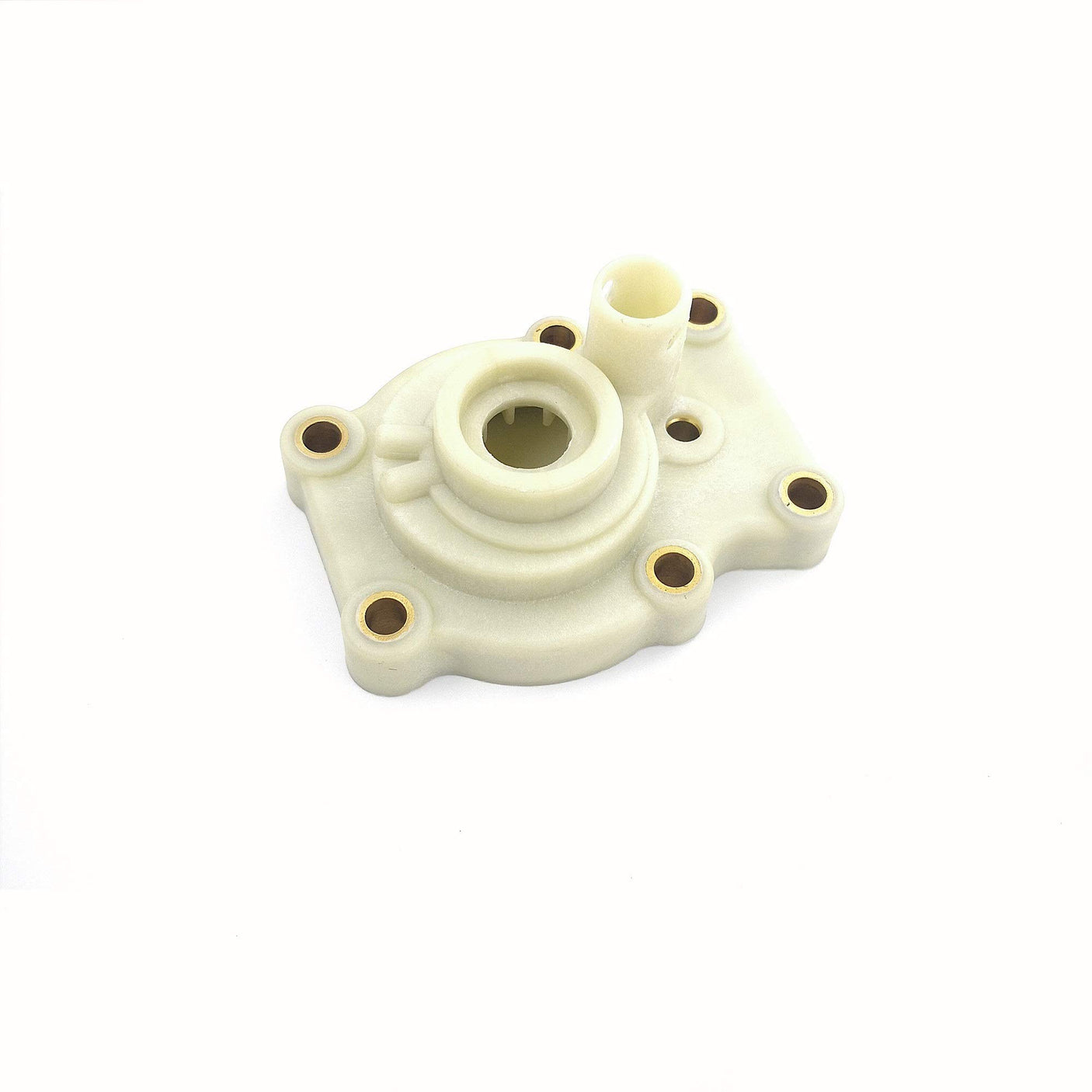

- Pump Housing (393632, 18-3367) - Suitable for engines with 20-35HP
- Pump Cup (328751) - Suitable for engines with 20-35HP
- Impeller Plate Gasket (325537, 18-0124-9) - Suitable for engines with 20-35HP
- Grommet (302497, 18-3329) - Suitable for engines with 20-35HP
- Impeller Key (330619, 344470, 777845) - Suitable for engines with 20-35HP
- Rubber Seal (328753) - Suitable for engines with 20-35HP
- Brass Bushing (328754) - Suitable for engines with 20-35HP
- O-Ring for Brushing (301877) - Suitable for engines with 20-35HP
- O-Ring (554545, 18-7100-9, 18-7105-9, 18-7146) - Suitable for engines with 20-35HP

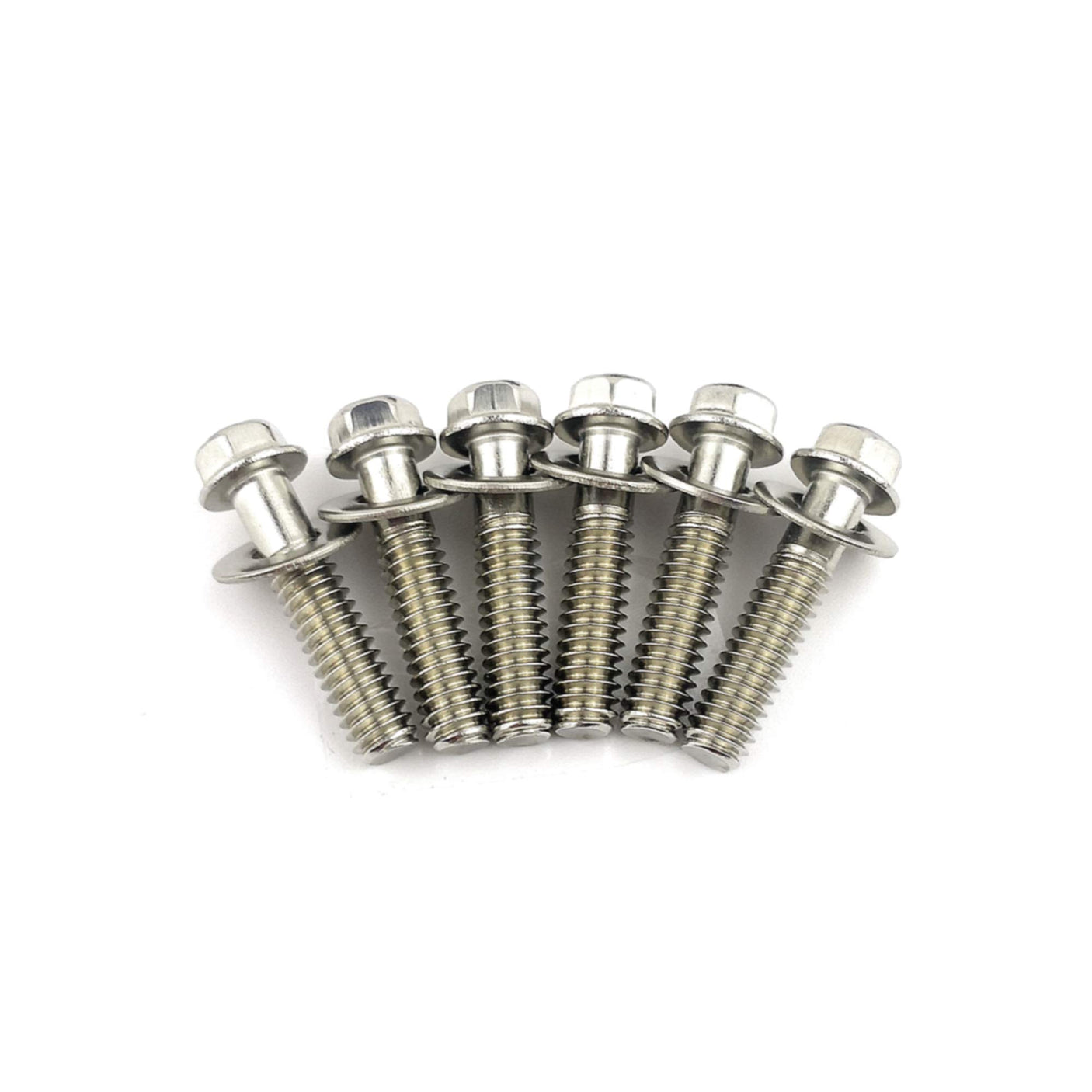

- Stainless Steel Bolt with Washer (331979, 324960, 318452) - Suitable for engines with 20-35HP
Additional Information
- Packaging Dimensions: WEIGHT: 0.71, HEIGHT: 2.8, DEPTH: 4.6, WIDTH: 4.9
- UNIT OF MEASURE: EA
- ITEM STATUS: A
- UPC: 030999753595
- CASE PACKAGING: 1
- STANDARD PACKAGING: 1
- HSC: 841391
- ECCN: 8413.91.9010
- GLM: 12070
- Mallory: 9-48211
- Wear Plate, Bolt, Washer: NSS
- Impeller Plate Gasket (Priced Per Pkg of 2): 18-0124-9
- Grommet: 18-3329
- Impeller: 18-3051
- Insert Cup: 18-3358
- O-Ring (Priced Per Pkg of 5): 18-7100-9, 18-7105-9
- O-Ring: 18-7146
- Water Pump Housing: 18-3367
