18-3382 Water Pump Impeller Kit for Johnson Evinrude OMC Outboards 20 25 30 35 HP | SeaSierra
Vendor:
Johnson/Evinrude/OMC
SKU:
183382
Availability:
In Stock
Product Type:
Water Pump Impeller Kit
- $19.50
$25.00- $19.50
- Unit price
- per
Please hurry! Only 99 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
$19.50
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Description
xProduct Details
- SKU: 183382
- Brand & Manufacturer: SeaSierra
- Part Type: Water Pump Impeller Repair Kit
- Item Weight: 0.71
- Package Dimensions: HEIGHT: 2.8, DEPTH: 4.6, WIDTH: 4.9
Compatibility
This kit is compatible with the following Johnson Evinrude OMC Outboards:
- 20hp: 1985 & Later
- 25hp: 1985 & Later
- 25hp Commercial: 1998-2001
- 30hp: 1980-1982, (2 Cyl) 1983 & Later
- 35hp: 1980-1982, (2 Cyl) 1983 & Later
Part Numbers and Replacements
- Replaces OEM Part Numbers: 393630, 0777803, 0393509, 0390344, 0391636
- Replaces Sierra Part Number: 18-3382, 18-3381
- GLM Part Number: 12070
- Other Replaced Part Numbers: Mallory Marine 9-48211, 9-48205; OBR Red Rhino JE-393; SEI 96-362-01K; Johnson/Evinrude Outboard 0393630

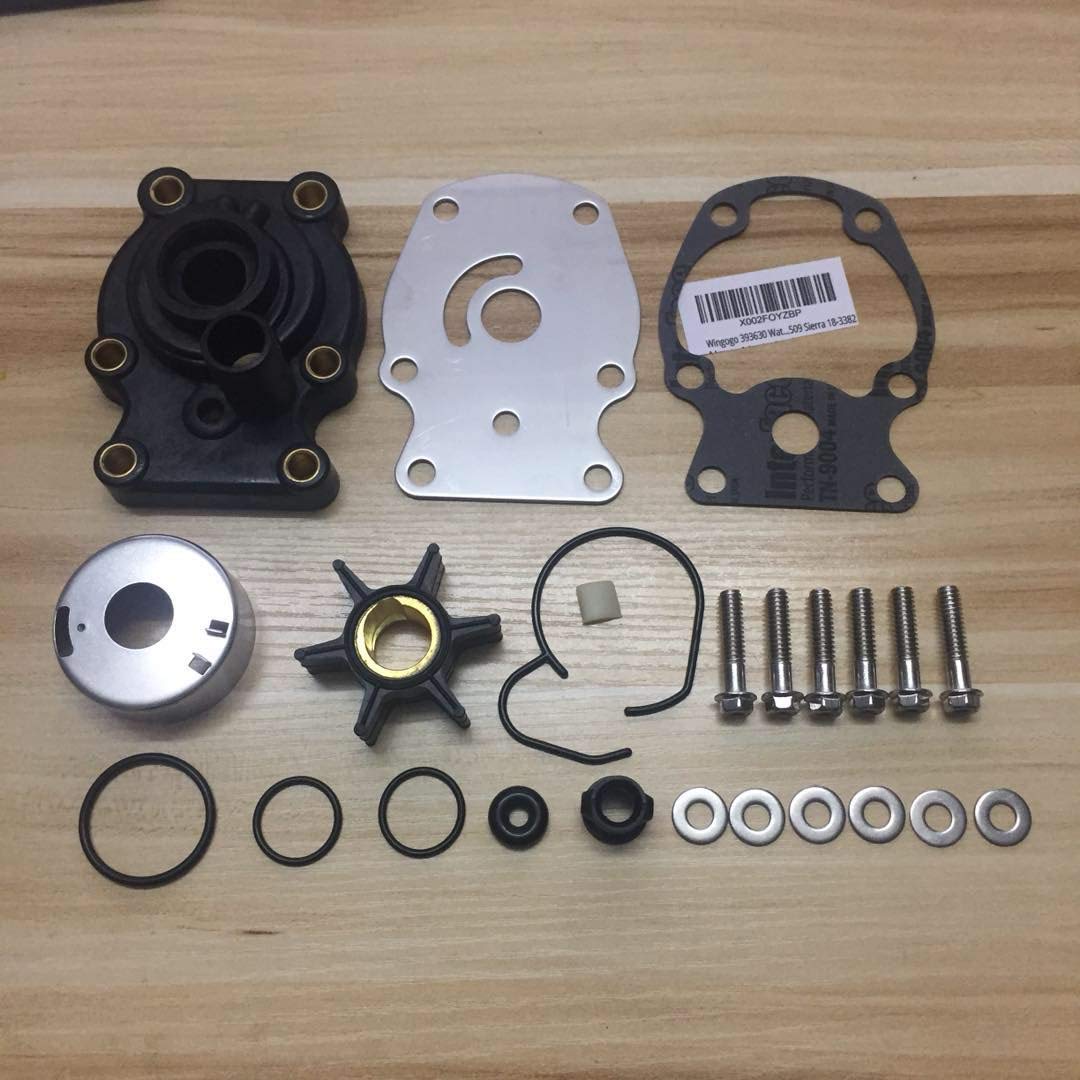

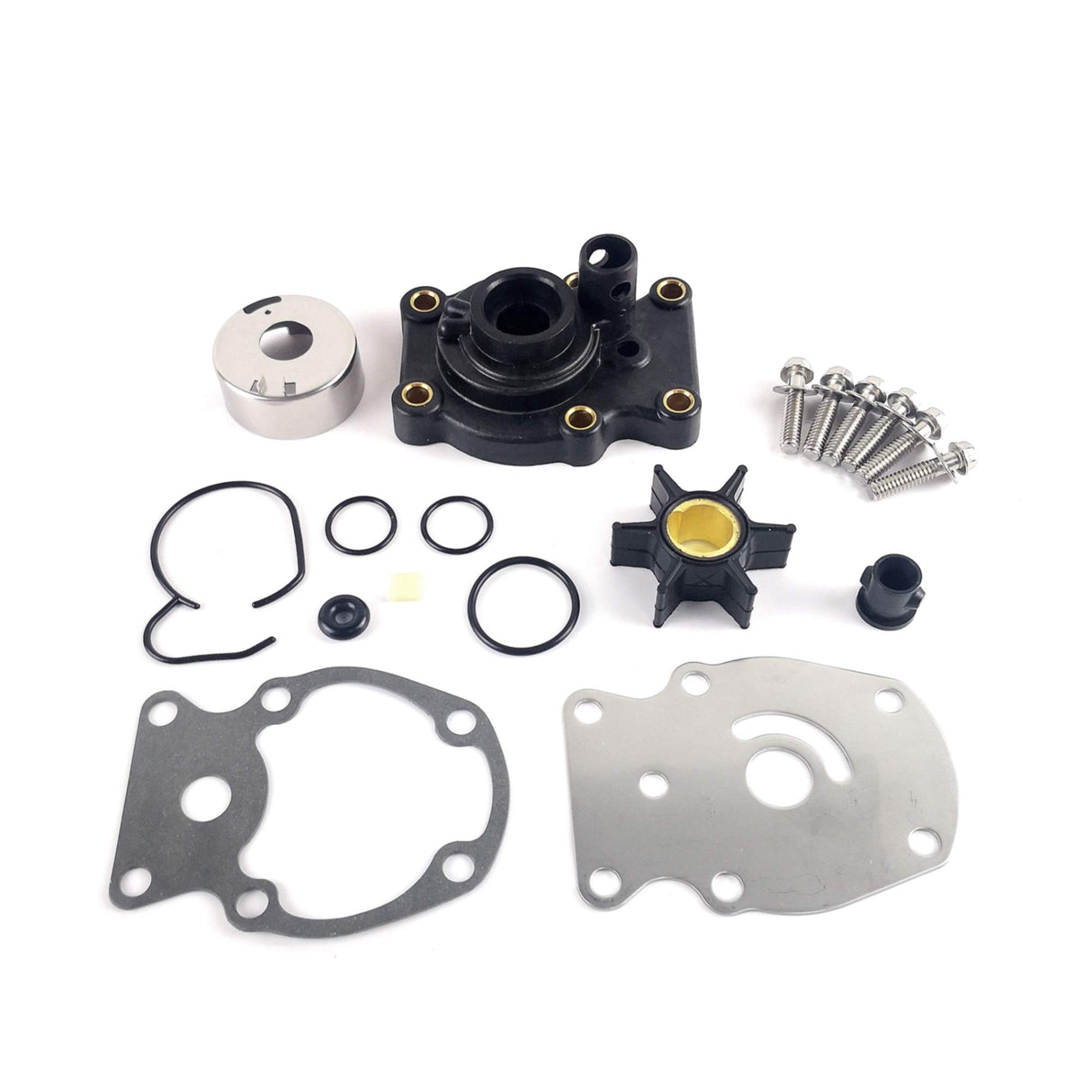

Kit Components

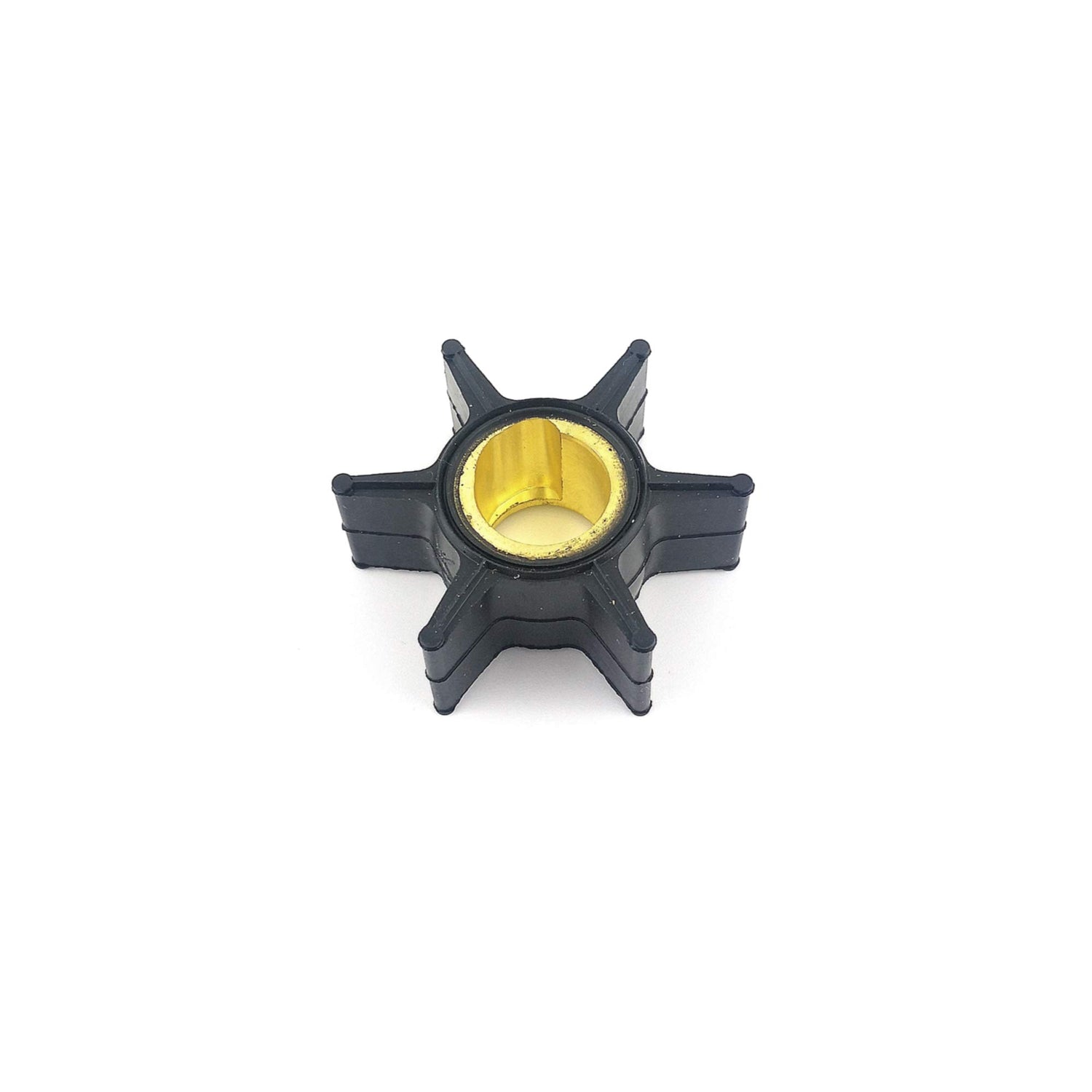

- Neoprene Impeller (395289) - Suitable for engines with 20-35HP

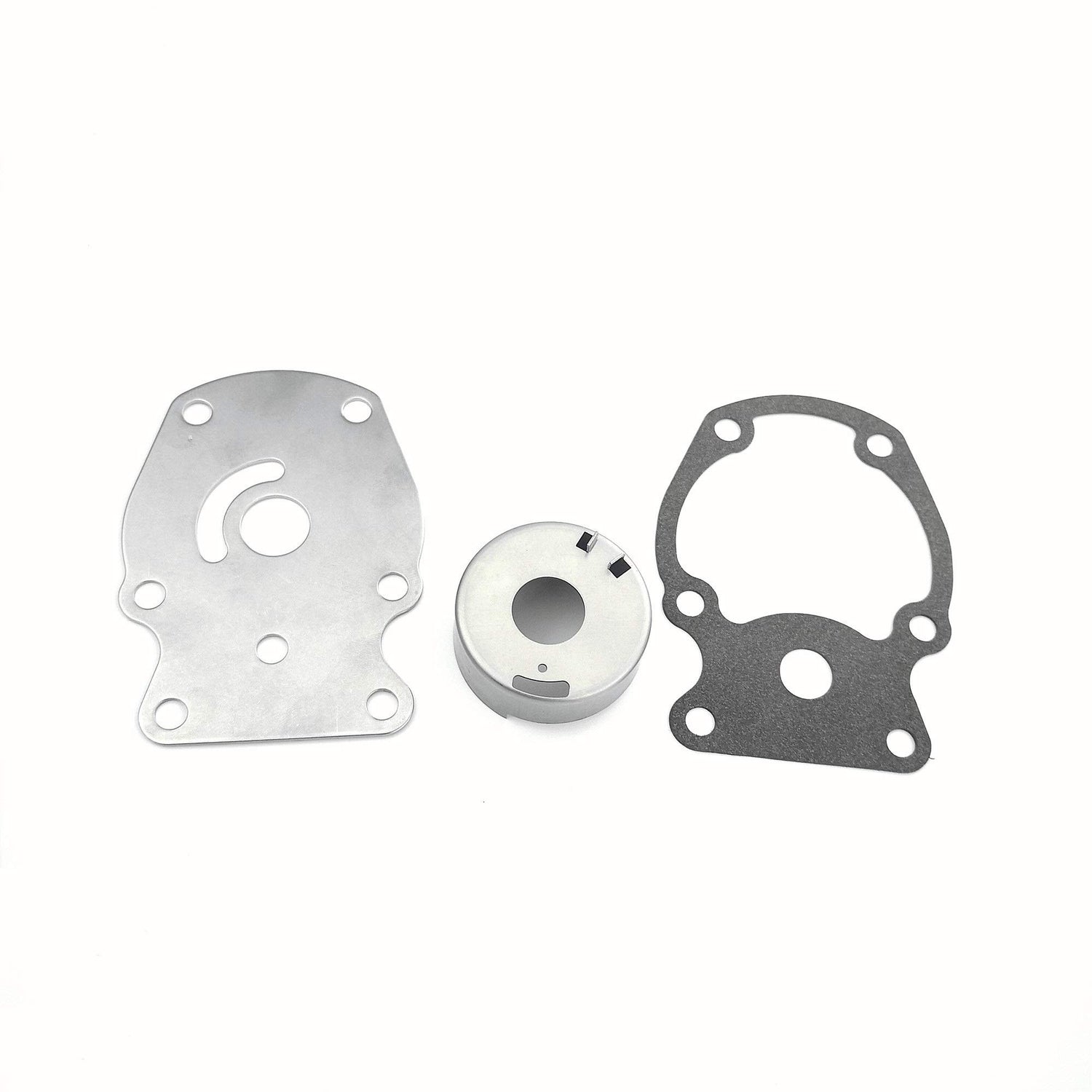

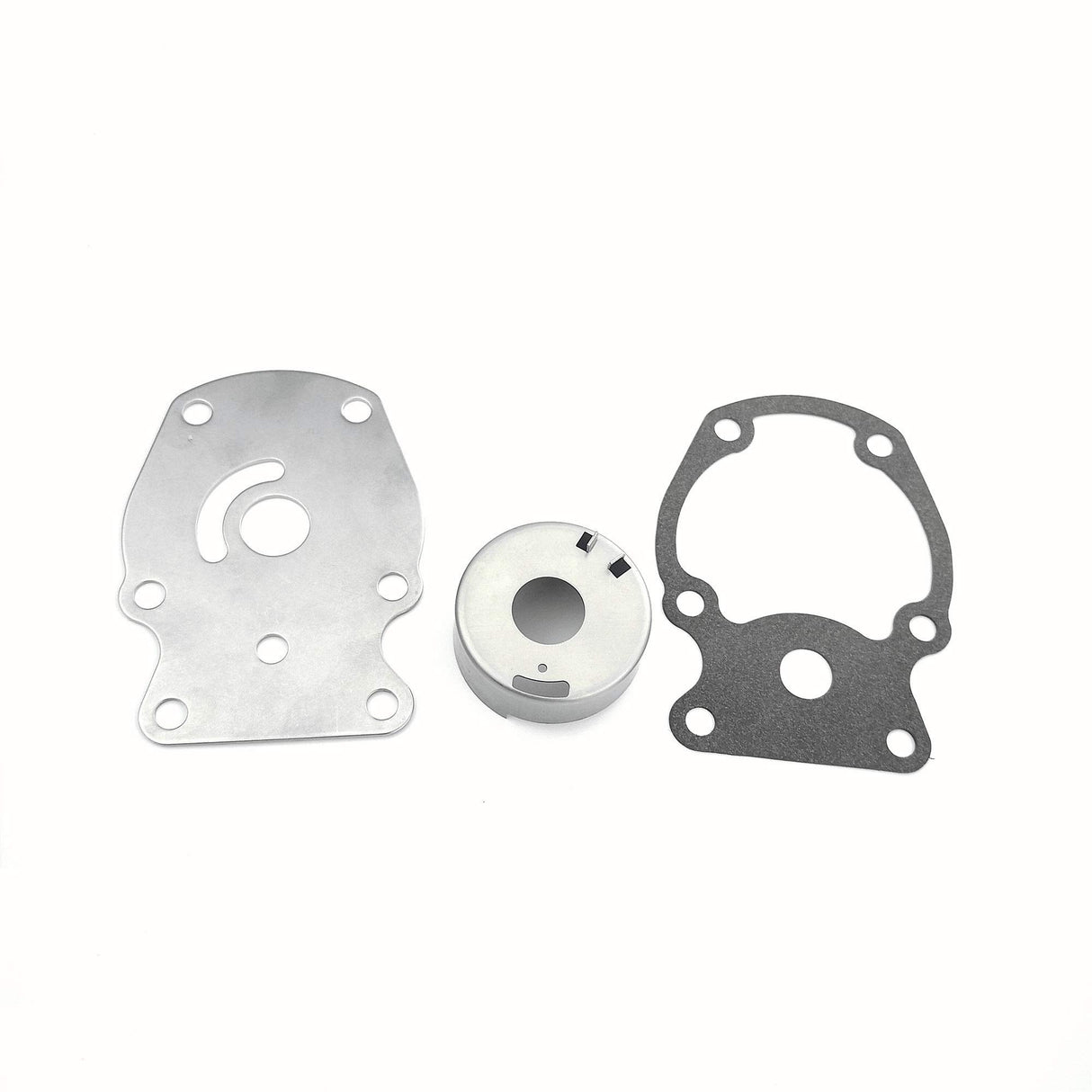

- Wear Plate (328755) - Suitable for engines with 20-35HP

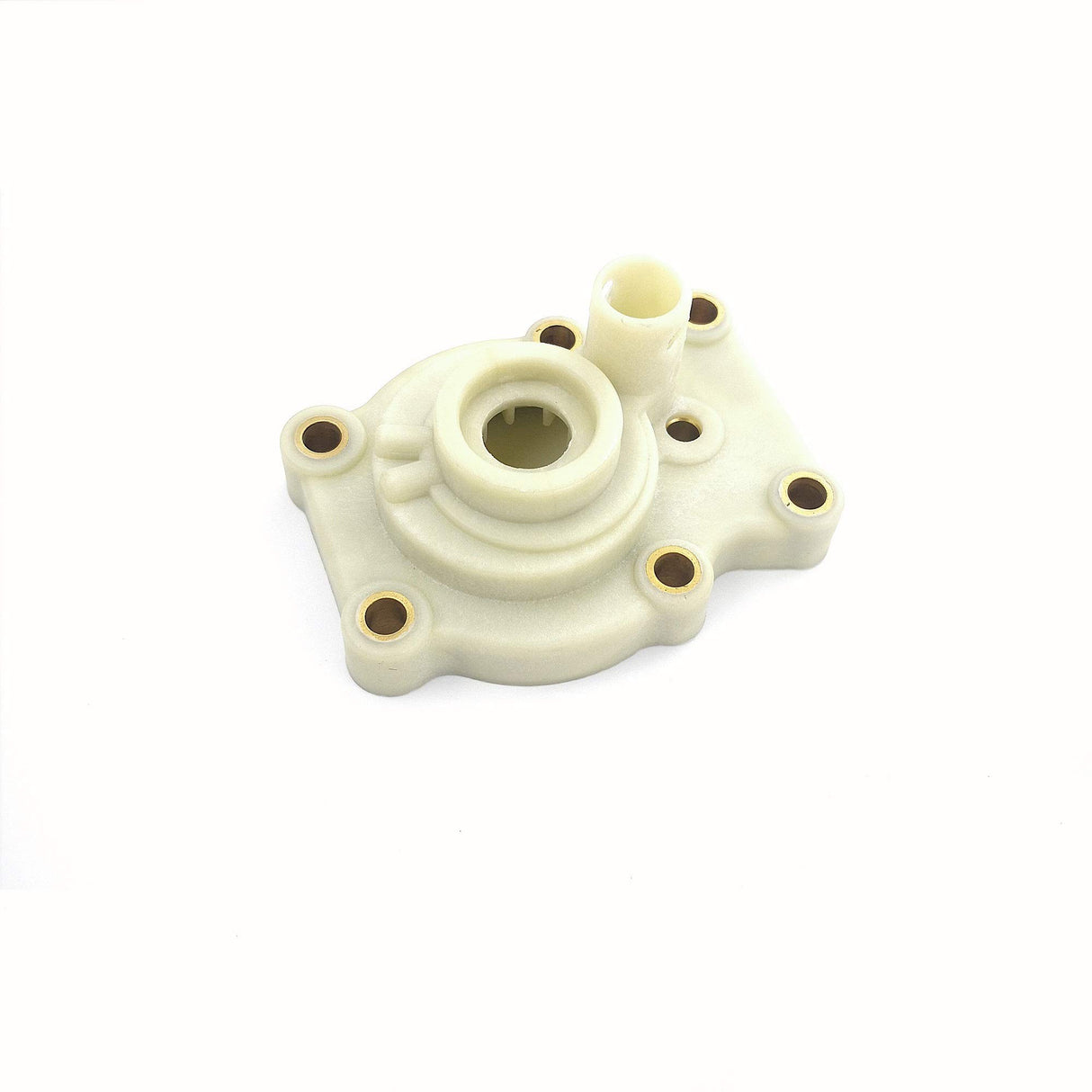

- Pump Housing (393632, 18-3367) - Suitable for engines with 20-35HP
- Pump Cup (328751) - Suitable for engines with 20-35HP
- Impeller Plate Gasket (325537, 18-0124-9) - Suitable for engines with 20-35HP

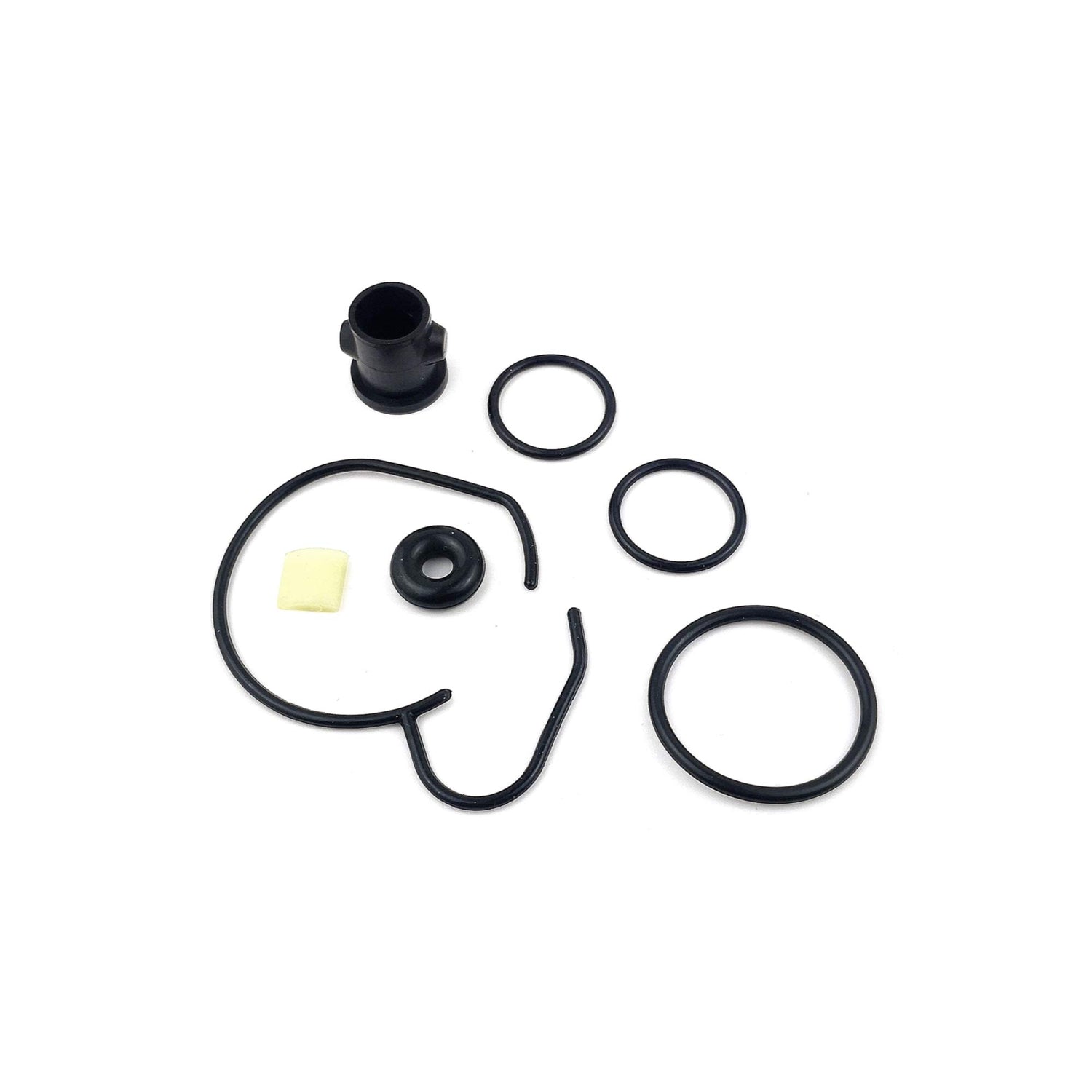

- Grommet (302497, 18-3329) - Suitable for engines with 20-35HP
- Impeller Key (330619, 344470, 777845) - Suitable for engines with 20-35HP
- Rubber Seal (328753) - Suitable for engines with 20-35HP
- Brass Bushing (328754) - Suitable for engines with 20-35HP
- O-Ring for Brushing (301877) - Suitable for engines with 20-35HP
- O-Ring (554545, 18-7100-9, 18-7105-9, 18-7146) - Suitable for engines with 20-35HP

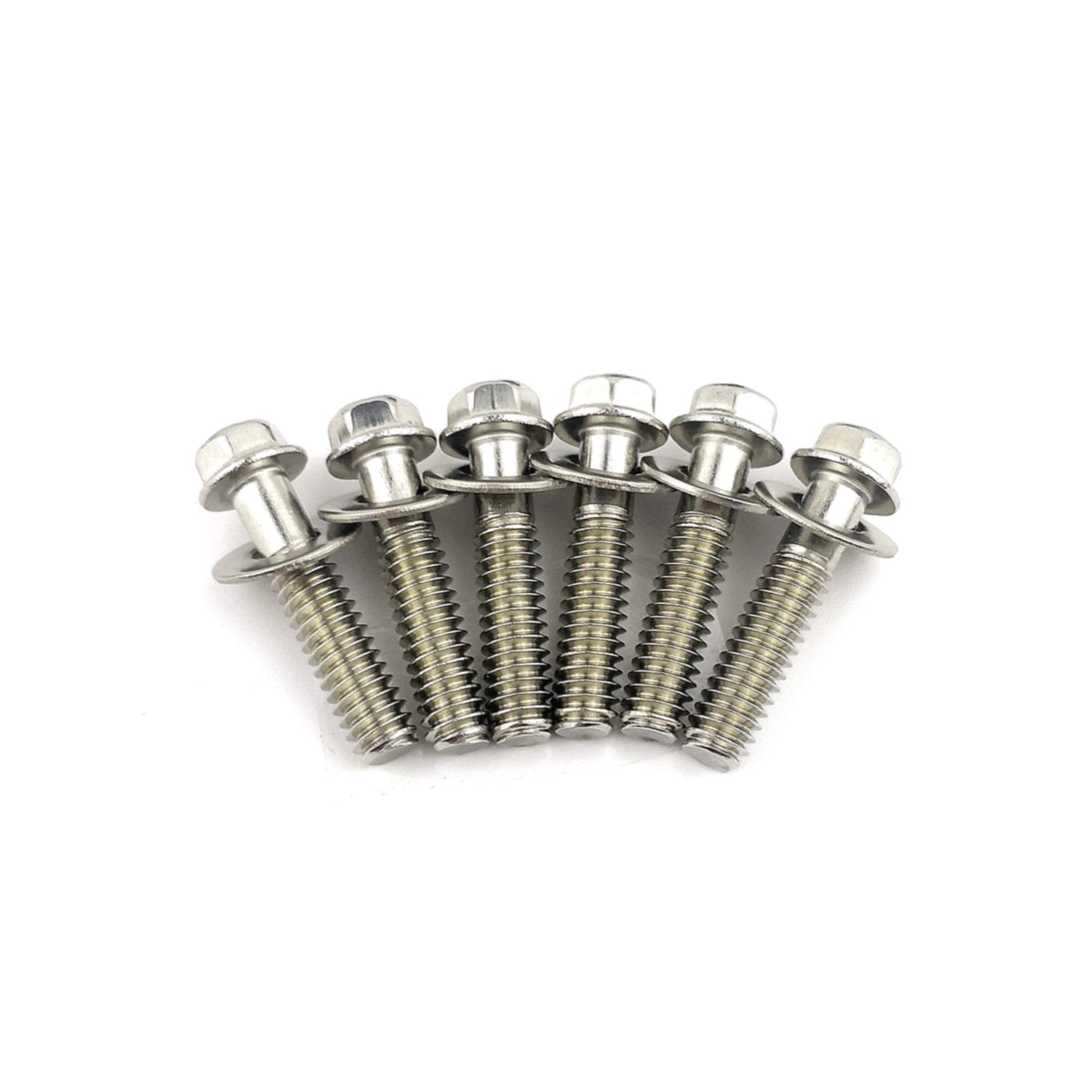

- Stainless Steel Bolt with Washer (331979, 324960, 318452) - Suitable for engines with 20-35HP
Additional Information
- Packaging Dimensions: WEIGHT: 0.71, HEIGHT: 2.8, DEPTH: 4.6, WIDTH: 4.9
- UNIT OF MEASURE: EA
- ITEM STATUS: A
- UPC: 030999753595
- CASE PACKAGING: 1
- STANDARD PACKAGING: 1
- HSC: 841391
- ECCN: 8413.91.9010
- GLM: 12070
- Mallory: 9-48211
- Wear Plate, Bolt, Washer: NSS
- Impeller Plate Gasket (Priced Per Pkg of 2): 18-0124-9
- Grommet: 18-3329
- Impeller: 18-3051
- Insert Cup: 18-3358
- O-Ring (Priced Per Pkg of 5): 18-7100-9, 18-7105-9
- O-Ring: 18-7146
- Water Pump Housing: 18-3367
