Gear Lube Fitting Kit – Fits MerCruiser Alpha One Gen 2 and Bravo 1...
Product Details

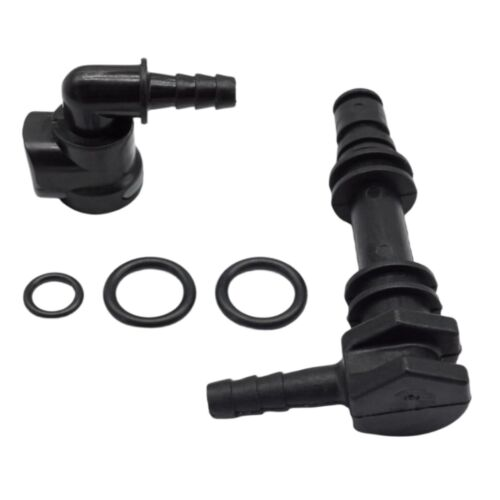

This Gear Lube Fitting Kit provides a reliable replacement for the transom assembly fitting on MerCruiser Alpha One Gen 2 (1991 and newer) and all Bravo 1, 2, and 3 series sterndrives. It establishes a secure, quick-connect link between the gear lube reservoir hose and the sterndrive, ensuring proper lubrication delivery.
The kit serves as a direct interchange for MerCruiser part numbers 22-861150A1, 22-861150A2, 22-861150T02, 22-861163, and 53-87843.
- Installs on the transom assembly (bulkhead).
- Features a 90° elbow with a quick-connect end for the reservoir hose.
- Includes the essential E-clip and O-rings for a complete, leak-free installation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| MerCruiser | 22-861150A1 | 22-861150T02 |
| MerCruiser | 22-861150A2 | 22-861150T02 |
| MerCruiser | 22-861150T02 | |
| MerCruiser | 22-861163 | |
| MerCruiser | 53-87843 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| MerCruiser | Alpha One Gen 2 | Various | 4-Stroke | 1991 and up | 22-861150T02 | Replaces 22-861150A1, 22-861150A2 |
| MerCruiser | Bravo 1 | Various | 4-Stroke | All | 22-861150T02 | |
| MerCruiser | Bravo 2 | Various | 4-Stroke | All | 22-861150T02 | |
| MerCruiser | Bravo 3 | Various | 4-Stroke | All | 22-861150T02 | |
| MerCruiser | Race Sterndrive | Various | 4-Stroke | 2002–2006 | 22-861150T02 | |
| MerCruiser | Alpha Sterndrive | Various | 4-Stroke | 1996–1998 | 22-861150T02 | |
| MerCruiser | Bravo Sterndrive | Various | 4-Stroke | 1998 (1.6L PCM & ECM) | 22-861150T02 |
Technical Specs
- Product Type
- Gear Lube Fitting Kit
- Installation
- Transom Assembly (Bulkhead)
- Connection
- Quick-Connect to Reservoir Hose
- Housing Material
- Metal with Rubber O-rings
- Fitting Type
- 90° Elbow
- Other Technical Attributes
- Includes E-clip for secure attachment
What’s in the Box
- 1 x Fitting Assembly (22-861150T02)
- 1 x Gear Lube Hose Connector (22-861163)
- 1 x E-Clip (53-87843)
- 3 x O-ring Rubber Washers (includes 1 x 25-627021, 2 x 25-201951)
Installation Notes
- Turn off the engine and secure the vessel. Place the sterndrive in a convenient working position.
- Locate the gear lube fitting on the inner transom plate inside the boat.
- Disconnect the lube reservoir hose from the top of the old fitting. Be prepared for minor oil spillage.
- From the outside of the transom, carefully remove the E-clip that secures the fitting.
- Remove the old fitting and any existing O-rings. Clean the mounting area thoroughly.
- Place the new O-rings onto the new fitting assembly.
- Insert the new fitting through the transom from inside the engine bay.
- From the outside, secure the fitting firmly in place with the new E-clip.
- Re-attach the gear lube reservoir hose to the quick-connect port on the new fitting.
- Top off the gear lube reservoir if needed and check the connection for leaks before operating the vessel.
Troubleshooting & FAQ
How do I know if this fitting is leaking?
Inspect the area around the fitting on the transom for any signs of gear lube oil. A slow, persistent drop in the gear lube reservoir level without any other visible leaks is another key indicator.
What are the signs of a failed gear lube fitting?
Common signs include visible gear lube leakage at the transom, difficulty maintaining lube levels in the reservoir, or water contamination found in the sterndrive oil during a change.
What is the purpose of the E-clip?
The E-clip is a critical retaining clip that secures the fitting to the transom bulkhead. It prevents the fitting from backing out or becoming dislodged due to boat vibration and pressure changes.
Will this kit fit my specific engine if it's not a MerCruiser?
This kit is specifically designed for the MerCruiser Alpha and Bravo sterndrive models listed in the compatibility table. It is not intended for or guaranteed to fit any other sterndrive brands.
How often should the O-rings be replaced?
It is best practice to replace the O-rings anytime the fitting is removed or replaced. O-rings can dry out, crack, and lose their sealing ability over time, so replacing them is crucial for preventing leaks.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
