Product Details

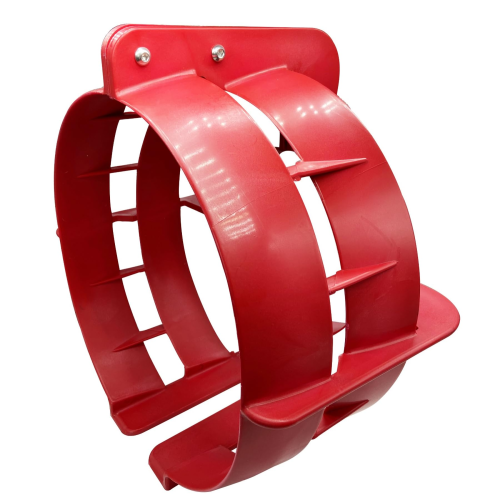

This 14" Propeller Safety Guard is a protective cage designed for most 70-120 HP outboard motors using propellers up to 13.5 inches in diameter. It helps prevent injuries to swimmers and marine life while shielding the propeller from underwater impacts. Crafted from high-strength polypropylene plastic, it offers impact resistance comparable to stainless steel at a much lighter weight. This guard fits standard gearcase models from brands including Mercury, Yamaha, Honda, Suzuki, and Johnson/Evinrude where the propeller shaft to cavitation plate dimension (H) is between 6.5" and 7.5".
This is a standard safety accessory and does not have a direct OEM equivalent part number for cross-reference.
- Installs by bolting directly to the cavitation plate and skeg.
- Constructed from durable, marine-grade polypropylene in a high-visibility safety red color.
- Complete mounting kit with bolts and drill bit is included.
Engine & Model Compatibility
Confirm your engine model in the tables below. This guard is not suitable for Big Foot, High Thrust, Command Thrust, or Evinrude E-TEC models, which require a larger 16" guard.
Mercury / Mariner Outboards
| Brand | Model | Rated HP | Stroke | Years | Notes |
|---|---|---|---|---|---|
| Mercury | 70 HP | 70 | 2 & 4-Stroke | All years | Standard gearcase only, not for Big Foot |
| Mercury | 75 HP | 75 | 2 & 4-Stroke | All years | Standard gearcase only |
| Mercury | 80 HP | 80 | 2 & 4-Stroke | All years | Standard gearcase only |
| Mercury | 90 HP | 90 | 2 & 4-Stroke | All years | Standard gearcase only, not for Command Thrust |
| Mercury | 100 HP | 100 | 2 & 4-Stroke | All years | Standard gearcase only |
| Mercury | 110 HP | 110 | 2 & 4-Stroke | All years | Standard gearcase only |
| Mercury | 115 HP | 115 | 2 & 4-Stroke | All years | Standard gearcase only, not for Command Thrust |
| Mercury | 120 HP | 120 | 2 & 4-Stroke | All years | Standard gearcase only |
Yamaha Outboards
| Brand | Model | Rated HP | Stroke | Years | Notes |
|---|---|---|---|---|---|
| Yamaha | 70 HP | 70 | 2 & 4-Stroke | All years | Standard gearcase only |
| Yamaha | 75 HP | 75 | 2 & 4-Stroke | All years | Standard gearcase only |
| Yamaha | 80 HP | 80 | 2 & 4-Stroke | All years | Standard gearcase only |
| Yamaha | 85 HP | 85 | 2 & 4-Stroke | All years | Standard gearcase only |
| Yamaha | 90 HP | 90 | 2 & 4-Stroke | All years | Standard gearcase only, not for High Thrust |
| Yamaha | 100 HP | 100 | 2 & 4-Stroke | All years | Standard gearcase only |
| Yamaha | 115 HP | 115 | 2 & 4-Stroke | All years | Standard gearcase only, not for High Thrust |
Honda Outboards
| Brand | Model | Rated HP | Stroke | Years | Notes |
|---|---|---|---|---|---|
| Honda | BF75 | 75 | 4-Stroke | All years | Standard gearcase only |
| Honda | BF90 | 90 | 4-Stroke | All years | Standard gearcase only |
| Honda | BF100 | 100 | 4-Stroke | All years | Standard gearcase only |
| Honda | BF115 | 115 | 4-Stroke | All years | Standard gearcase only |
Suzuki Outboards
| Brand | Model | Rated HP | Stroke | Years | Notes |
|---|---|---|---|---|---|
| Suzuki | DF70 | 70 | 4-Stroke | All years | Standard gearcase only |
| Suzuki | DF80 | 80 | 4-Stroke | All years | Standard gearcase only |
| Suzuki | DF90 | 90 | 4-Stroke | All years | Standard gearcase only |
| Suzuki | DF100 | 100 | 4-Stroke | All years | Standard gearcase only |
| Suzuki | DF115 | 115 | 4-Stroke | All years | Standard gearcase only |
Johnson / Evinrude Outboards
| Brand | Model | Rated HP | Stroke | Years | Notes |
|---|---|---|---|---|---|
| Johnson/Evinrude | 70 HP | 70 | 2-Stroke | All years | Standard gearcase only |
| Johnson/Evinrude | 75 HP | 75 | 2-Stroke | All years | Standard gearcase only |
| Johnson/Evinrude | 85 HP | 85 | 2-Stroke | All years | Standard gearcase only |
| Johnson/Evinrude | 90 HP | 90 | 2-Stroke | All years | Standard gearcase only |
| Johnson/Evinrude | 100 HP | 100 | 2-Stroke | All years | Standard gearcase only |
| Johnson/Evinrude | 115 HP | 115 | 2-Stroke | All years | Standard gearcase only |
| Evinrude E-TEC | 75 HP | 75 | 2-Stroke | All years | Not for E-TEC models (require 16" guard) |
| Evinrude E-TEC | 90 HP | 90 | 2-Stroke | All years | Not for E-TEC models (require 16" guard) |
| Evinrude E-TEC | 115 HP | 115 | 2-Stroke | All years | Not for E-TEC models (require 16" guard) |
Tohatsu / Nissan Outboards
| Brand | Model | Rated HP | Stroke | Years | Notes |
|---|---|---|---|---|---|
| Tohatsu | 70 HP | 70 | 2 & 4-Stroke | All years | Standard gearcase only |
| Tohatsu | 75 HP | 75 | 2 & 4-Stroke | All years | Standard gearcase only |
| Tohatsu | 90 HP | 90 | 2 & 4-Stroke | All years | Standard gearcase only |
| Tohatsu | 100 HP | 100 | 2 & 4-Stroke | All years | Standard gearcase only |
| Tohatsu | 115 HP | 115 | 2 & 4-Stroke | All years | Standard gearcase only |
Technical Specs
- Product Type
- Propeller Safety Guard/Propeller Cage
- Installation
- Bolts to cavitation plate and skeg
- Material
- High-strength marine-grade polypropylene plastic
- Color
- Safety Red
- Dimensions
- 14" (355.6 mm) diameter cage
- Maximum Propeller Diameter
- Up to 13.5" (342.9 mm)
- Weight
- 2.77 kg (6.1 lbs) typical
- Maximum Speed Rating
- 25 mph (not recommended/warranted above this speed)
- Hardware Included
- Yes (mounting bolts and drill bit)
- Compatible Engine Range
- 70–120 HP outboard motors
- Engine Type
- 4-Stroke and 2-Stroke outboard motors
- Mounting Position
- Height (H) from propeller shaft to cavitation plate: 6.5"–7.5"
What’s in the Box
- 1 x 14" Propeller Safety Guard (Red)
- 6 x Short Bolts (for cavitation plate mounting)
- 4 x Long Bolts (for lower mounting)
- 1 x 1/3" Drill Bit
Installation Notes
- Ensure the engine is off and the battery is disconnected for safety.
- Position the propeller guard over the lower unit, ensuring it is centered around the propeller.
- Confirm the guard doesn't interfere with the propeller's rotation. There should be adequate clearance.
- Check that the height (H) from the center of the propeller shaft to the underside of the cavitation plate is within the 6.5"–7.5" range.
- Carefully mark the drilling locations on the cavitation plate and skeg.
- Use the included 1/3" drill bit to drill the marked holes.
- Secure the upper part of the guard to the cavitation plate using the provided short bolts.
- Secure the lower part of the guard to the skeg using the long bolts.
- Tighten all hardware securely. Professional installation is recommended.
Troubleshooting & FAQ
What is the most important measurement for ensuring fitment?
The most critical dimension is the height (H) from the center of the propeller shaft to the underside of the cavitation plate. For this 14" guard, it must be between 6.5 inches and 7.5 inches. Also, ensure your propeller's diameter is 13.5 inches or less.
Will this guard fit my Mercury Big Foot or Yamaha High Thrust motor?
No. This guard is only for standard gearcases. Big Foot, High Thrust, and Command Thrust models have larger gearcases and require a 16" propeller guard. Please verify your motor type before ordering.
Will this fit my Evinrude E-TEC model?
No. Most Evinrude E-TEC outboards require a larger 16" propeller guard due to the gearcase design. This 14" model is not compatible.
What is the maximum speed this guard is rated for?
The manufacturer does not recommend or warrant use above 25 mph. High speeds can put excessive stress on the guard and motor, potentially leading to damage or failure.
How is the guard installed?
Installation requires drilling holes in your motor's cavitation plate and skeg. The guard is then bolted directly to the lower unit. All necessary bolts and a drill bit are included, but professional installation is recommended to ensure proper alignment and safety.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
