18-3207 Water Pump Rebuild Kit for Mercury Outboard 30 35 40 45 50 60 65 70 HP | SeaSierra

Product Details

• SKU: 183207
• Brand & Manufacturer: SeaSierra
• Category: Marine Water Impeller Rebuild Kit
• Part Type: Water Pump Rebuild Kit
• Item Weight: 0.1401
• Package Dimensions: HEIGHT: 6.9001, DEPTH: 0.8501, WIDTH: 5.9001

Compatibility

This kit is compatible with the following Mercury Outboard models:

• 30HP: 0C159200 THRU 0G589999, 9570790 & Up
• 35HP: 6445653 THRU 0B110788, 9384476 & Up, 9466647 & Up, B110789 & Up
• 40HP: 0C159200 & Up, 5556230 & Up, 7144763 & Up, 8064750 & Up, 9251456 & Up, 9570790 & Up
• 45HP: 0A719281 & Up, 0B110789 & Up, 5531630 THRU 0B110788, 7143688 THRU 0A719280, 8063985 & Up, 9248006 THRU 9466691, 9466692 & Up
• 50HP: 0A721308 & Up, 0B122930 THRU 0D000749, 5531630 & Up, 6428681 THRU 0B122929, 7143688 & Up, 7208333 THRU 0A721307, 8063985 & Up, 9248006 & Up, 9385911 THRU 9469199, 9469200 THRU 9683054
• 60HP: 0A721308 & Up, 0B122930 THRU 0D000749, 6428681 THRU 0B122929, 7208333 THRU 0A721307 90-13288 - 3CYL, 9385911 THRU 9469199 90-13288 - 3CYL Gear Housing, 9469200 THRU 9683054 90-16404 - 3CYL Gear Housing
• 70HP: 5579017 THRU 6428680, 7145938 THRU 7208332, 8065065 & Up, 9255131 THRU 9385910 90-90647 - 700HP, 3CYL Gear Housing

Part Numbers and Replacements

• Replaces OEM Part Numbers: 47-89983T2, 47-89983Q1
• Replaces Sierra Part Number: 18-3207
• GLM Part Number: 12250
• Equivalent Kit: [Not provided, please insert if available]
• Other Replaced Part Numbers: 9-48300, 47-89983Q1, 47-89983T1, 47-89983T2

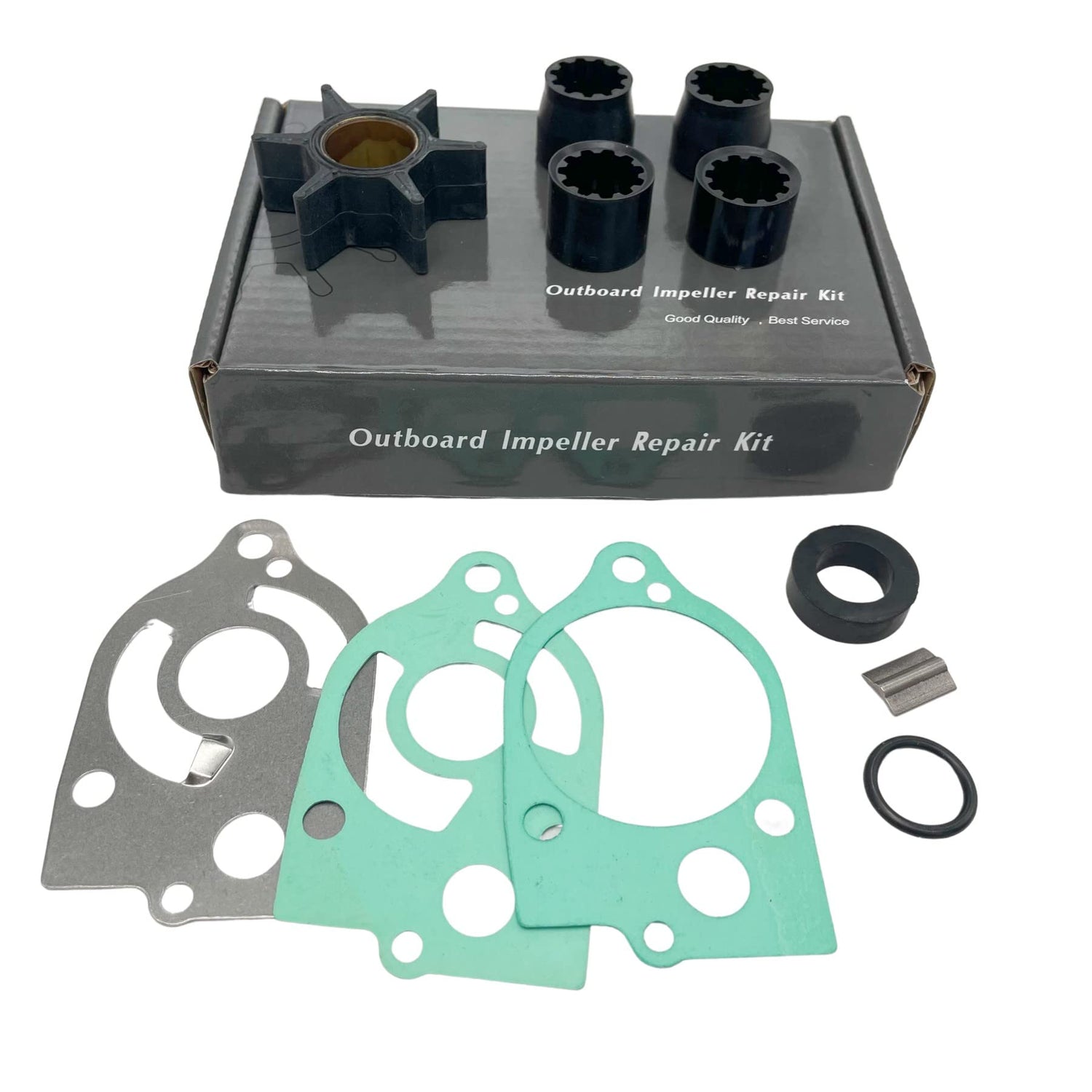

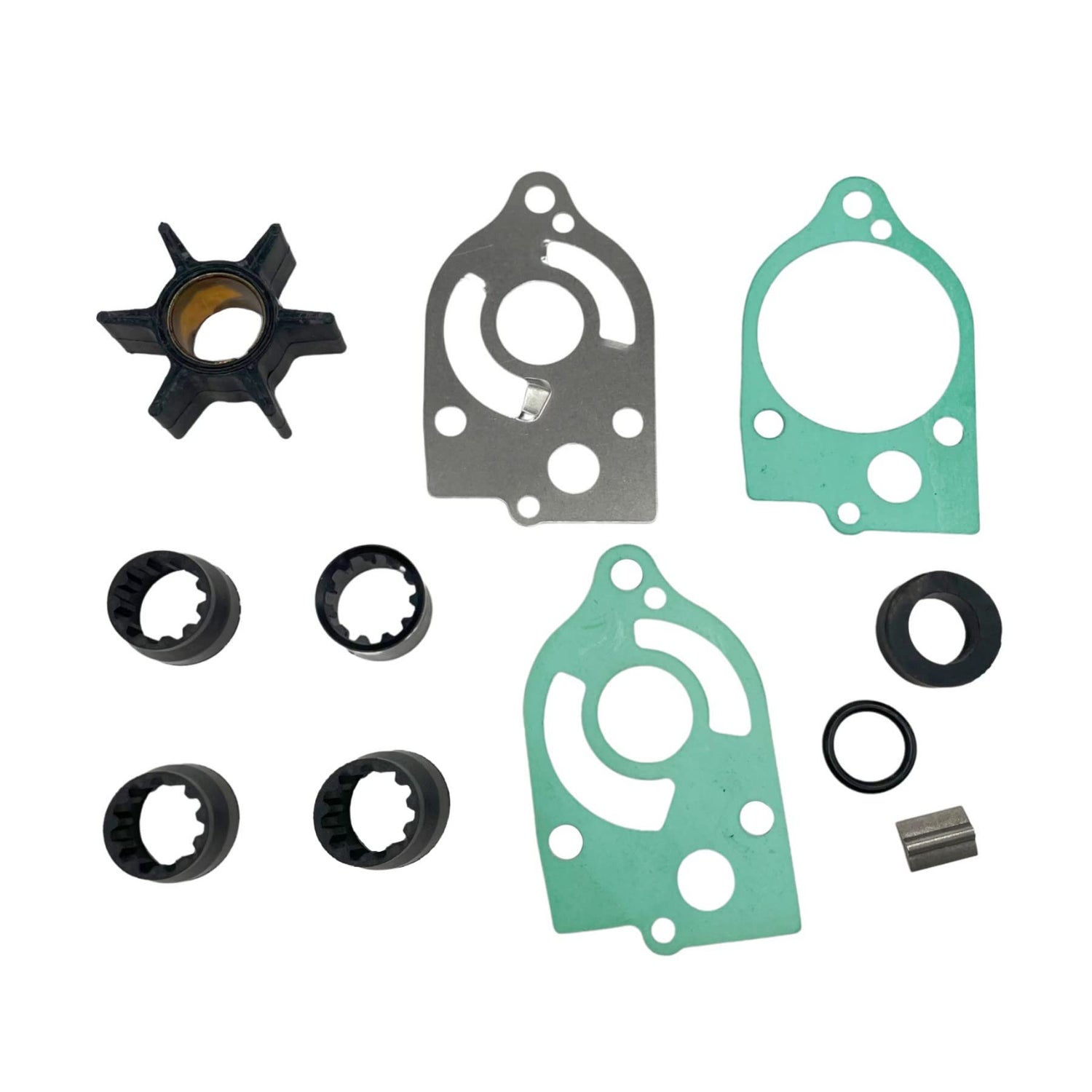

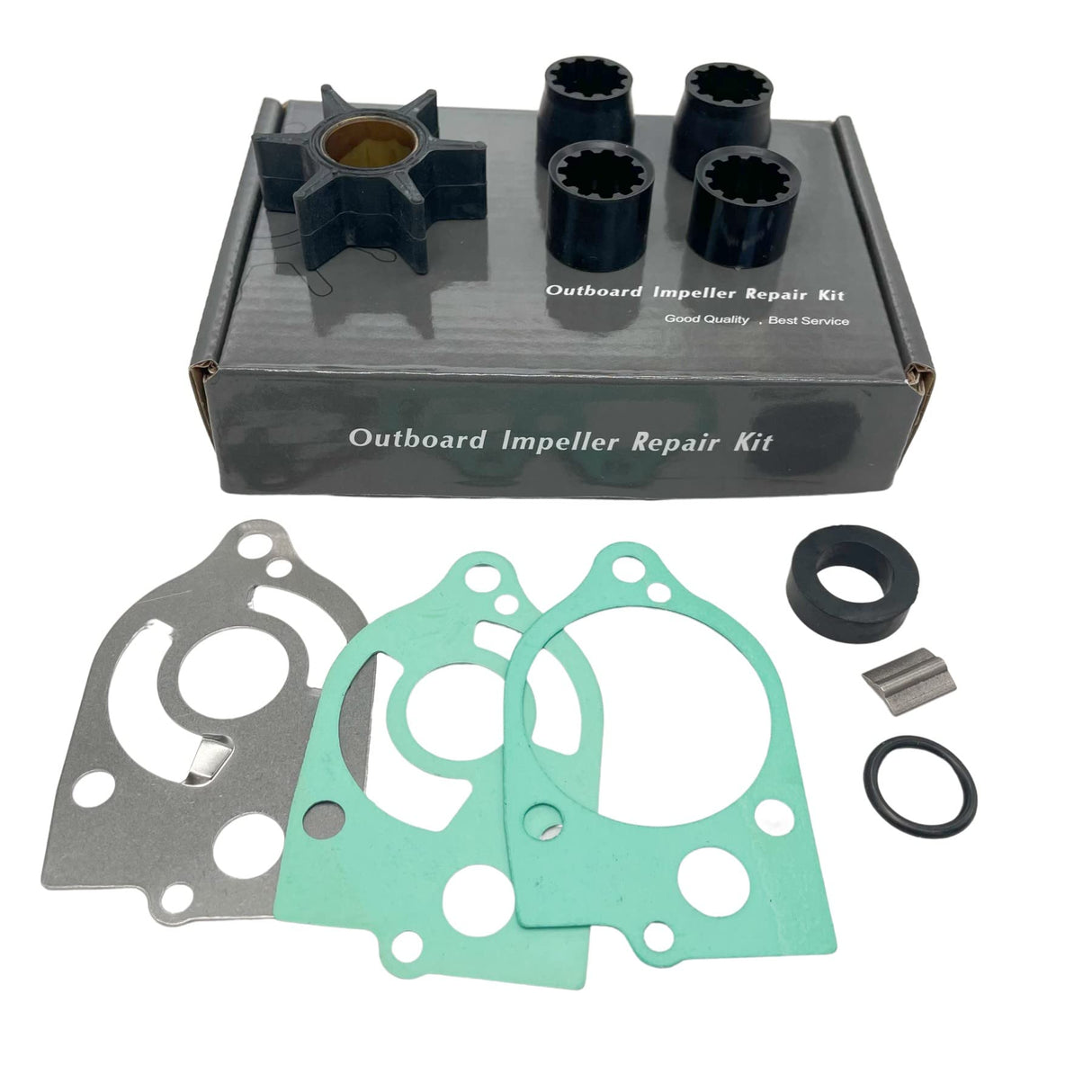

Kit Components

The package includes the following items:

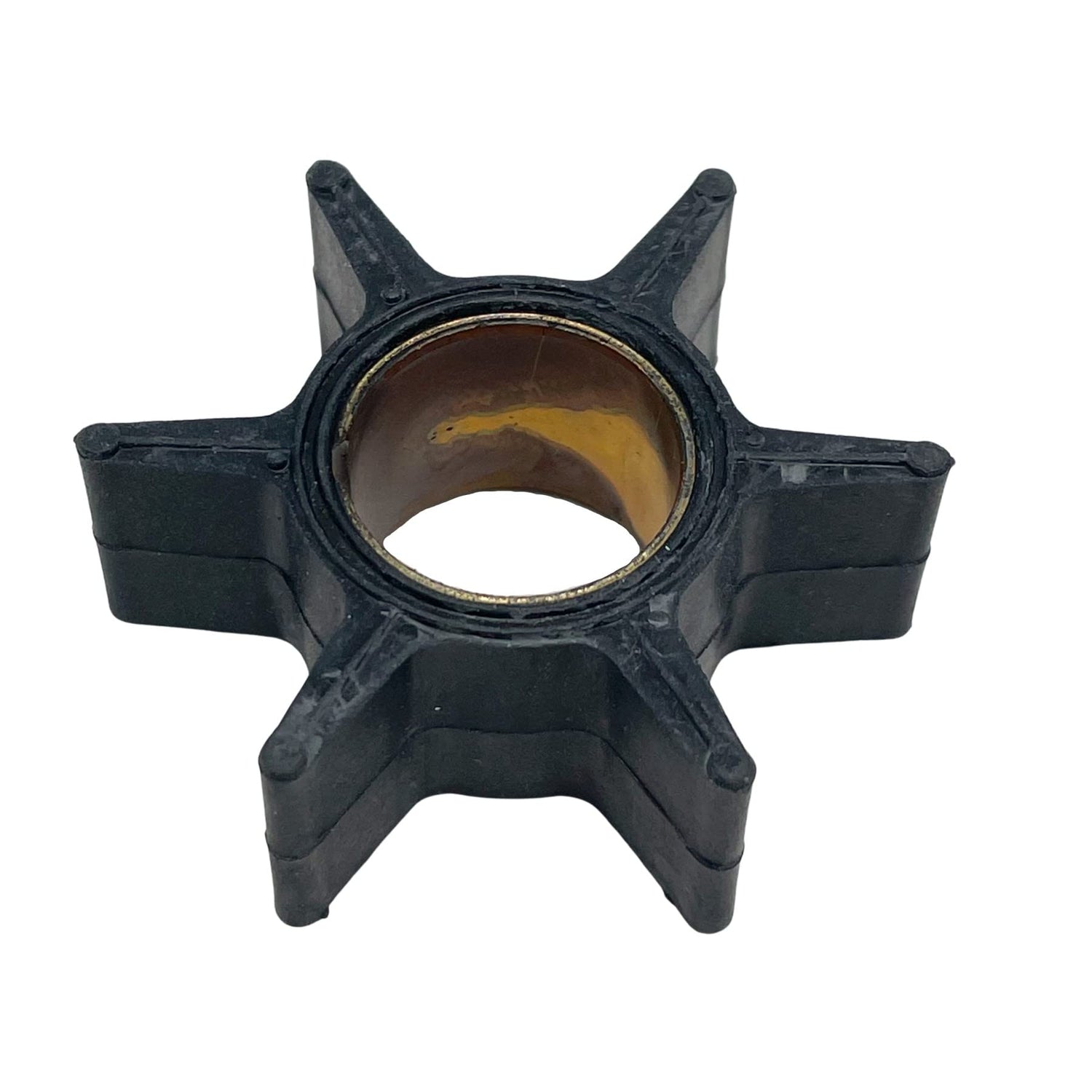

1. Impeller (18-3007)
2. Drain Gasket (18-2945) - Priced Per Pkg of 2

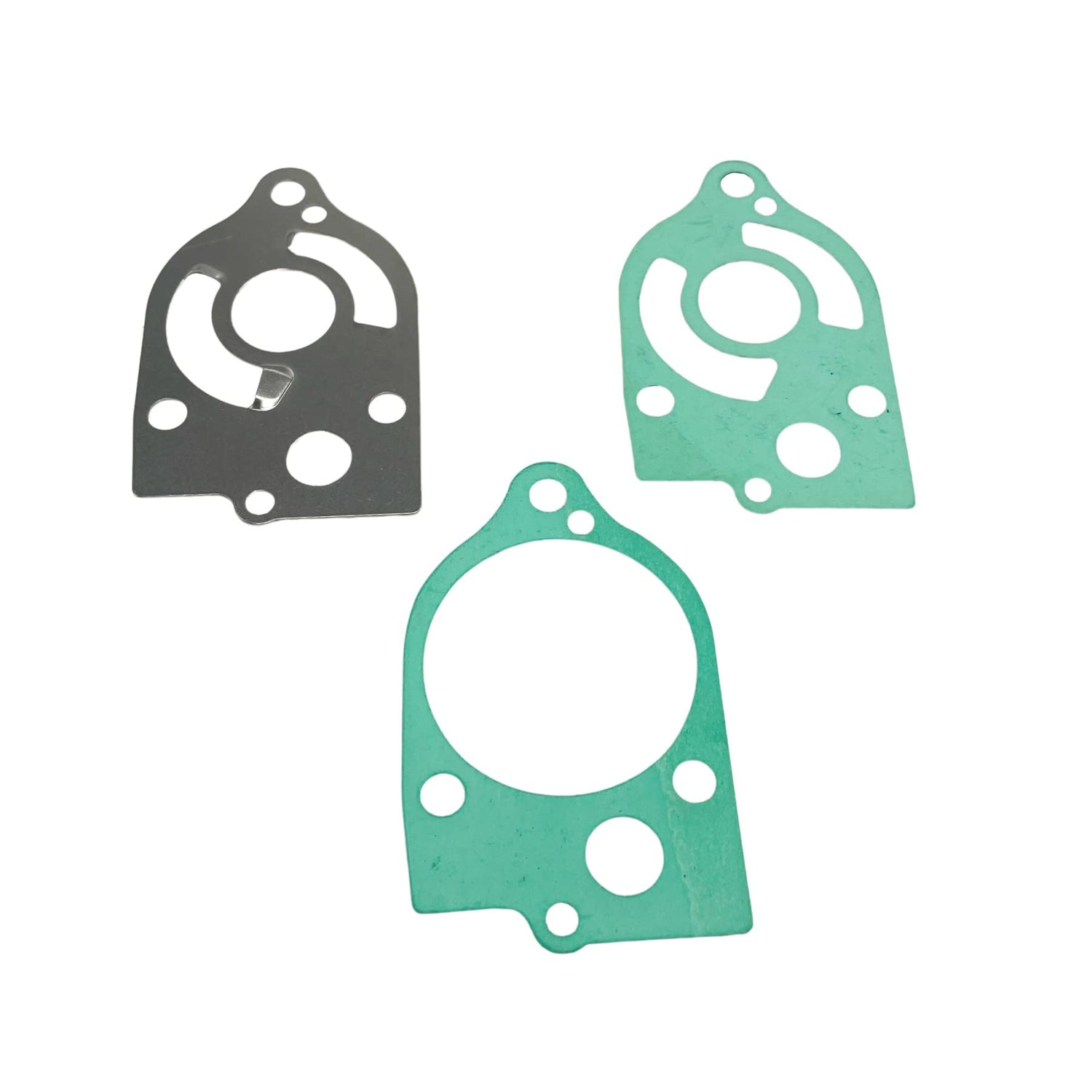

3. Low Water Pump Base to Face Place Gasket (18-2823)
4. Upper Face Place to Pump Body Gasket (18-2824)
5. Water Pump Base Gasket (18-2825)
6. Water Pump Base Gasket (18-2841)

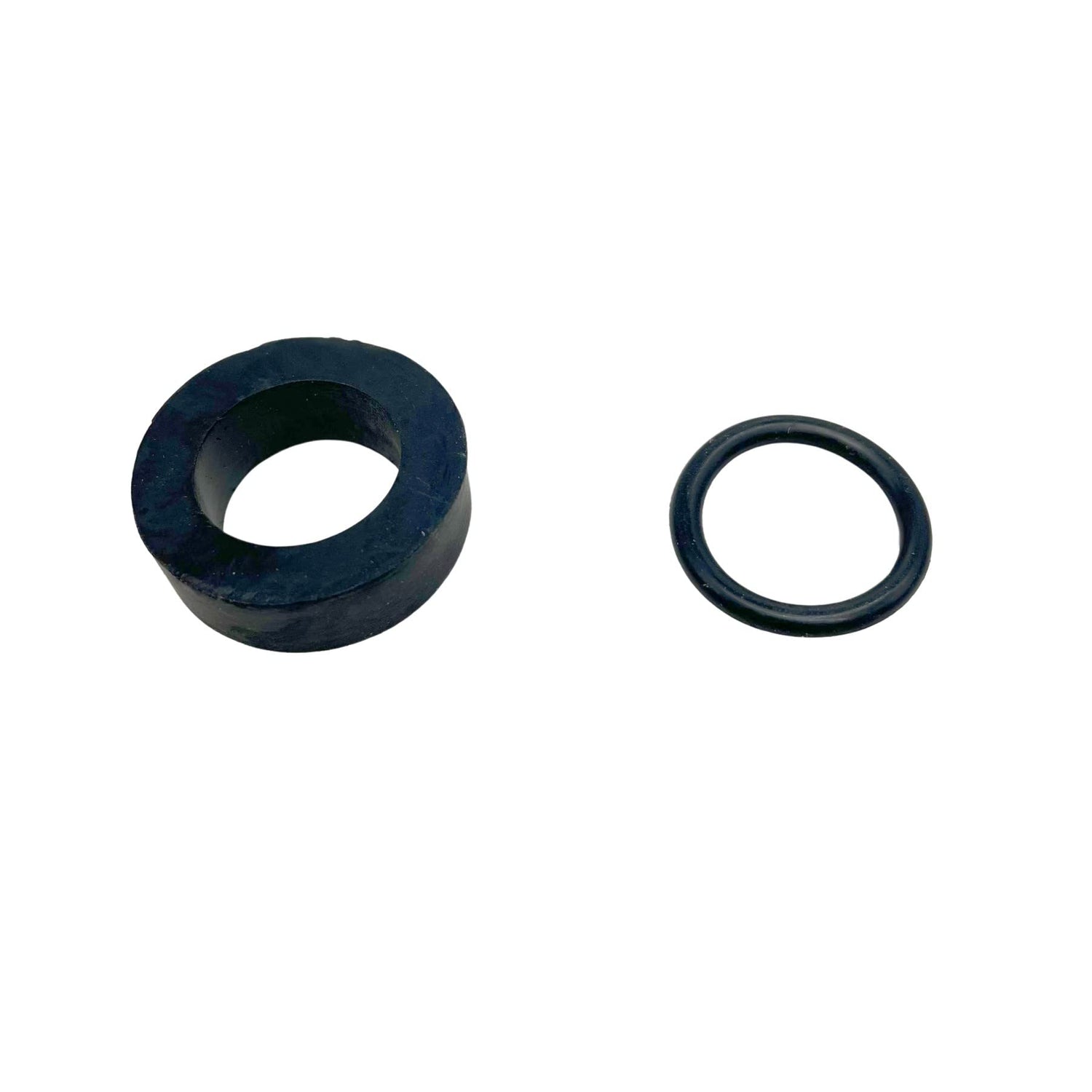

7. Rubber Washer (18-2948) - Priced Per Pkg of 5
8. Impeller Plate (18-3107)
9. O-Ring (18-7155)
10. O-Ring (18-7174) - Priced Per Pkg of 5
11. O-Ring (18-7115)

Additional Information

• Packaging Dimensions: WEIGHT: 0.1401, HEIGHT: 6.9001, DEPTH: 0.8501, WIDTH: 5.9001
• UPC: 030999237187
• CASE PACKAGING: 1
• STANDARD PACKAGING: 1
• HSC: 401699
• ECCN: 4016.99.6050
• Mallory Part Number: 9-48300
• Mercury Marine Part Numbers: 47-89983Q1, 47-89983T1, 47-89983T2
