18-3446 Water Pump Impeller Kit with Housing for Mercury Mariner Force Outboards 2 Stroke Carb 3.9 4 4.5 6 7.5 9.8 HP Driveshaft Dia 0.456 IN | SeaSierra

Product Details

• SKU: 183446
• Brand & Manufacturer: SeaSierra
• Part Type: Water Pump Impeller Repair Kit
• Material: Various Materials
• Engine Type: 2 Stroke
• Mounting Type: 3.9 4 4.5 6 7.5 9.8 HP Driveshaft Dia 0.456 IN
• Item Weight: 0.345
• Package Dimensions: HEIGHT: 4.4, DEPTH: 4.9, WIDTH: 2.8

Compatibility

This kit is compatible with the following Mercury Mariner Outboard models:

• 4HP: Model 5595532 & UP
• 4.5HP: Model 5595532 & UP
• 6HP: S/N 1916139 thru 2529894
• 7.5HP: Model 75 5206550 & UP
• 9.8HP: Model merc 110 5206550 & UP

Part Numbers and Replacements

• Replaces OEM Part Numbers: 46-70841A3, 46893A6, 46-70941A3, 46893A6, 70941A3, 46-70941A 3
• Replaces Sierra Part Number: 18-3446
• GLM Part Number: 12122
• SEI Marine Part Number: 96-260-01AK
• Other Replaced Part Numbers: 47-89981, 89981B, 39074, 65957, 18-3239

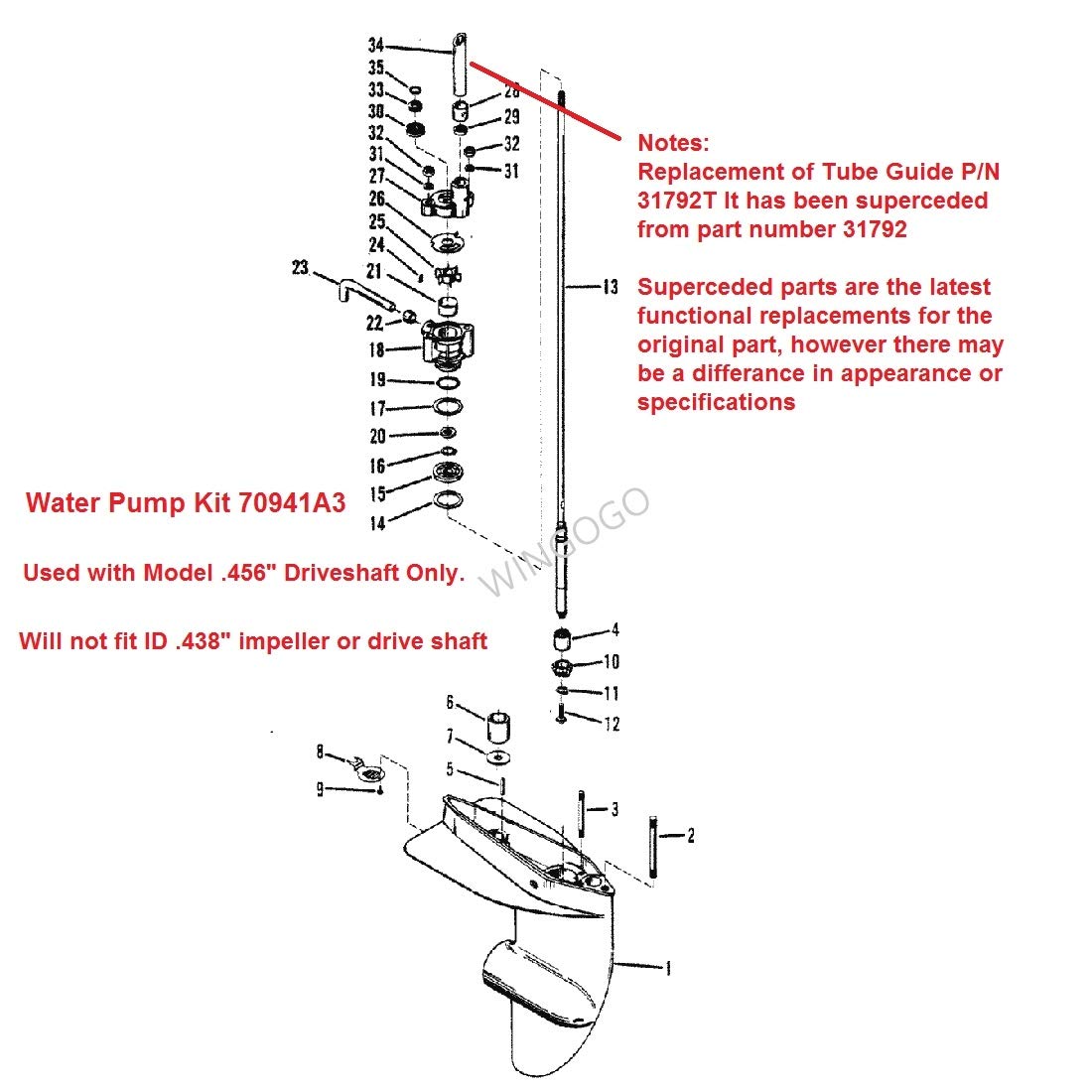

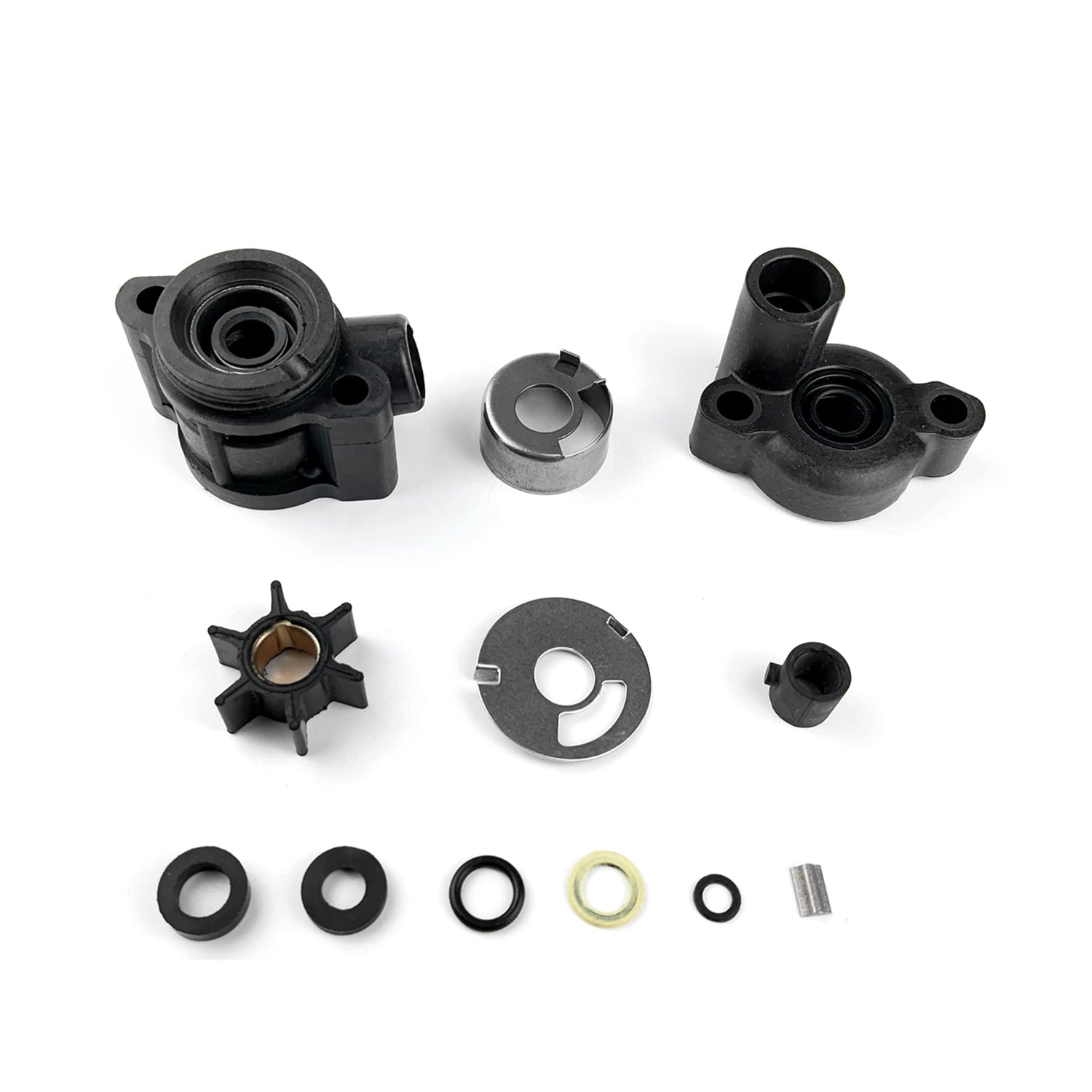

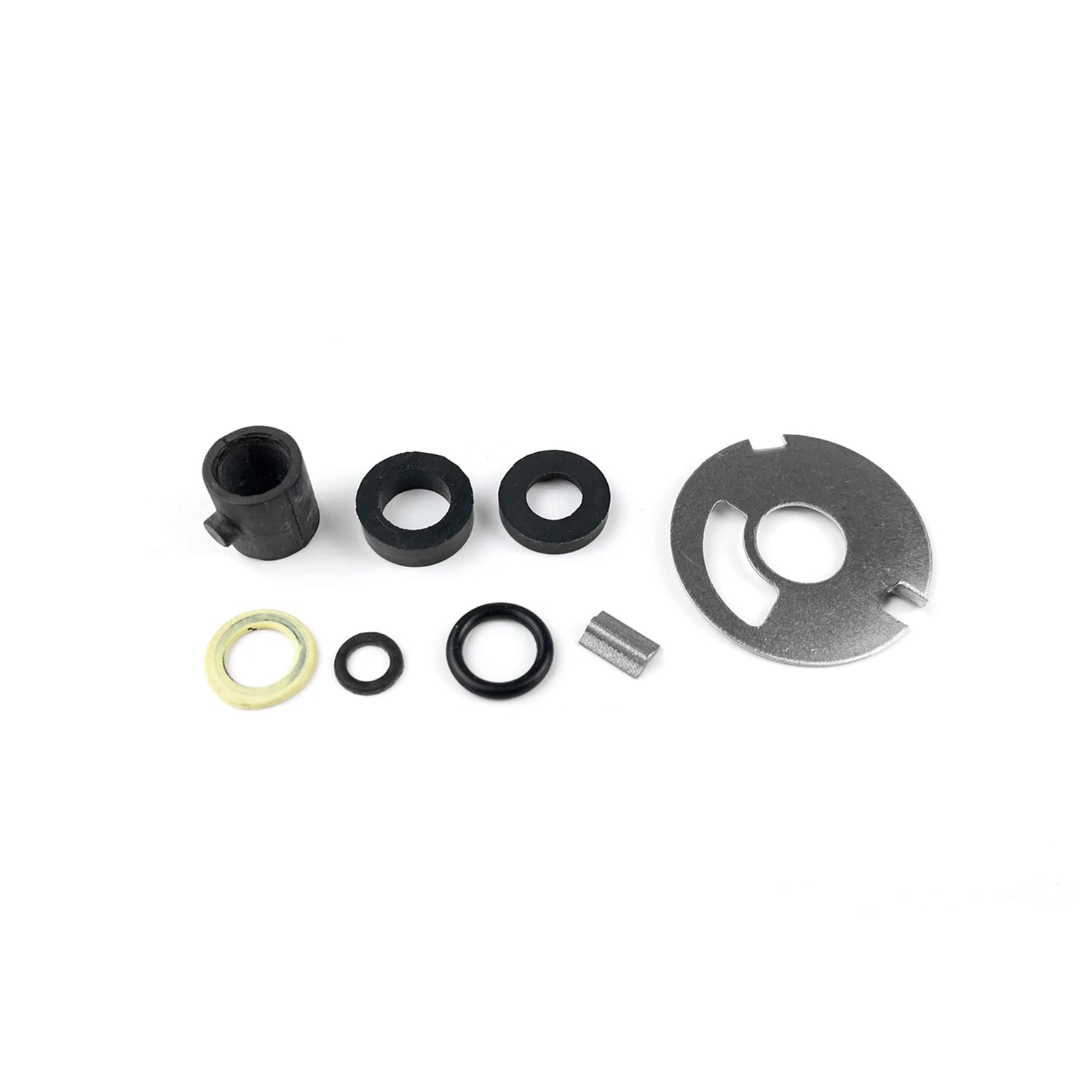

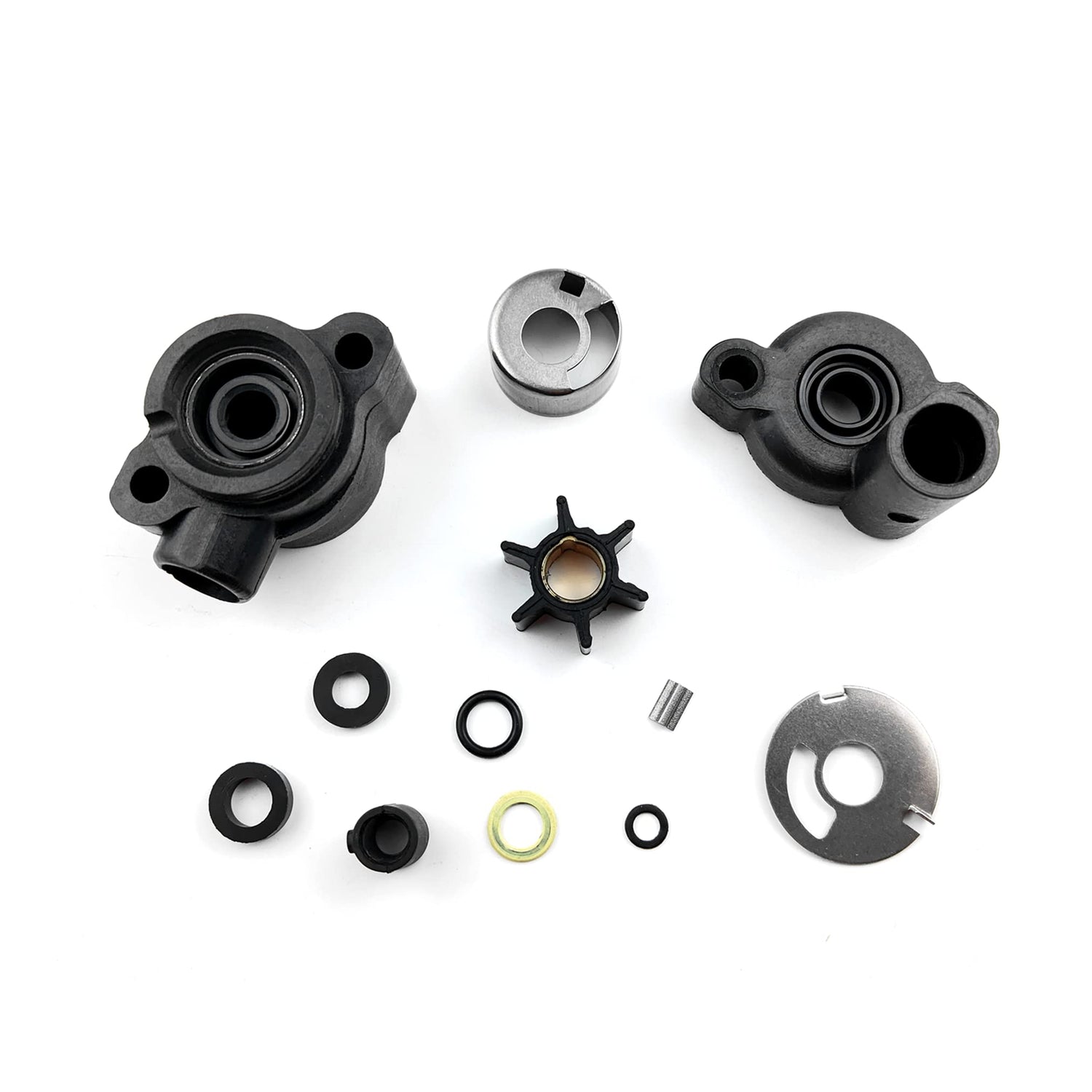

Kit Components

The package includes the following items:

1. Housing, Water Pump Assembly (70941T01, 70941A 1)
2. Face Plate (46895)

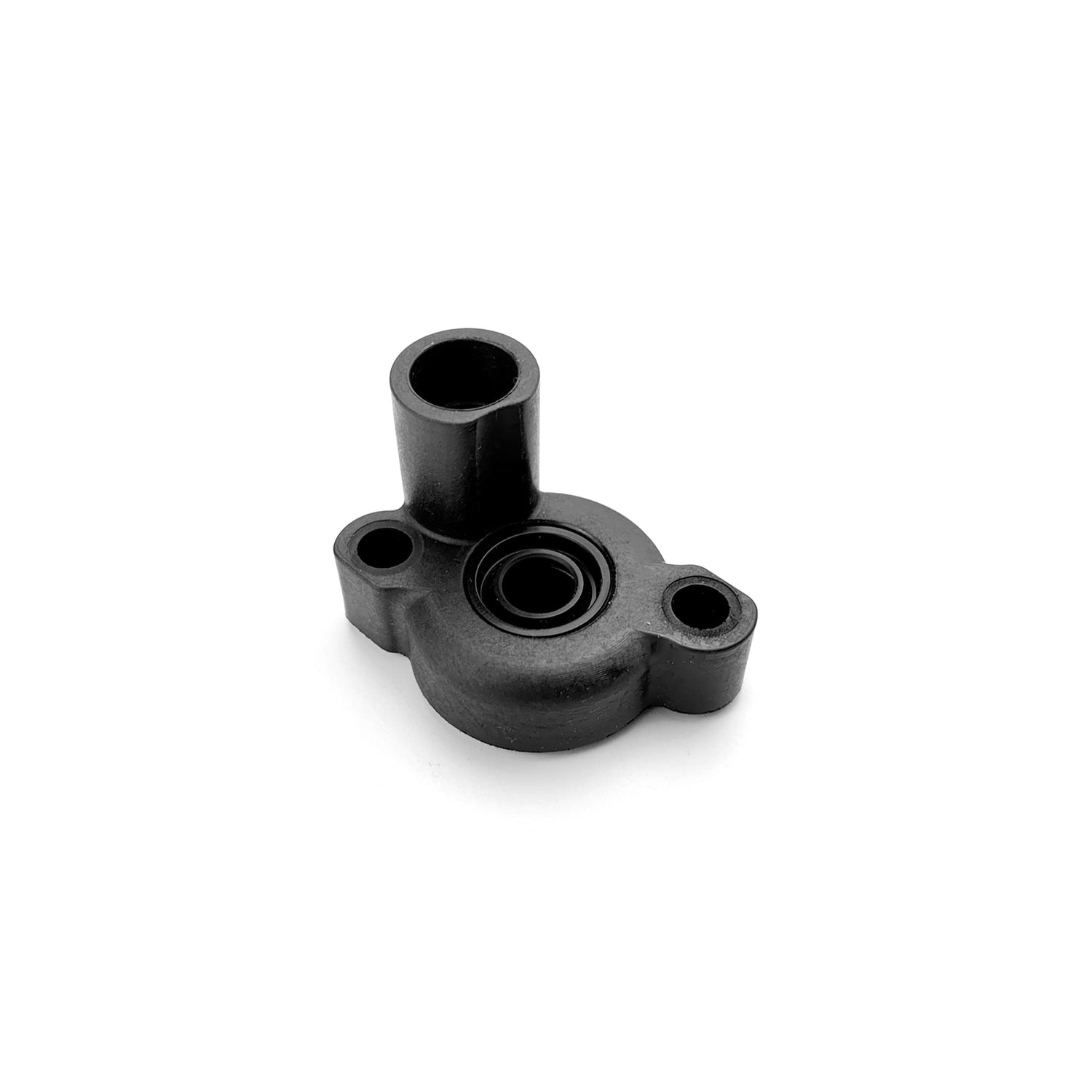

3. Cover (93224A1)

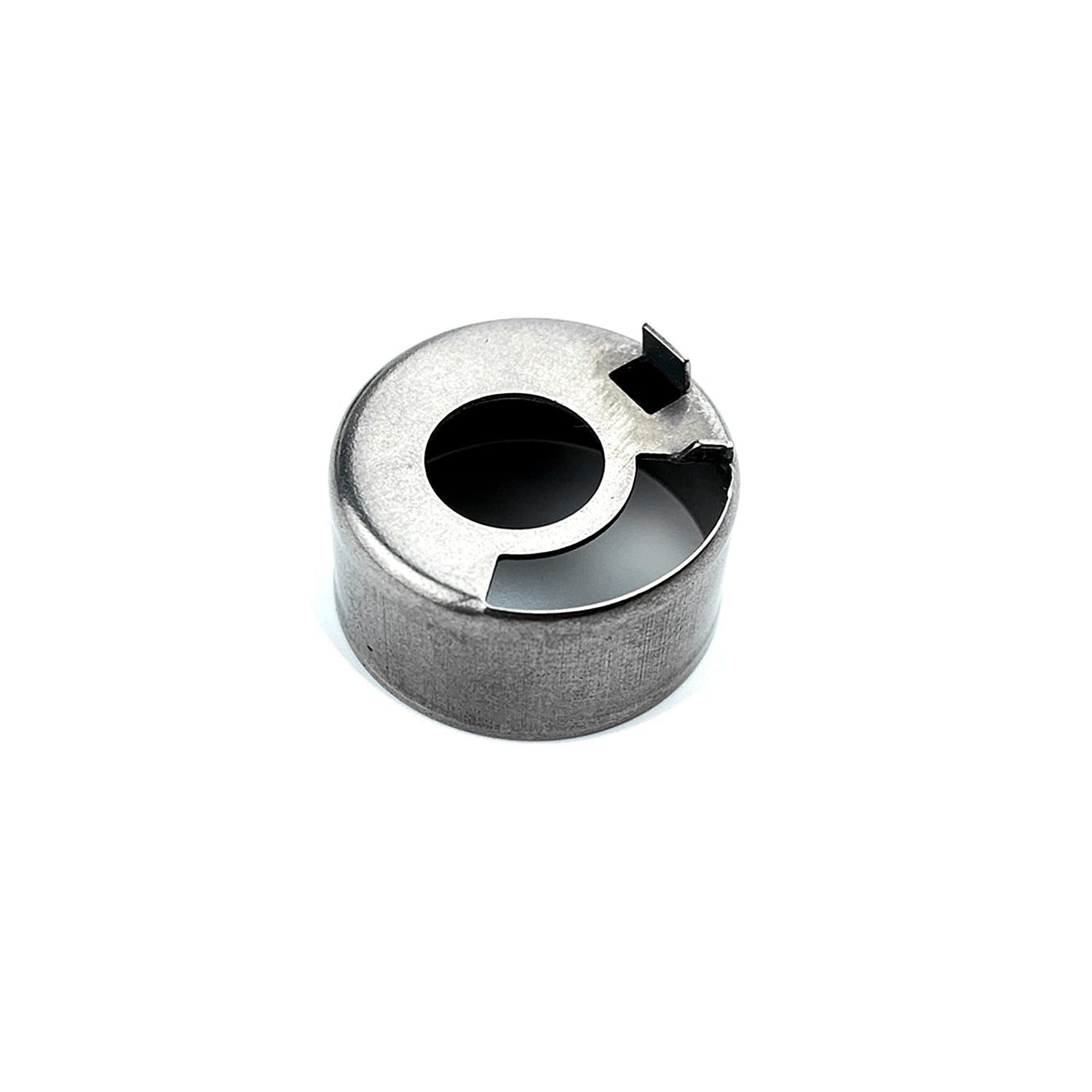

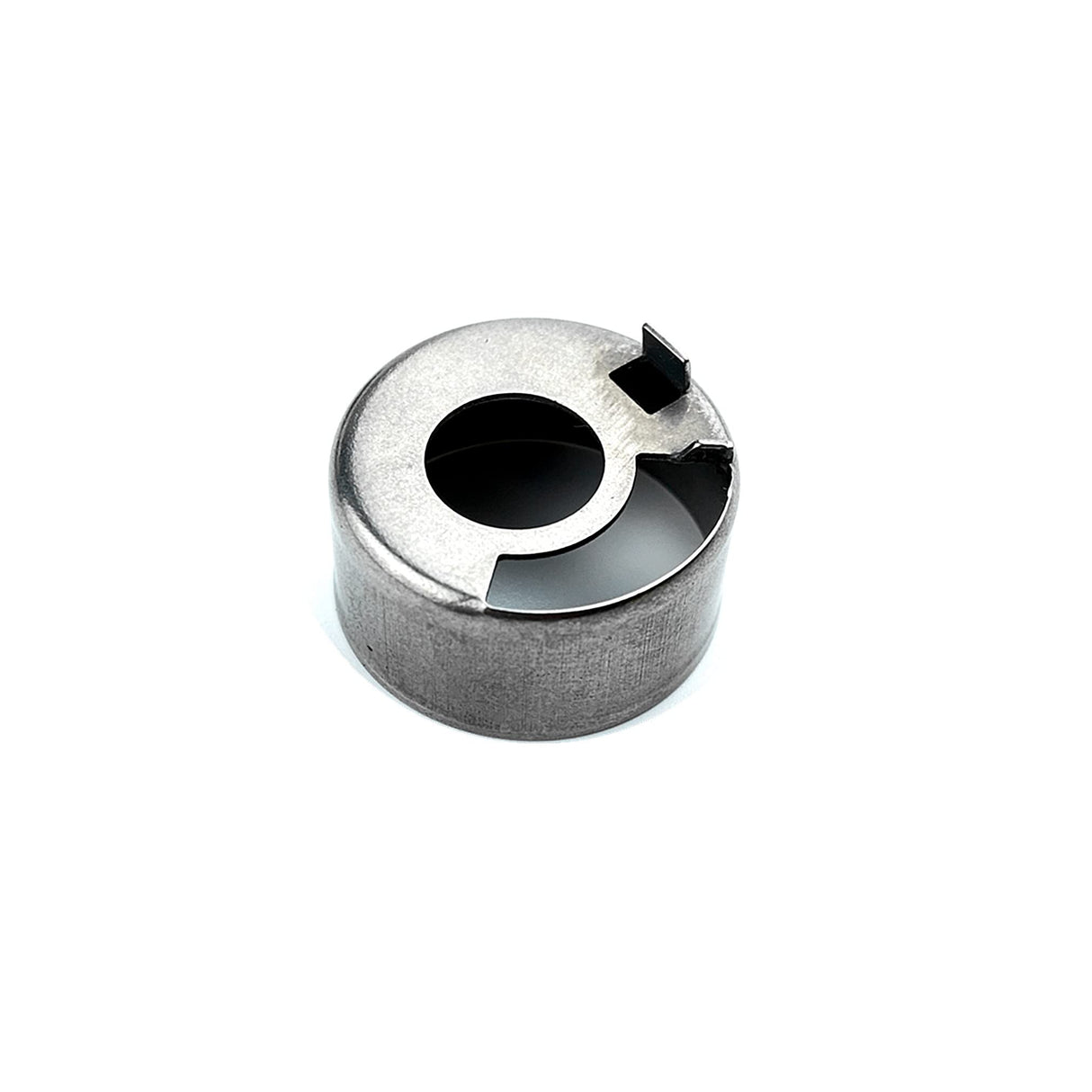

4. Cup, Insert (70977T, 70977)

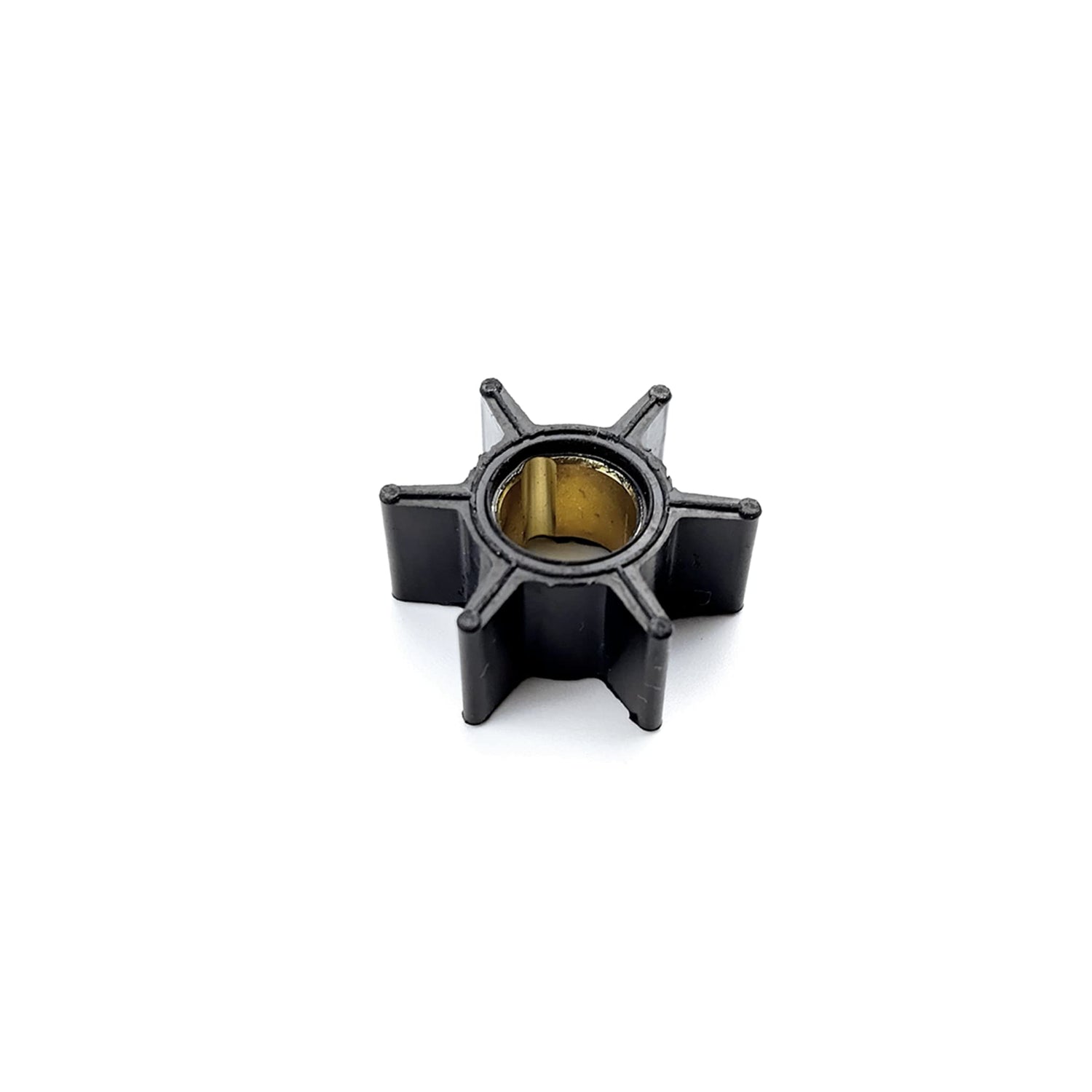

5. Water Pump Impeller (89981)
6. Key (8M0032835, 56655)
7. Seal (36558)
8. Washer
9. Rubber Ring (26-30526)
10. O-ring (25-62704, 29439)
11. Oil Seal, O-ring (26-30913)

Additional Information

• Cross OEM Part: 47-89981, 89981B, 39074, 65957, 70941A3, 18-3239
• Impeller Inside Diameter: Verify before ordering, measure across the hole in your old impeller, or the diameter of your drive shaft. This Water Pump kit includes Impeller ID 0.456 inch. If your water impeller ID or driveshaft is 0.438 inch, this Water Pump Impeller doesn't fit.
• Lubrication: Lubricate with silicone grease, glycerin, or dish soap when installing (not included). Remember to lubricate your pump and NEVER run the pump dry. NEVER pump flammable liquids.
• Packaging Dimensions: WEIGHT: 0.345, HEIGHT: 4.4, DEPTH: 4.9, WIDTH: 2.8
• UPC: 808282111939
• CASE PACKAGING: 1
• STANDARD PACKAGING: 1
• HSC: 841391
• ECCN: 8413.91.9010
• Mercury Marine Parts: 46-70941A3, Seal Water Pump Cover, NSS, Cover Assembly, Key, Housing Assembly, Impeller (18-3039), Impeller Plate (18-3139)
