Bearing – Suzuki Outboard Engines DF40A, DF50A, DF60A (2010-19), DF...
Product Details

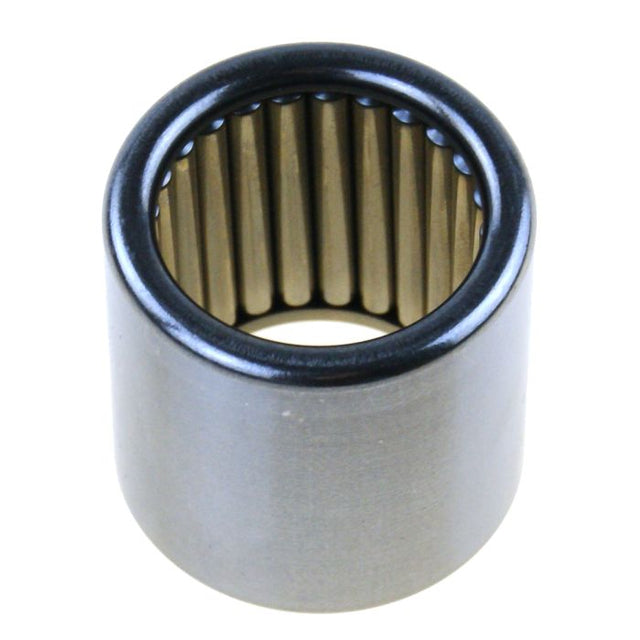

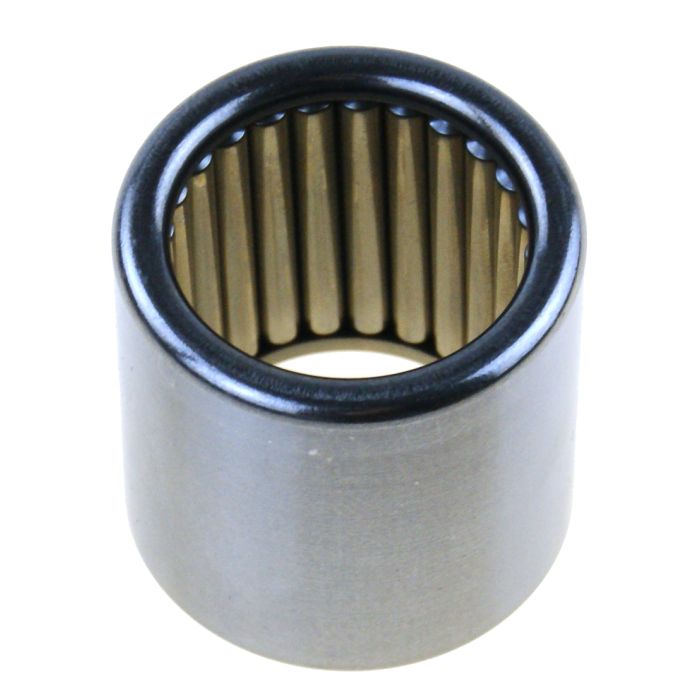

This aftermarket needle drive shaft Bearing – Suzuki Outboard Engines is designed for a wide range of Suzuki 2-Stroke and 4-Stroke models manufactured between 1986 and 2019. It provides a reliable fit for engines in the DF40 to DF60 horsepower range, as well as select DT40 models, ensuring performance that meets or exceeds original equipment standards.
This component serves as a direct replacement for Suzuki part numbers 09263-22L03, 09263-22039, and 09263-22033, and is an interchange for OMC/Johnson/Evinrude 5031256.
- Installation Location: Mounts within the engine gearcase.
- Engineered for Durability: Designed for reduced friction, improved efficiency, and quiet operation.
- Warranty: Includes a one-year limited warranty from the manufacturer.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 09263-22L03 |
| Suzuki | 09263-22039 |
| Suzuki | 09263-22033 |
| OMC/Johnson/Evinrude | 5031256 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki engines, this bearing fits various DF series 4-Stroke and DT series 2-Stroke models. Please verify your specific model and year range for an exact match.
For Johnson/Evinrude engines, this part is cross-referenced for select 40 and 50 HP models. Compatibility is based on the interchange with OEM part number 5031256.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF40A | 40 | 4-Stroke | 2010–2019 | 09263-22L03 | |
| Suzuki | DF50A | 50 | 4-Stroke | 2010–2019 | 09263-22L03 | |
| Suzuki | DF60A | 60 | 4-Stroke | 2010–2019 | 09263-22L03 | |
| Suzuki | DF40 | 40 | 4-Stroke | 1999–2010 | 09263-22L03 | X-K10 models |
| Suzuki | DF50 | 50 | 4-Stroke | 1999–2010 | 09263-22L03 | X-K10 models |
| Suzuki | DT40C-W | 40 | 2-Stroke | 1986–1999 | 09263-22L03 | G-X models |
| Suzuki | DT40W | 40 | 2-Stroke | 2001–2004 | 09263-22L03 | K1-K4 models |
| Johnson | J/BJ 40 | 40 | 5031256 | Aftermarket cross-reference | ||
| Johnson | J/BJ 50 | 50 | 5031256 | Aftermarket cross-reference | ||
| Evinrude | 5031256 | Aftermarket cross-reference; OEM part no. for roller bearing on Evinrude models, likely same as Johnson. |
Technical Specs
- Product Type
- Bearing (Needle Bearing, Drive Shaft)
- Installation
- Engine Gearcase
- Dimensions
- 22x29x30mm
- Warranty
- One-year limited warranty (TMP Global)
- Other Technical Attributes
- Designed to meet or exceed OEM specifications; reduced friction; improved efficiency; quiet operation.
What’s in the Box
- 1 x Bearing
Installation Notes
- Ensure the engine is turned off and the battery is disconnected before starting work.
- Access the gearcase assembly according to your engine's service manual.
- Carefully remove the old or damaged drive shaft bearing, noting its orientation.
- Clean the housing area thoroughly to remove any debris or old lubricant.
- Press the new bearing into place, ensuring it is seated correctly and evenly.
- Reassemble the gearcase components, applying new seals and grease as required.
- Follow all torque specifications outlined in the service manual during reassembly.
Troubleshooting & FAQ
Which Suzuki outboard models is this bearing compatible with?
This bearing is compatible with a wide range of Suzuki models including the DF40A, DF50A, and DF60A (2010–19), DF40/DF50 X-K10 (1999–10), DT40C-W G-X (1986–99), and DT40W K1-K4 (2001–04). Always check the compatibility table to confirm your specific model and year.
Is this bearing compatible with Johnson or Evinrude engines?
Yes, this bearing is listed as a cross-reference for OMC/Johnson/Evinrude part number 5031256, which fits certain J/BJ 40 and 50 HP models. Verify the part number against your engine's service manual to ensure an accurate match.
Where is this bearing installed on the outboard motor?
This needle bearing is located on the drive shaft within the engine's lower unit gearcase.
What are the signs of a failing drive shaft bearing?
Common symptoms of a worn or failed drive shaft bearing include a grinding or whining noise from the lower unit, excessive vibration during operation, or the presence of metal shavings in the gearcase oil when changed.
What are the dimensions for this bearing?
The specified dimensions are 22x29x30mm. While these are industry-standard measurements, the exact orientation (e.g., inner diameter x outer diameter x width) is not specified. Please verify against your old part before installation.
What is the recommended replacement interval for this bearing?
There is no fixed replacement interval. It should be inspected during regular lower unit service or replaced immediately if you notice any signs of wear, noise, or damage.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
