Carburetor Base Gasket – Fits Yamaha 60-70HP Outboards (Replaces 6H3-14198-A1-00)
Carburetor Base Gasket – Fits Yamaha 60-70HP Outboards (Replaces 6H3-14198-A1-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Product Details

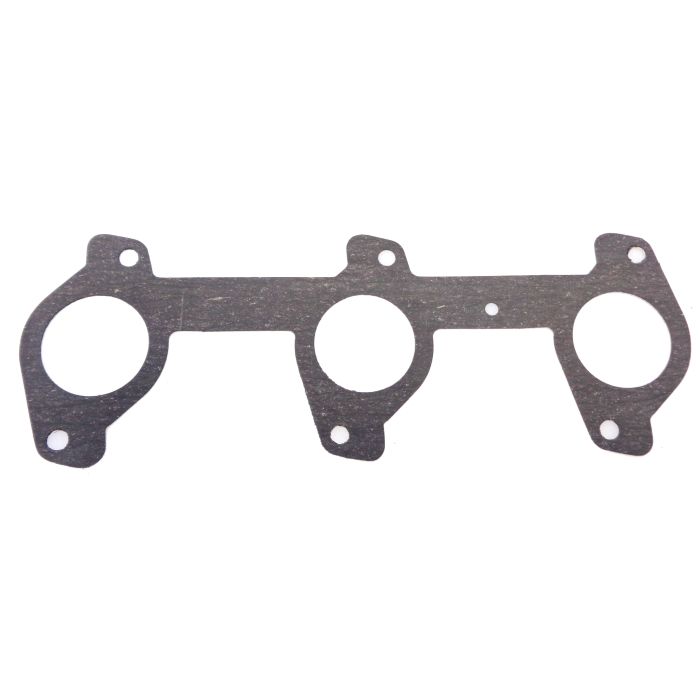

This Carburetor Base Gasket – Fits Yamaha 60-70HP Outboards (Replaces 6H3-14198-A1-00) provides a precision seal between the carburetor and intake manifold on a wide range of Yamaha 25-70HP 2-Stroke outboards from 1984–1991. It is engineered for specific models including the 60FE, 60FEO, 60FETO, 70ETL, and 70B series.
It serves as a direct replacement for multiple Yamaha part numbers, including the current 6H3-14198-A1-00, and interchanges with Sierra 18-99126.
- Ensures a leak-proof seal to maintain proper air/fuel mixture.
- Installs directly between the carburetor base and the intake manifold.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Yamaha | 6H3-14198-A1-00 | Current OEM Part |
| Yamaha | 6H3-14198-01-00 | Superseded by 6H3-14198-A1-00 |
| Yamaha | 6H3-14198-00-00 | Superseded by 6H3-14198-01-00 |
| Sierra | 18-99126 | Aftermarket Interchange |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Fitment is specific to the Yamaha models and years listed. Always verify your engine's model code (e.g., 6H2, 6K5) against our data.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 25B | 25 | 2-Stroke | 6H3-14198-A1-00 | ||
| Yamaha | 50ETK (6B0) | 50 | 2-Stroke | 1993 | 6H3-14198-A1-00 | |
| Yamaha | 50G, 50GEO, 50GETO | 50 | 2-Stroke | 6H3-14198-A1-00 | ||
| Yamaha | 60FE (6H2) | 60 | 2-Stroke | 1984–1986 | 6H3-14198-A1-00 | |
| Yamaha | 60FET (6H2) | 60 | 2-Stroke | 1984–1986 | 6H3-14198-A1-00 | |
| Yamaha | 60FEO (6H2) | 60 | 2-Stroke | 1987–1991 | 6H3-14198-A1-00 | |
| Yamaha | 60FETO (6H2) | 60 | 2-Stroke | 1987–1991 | 6H3-14198-A1-00 | |
| Yamaha | E-60D (6K50) | 60 | 2-Stroke | 1990 | 6H3-14198-A1-00 | |
| Yamaha | E60HM (6K5) | 60 | 2-Stroke | 1990–1991 | 6H3-14198-A1-00 | |
| Yamaha | E60MHP (6K50) | 60 | 2-Stroke | 1991 | 6H3-14198-A1-00 | |
| Yamaha | 60TLR, 60TRZ, 60F | 60 | 2-Stroke | 6H3-14198-A1-00 | ||
| Yamaha | P60TLHP | 60 | 2-Stroke | 1991 | 6H3-14198-A1-00 | |
| Yamaha | 70ETN (6H3) | 70 | 2-Stroke | 1984 | 6H3-14198-A1-00 | |
| Yamaha | 70B (6H3) | 70 | 2-Stroke | 1985–1990 | 6H3-14198-A1-00 | |
| Yamaha | 70B (6H30) | 70 | 2-Stroke | 1990 | 6H3-14198-A1-00 | |
| Yamaha | 70CE (6J2/6J20) | 70 | 2-Stroke | 1990 | 6H3-14198-A1-00 | |
| Yamaha | 70TRP (6H30) | 70 | 2-Stroke | 1991 | 6H3-14198-A1-00 | |
| Yamaha | 70ETLK, 70ETLJ, 70ETLH, 70ETLG, 70ETLF, 70ETLD, 70ETLDA | 70 | 2-Stroke | 1985–1990 | 6H3-14198-A1-00 | |
| Yamaha | 70TLRP | 70 | 2-Stroke | 1991 | 6H3-14198-A1-00 | |
| Yamaha | 70BEO, 70BE, 70BEDO, 70BETO, 70TR | 70 | 2-Stroke | 6H3-14198-A1-00 |
Technical Specs
- Product Type
- Carburetor Base Gasket
- Installation
- Between carburetor and intake manifold
- Fuel Type
- Gasoline
- Housing Material
- Gasket material (likely composite paper)
- Dimensions
- 8.0" H x 12.0" W x 0.25" L
- Weight
- 0.05 kg (0.11 lbs)
- Warranty
- Manufacturer dependent - typically 1 year
- Other Technical Attributes
- Leak-proof sealing for carburetor base
What’s in the Box
- 1 x Gasket (6H3-14198-A1-00)
Installation Notes
- Disconnect the battery and shut off the fuel supply.
- Remove the engine cowling and airbox cover to access the carburetor.
- Carefully disconnect fuel lines, throttle/choke linkages, and any electrical connectors attached to the carburetor.
- Unbolt the carburetor from the intake manifold and gently remove it.
- Remove the old gasket and thoroughly clean both mounting surfaces. Ensure no old gasket material or debris remains.
- Place the new gasket into position, ensuring it aligns with the bolt holes and intake port.
- Reinstall the carburetor, tightening the mounting bolts evenly to the manufacturer's specified torque.
- Reconnect all lines, linkages, and connectors.
- Reinstall the airbox and cowling, turn on the fuel, reconnect the battery, and check for leaks before starting the engine.
Troubleshooting & FAQ
How do I know if my carburetor gasket is failing?
Common signs include a rough idle, engine stalling, poor acceleration, or a noticeable vacuum leak hiss near the carburetor base. Fuel stains around the gasket area also indicate a failure.
Can I reuse my old gasket?
No. Carburetor gaskets are single-use components designed to crush and seal. Reusing an old gasket will likely result in air or fuel leaks.
Is there a specific orientation for this gasket?
Yes, always match the new gasket's shape to the bolt pattern and intake port on the manifold. It should only fit correctly in one orientation.
How often should this part be replaced?
Replace the gasket whenever the carburetor is removed for service, cleaning, or rebuilding. It does not have a set replacement interval but should be inspected for brittleness or damage during routine maintenance.
My engine model is listed, but the year is slightly different. Will it fit?
Fitment can be very specific. If your exact model and year combination is not listed, we recommend verifying the part number with your engine's service manual or contacting us with your engine's full model and serial number before ordering.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
