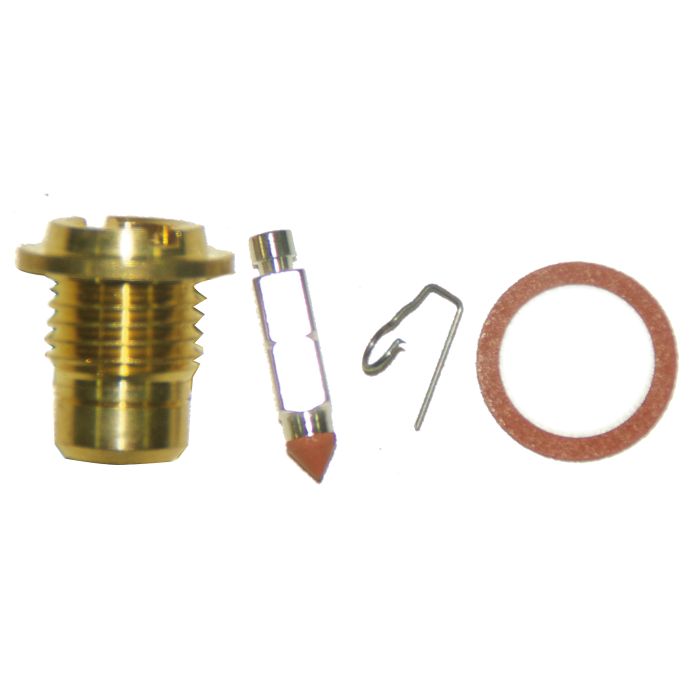

Carburetor Needle & Seat Kit – Fits Mercury & Mariner V6 Outboards (Replaces 1395-7824)

$19.99 $31.00

Shipping calculated at checkout.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Carburetor Needle & Seat Kit – Fits Mercury & Mariner V6 Outboards (Replaces 1395-7824) is designed for 135-200 HP, 2-Stroke V6 outboards, primarily for carburetor systems manufactured before the early 2000s.

It serves as a direct aftermarket replacement for Mercury/Quicksilver 1395-7824, Sierra 18-7233, and GLM 40900.

Engineered for direct OEM replacement installation.
Designed for use with gasoline fuel systems.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Mercury/Quicksilver	1395-7824
Sierra	18-7233
GLM	40900

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Mercury/Mariner owners, please verify your engine's serial number range against the table to ensure correct fitment.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mercury	V-135	135	2-Stroke	0A904646-0C239552	1395-7824
Mercury	V-150	150	2-Stroke	4868998-0C239552	1395-7824	Includes Magnum, Marathon, and Work variants
Mercury	V-1500	150	2-Stroke	4868998-0A904645	1395-7824
Mercury	V-150-XR-2	150	2-Stroke	4868998-0A904645	1395-7824
Mercury	V-175	175	2-Stroke	4301235-0C239552, 8058870 & Up	1395-7824
Mercury	V-200	200	2-Stroke	5624878-0C291519	1395-7824
Mercury	V-225	225	2-Stroke	5628028 & Up	1395-7824
Mercury	MAGNUM II		2-Stroke	0B242885-0C239552	1395-7824
Mercury	XR-4		2-Stroke	0B242885-0C239552	1395-7824
Mercury	MERC FORMULA I (CARB)		2-Stroke	77J603 & Up	1395-7824
Mercury	MERC MOD-VP		2-Stroke	0B290000 & Up, 83B807 & Up	1395-7824
Mercury	MERC XR2		2-Stroke	0B290314-0C276429	1395-7824
Mercury	MERC/MAR 2.4L (CARB)		2-Stroke	0C175045 & Up	1395-7824
Mercury	S2000		2-Stroke	0D030200 & Up	1395-7824
Mercury	SST 120		2-Stroke	0D030200 & Up	1395-7824

Technical Specs

Product Type: Carburetor Inlet Needle & Seat Assembly
Installation: Direct OEM replacement
Fuel Type: Gasoline
Dimensions: Length: 0.63", Width: 5.13", Height: 4.0"
Warranty: 1 year (Mercury/Quicksilver)
Other Technical Attributes: For V6 carbureted outboard engines

What’s in the Box

1x Carburetor Needle & Seat Kit

Installation Notes

Disconnect the battery and safely detach the fuel line.
Remove the carburetor from the engine, noting all linkage and hose connections.
Carefully disassemble the carburetor on a clean workbench to access the float bowl and float assembly.
Remove the pin holding the float to extract the old needle and then unscrew the seat.
Thoroughly clean the float bowl and all carburetor passages with a dedicated carburetor cleaner.
Install the new seat and needle, ensuring the needle is correctly attached to the float tab.
Reassemble the carburetor, verifying the float height is set to your engine’s service manual specifications.
Re-install the carburetor onto the engine, reconnect all lines and linkages, and test for leaks and proper idle before operation.

Troubleshooting & FAQ

How do I know if this needle and seat kit fits my engine?

This kit is for specific Mercury/Mariner V6 2-stroke outboards (135-200HP). The most reliable way to confirm is by matching your engine's serial number to the ranges listed in the compatibility table.

What are the signs of a failing carburetor needle and seat?

Common symptoms include fuel leaking from the carburetor, the engine flooding, stalling at idle, or difficulty starting. An overflowing float bowl is a direct sign of a bad needle and seat that is failing to seal properly.

Can I just replace the needle and not the seat?

It is highly recommended to replace both the needle and the seat as a matched set. They are designed to wear together, and installing a new needle into a worn seat will likely result in a poor seal and continued leaking.

Is any adjustment needed after installation?

Yes. After installation, you must check and adjust the float level according to your engine's service manual specifications. A correct float height is critical for ensuring proper fuel delivery and preventing flooding or starvation.

Does this kit include the float or bowl gasket?

This kit contains only the carburetor needle and seat assembly. Floats, gaskets, and other carburetor components are sold separately. We recommend replacing the float bowl gasket at the same time.

What is the recommended replacement interval?

There is no fixed replacement interval. You should inspect the needle tip for damage or deformation during regular carburetor servicing and replace the set if you notice any signs of wear or are experiencing fuel leak symptoms.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
