Carburetor Repair Kit – Fits Yamaha 2-Stroke 115-225 HP Outboards (Replaces 6E5-W0093-06-00)

Product Details

This genuine Yamaha Carburetor Repair Kit – Fits Yamaha 2-Stroke 115-225 HP Outboards (Replaces 6E5-W0093-06-00) fits Yamaha 2-stroke outboard motors ranging from 115 HP to 225 HP manufactured from 1986 to 1995, including C115, P115, L130, L150, P150, P175, L200, P200, and 225 HP 2.6L models.

It serves as a direct replacement for multiple part numbers, including Yamaha 6E5-W0093-06-00, 6G5-W0093-05-XX, 6K7-W0093-03-00, 6N6-W0093-01-00, Sierra 18-7002, EMP 1300-09103, GLM Marine 40505, and Red Rhino YA-C02.

• Requires manual assembly and installation.
• Designed for OEM direct replacement fitment.
• Includes all essential gaskets, seals, and valves for a complete rebuild.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is compatible with a wide range of Yamaha outboard engines. Please check your specific model against the list to ensure proper fitment.

Technical Specs

Product Type

Carburetor Repair Kit

Installation

Manual assembly required

Fuel Type

Gasoline (Petrol)

Dimensions

7.13" H x 6.0" W x 0.5" L

Fitting Type

OEM direct replacement

Other Technical Attributes

For Yamaha 2-stroke outboard carburetors

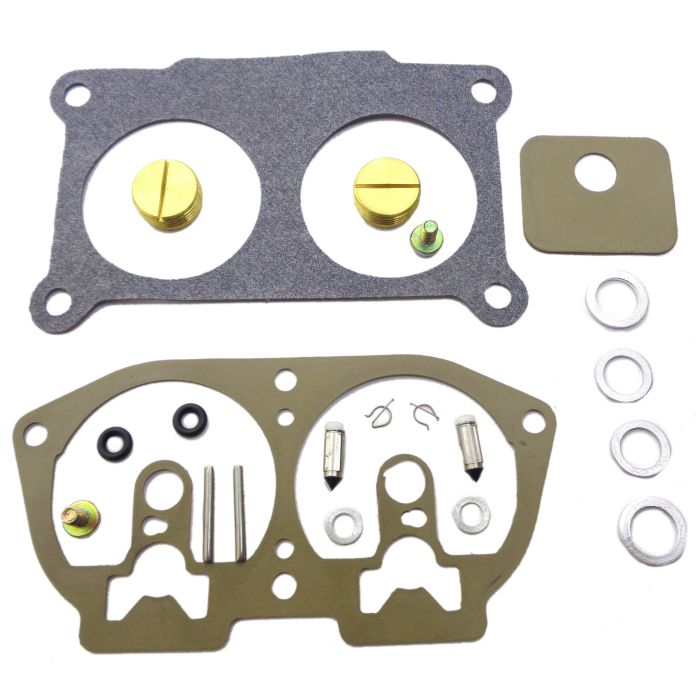

What’s in the Box

• 1 x Gasket (6E5-14198-A1-00/6E5-14198-A2-00)
• 2 x Needle Valve (6E5-14546-00-00)
• 2 x Float Pin (6E5-14386-02-00)
• 1 x Float Chamber Gasket (6E5-14384-03-00)
• 2 x Gasket (6E5-14398-01-00)
• 2 x Gasket (6E5-14979-00-00)
• 2 x Gasket (6J8-14995-00-00)
• 1 x Gasket (6E5-14959-01-00)
• 2 x Clip (6E5-14159-00-00)
• 2 x Plug Slow Jet (6E5-14394-00-00)
• 2 x O-Ring (6E5-14997-00-00)
• 2 x Plug (6E5-14328-01-00)

Installation Notes

1. Disconnect the battery and shut off the fuel supply for safety.
2. Carefully disconnect fuel lines and linkages from the carburetor, noting their positions for reassembly.
3. Remove the carburetor assembly from the engine.
4. Disassemble the carburetor on a clean workbench, organizing parts systematically to avoid loss.
5. Thoroughly clean all metal components with a quality carburetor cleaner, ensuring all jets and passages are clear of debris.
6. Carefully remove old gaskets, seals, and O-rings, comparing them with the new parts to ensure a correct match.
7. Install the new components from the kit, ensuring each part is seated correctly.
8. Set the float height according to your engine's service manual specifications, as this is critical for proper fuel delivery.
9. Reassemble the carburetor, making sure all screws are torqued to the manufacturer's specification.
10. Reinstall the carburetor assembly onto the engine, reattaching all linkages and fuel lines.
11. Turn on the fuel supply, check thoroughly for any leaks, and then reconnect the battery.
12. Start the engine and adjust the idle and mixture screws as needed for smooth, stable operation.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
