Product Details
This Carburetor Repair Kit – Fits Yamaha 40HP 2-Stroke is designed for 1991–1999 Yamaha 40 HP 2-Stroke outboard motors, including models 40G, 40QE, 40QE-2, 40QM, and CV40. It also covers Mercury 40 HP Twin Carb models.
It serves as a direct cross-reference for Yamaha part numbers 6E9-W0093-02-00 and 6E9-W0093-01-00, Sierra 18-7740, and Mercury 17068M.
- Installs as a direct replacement for the original components.
- Includes a complete set of gaskets, seals, and hardware for rebuilding twin carburetors.
- Engineered for use with standard gasoline fuel systems.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 6E9-W0093-01-00 | 6E9-W0093-02-00 | |
| Yamaha | 6E9-W0093-02-00 | Current OEM part number. | |
| Sierra | 18-7740 | Aftermarket cross-reference. | |
| Mercury | 17068M | OEM cross-reference number. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha models, please verify your engine's model code and production year range against the compatible models listed.
For Mercury models, this kit fits 40 HP twin carburetor outboards. Verify your specific model requirements before purchasing.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 40G | 40 | 2-Stroke | 1992–1999 | 6E9-W0093-02-00 | Replaces 6E9-W0093-01-00 |
| Yamaha | 40QE | 40 | 2-Stroke | 1992–1999 | 6E9-W0093-02-00 | Replaces 6E9-W0093-01-00 |
| Yamaha | 40QE-2 | 40 | 2-Stroke | 1992–1999 | 6E9-W0093-02-00 | Replaces 6E9-W0093-01-00 |
| Yamaha | 40QM | 40 | 2-Stroke | 1992–1999 | 6E9-W0093-02-00 | Replaces 6E9-W0093-01-00 |
| Yamaha | CV40 | 40 | 2-Stroke | 1991–1993 | 6E9-W0093-02-00 | Two cylinder model |
| Yamaha | C40ELRP | 40 | 2-Stroke | 1991 | 6E9-W0093-02-00 | |
| Yamaha | C40ELRQ | 40 | 2-Stroke | 1992 | 6E9-W0093-02-00 | |
| Yamaha | C40ELRR | 40 | 2-Stroke | 1993 | 6E9-W0093-02-00 | |
| Yamaha | C40PLRQ | 40 | 2-Stroke | 1992 | 6E9-W0093-02-00 | |
| Yamaha | C40PLRR | 40 | 2-Stroke | 1993 | 6E9-W0093-02-00 | |
| Yamaha | C40MSHQ | 40 | 2-Stroke | 1992 | 6E9-W0093-02-00 | |
| Yamaha | C40MSHR | 40 | 2-Stroke | 1993 | 6E9-W0093-02-00 | |
| Yamaha | CV40ELD | 40 | 2-Stroke | 1990 | 6E9-W0093-02-00 | |
| Mercury | 40 HP TWIN CARB | 40 | 2-Stroke | 17068M |
Technical Specs
- Product Type
- Carburetor Repair/Rebuild Kit
- Installation
- Direct replacement
- Fuel Type
- Gasoline
- Dimensions
- 18.0" L x 16.0" W x 5.0" H
- Warranty
- Manufacturer standard warranty
- Other Technical Attributes
- Complete carburetor rebuild kit for twin carburetor outboard engines

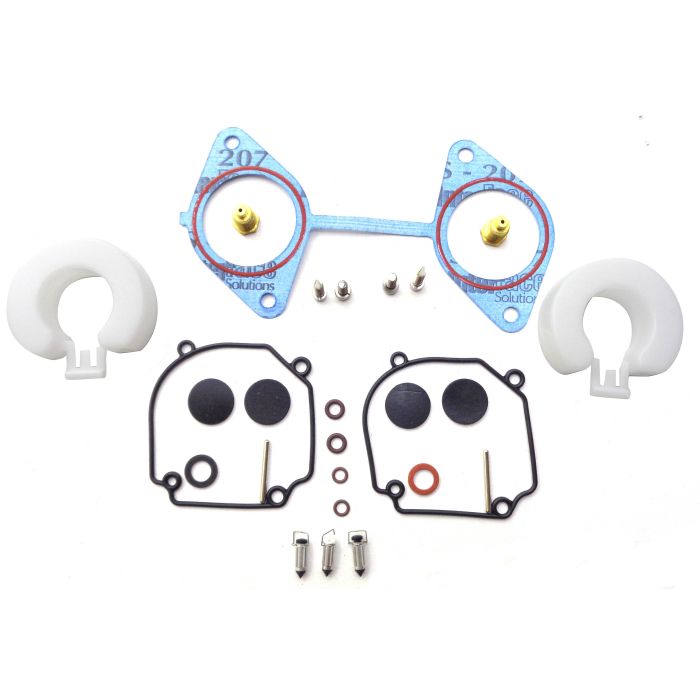

What’s in the Box
- 1 x Gasket (6E9-14198-A0-00)
- 2 x Screw, With Washer (97980-04114-00)
- 2 x Needle Valve Assembly (6H3-14590-01-00/6H3-14590-02-00)
- 2 x Gasket, Float Chamber (676-14984-00-00)
- 2 x Pin, Float Arm (688-14548-00-00)
- 2 x Pin, Float (676-14186-00-00)
- 2 x Clip (633-14159-00-00)
- 2 x Float (676-14985-01-00)
- 2 x Screw, Pilot (692-14923-00-00)
- 2 x O-Ring (93210-04228-00)
- 2 x O-Ring (93210-04230-00)
- 4 x Gasket (688-14126-00-00)
Installation Notes
- Shut off the fuel supply and disconnect the fuel line from the carburetor.
- Carefully remove the airbox/silencer cover to access the carburetor(s).
- Disconnect any throttle linkages or electrical connections. Note their positions for reassembly.
- Unbolt and remove the carburetor(s) from the intake manifold.
- Disassemble the carburetor on a clean workbench, taking care not to lose small parts.
- Thoroughly clean all metal components with carburetor cleaner. Do not soak rubber or plastic parts.
- Carefully remove old gaskets, o-rings, and the needle valve.
- Install the new components from the kit, ensuring correct placement and orientation.
- Reassemble the carburetor, including the float and float bowl.
- Reinstall the carburetor onto the engine, tightening bolts to the manufacturer's specified torque.
- Reconnect fuel lines, linkages, and any electrical connections.
- Turn on the fuel supply, check for leaks, and start the engine to test for proper function. Adjust idle if necessary.
Troubleshooting & FAQ
How do I know if this carb rebuild kit will fit my engine?
This kit is designed for specific Yamaha and Mercury 40 HP 2-stroke twin-carburetor models. Please check the "Engine & Model Compatibility" table and verify your engine's model number and year. Comparing the parts in the photos to your existing carburetor components is also a reliable way to confirm fitment.
The kit lists two part numbers for the needle valve. Which one is correct?
The kit includes needle valves that are equivalent to both Yamaha OEM part numbers 6H3-14590-01-00 and 6H3-14590-02-00. Sources indicate these are often interchangeable or that one supersedes the other. The included valve is designed to function correctly in place of either original part for the listed applications.
My engine has trouble idling or bogs down on acceleration. Will this kit solve it?
A faulty or clogged carburetor is a common cause of poor idling, hesitation, and stalling. This rebuild kit replaces the most common wear items like gaskets, seals, and needle valves that can cause these issues. While it often resolves these problems, other factors like fuel quality, spark plugs, or timing could also be involved.
How often should a marine carburetor be rebuilt?
There is no fixed interval, as it depends on usage, fuel quality, and storage conditions (especially with ethanol-blended fuels). A rebuild is typically needed when performance degrades or every 3–5 years for preventative maintenance.
Will this kit work for a single carburetor engine?
No, this kit is specifically designed for twin (dual) carburetor 40 HP outboard engines. It contains two sets of the necessary components to rebuild both carburetors simultaneously.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
