Carburetor Repair Kit – Fits Yamaha 40HP/50HP 2-Stroke Outboard Engines (Replaces 6H4-W0093-01-00)
Carburetor Repair Kit – Fits Yamaha 40HP/50HP 2-Stroke Outboard Engines (Replaces 6H4-W0093-01-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Product Details
This Carburetor Repair Kit – Fits Yamaha 40HP/50HP 2-Stroke Outboard Engines provides all necessary components to restore the fuel delivery system on a range of Yamaha outboards. It is designed for 40HP and 50HP 2-stroke models manufactured between 1984 and 1988, including popular models like the 40ESK, 40ETLK, and 50ETLJ.
This kit is a direct replacement for Yamaha OEM part numbers 6H4-W0093-01-00 and its superseded predecessor, 6H4-W0093-00-00.
- Engineered for direct OEM-spec installation.
- Includes all essential gaskets, seals, floats, and needle valves for a complete overhaul of three carburetors.
- Restores carburetor performance and fuel efficiency.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 6H4-W0093-00-00 | 6H4-W0093-01-00 | Superseded part |
| Yamaha | 6H4-W0093-01-00 | Current part number |
Engine & Model Compatibility
Confirm your engine model and year in the table below. This kit is designed for specific Yamaha 2-stroke outboard engines.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Yamaha | 40ELN | 40 | 2-Stroke | 1984 | 6H4-W0093-01-00 |
| Yamaha | 40ESN | 40 | 2-Stroke | 1984 | 6H4-W0093-01-00 |
| Yamaha | 40LN | 40 | 2-Stroke | 1984 | 6H4-W0093-01-00 |
| Yamaha | 40SN | 40 | 2-Stroke | 1984 | 6H4-W0093-01-00 |
| Yamaha | 50ETLN | 50 | 2-Stroke | 1984 | 6H4-W0093-01-00 |
| Yamaha | 50ETSN | 50 | 2-Stroke | 1984 | 6H4-W0093-01-00 |
| Yamaha | 40ELK | 40 | 2-Stroke | 1985–1986 | 6H4-W0093-01-00 |
| Yamaha | 40ESK | 40 | 2-Stroke | 1985–1986 | 6H4-W0093-01-00 |
| Yamaha | 40ETLK | 40 | 2-Stroke | 1985 | 6H4-W0093-01-00 |
| Yamaha | 40LK | 40 | 2-Stroke | 1985 | 6H4-W0093-01-00 |
| Yamaha | 40SK | 40 | 2-Stroke | 1985 | 6H4-W0093-01-00 |
| Yamaha | 50ETLK | 50 | 2-Stroke | 1985 | 6H4-W0093-01-00 |
| Yamaha | 50ETSK | 50 | 2-Stroke | 1985 | 6H4-W0093-01-00 |
| Yamaha | 40ELJ | 40 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 40ESJ | 40 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 40ETLJ | 40 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 40LJ | 40 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 40SJ | 40 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 40SJ-JD | 40 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 50ELJ | 50 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 50ELJ-JD | 50 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 50ESJ | 50 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 50ETLJ | 50 | 2-Stroke | 1986 | 6H4-W0093-01-00 |
| Yamaha | 40ELH | 40 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 40ESH | 40 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 40ETLH | 40 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 40LH | 40 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 40SH | 40 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 40SH-JD | 40 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 50ELH | 50 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 50ESH | 50 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 50ESH-JD | 50 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | PRO50LH | 50 | 2-Stroke | 1987 | 6H4-W0093-01-00 |
| Yamaha | 40ELG | 40 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | 40ESG | 40 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | 40ETLG | 40 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | 40LG | 40 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | 40SG | 40 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | 40SG-JD | 40 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | 50ELG | 50 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | 50ESG | 50 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | 50ESG-JD | 50 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
| Yamaha | PRO50LG | 50 | 2-Stroke | 1988 | 6H4-W0093-01-00 |
Technical Specs
- Product Type
- Carburetor Repair Kit
- Installation
- Direct OEM replacement
- Fuel Type
- Gasoline (2-stroke mix)
- Weight
- 136g (4.8 oz)
- Package Dimensions
- 14.0" L x 12.0" W x 5.0" H

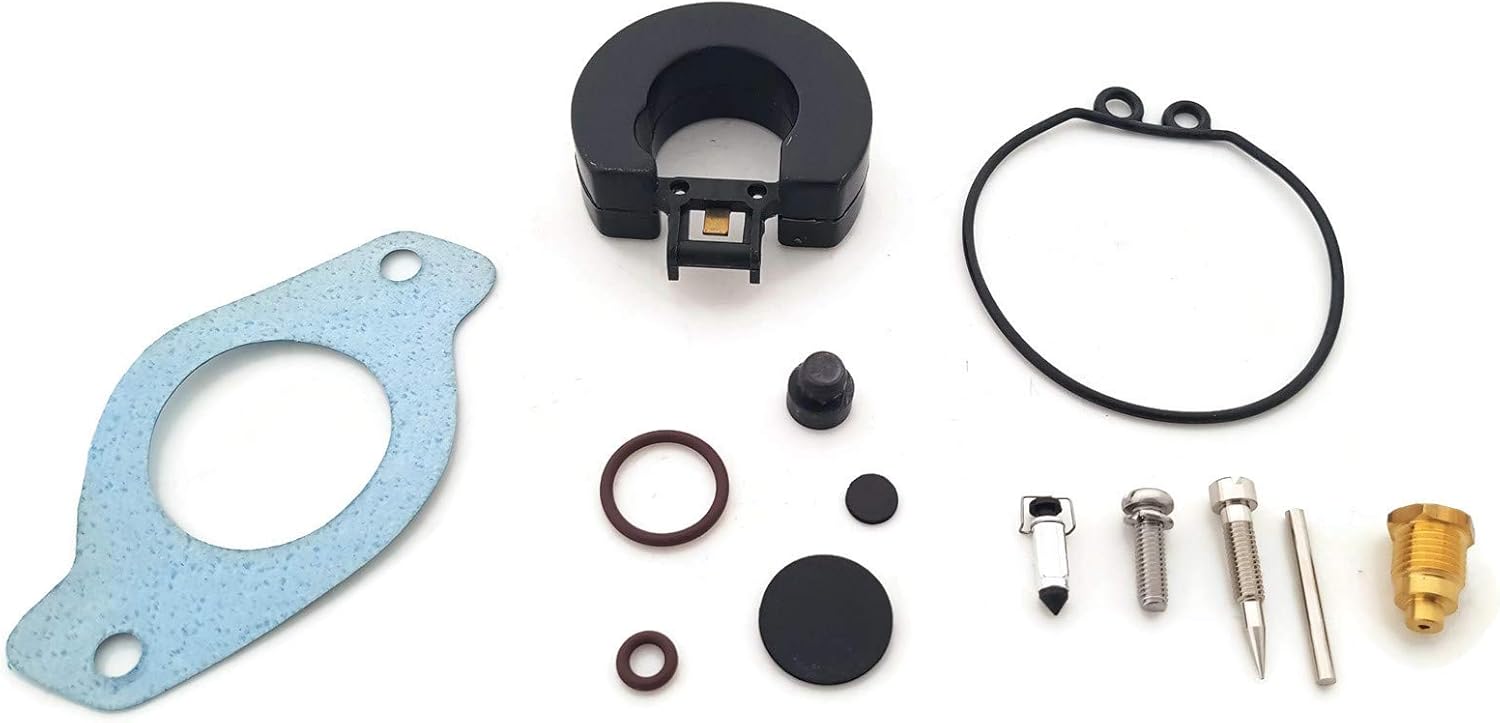

What’s in the Box
- 1 x Gasket (6H4-14198-09-00)
- 3 x Cap (679-14966-00-00)
- 3 x Needle Valve Assembly (6H3-14590-02-00)
- 3 x Clip (633-14159-00-00)
- 3 x Pin, Float (676-14186-00-00)
- 3 x Float (6G1-14985-00-00)
- 3 x Pin, Float Arm (688-14548-00-00)
- 3 x O-Ring (6G1-14984-00-00)
- 3 x Screw, With Washer (97980-04114-00)
- 3 x O-Ring (93210-04230-00)
- 3 x Gasket (663-14126-00-00)
- 3 x Gasket (688-14126-00-00)
- 3 x Screw, Pilot (692-14923-00-00)
- 3 x O-Ring (93210-15M52-00)
Installation Notes
- Disconnect the battery and shut off the fuel supply valve.
- Carefully remove the engine cowling and airbox assembly to access the carburetors.
- Label and disconnect fuel lines, throttle linkages, and any electrical connectors.
- Unbolt and remove the carburetors from the intake manifold. Work on a clean, well-lit bench.
- Disassemble one carburetor at a time to avoid mixing parts. Take pictures for reference.
- Remove the float bowl, float, pin, and needle valve. Discard all old gaskets, seals, and O-rings.
- Clean all metal components with a dedicated carburetor cleaner. Ensure all jets and passages are clear.
- Install the new components from the kit. Ensure the float height is set to manufacturer specifications.
- Reassemble the carburetor and repeat the process for the remaining carburetors.
- Reinstall the carburetors onto the engine with new gaskets, and reconnect all linkages and fuel lines.
- Turn on fuel and check for leaks before starting the engine.
- Start the engine and adjust idle and air/fuel mixture screws as needed for smooth operation.
Troubleshooting & FAQ
How do I know if this carb kit fits my engine?
This kit is for Yamaha 40HP and 50HP 2-stroke outboards from 1984–1988. The most reliable way to confirm fitment is to check your engine's model against the compatibility table. Also, verify that your OEM carburetor repair kit part number is 6H4-W0093-01-00 or the superseded 6H4-W0093-00-00.
What are signs my carburetor needs to be rebuilt?
Common symptoms include hard starting, rough idling, stalling at low speeds, engine hesitation on acceleration, black smoke (running rich), or visible fuel leaks. Reduced performance and poor fuel economy are also key indicators.
Is this kit for one or multiple carburetors?
This kit contains components to service three (3) carburetors, as indicated by the quantities in the 'What's in the Box' list.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
