Carburetor Repair Kit – Fits Yamaha 75-90HP 2-Stroke Outboards (Replaces 6H1-W0093-10-00)
Carburetor Repair Kit – Fits Yamaha 75-90HP 2-Stroke Outboards (Replaces 6H1-W0093-10-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Product Details
This Carburetor Repair Kit – Fits Yamaha 75-90HP 2-Stroke Outboards (Replaces 6H1-W0093-10-00) provides all necessary components to rebuild a single carburetor for Yamaha 75–90 HP 2-stroke outboards from 1990–2005, including 90T, B90, C90, and P75 models.
It serves as a direct cross-reference for Yamaha part numbers 6H1-W0093-10-00 and its supersession, 6H1-W0093-11-00.
- Engineered for direct OEM-replacement fitment.
- Includes all essential gaskets, seals, and hardware for a complete carburetor overhaul.
- Designed for use with gasoline fuel systems.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 6H1-W0093-10-00 | 6H1-W0093-11-00 | |
| Yamaha | 6H1-W0093-11-00 | Current OEM part number. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha owners: Verify that your engine's model name and production year range are listed here. This kit is specifically for certain 75, 85, and 90 HP 2-stroke models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 90TJR | 90 | 2-Stroke | 1992–2001 | 6H1-W0093-10-00 | Multiple model years (Q-Z suffixes) |
| Yamaha | 90TLR | 90 | 2-Stroke | 1992–2009 | 6H1-W0093-10-00 | Models 0405-0509 and Q-Z suffixes |
| Yamaha | B90TLR | 90 | 2-Stroke | 1997–1999 | 6H1-W0093-10-00 | Models V-X suffixes |
| Yamaha | C90TLR | 90 | 2-Stroke | 1997–2001 | 6H1-W0093-10-00 | Models V-Z suffixes |
| Yamaha | P75TLH | 75 | 2-Stroke | 1996–1999 | 6H1-W0093-10-00 | Models U-X suffixes |
| Yamaha | C75 | 75 | 2-Stroke | 1994–1996 | 6H1-W0093-10-00 | Per FunCountry listing |
| Yamaha | C85 | 85 | 2-Stroke | 1994–1996 | 6H1-W0093-10-00 | Per FunCountry listing |
| Yamaha | CV85 | 85 | 2-Stroke | 1994–1996 | 6H1-W0093-10-00 | Per FunCountry listing |
| Yamaha | E75 | 75 | 2-Stroke | 1994–1996 | 6H1-W0093-10-00 | Per FunCountry listing |
| Yamaha | 90 | 90 | 2-Stroke | 1990–1991 | 6H1-W0093-10-00 | Per FunCountry listing |
| Yamaha | B90 | 90 | 2-Stroke | 2006+ | 6H1-W0093-10-00 | Per FunCountry listing |
Technical Specs
- Product Type
- Carburetor Repair Kit
- Installation
- Direct OEM replacement
- Fuel Type
- Gasoline
- Fitment
- Fits Yamaha 75-90HP 2-stroke outboard carburetors
- Product Dimensions
- 14.0" L x 15.0" W x 1.0" H

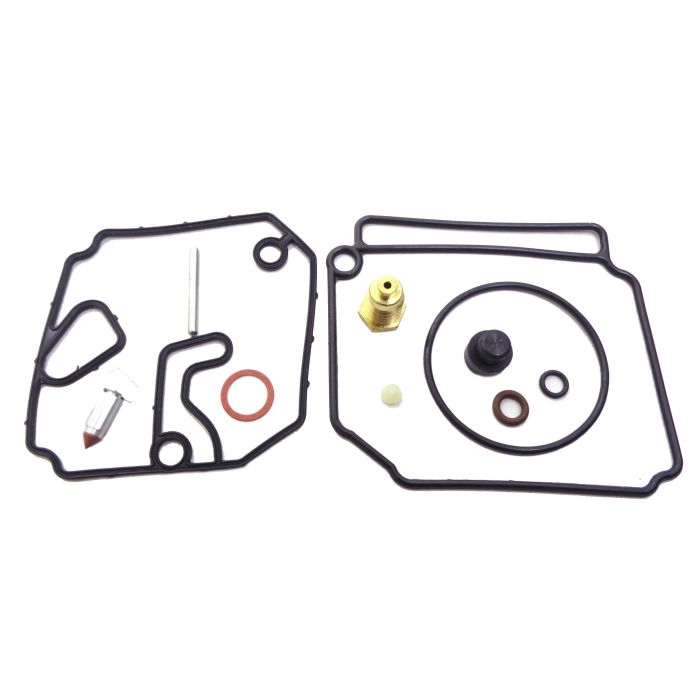

What’s in the Box
- 1 x Gasket (688-14198-A2-00)
- 1 x O-Ring (93210-04228-00)
- 1 x Needle Valve Assembly (692-14590-01-00)
- 1 x Float Pin (676-14186-00-00)
- 1 x Float (676-14985-01-00)
- 1 x Float Arm Pin (688-14548-00-00)
- 1 x Float Chamber Gasket (676-14984-00-00)
- 1 x Screw, with Washer (97980-04114-00)
- 1 x O-Ring (93210-04230-00)
- 1 x Gasket (663-14126-00-00)
- 1 x Pilot Screw (692-14923-00-00)
Installation Notes
- Ensure the engine is off and cool. Disconnect the battery and fuel supply line safely.
- Remove the engine cowling and air silencer cover to access the carburetors.
- Carefully disconnect the throttle linkage and any other connections from the carburetor.
- Remove the mounting bolts and take the carburetor off the engine.
- Disassemble the carburetor, cleaning all metal parts with a suitable carburetor cleaner. Do not use cleaner on rubber or plastic parts.
- Carefully replace the old gaskets, seals, float, needle valve, and other components with the new parts from the kit.
- Reassemble the carburetor, ensuring all parts are correctly seated. Do not overtighten screws.
- Reinstall the carburetor onto the engine and reconnect all linkages and lines.
- Consult your service manual for procedures on synchronizing carburetors and adjusting idle speed.
Troubleshooting & FAQ
How do I know if this kit fits my specific engine?
Your primary check is the Compatibility Table in this listing. Match your engine's model, horsepower, and year range. If any details conflict, or if you are unsure, contact us with your engine's full model and serial number before purchasing.
What are the signs of a failing carburetor that this kit can fix?
Common symptoms include difficulty starting, rough idling, stalling, poor acceleration, hesitation, or black smoke from the exhaust. This kit replaces the most common wear items that cause these issues.
Is this kit for a single carburetor or a full set?
This kit contains the parts to rebuild one (1) carburetor. Since most Yamaha V4 and V6 engines have multiple carburetors, you will need to purchase one kit for each carburetor you intend to service.
How often should a carburetor be rebuilt?
There is no fixed interval. It depends on fuel quality, usage hours, and storage conditions (especially with ethanol-blended fuels). A rebuild is typically done when performance issues arise, or as preventative maintenance every few seasons.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
