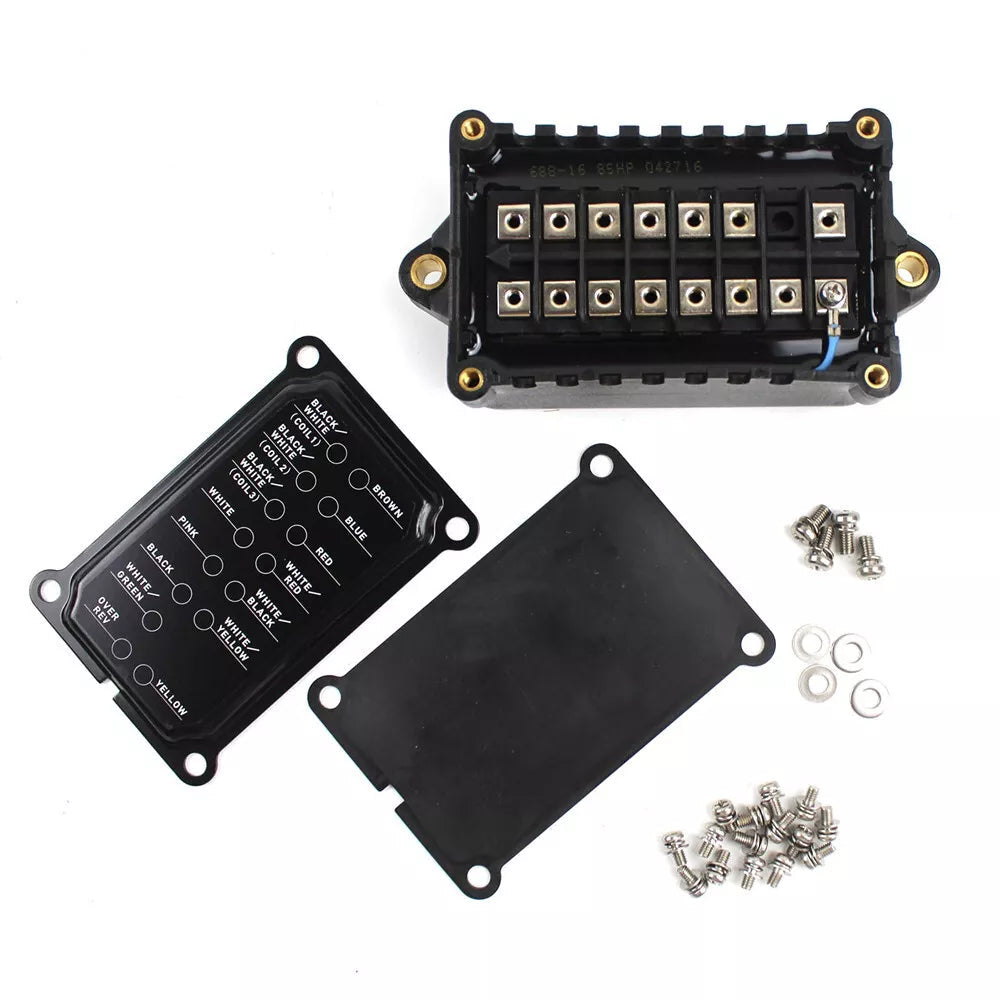

CDI Power Pack – Fits Yamaha 75-90 HP Outboards (Replaces 688-85540-15-00, 688-85540-16-00)
CDI Power Pack – Fits Yamaha 75-90 HP Outboards (Replaces 688-85540-15-00, 688-85540-16-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
CDI Power Pack – Fits Yamaha 75-90 HP Outboards (Replaces 688-85540...
Product Details
This CDI Power Pack is an essential ignition component designed for reliable performance in Yamaha 2-Stroke outboards, covering 75 HP, 85 HP, and 90 HP models from 1984 through 1996, including standard and Jet variants. It serves as a direct-fit replacement, restoring ignition timing and spark energy for optimal engine operation.
This unit directly replaces Yamaha part numbers 688-85540-15-00 and 688-85540-16-00, along with aftermarket equivalents from Titan (757 Performance) and Sierra (18-5130).
- Engineered for a direct plug-in installation using factory-style connectors.
- New, not remanufactured, ensuring maximum reliability and component lifespan.
- Built to withstand harsh marine environments.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 688-85540-15-00 |
| Yamaha | 688-85540-16-00 |
| Titan 757 Performance | 688-85540-15-00 |
| Sierra | 18-5130 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | Outboard | 75 | 2-Stroke | 1994–1996 | 688-85540-15-00, 688-85540-16-00 | E75MLHU, E75MHU models |
| Yamaha | Outboard | 85 | 2-Stroke | 1990–1996 | 688-85540-15-00, 688-85540-16-00 | C85TLRU models |
| Yamaha | Outboard | 90 | 2-Stroke | 1984–1991 | 688-85540-15-00, 688-85540-16-00 | |
| Yamaha | Jet 90 | 90 | 2-Stroke | 1991 | 688-85540-15-00, 688-85540-16-00 |
Technical Specs
- Product Type
- CDI Power Pack / Ignition Control Module
- Installation
- Direct plug-in replacement
- Connection
- Factory-style connectors (8 terminals)
- Housing Material
- Plastic and metal
- Housing Color
- Black
- Dimensions
- 14.0 cm L x 17.0 cm W x 6.0 cm H
- Weight
- 686 g (1.5 lbs)
- Warranty
- 12 months
- Condition
- New unit, not remanufactured
What’s in the Box
- 1 x CDI Power Pack (688-85540-15-00/688-85540-16-00)
Installation Notes
- Disconnect the battery cables to prevent electrical shorts.
- Locate the existing CDI power pack on the engine block. Note the wiring connections.
- Carefully unplug all connectors from the old unit.
- Unbolt and remove the old power pack from its mounting position.
- Mount the new CDI power pack securely in the same location.
- Firmly reconnect the factory wiring harnesses to the corresponding terminals on the new unit.
- Reconnect the battery cables and test engine operation to confirm the repair.
Troubleshooting & FAQ
How do I know if my CDI power pack is failing?
Common signs of a faulty CDI include no-spark conditions, intermittent stalling, engine misfires at high RPM, weak spark, or a complete failure to start. A diagnostic test with a peak-reading voltmeter can help confirm if the unit's output is out of spec.
What's the difference between 688-85540-15-00 and 688-85540-16-00?
The part numbers appear to be interchangeable, with 688-85540-16-00 likely being a later supersession. Both are compatible with the engine models listed. This aftermarket unit is a direct replacement for either OEM part.
Is this a direct plug-in installation?
Yes, this unit is designed with factory-style connectors for a straightforward, plug-in installation with no modification required for the specified models.
Can this part fix an intermittent spark issue?
Yes, a failing power pack is a very common cause of intermittent spark, especially as the engine warms up. Replacing a faulty CDI often resolves these types of ignition problems.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
