Product Details

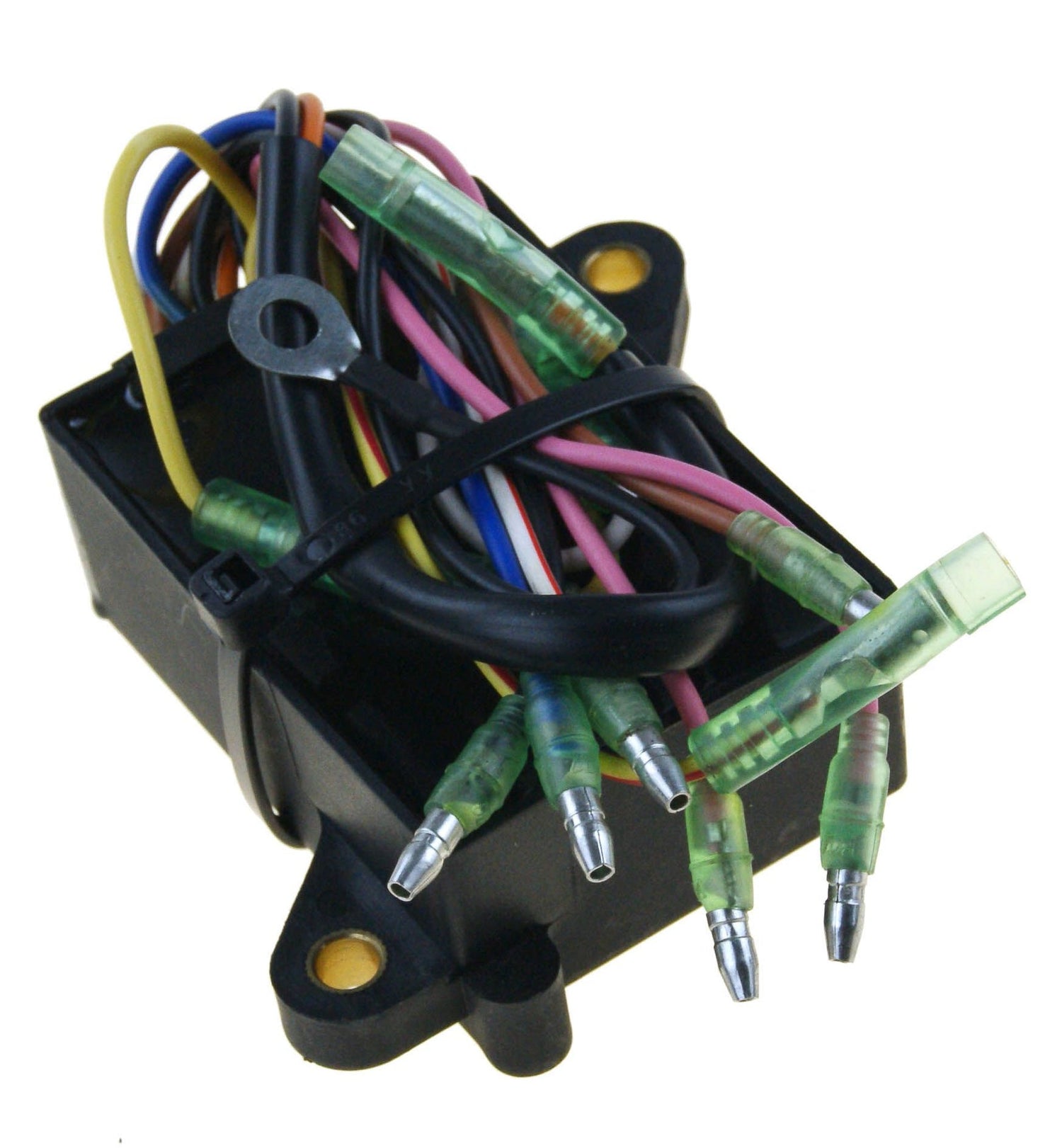

This CDI Unit – Fits Yamaha 8HP/9.9HP 4-Stroke Outboard Motors (Replaces 68T-85540-00) is an electronic ignition control module for Yamaha 4-stroke outboard motors in the 8HP and 9.9HP range. It's designed to manage spark timing for optimal engine performance, fitting models primarily produced between 2001 and 2021.
It serves as a direct replacement for Yamaha OEM part numbers 68T-85540-00, 68T-85540-00-00, 68T-85540, and 68T8554000.
- Engineered for direct OEM replacement and bolt-on mounting.
- Controls spark timing via a multi-pin electrical connector.
- Includes one CDI unit assembly required for installation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 68T-85540-00 |
| Yamaha | 68T-85540-00-00 |
| Yamaha | 68T-85540 |
| Yamaha | 68T8554000 |
| Yamaha | 68T85540 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is compatible with various Yamaha 4-stroke 8HP and 9.9HP outboard engines. Please verify your specific model and production year before ordering.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F8LMHB | 8 | 4-Stroke | 2015–2021 | 68T-85540-00 | |
| Yamaha | F8SMHB | 8 | 4-Stroke | 2015–2021 | 68T-85540-00 | |
| Yamaha | F8CMLH | 8 | 4-Stroke | 2008–2010 | 68T-85540-00 | |
| Yamaha | F8CMSH | 8 | 4-Stroke | 2007–2009 | 68T-85540-00 | |
| Yamaha | F8LMHA | 8 | 4-Stroke | 2011–2014 | 68T-85540-00 | |
| Yamaha | F8MLHB | 8 | 4-Stroke | 2003 | 68T-85540-00 | |
| Yamaha | F8MSH | 8 | 4-Stroke | 2005–2006 | 68T-85540-00 | |
| Yamaha | F8MSHA | 8 | 4-Stroke | 2002 | 68T-85540-00 | |
| Yamaha | F8MSHB | 8 | 4-Stroke | 2003 | 68T-85540-00 | |
| Yamaha | F8SMHA | 8 | 4-Stroke | 2011–2014 | 68T-85540-00 | |
| Yamaha | T8DELH | 8 | 4-Stroke | 2007–2010 | 68T-85540-00 | |
| Yamaha | T8DEXH | 8 | 4-Stroke | 2007–2009 | 68T-85540-00 | |
| Yamaha | T8DPLH | 8 | 4-Stroke | 2007–2010 | 68T-85540-00 | |
| Yamaha | T8DPLR | 8 | 4-Stroke | 2009–2010 | 68T-85540-00 | |
| Yamaha | T8DPXH | 8 | 4-Stroke | 2007–2009 | 68T-85540-00 | |
| Yamaha | T8DPXR | 8 | 4-Stroke | 2010 | 68T-85540-00 | |
| Yamaha | T8ELH | 8 | 4-Stroke | 2005 | 68T-85540-00 | |
| Yamaha | T8ELHB | 8 | 4-Stroke | 2003 | 68T-85540-00 | |
| Yamaha | T8ELHC | 8 | 4-Stroke | 2004 | 68T-85540-00 | |
| Yamaha | T8ELHD | 8 | 4-Stroke | 2005 | 68T-85540-00 | |
| Yamaha | T8ELHA | 8 | 4-Stroke | 2002 | 68T-85540-00 | |
| Yamaha | T8EXHD | 8 | 4-Stroke | 2005 | 68T-85540-00 | |
| Yamaha | T8PLH | 8 | 4-Stroke | 2005–2006 | 68T-85540-00 | |
| Yamaha | T8PLHD | 8 | 4-Stroke | 2005 | 68T-85540-00 | |
| Yamaha | T8PLR | 8 | 4-Stroke | 2005–2006 | 68T-85540-00 | |
| Yamaha | T8PLRB | 8 | 4-Stroke | 2003 | 68T-85540-00 | |
| Yamaha | T8PLRD | 8 | 4-Stroke | 2005 | 68T-85540-00 | |
| Yamaha | T8PLRZ | 8 | 4-Stroke | 2001 | 68T-85540-00 | |
| Yamaha | T8PXH | 8 | 4-Stroke | 2006 | 68T-85540-00 | |
| Yamaha | T8PXHA | 8 | 4-Stroke | 2002 | 68T-85540-00 | |
| Yamaha | T8PXHD | 8 | 4-Stroke | 2005 | 68T-85540-00 | |
| Yamaha | T8PXHZ | 8 | 4-Stroke | 2001 | 68T-85540-00 | |
| Yamaha | T8PXRA | 8 | 4-Stroke | 2002 | 68T-85540-00 | |
| Yamaha | T8PXRB | 8 | 4-Stroke | 2003 | 68T-85540-00 | |
| Yamaha | T8PXRD | 8 | 4-Stroke | 2005 | 68T-85540-00 | |
| Yamaha | T8PXRZ | 8 | 4-Stroke | 2001 | 68T-85540-00 | |
| Yamaha | F9.9FELR | 9.9 | 4-Stroke | 2008 | 68T-85540-00 | |
| Yamaha | F9.9FMLH | 9.9 | 4-Stroke | 2010 | 68T-85540-00 | |
| Yamaha | F9.9FMSH | 9.9 | 4-Stroke | 2007–2010 | 68T-85540-00 | |
| Yamaha | F9.9LEA | 9.9 | 4-Stroke | 2011 | 68T-85540-00 | |
| Yamaha | F9.9LEB | 9.9 | 4-Stroke | 2013–2021 | 68T-85540-00 | |
| Yamaha | F9.9LEHB | 9.9 | 4-Stroke | 2014 | 68T-85540-00 | |
| Yamaha | F9.9LMHA | 9.9 | 4-Stroke | 2012 | 68T-85540-00 | |
| Yamaha | F9.9LMHB | 9.9 | 4-Stroke | 2013–2021 | 68T-85540-00 | |
| Yamaha | F9.9SMHA | 9.9 | 4-Stroke | 2011 | 68T-85540-00 | |
| Yamaha | F9.9SMHB | 9.9 | 4-Stroke | 2014–2022 | 68T-85540-00 | |
| Yamaha | T9.9GELH | 9.9 | 4-Stroke | 2010 | 68T-85540-00 | |
| Yamaha | T9.9GEXH | 9.9 | 4-Stroke | 2007–2010 | 68T-85540-00 | |
| Yamaha | T9.9GPLR | 9.9 | 4-Stroke | 2007–2010 | 68T-85540-00 | |
| Yamaha | T9.9GPXH | 9.9 | 4-Stroke | 2007–2010 | 68T-85540-00 | |
| Yamaha | T9.9GPXR | 9.9 | 4-Stroke | 2008–2010 | 68T-85540-00 | |
| Yamaha | T9.9LEHA | 9.9 | 4-Stroke | 2011–2012 | 68T-85540-00 | |
| Yamaha | T9.9LEHB | 9.9 | 4-Stroke | 2013–2016 | 68T-85540-00 | |
| Yamaha | T9.9LPA | 9.9 | 4-Stroke | 2011–2012 | 68T-85540-00 | |
| Yamaha | T9.9LPB | 9.9 | 4-Stroke | 2016–2022 | 68T-85540-00 | |
| Yamaha | T9.9LPHA | 9.9 | 4-Stroke | 2011–2012 | 68T-85540-00 | |
| Yamaha | T9.9LPHB | 9.9 | 4-Stroke | 2015–2021 | 68T-85540-00 | |
| Yamaha | T9.9LWHB | 9.9 | 4-Stroke | 2017–2020 | 68T-85540-00 | |
| Yamaha | T9.9XPA | 9.9 | 4-Stroke | 2012 | 68T-85540-00 | |
| Yamaha | T9.9XPB | 9.9 | 4-Stroke | 2014–2021 | 68T-85540-00 | |
| Yamaha | T9.9XEHA | 9.9 | 4-Stroke | 2011–2012 | 68T-85540-00 | |
| Yamaha | T9.9XEHB | 9.9 | 4-Stroke | 2013–2016 | 68T-85540-00 | |
| Yamaha | T9.9XPHA | 9.9 | 4-Stroke | 2011–2012 | 68T-85540-00 | |
| Yamaha | T9.9XPHB | 9.9 | 4-Stroke | 2013–2022 | 68T-85540-00 | |
| Yamaha | T9.9XWHB | 9.9 | 4-Stroke | 2017–2022 | 68T-85540-00 |
Technical Specs
- Product Type
- CDI Unit (Capacitor Discharge Ignition)
- Installation
- Direct OEM replacement
- Fuel Type
- Gasoline (Petrol)
- Connection
- Multi-pin electrical connector
- Housing Color
- Black
- Dimensions
- 10.5 x 10.5 x 10.5 cm
- Fitting Type
- Bolt-on mount
- Other Technical Attributes
- Electronic ignition control module
What’s in the Box
- 1 x CDI Unit Assembly
Installation Notes
- Disconnect the battery terminals to prevent electrical hazards.
- Locate the existing CDI unit on the engine block. Note the wiring connections.
- Carefully unplug the electrical connector(s) from the old unit.
- Unbolt and remove the old CDI unit from its mounting point.
- Mount the new CDI unit, ensuring it is securely fastened.
- Reconnect the electrical connector(s) firmly.
- Reconnect the battery terminals.
- Start the engine to test the new CDI unit and check for proper ignition timing and performance.
Troubleshooting & FAQ
How do I know if my CDI unit has failed?
Common symptoms of a faulty CDI include engine misfires, difficulty starting (or no-start), intermittent stalling, weak or no spark, and a reduction in overall engine power.
Will this fit both 8HP and 9.9HP models?
Yes, this unit is designed for a range of Yamaha 4-stroke outboards from 8HP to 9.9HP. Refer to the detailed compatibility table to confirm it fits your specific engine model and year.
Is any programming required for this CDI unit?
No, this is a plug-and-play component. It comes pre-programmed to match the OEM ignition curve and requires no additional setup.
What is the main difference between this and an OEM part?
This is an aftermarket part built to meet or exceed original manufacturer specifications for fit, form, and function. It provides a reliable, cost-effective alternative to the genuine OEM component.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
