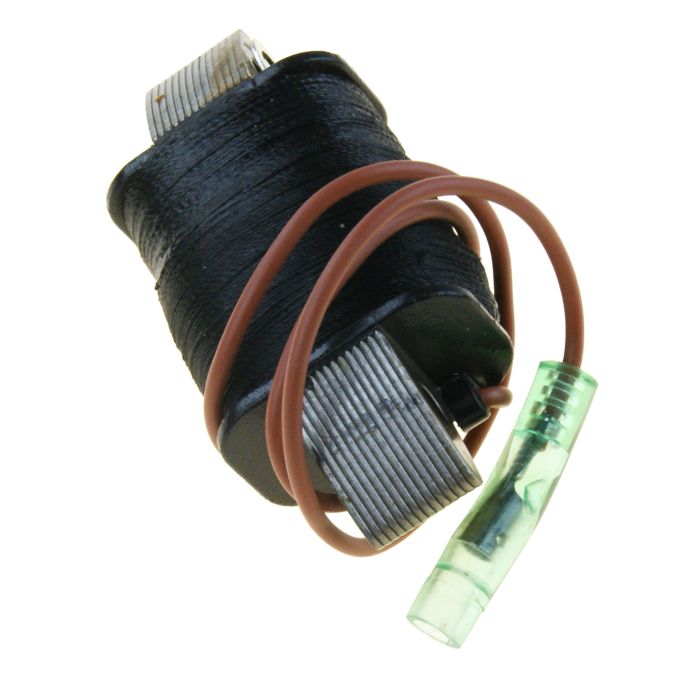

Charging Coil – Fits Yamaha 50-70 HP Outboards (Replaces 6H3-85520-00)
Product Details
This aftermarket Charging Coil – Fits Yamaha 50-70 HP Outboards (Replaces 6H3-85520-00) is designed for a range of Yamaha 2-stroke outboards manufactured between 1984 and 2000. It is compatible with various series, including the K50, E60H, 60F, P60, 70, and 70B models, providing reliable current for the battery charging system.
It serves as a direct replacement for Yamaha OEM part numbers 6H3-85520-00 and 6H3-85520-00-00.
- Direct plug-and-play installation with the original connector type included.
- Engineered specifically for 2-stroke outboard motors.
- Direct bolt-in fitting simplifies the replacement process.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 6H3-85520-00 |
| Yamaha | 6H3-85520-00-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | K50 ETS/L | 50 | 2-Stroke | 1993–2000 | 6H3-85520-00 | |
| Yamaha | E60H ELH | 60 | 2-Stroke | 1995–2000 | 6H3-85520-00 | |
| Yamaha | P60 TLH | 60 | 2-Stroke | 1991 | 6H3-85520-00 | |
| Yamaha | 60F ET(D)OL | 60 | 2-Stroke | 1984–1991 | 6H3-85520-00 | |
| Yamaha | E60H M(H/W/D)L | 60 | 2-Stroke | 2001–2013 | 6H3-85520-00 | Some sources list compatibility through 2013 |
| Yamaha | E60H MHDL | 60 | 2-Stroke | 2010–2017 | 6H3-85520-00 | Some sources list compatibility through 2017 |
| Yamaha | 70 (E)TLR | 70 | 2-Stroke | 1984–1991 | 6H3-85520-00 | |
| Yamaha | 70B ET(D/M)OL | 70 | 2-Stroke | 1984–1991 | 6H3-85520-00 |
Technical Specs
- Product Type
- Charging Coil
- Installation
- Direct plug-and-play replacement
- Fuel Type
- For 2-stroke engines
- Connection
- Original connector type included
- Housing Color
- Silver
- Dimensions
- 9.0" x 6.0" x 7.5"
- Fitting Type
- Direct bolt-in replacement
- Warranty
- 1 Year (aftermarket)
- Other Technical Attributes
- Generates current for charging system; Coil type: CDI Magneto
What’s in the Box
- 1 x Charging Coil (6H3-85520-00)
Installation Notes
- Disconnect the battery terminals to prevent electrical damage or personal injury.
- Access the engine's flywheel and remove it using a suitable flywheel puller.
- Identify and unbolt the old charging coil from the stator assembly beneath the flywheel.
- Carefully disconnect the coil's electrical connectors, noting their routes and positions.
- Mount the new charging coil, ensuring all bolts are tightened to the manufacturer's specified torque.
- Reconnect the electrical wiring harness to the corresponding terminals on the new coil.
- Reinstall the flywheel, and tighten the main nut to the proper torque specification.
- Reconnect the battery and start the engine to test the functionality of the new coil and charging circuit.
Troubleshooting & FAQ
How do I know if this charging coil fits my specific engine?
This coil is confirmed to fit Yamaha 50, 60, and 70 HP 2-stroke outboards from approximately 1984 to 2000. The most reliable method is to cross-reference your old part's OEM number with our listed equivalents (6H3-85520-00, 6H3-85520-00-00). Also, check your model against the compatibility table.
What are the common signs of a failing charging coil?
A faulty charging coil typically results in the engine's battery not charging. Other symptoms can include weak or intermittent spark, engine misfires at certain RPMs, or a complete failure of the electrical system while running.
My E60H engine is newer than 2000. Will this part fit?
While primary compatibility is listed for models up to 2000, some component suppliers indicate that certain E60H models used this part number in later years (up to 2017). Before purchasing for a newer engine, we strongly recommend you visually inspect your current coil and confirm its OEM part number is a match.
Is this a simple "plug-and-play" part?
Yes. This charging coil is engineered as a direct replacement component. It includes the original factory-style electrical connector, so no cutting, splicing, or wire modification is required for installation on a compatible model.
What is the difference between this aftermarket part and an OEM one?
Our aftermarket coil is designed to meet or exceed original factory specifications for electrical output and physical fit. It provides comparable performance and reliability to the OEM part but at a more accessible price.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
