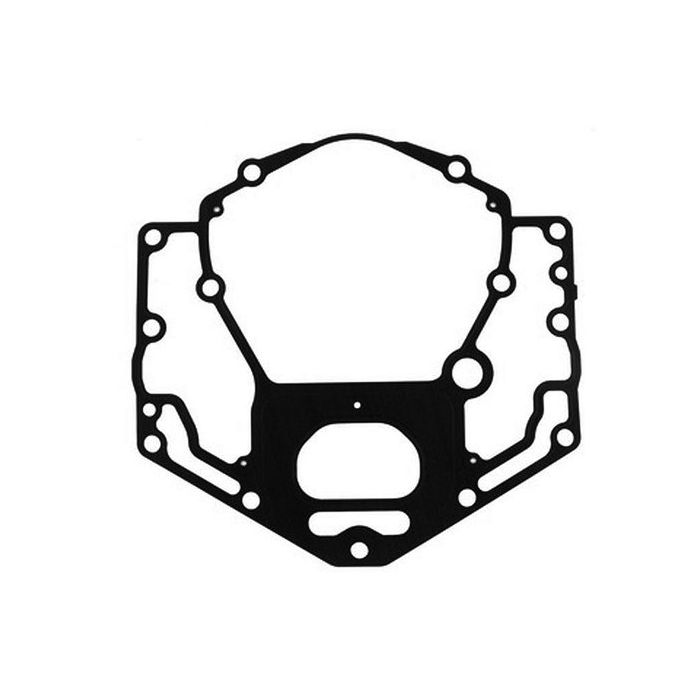

Cylinder Gasket – Fits Yamaha 200/225/250HP 4-Stroke Outboards (Replaces 69J-11351-10-00, 69J-11351-11-00, 69J-11351-12-00)
Cylinder Gasket – Fits Yamaha 200/225/250HP 4-Stroke Outboards (Replaces 69J-11351-10-00, 69J-11351-11-00, 69J-11351-12-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Cylinder Gasket – Fits Yamaha 200/225/250HP 4-Stroke Outboards (Rep...
Product Details
This Cylinder Gasket provides a reliable seal for Yamaha 200HP, 225HP, and 250HP 3.3L V6 4-Stroke outboard engines manufactured between 2004 and 2021. It is engineered to ensure optimal cylinder compression and prevent leaks between the cylinder block and head.
It serves as a direct replacement for Yamaha part numbers 69J-11351-10-00, 69J-11351-11-00, 69J-11351-12-00, and Mercury Marine 8M6010324.
- Installation: Direct replacement fit
- Engine Position: Outboard
- Condition: Brand New
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Yamaha | 69J-11351-10-00 | 69J-11351-11-00 |
| Yamaha | 69J-11351-11-00 | 69J-11351-12-00 |
| Yamaha | 69J-11351-12-00 | |
| Mercury Marine | 8M6010324 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F200 | 200 | 4-Stroke | 2004–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
| Yamaha | FL200 | 200 | 4-Stroke | 2004–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
| Yamaha | LF200 | 200 | 4-Stroke | 2004–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
| Yamaha | F225 | 225 | 4-Stroke | 2004–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
| Yamaha | FL225 | 225 | 4-Stroke | 2004–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
| Yamaha | LF225 | 225 | 4-Stroke | 2004–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
| Yamaha | F250 | 250 | 4-Stroke | 2005–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
| Yamaha | FL250 | 250 | 4-Stroke | 2005–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
| Yamaha | LF250 | 250 | 4-Stroke | 2005–2021 | 69J-11351-12-00 | Current part; supersedes 69J-11351-11-00 |
Technical Specs
- Product Type
- Cylinder Base Gasket
- Installation
- Direct replacement
- Fuel Type
- Gasoline
- Engine Position
- Outboard
- Condition
- New
- Dimensions
- 36 cm x 30 cm x 2 cm
- Other Technical Attributes
- For 6-Cylinder 3.3L engines
What’s in the Box
- 1 x Cylinder Gasket (Replaces 69J-11351-12-00)
Installation Notes
- Disconnect the battery and ensure the engine is completely cool before starting.
- Drain the engine coolant and oil to prevent spills during disassembly.
- Remove the cylinder head cover and any other components obstructing access to the cylinder head bolts.
- Carefully remove the old cylinder gasket. Ensure no debris falls into the engine internals.
- Thoroughly clean both the cylinder block and head mating surfaces. Remove all old gasket material, oil, and contaminants.
- Position the new gasket correctly, ensuring it aligns with all bolt holes and passages. Do not use sealant unless specified by the service manual.
- Reinstall the cylinder head. Torque the head bolts to the manufacturer's specified values and in the correct sequence.
- Reassemble all previously removed components, refill the engine with fresh oil and coolant, and reconnect the battery.
- Start the engine and carefully check for any signs of oil or coolant leaks around the gasket.
Troubleshooting & FAQ
How do I know if my cylinder gasket is failing?
Common signs of a failed cylinder gasket include engine overheating, a noticeable loss of power or compression, milky or discolored engine oil, white smoke from the exhaust, or visible external leaks of oil or coolant from the seam between the cylinder head and block.
Is this gasket compatible with both standard (F) and counter-rotation (LF/FL) models?
Yes, this gasket is designed to fit standard rotation (F-series), counter-rotation (LF-series), and other model designations (FL-series) within the specified Yamaha 200, 225, and 250 horsepower 4-stroke families.
What is the difference between 69J-11351-11-00 and the newer 69J-11351-12-00?
The part number 69J-11351-12-00 is the latest version from Yamaha, which supersedes the older -11-00 and -10-00 suffixes. This typically indicates minor improvements in material or design for better performance and longevity. Our aftermarket part is built to meet or exceed the specifications of the latest version.
Do I need to use any sealant when installing this gasket?
This gasket is designed for a dry installation. Applying additional sealants can interfere with its ability to create a proper seal and may cause issues. Always follow the specific instructions in your outboard's official service manual.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
