Product Details

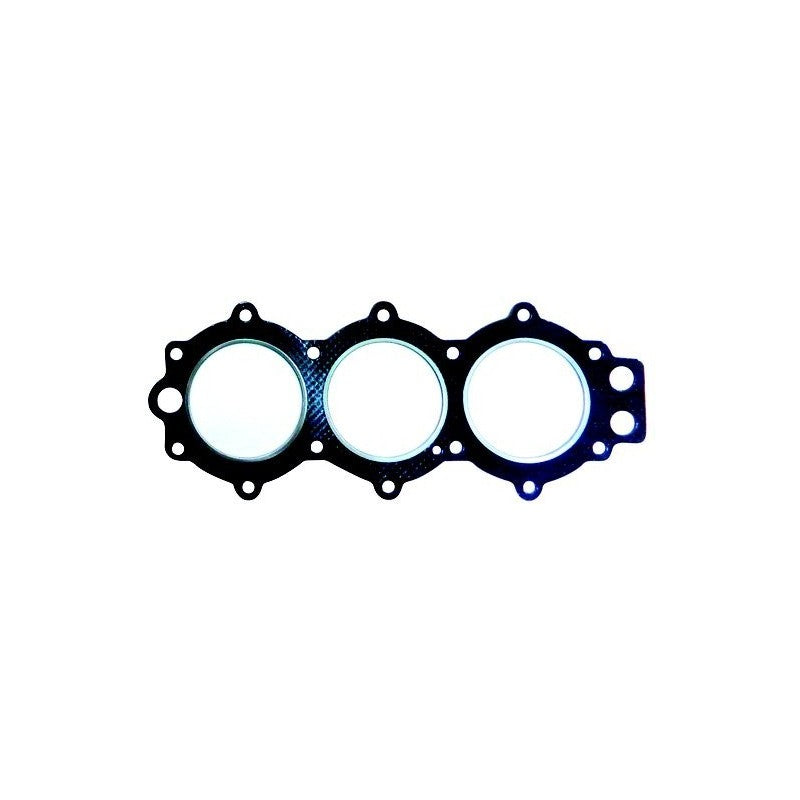

This aftermarket Cylinder Head Gasket – Fits Johnson/Evinrude 50-70 HP 3-Cylinder (Replaces 0329836) is designed for a precise fit on Johnson and Evinrude 50, 60, 65, and 70 HP 3-cylinder, 2-stroke outboard engines manufactured between 1986 and 2001.
It serves as a direct interchange for Johnson/Evinrude OEM part 0329836 and replaces several aftermarket numbers, including Sierra 18-3836, GLM 34280, WSM 505-07, Red Rhino JE-519, Pro Marine 3836, and PARTSDEPOT 329836.
- Installs as a direct replacement for the original gasket.
- Engineered for gasoline-fueled marine engines.
- Specifically fits engines with a 3.187" cylinder bore.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Johnson/Evinrude | 0329836 |
| Sierra | 18-3836 |
| GLM | 34280 |
| WSM | 505-07 |
| Red Rhino | JE-519 |
| Pro Marine | 3836 |
| PARTSDEPOT | 329836 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is designed exclusively for the following Johnson/Evinrude models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Johnson/Evinrude | 3-Cylinder | 50 | 2-Stroke | 1986–2001 | 0329836 | |
| Johnson/Evinrude | 3-Cylinder | 60 | 2-Stroke | 1986–2001 | 0329836 | |
| Johnson/Evinrude | 3-Cylinder | 65 | 2-Stroke | 1986–2001 | 0329836 | |
| Johnson/Evinrude | 3-Cylinder | 70 | 2-Stroke | 1986–2001 | 0329836 |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation
- Direct replacement
- Fuel Type
- Gasoline
- Housing Material
- Various (model dependent)
- Dimensions
- Height: 0.5 in; Width: 16.0 in; Length: 38.0 in
- Warranty
- Manufacturer dependent (typically 90-day limited warranty)
- Other Technical Attributes
- Fits engines with 3.187" bore
What’s in the Box
- 1 x Cylinder Head Gasket (0329836)
Installation Notes
- Disconnect the battery and drain the engine's cooling system completely.
- Remove the engine cover, spark plug wires, and ignition coils from the cylinder head.
- Following the manufacturer's service manual, loosen the cylinder head bolts in the specified sequence to prevent head warpage.
- Carefully lift the cylinder head off the engine block.
- Remove the old head gasket and thoroughly clean any remaining gasket material from both the cylinder head and block surfaces. Use a plastic scraper to avoid gouging the metal.
- Position the new gasket correctly on the engine block; ensure it is not installed upside down or backward.
- Reinstall the cylinder head and torque the head bolts to the manufacturer's specified values using the correct tightening sequence.
- Reassemble all remaining components in the reverse order of removal.
Troubleshooting & FAQ
How do I know if my cylinder head gasket is failing?
Common signs of a bad head gasket include significant loss of power, engine overheating, white smoke from the exhaust, milky or frothy engine oil (indicating water a mix), or low compression in one or more cylinders.
Will this fit my 1985 70 HP Johnson motor?
No. This gasket is specified for 3-cylinder Johnson and Evinrude engines manufactured from 1986 to 2001. Using it on an incompatible model year may result in leaks or engine damage.
What is the correct torque specification for the head bolts?
Torque specifications and the tightening sequence are critical for a proper seal. This information is specific to your engine model and must be obtained from the official service manual for your engine. Incorrect torquing will lead to gasket failure.
Do I need to use a sealant with this gasket?
Generally, modern head gaskets like this one are designed to be installed dry without any additional sealants. Applying sealant can interfere with the gasket's ability to seal properly. Always follow the instructions in your engine's service manual.
Is this gasket made of the same material as the OEM part?
This aftermarket gasket is manufactured with high-quality materials designed to meet or exceed OEM specifications for durability and sealing performance in a marine environment.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
