Cylinder Head Gasket – Fits Tohatsu/Nissan 9.9HP–18HP (Replaces 350-01005-0, 350-01005-1)
Cylinder Head Gasket – Fits Tohatsu/Nissan 9.9HP–18HP (Replaces 350-01005-0, 350-01005-1) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Cylinder Head Gasket – Fits Tohatsu/Nissan 9.9HP–18HP (Replaces 350...
Product Details

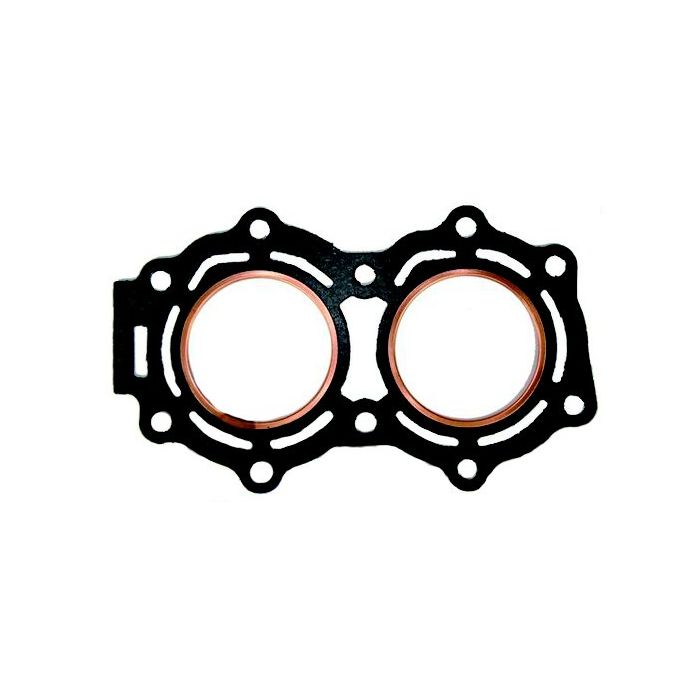

This aftermarket Cylinder Head Gasket is engineered for a precise fit on a range of Tohatsu, Nissan, Mercury, and Mariner 2-stroke outboard engines. It is designed for 9.9HP, 15HP, and 18HP models, including Tohatsu/Nissan M9.9, M15, M18 (2002 and earlier), M18E2 (2003), and Mercury/Mariner 18HP engines with serial number 0N001590 and up.
It serves as a direct replacement for Tohatsu/Nissan part numbers 350-01005-0 and 350-01005-1, and Mercury equivalents 27-803663, 27-8M0141796, 803663, 803663019, and 8M0141796.
- Ensures a reliable seal for 2-cylinder engine configurations.
- Installation is a direct replacement for the original part.
- Constructed from a durable paper/rubber composite to meet engine requirements.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Tohatsu / Nissan | 350-01005-0 |
| Tohatsu / Nissan | 350-01005-1 |
| Mercury / Mariner | 27-803663 |
| Mercury / Mariner | 27-8M0141796 |
| Mercury / Mariner | 803663 |
| Mercury / Mariner | 803663019 |
| Mercury / Mariner | 8M0141796 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Tohatsu and Nissan engines, this part fits various 9.9HP to 18HP 2-stroke models, primarily manufactured up to 2003.
For Mercury and Mariner outboards, this gasket is compatible with specific 18HP 2-stroke models based on serial number.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Tohatsu | M9.9D | 9.9 | 2-Stroke | Up to 2002 | 350-01005-0 | Assembly Kit and Cylinder/Crankcase Assembly |
| Tohatsu | M9.9B2 | 9.9 | 2-Stroke | Up to 2002 | 350-01005-0 | Cylinder/Crankcase Assembly |
| Tohatsu | M9.9D2 | 9.9 | 2-Stroke | Up to 2002 | 350-01005-0 | Cylinder/Crankcase Assembly |
| Tohatsu | M15D | 15 | 2-Stroke | Up to 2002 | 350-01005-0 | Assembly Kit and Cylinder/Crankcase Assembly |
| Tohatsu | M18E | 18 | 2-Stroke | Up to 2002 | 350-01005-0 | Assembly Kit and Cylinder/Crankcase Assembly |
| Tohatsu | M18E2 | 18 | 2-Stroke | 2003 | 350-01005-0 | Cylinder/Crankcase Assembly |
| Nissan | NS9.9D | 9.9 | 2-Stroke | Up to 2002 | 350-01005-0 | Assembly Kit and Cylinder/Crankcase Assembly |
| Nissan | NS9.9B2 | 9.9 | 2-Stroke | Up to 2002 | 350-01005-0 | Cylinder/Crankcase Assembly |
| Nissan | NS9.9D2 | 9.9 | 2-Stroke | Up to 2002 | 350-01005-0 | Cylinder/Crankcase Assembly |
| Nissan | NS15D | 15 | 2-Stroke | Up to 2002 | 350-01005-0 | Assembly Kit and Cylinder/Crankcase Assembly |
| Nissan | NS18E | 18 | 2-Stroke | Up to 2002 | 350-01005-0 | Assembly Kit and Cylinder/Crankcase Assembly |
| Nissan | NS18E2 | 18 | 2-Stroke | 2003 | 350-01005-0 | Cylinder/Crankcase Assembly |
| Mercury | 18HP | 18 | 2-Stroke | 27-803663 | Serial number 0N001590 and up |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation
- Direct replacement
- Housing Material
- Paper/Rubber
- Housing Color
- Black
- Engine Configuration
- 2-Cylinder
- Piston Bore Size
- 60mm
- Product Dimensions
- 25.5 x 15.0 x 0.4 cm
- Weight
- 50g (0.11 lb)
What’s in the Box
- 1 x Cylinder Head Gasket (Replaces 350-01005-0/350-01005-1)
Installation Notes
- Disconnect the battery and ground the ignition system for safety.
- Drain the engine coolant completely.
- Remove the cylinder head cover and any other components obstructing access to the head bolts.
- Following the service manual, loosen and remove the head bolts in the specified sequence (typically crisscross, from outside in).
- Carefully lift the cylinder head from the engine block. Avoid using pry tools that could damage the mating surfaces.
- Remove the old head gasket.
- Thoroughly clean both the engine block deck and cylinder head surfaces. Ensure they are free of old gasket material, oil, and debris.
- Position the new gasket, making sure it aligns with the dowel pins and bolt holes. Do not use sealants unless specified by the engine manufacturer.
- Carefully place the cylinder head back onto the block.
- Install and tighten the head bolts in the correct sequence and to the specified torque settings using a calibrated torque wrench.
Troubleshooting & FAQ
How do I know if this gasket fits my engine?
Check the "Engine & Model Compatibility" table. It's crucial to match your engine's brand, model, horsepower, and year or serial number range. For Mercury/Mariner models, confirm your serial number is 0N001590 or higher.
What are the signs of a failing head gasket?
Common symptoms include engine overheating, a noticeable loss of power, milky or discolored engine oil (coolant mixing with oil), bubbling in the radiator or coolant reservoir, and white, sweet-smelling smoke from the exhaust.
When should a head gasket be replaced?
Head gaskets are typically replaced only when they fail. They do not have a standard service interval. You can extend the life of your gasket by preventing engine overheating and performing regular cooling system maintenance.
Do I need special tools for this installation?
Yes, a calibrated torque wrench is essential. Tightening the head bolts to the manufacturer's specified torque and in the correct sequence is critical for creating a proper seal and preventing engine damage.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
