Cylinder Head Gasket – Fits Yamaha 200-250 HP V6 4-Stroke (Replaces 69J-11182-03-00)
Cylinder Head Gasket – Fits Yamaha 200-250 HP V6 4-Stroke (Replaces 69J-11182-03-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Cylinder Head Gasket – Fits Yamaha 200-250 HP V6 4-Stroke (Replaces...
Product Details

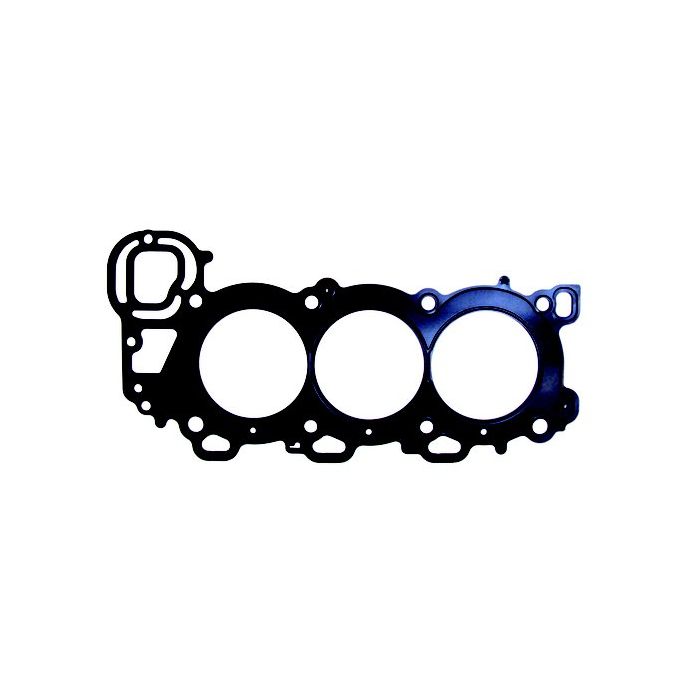

This is an aftermarket Cylinder Head Gasket – Fits Yamaha 200-250 HP V6 4-Stroke (Replaces 69J-11182-03-00) for the port side of the engine. It is specifically designed for Yamaha 200, 225, and 250 HP V6 4-Stroke outboard models manufactured between 2002 and 2021.
It serves as a direct replacement for Yamaha part numbers 69J-11182-03-00, 69J-11182-02-00, 69J-11182-01-00, and interchanges with Quicksilver 8M6010317, Jetunit 69J-11182-03, and Sierra 887848002/27-887848002.
- Engineered for port side installation only.
- Constructed from high-quality composite gasket material to ensure a durable seal.
- For a complete engine rebuild, the starboard side gasket must be purchased separately.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Yamaha | 69J-11182-01-00, 69J-11182-02-00 | 69J-11182-03-00 |
| Yamaha | 69J-11182-03-00 | |
| Quicksilver | 8M6010317 | |
| Sierra | 27-887848002, 887848002 | |
| Jetunit | 69J-11182-03 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha applications, this gasket fits the specified V6 4-stroke models from 2002 through 2021.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F200 | 200 | 4-Stroke | 2002–2021 | 69J-11182-03-00 | Port side only |
| Yamaha | F225 | 225 | 4-Stroke | 2002–2021 | 69J-11182-03-00 | Port side only |
| Yamaha | F250 | 250 | 4-Stroke | 2002–2021 | 69J-11182-03-00 | Port side only |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation
- Port Side
- Application
- Marine Outboard Engine
- Housing Material
- Composite Gasket Material
- Other Technical Attributes
- For port side cylinders only; starboard side requires different gasket
- Product Dimensions
- 44.0" L x 2.0" W x 0.5" H
What’s in the Box
- 1 x Gasket, Cylinder Head 2 (69J-11182-03-00)
Installation Notes
- Ensure the engine is off, cool, and the battery is disconnected. Drain the engine coolant completely.
- Remove the cylinder head cover and any other components obstructing access to the head bolts.
- Following the service manual’s specified sequence, loosen and remove the cylinder head bolts.
- Carefully lift the cylinder head off the engine block and remove the old gasket.
- Thoroughly clean both the cylinder head and engine block mating surfaces. Remove all residual gasket material, oil, and debris.
- Position the new port side gasket correctly on the engine block. Verify its orientation.
- Carefully reinstall the cylinder head. Tighten the head bolts to the manufacturer’s recommended torque specification and in the correct sequence.
- Reassemble all previously removed components, refill the cooling system, and reconnect the battery. Check all fluid levels.
- Start the engine and let it reach operating temperature, carefully checking for any coolant, oil, or exhaust leaks around the gasket area.
Troubleshooting & FAQ
How do I know if this gasket fits my exact engine model?
This gasket is designed for Yamaha 200, 225, and 250 horsepower V6 4-Stroke outboards made from 2002 through 2021. Always cross-reference your engine's part number with the ones listed in our Part Number Matrix to ensure a perfect match.
Is this gasket for the port (left) or starboard (right) side?
This particular part is for the port side only. The starboard side requires a different gasket (such as Quicksilver 8M6010318), which must be purchased separately.
What are the common signs of a failed cylinder head gasket?
Symptoms of a blown head gasket include engine overheating, a noticeable loss of power, white smoke from the exhaust (burning coolant), or a milky appearance in the engine oil, which indicates coolant and oil are mixing.
Should I use sealant when installing this gasket?
Most modern composite gaskets like this one are designed to be installed dry. Applying sealants can interfere with the seal. Always consult your official service manual for your specific engine model for the most accurate procedure.
How can I tell the difference between the port and starboard gasket?
The gaskets are mirror images of each other and are not interchangeable. The shape and bolt hole pattern are unique to each side. Compare the new gasket to your old one to confirm correct placement before installation.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
