Cylinder Head Gasket – Fits Yamaha 70-115HP Outboard Engines (Repla...
Product Details

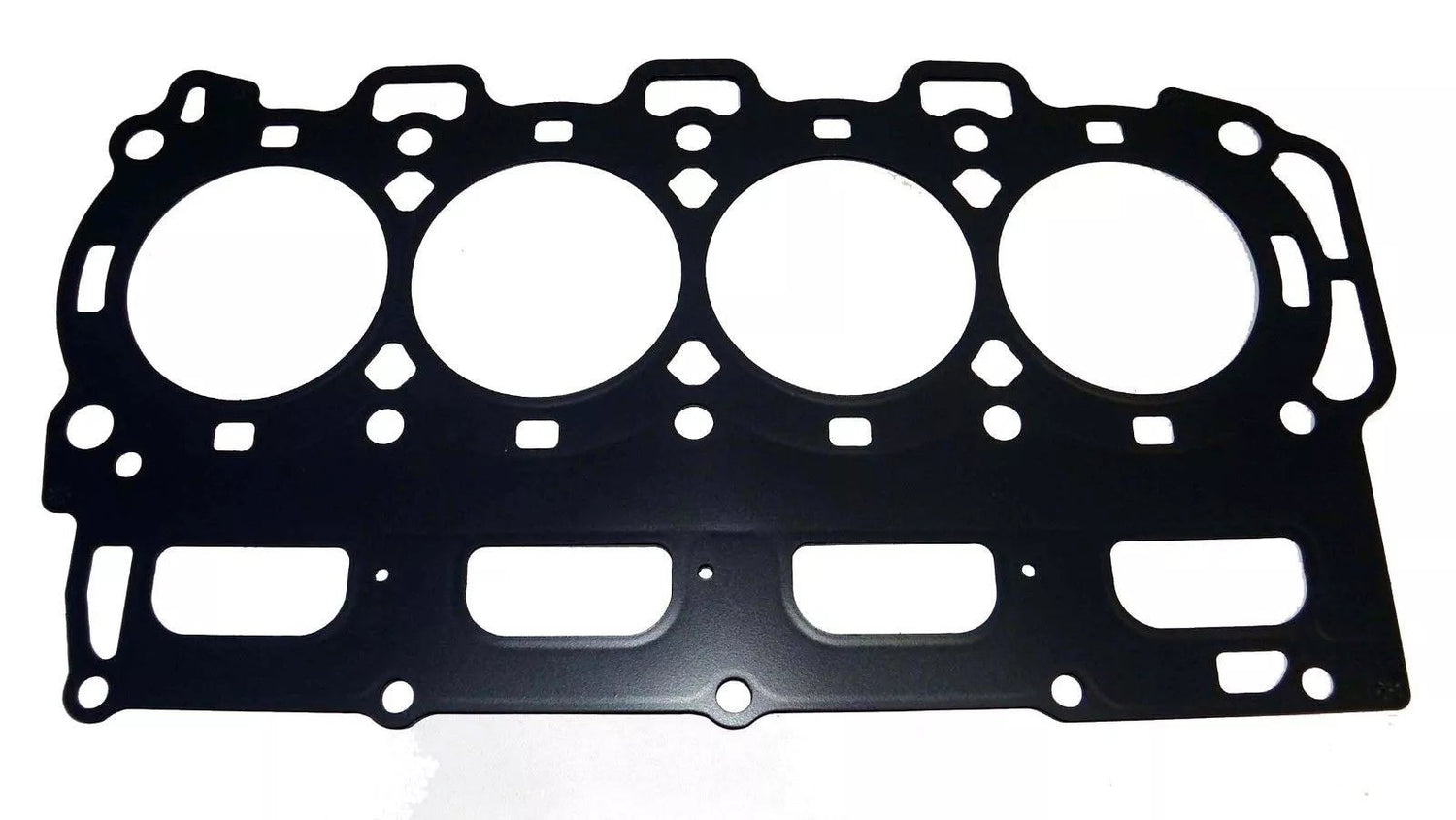

This high-quality Cylinder Head Gasket – Fits Yamaha 70-115HP Outboard Engines (Replaces 67F-11181-03-00) is engineered for Yamaha and compatible Mercury/Mariner 4-stroke outboard engines ranging from 70HP to 115HP, typically covering model years from 1999 to 2006.
It serves as a direct replacement for Yamaha part numbers 67F-11181-03-00, 67F-11181-02-00, 67F-11181-01-00, and 67F-11181-00-00, as well as Mercury/Mariner 27-8041151.
- Installation Method: Direct Replacement
- Engine Fit: Yamaha & Mercury/Mariner 4-Stroke (70-115HP)
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Yamaha | 67F-11181-03-00 | Current part number |
| Yamaha | 67F-11181-02-00 | Superseded by 67F-11181-03-00 |
| Yamaha | 67F-11181-01-00 | Superseded by 67F-11181-03-00 |
| Yamaha | 67F-11181-00-00 | Superseded by 67F-11181-03-00 |
| Mercury/Mariner | 27-8041151 | Cross-reference for Yamaha design-based engines |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Yamaha Outboard Engines: This gasket fits a range of 4-stroke models from 75HP to 115HP produced between 1999–2006.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F75LA0 | 75 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F75TLR | 75 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F80TJR | 80 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F80TLR | 80 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F80TXR | 80 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F90JA0 | 90 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F90LA0 | 90 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F90TJR | 90 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F100TLR | 100 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F100TXR | 100 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | |
| Yamaha | F115 | 115 | 4-Stroke | 1999–2006 | 67F-11181-03-00 | EFI 4-stroke engine |
Mercury/Mariner Outboard Engines: Fits 4-stroke outboards that use the Yamaha-based powerhead design.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | 70-115 | 70-115 | 4-Stroke | 1999–2006 | 27-8041151 | Compatible with Yamaha-designed Mercury outboards |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation
- Direct Replacement
- Dimensions
- 44.0 x 24.0 x 0.5 inches (1117.6 x 609.6 x 12.7 mm)
- Weight
- 0.6 pounds (0.27 kg)
What’s in the Box
- 1 x Cylinder Head Gasket (Replaces 67F-11181-03-00)
Installation Notes
- Disconnect the battery and ensure the engine has completely cooled.
- Remove the engine cowling to access the cylinder head.
- Carefully disconnect all fuel lines, electrical connectors, and hoses attached to the head.
- Loosen and remove the cylinder head bolts, following the reverse of the manufacturer's specified tightening sequence.
- Gently lift the cylinder head off the engine block and remove the old gasket.
- Thoroughly clean both the cylinder head and engine block surfaces until they are free of old gasket material, oil, and debris. A clean surface is critical for a proper seal.
- Position the new cylinder head gasket on the engine block, ensuring it aligns perfectly with the dowel pins.
- Carefully lower the cylinder head back into place.
- Install and tighten the head bolts progressively, following the manufacturer's sequence and torque specifications precisely.
- Reconnect all hoses, fuel lines, and electrical connectors.
- Reinstall any other components that were removed for access.
- After reassembly, connect the battery, start the engine, and meticulously check for any fuel, oil, or coolant leaks around the gasket.
Troubleshooting & FAQ
How do I know if this gasket fits my specific engine?
This gasket is designed for Yamaha and Mercury/Mariner 70-115HP 4-stroke models from approximately 1999–2006. The most reliable way to confirm fitment is to check the "Engine & Model Compatibility" table and cross-reference your exact engine model and OEM part number (such as 67F-11181-03-00 or 27-8041151).
What are the common signs of a failed cylinder head gasket?
Symptoms of a blown head gasket can include persistent engine overheating, a noticeable loss of power, white-colored smoke from the exhaust (burning coolant), or discovering water in the engine oil, which gives it a milky or foamy appearance.
Is any sealant required for installation?
Modern head gaskets, including this one, are typically installed dry without any additional sealants. Applying sealant can interfere with the seal. Always consult your engine's official service manual for the most accurate, model-specific instructions.
Why are there multiple Yamaha part numbers listed as replacements?
The part numbers 67F-11181-00-00, 67F-11181-01-00, and 67F-11181-02-00 are earlier versions of this part that have been superseded by the manufacturer. This gasket (equivalent to 67F-11181-03-00) is the current, direct replacement for all of those previous numbers.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
