Engine Stop Switch Assembly – Fits Yamaha Outboard & Inboard En...
Product Details

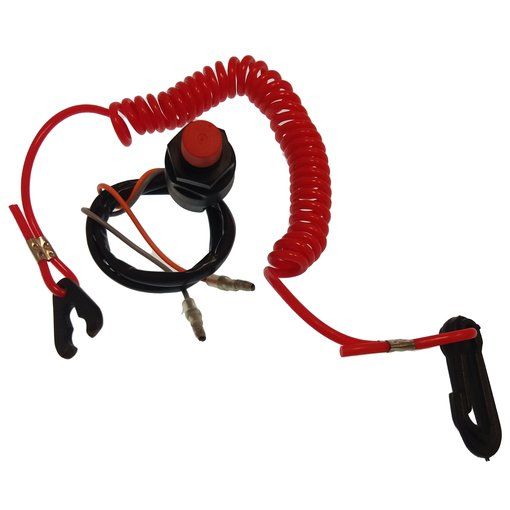

This aftermarket Engine Stop Switch Assembly serves as a crucial safety device for various Yamaha outboard engines and Yanmar inboard marine applications. Designed for instrument panel or console mounting, it ensures the engine shuts down immediately when the lanyard is detached from the switch, preventing runaway situations.
It is a direct replacement for Yamaha OEM part 69W-82575-00-00 and aftermarket equivalent AM69W-82575-00.
- Installs directly into an instrument panel or console.
- Features a simple 2-wire electrical connection.
- Normally open circuit design instantly stops the engine when the clip is removed.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 69W-82575-00-00 |
| Yamaha (Aftermarket) | AM69W-82575-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is a direct replacement for multiple Yanmar inboard engines. Please verify your specific model below.
This switch also fits various Yamaha outboard motors. As a complete list of compatible Yamaha models is not available, please check your engine's service manual or original part for confirmation.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yanmar | 3JH2E, 3JH2L | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 3JH2-TCE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 3JH3E-YEU-E, 3JH4E | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 3YM20 | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 3YM27A | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 3YM30 | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 3YM30AE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4CH-DT | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH2-DTE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH2E, 4JH2-HTE, 4JH2-TE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH2-UTE, 4JH3-TE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH3-DTE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH3-HTE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH4E | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH-DTE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JHE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH-HTE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH-HTZ, 4JH-HTZAE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4JH-TE, 4JH-TZY | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LHA-DTE, -DTP, -DTZE, -DTZP, -HTE, -HTP, -HTZE, -HTZP, -STE, -STP, -STZE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LHA-STZP | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LH-DTE, -DTZ, -HT | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LH-HTE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LH-HTZ, -HTZAY, STE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LH-ST, -STZ, -STZAY | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LH-TE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LH-UT, -UTZ, -UTZAY | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 4LH-WST, -WSTZY | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6BY | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6CX-ETE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6CX-GT | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6CXM-ETE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6GHA-ET | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6GHA-ST, STE, 6GHAK-ST1, 6GHAM-STE, 6GHD-ST | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6KHL-ST | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6LPA-DTP, -DTZP, -STP, -STZ, 6LP-DT, -DTE, -DTZE, -DTZY, -ST, -STE, -STZE, -STZY, -WDT, -WDTZY | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6LY2-ST | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6LY2-STE | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6LY2-STVY | 4-Stroke | 69W-82575-00 | |||
| Yanmar | 6LY2-STP | 4-Stroke | 69W-82575-00 |
Technical Specs
- Product Type
- Engine Stop Switch Assembly
- Installation
- Instrument panel or console mounting
- Connection
- 2-wire electrical connection
- Housing Material
- Plastic with metal contacts
- Housing Color
- Black
- Dimensions
- 8.0" x 8.0" x 6.0"
- Circuit Type
- Normally open; designed to stop engine when lanyard/clip is removed
What’s in the Box
- 1 x Engine Stop Switch Assembly (69W-82575-00)
Installation Notes
- Disconnect the boat's battery to prevent electrical shorts.
- Access the rear of the instrument panel or console where the switch will be mounted.
- If replacing an old switch, disconnect its wires and remove it. If making a new installation, drill a hole of the appropriate diameter for the switch body.
- Feed the new switch's wires through the hole and mount the switch body, securing it with its retaining nut.
- Connect the two wires to the engine's ignition circuit. These typically connect in series with the ignition's "off" or "kill" circuit. Consult your engine's service manual for the exact wiring diagram.
- Reconnect the battery and test the switch. The engine should only start when the lanyard clip is in place and should stop immediately when the clip is pulled.
Troubleshooting & FAQ
How do I know if my stop switch has failed?
Common signs of a faulty stop switch include the engine not starting even with the lanyard clip attached, or the engine failing to shut off when the clip is pulled. Intermittent stalling can also be a symptom of a failing switch with a loose internal connection.
Is this a "normally open" or "normally closed" switch?
This is a "normally open" (NO) switch. When the lanyard clip is attached, it closes the circuit, allowing the ignition system to function. When the clip is removed, the circuit opens, which cuts power to the ignition and stops the engine.
Can I bypass the stop switch to start my engine?
While it is often possible to bypass a faulty stop switch in an emergency by disconnecting its leads and joining them (for NO circuits), this is not recommended for regular operation. The stop switch is a critical safety feature that should always be functional.
What is the difference between this and the OEM Yamaha part?
This is an aftermarket part designed to meet or exceed OEM specifications for fit, form, and function. The materials and electrical components are of comparable quality, but it is not manufactured by Yamaha.
How often should a kill switch lanyard be replaced?
The lanyard itself should be inspected regularly for UV damage, fraying, or a weak clip. We recommend replacing it every few seasons or immediately if it shows any signs of wear to ensure it functions correctly in an emergency.
Will this fit my specific Yamaha outboard model?
This switch replaces OEM part 69W-82575-00 and fits many Yamaha models. However, the best way to ensure compatibility is to compare the part number stamped on your original switch to the numbers in our Part Number Matrix.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
