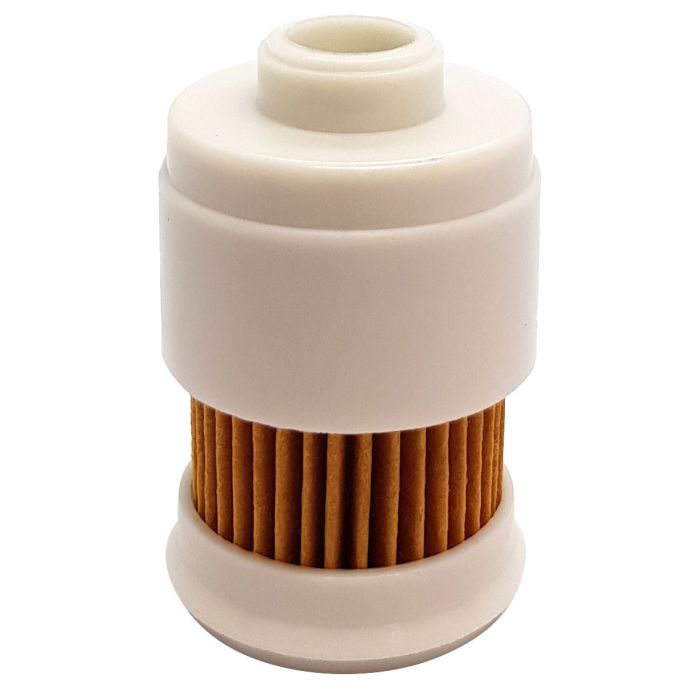

Fuel Filter Element – Fits Yamaha HPDI 150-300 HP Outboards (Replaces 68F-24563-00-00)

Product Details

This high-quality aftermarket Fuel Filter Element – Fits Yamaha HPDI 150-300 HP Outboards (Replaces 68F-24563-00-00) is designed to protect your engine's sensitive high-pressure direct injection (HPDI) system. It is engineered for a precise fit in Yamaha 150-300 HP HPDI 2-Stroke outboards from 2000–2005, covering the LZ, VZ, and Z model series.

It serves as a direct replacement for Yamaha part numbers 68F-24563-00-00 and the updated 68F-24563-10-00, as well as Sierra aftermarket part 18-79980.

• Installs as the in-line primary fuel filter element.
• Specifically designed for use in gasoline-powered high-pressure direct injection (HPDI) systems.
• Backed by a lifetime warranty for the Sierra replacement part.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This filter element is designed for Yamaha HPDI 2-stroke outboard motors, including the LZ, VZ, and Z series from 2000 to 2005. The updated part number 68F-24563-10-00 also covers specific 2004–2005 models.

Technical Specs

Product Type

Fuel Filter Element

Installation

In-line primary fuel filter

Fuel Type

Gasoline/Petrol

Connection

Internal filter element (no direct connection)

Housing Color

White

Dimensions

Length: 14.0, Width: 12.0, Height: 8.0

Weight

0.02 kg (0.704 oz)

Fitting Type

Filter element (no direct fittings)

Technical Attributes

For use in high-pressure direct injection (HPDI) systems

Warranty

Lifetime (Sierra replacement)

What’s in the Box

• 1 x Fuel Filter Element (68F-24563-00-00)

Installation Notes

1. Turn off the engine, disconnect the battery, and ensure the workspace is well-ventilated.
2. Locate the primary fuel filter housing assembly on your Yamaha HPDI engine.
3. Place a suitable container or absorbent rags under the filter to catch any fuel spillage.
4. Carefully unscrew the filter cup from the housing. Be prepared for some residual fuel to drain out.
5. Remove the old filter element. Note its orientation and the placement of any O-rings or seals.
6. Clean the interior of the filter cup and housing with a lint-free cloth.
7. Install the new filter element, making sure it is seated correctly in the housing.
8. Re-install the filter cup, ensuring seals are properly seated. Hand-tighten securely, then give it a final quarter-turn with a wrench if specified by the manufacturer. Do not overtighten.
9. Reconnect the battery.
10. Prime the fuel system using the primer bulb until it feels firm.
11. Start the engine and carefully check the filter housing for any signs of leaks.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
