GASKET – Mercury Marine/Mercruiser V6 (Replaces 27-76636)
Product Details

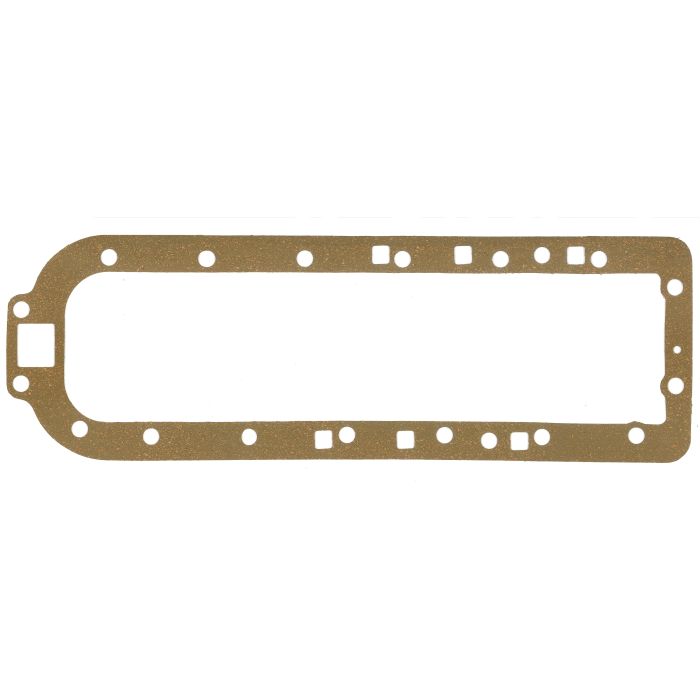

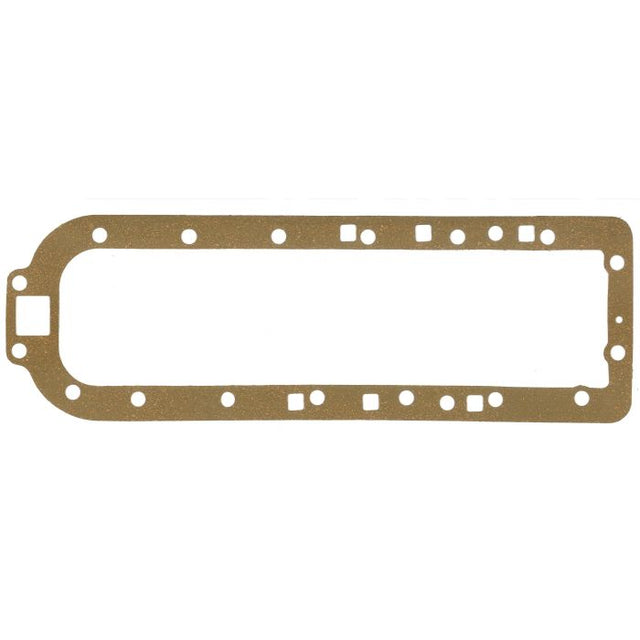

This GASKET – Mercury Marine/Mercruiser V6 (Replaces 27-76636) is engineered for a range of V6 2-stroke outboard engines. It is a crucial sealing component for the exhaust system on models in the 150-200 HP class, primarily manufactured between 1976 and 1988, though application may extend to earlier years for certain models.
This part serves as a direct cross-reference for OEM part numbers 27-76636, 76636, 27-75952, and 75952.
- Installs between the engine's exhaust divider plate.
- Note: Most engine configurations require two gaskets per assembly.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Part Number | Brand/Source | Notes |
|---|---|---|
| 27-76636 | Mercury Marine / Mercruiser | Primary OEM part number. |
| 76636 | Mercury Marine / Mercruiser | Alternative OEM number format. |
| 27-75952 | Mercury Marine / Mercruiser | Superseded part number. |
| 75952 | Mercury Marine / Mercruiser | Alternative format for superseded number. |
Engine & Model Compatibility
Confirm your engine model and year in the table below. Compatibility should be verified with official service literature.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury-Mercruiser | V-150 | 150 | 2-Stroke | Up to 1985 | 27-76636 | Applies to V-150, V-1500, V-150 Magnum, V-150 Marathon, V-150 Work, V-150-XR-2 |
| Mercury-Mercruiser | V-175 | 175 | 2-Stroke | 1976–1988 | 27-76636 | |
| Mercury-Mercruiser | V-200 | 200 | 2-Stroke | 1978–1988 | 27-76636 | |
| Mercury-Mercruiser | V6 2.4L | 150-200 | 2-Stroke | 1982 & Earlier | 27-76636 | Exhaust Divider Plate Gasket |
Technical Specs
- Product Type
- Gasket, Exhaust Divider Plate
- Installation Location
- Between exhaust divider plate
- Dimensions
- 22 × 7 × 1.06 in (approx. 559 × 178 × 27 mm)
- Weight
- 0.18 kg (0.4 lbs)
- Quantity Required
- 2 per engine assembly
What’s in the Box
- 1x Exhaust Divider Plate Gasket
Installation Notes
- Ensure the engine is off, cool, and the battery is disconnected.
- Drain the engine cooling system as per your service manual.
- Access and unbolt the exhaust divider plate to expose the old gaskets.
- Remove the old gaskets and thoroughly clean all mating surfaces to remove any debris or corrosion.
- Position the two new gaskets correctly on the assembly.
- Reinstall the divider plate, tightening bolts to the manufacturer's specified torque in the correct sequence.
- Refill the cooling system.
- Reconnect the battery, start the engine, and inspect carefully for exhaust or water leaks.
Troubleshooting & FAQ
How many gaskets do I need for my engine?
Most V6 applications require two of these gaskets for a complete installation—one for each side of the exhaust divider plate. Always consult your service manual to confirm the quantity for your specific engine model.
What are common signs of a failed divider plate gasket?
Symptoms include audible exhaust leaks (a hissing or ticking sound), engine overheating, reduced performance, water intrusion into cylinders, or visible soot/corrosion around the exhaust plate area.
Is this part sold individually or in a pack?
This part is sold as a single gasket. Please verify the quantity needed for your specific repair and adjust at checkout.
Does this fit all Mercury V6 engines?
No. This gasket is specifically for certain 2-stroke V6 models (150-200 HP) from 1976–1988 and some earlier 2.4L models. It is critical to check the compatibility table and verify against your engine's part number before ordering.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
