Impeller Kit – Fits Volvo Penta 431A/AQ200 (Replaces Jabsco 22120-0...
Product Details

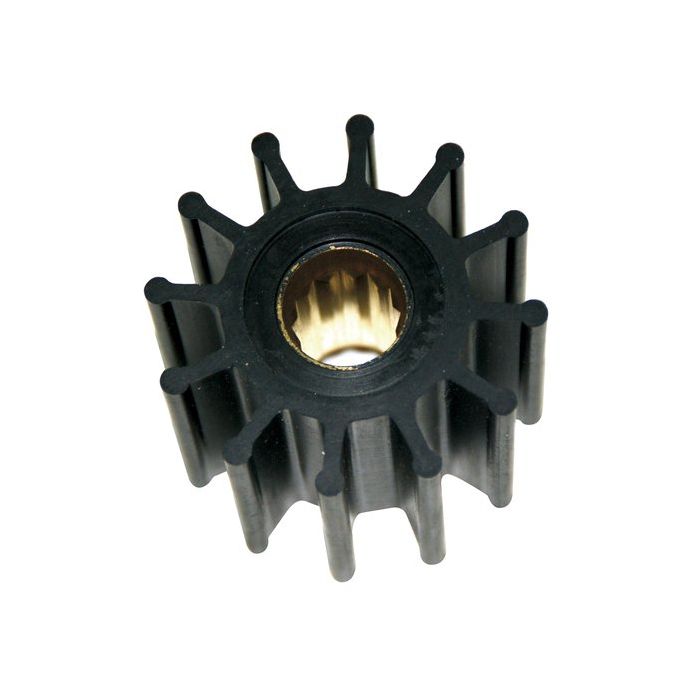

This aftermarket Impeller Kit – Fits Volvo Penta 431A/AQ200 (Replaces Jabsco 22120-0001) is designed for a wide range of Volvo Penta marine engines manufactured from 1968 to 1993, including the 431A, AQ200, AQ225, and 500B series. It serves as a direct replacement component for maintaining your engine's cooling system.
It provides a direct interchange for Jabsco 22120-0001/1210-0001-P, Volvo Penta 876120/835512-5/834794, CEF 500104, and Amic Marine 22120/01.
- Engineered for direct replacement installation.
- Features a durable MC97 Neoprene impeller with a brass hub.
- Kit includes the impeller and lubricating glycerin for installation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Jabsco | 22120-0001 | 1210-0001-P | Primary replacement. May also be cross-compatible with 18777-0001 in some applications. |
| Volvo Penta | 834794 | ||
| Volvo Penta | 835512-5 | ||
| Volvo Penta | 876120 | ||
| CEF | 500104 | ||
| Amic Marine | 22120/01 | ||
| Kohler | 252882 | From Jabsco compatibility data. | |
| Onan | 132-0162 | From Jabsco compatibility data. | |
| Universal | 302571 | From Jabsco compatibility data. | |
| Marine Power | 527272 | Used on some models. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Volvo Penta models, this part is compatible with engines that have a 6-screw cover on the water pump. It is also compatible with Jabsco pump model 23800-0201.
| Brand | Model | OEM Part No. | Notes |
|---|---|---|---|
| Volvo Penta | 431A | 876120/835512-5/834794 | 6 screw cover on water pump |
| Volvo Penta | AQ200 | 876120/835512-5/834794 | 6 screw cover on water pump |
| Volvo Penta | AQ200D | 876120/835512-5/834794 | |
| Volvo Penta | AQ200F | 876120/835512-5/834794 | |
| Volvo Penta | AQ205A | 876120/835512-5/834794 | |
| Volvo Penta | AQ225D | 876120/835512-5/834794 | |
| Volvo Penta | AQ225E | 876120/835512-5/834794 | |
| Volvo Penta | AQ225F | 876120/835512-5/834794 | |
| Volvo Penta | AQ260A | 876120/835512-5/834794 | |
| Volvo Penta | AQ260B | 876120/835512-5/834794 | |
| Volvo Penta | AQ311A | 876120/835512-5/834794 | |
| Volvo Penta | AQ311B | 876120/835512-5/834794 | |
| Volvo Penta | BB225A | 876120/835512-5/834794 | |
| Volvo Penta | BB225AV | 876120/835512-5/834794 | |
| Volvo Penta | BB225C | 876120/835512-5/834794 | |
| Volvo Penta | 420B | 876120/835512-5/834794 | |
| Volvo Penta | 430A | 876120/835512-5/834794 | |
| Volvo Penta | 431B | 876120/835512-5/834794 | |
| Volvo Penta | 432A | 876120/835512-5/834794 | |
| Volvo Penta | 434A | 876120/835512-5/834794 | |
| Volvo Penta | 500B | 876120/835512-5/834794 | |
| Volvo Penta | 501B | 876120/835512-5/834794 | |
| Volvo Penta | 570A | 876120/835512-5/834794 | |
| Volvo Penta | 571A | 876120/835512-5/834794 | |
| Volvo Penta | 572A | 876120/835512-5/834794 | |
| Volvo Penta | 740A | 876120/835512-5/834794 | |
| Volvo Penta | 740B | 876120/835512-5/834794 | |
| Mastercraft | LT1 | Fits some LT1 engines around 1995 |
Technical Specs
- Product Type
- Marine Impeller Kit
- Installation
- Direct replacement
- Material
- Neoprene (MC97)
- Hub Material
- Brass
- Number of Blades
- 12
- Shaft Type
- Splined (4 splines)
- Shaft Insert Diameter
- 16 mm (0.625 in)
- Product Dimensions
- 6.5" L x 6.5" W x 5.0" H
- Color
- Black
What’s in the Box
- 1 x Impeller (Replaces Jabsco 22120-0001)
- 1 x Lubricating Packet (Glycerin)
Installation Notes
- Close the seacock/water intake valve before beginning.
- Remove the cover plate from the raw water pump housing. Note screw orientation.
- Use impeller pullers or two pliers to carefully remove the old impeller. Avoid scratching the housing.
- Clean the inside of the pump housing and inspect for scoring or damage.
- Apply the included glycerin lubricant to the inside of the pump housing and to the new impeller.
- Install the new impeller, rotating the shaft in the direction of engine operation to bend the blades correctly.
- Install the new gasket (if included) and replace the cover plate. Tighten screws in a star pattern.
- Open the seacock, start the engine, and immediately check for proper water flow and leaks.
Troubleshooting & FAQ
How do I confirm this impeller fits my specific engine?
The best method is to match your old part number to one listed in our Part Number Matrix. If you cannot find a part number, compare the technical specifications (especially diameter, depth, and shaft type) to your existing impeller. When in doubt, consult your engine's service manual or contact a professional marine mechanic.
What is the difference between Jabsco 1210-0001-P and 18777-0001?
Jabsco 22120-0001 has been superseded, with 1210-0001-P being the primary designated replacement. The part 18777-0001 is listed by some sources as a replacement but has slightly different specifications (e.g., 10 blades instead of 12). This kit is designed to match the original 22120-0001 (12-blade) specs.
What are the signs of a failing water pump impeller?
Common signs include engine overheating at idle or low speeds, a noticeable reduction in water flow from the exhaust, and visible cracks or missing blades on the impeller itself upon inspection. A dry, brittle, or stiff impeller should also be replaced.
How often should I replace my impeller?
As a general rule, impellers should be inspected annually and replaced every one to two years, depending on usage (hours run) and water conditions (sandy or debris-filled water causes faster wear). Always refer to your engine manufacturer's service recommendations.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
