Impeller Repair Kit – Fits Sherwood & Onan MDKBK Series (Replaces Onan 0132-0375, 0132-0498)

Product Details

This Impeller Repair Kit – Fits Sherwood 10077K & Onan MDKBK Series provides a complete replacement solution for Sherwood raw water pumps and Cummins Onan marine generators that use a 12-blade neoprene impeller on a 1/2" keyed shaft.

It serves as a direct interchange for numerous OEM and aftermarket part numbers, including Sherwood 10077K, Onan 0132-0375, Universal 287439, Westerbeke 33112, and Sierra 23-2000.

• Designed for marine raw water cooling applications.
• Features a durable 12-blade neoprene construction.
• Kit includes impeller, gaskets, and O-ring for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Cummins Onan marine generators:

For Sherwood raw water pumps:

For other compatible engines:

Technical Specs

Product Type

Impeller Repair Kit

Material

Neoprene

Impeller Design

12 Blades

Shaft Diameter

12.7 mm (1/2")

Shaft Type

Keyed (3/32" key drive)

Impeller Width

19.8-20 mm (25/32")

Impeller Diameter

57.1 mm (2-1/4")

Weight

67.8 g (2.39 oz)

Package Dimensions

152 × 100 × 42 mm (5.98 × 3.94 × 1.65 inches)

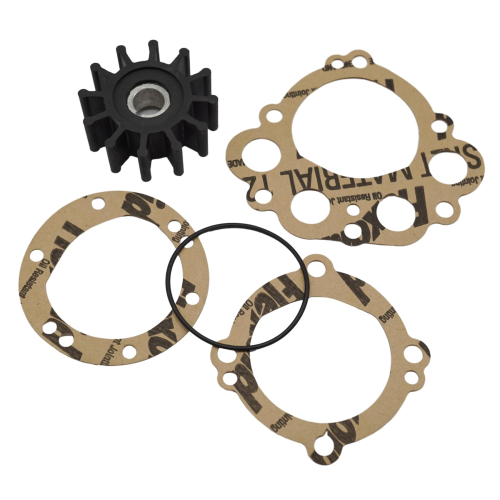

What’s in the Box

• 1 x Impeller (Replaces Sherwood 10077K, Onan 0132-0375)
• 3 x Gaskets
• 1 x O-Ring (Replaces Onan 132-0372)

Installation Notes

1. Shut off the engine, disconnect the battery, and close the raw water seacock.
2. Place a catch pan under the pump and drain any remaining water by loosening the drain plug or a hose.
3. Remove the screws holding the pump's end cover plate.
4. Carefully pry off the cover. Note the orientation of the impeller blades before removal.
5. Use needle-nose pliers or an impeller puller to remove the old impeller from the pump housing.
6. Clean the inside of the pump housing and the cover plate, removing any old gasket material or debris.
7. Lightly lubricate the inside of the housing and the new impeller with water-resistant grease or liquid soap.
8. Install the new impeller by pinching the blades together and inserting it with a twisting motion that matches the original blade direction.
9. Place the new gasket on the pump housing, align the new O-ring (if applicable), and reinstall the end cover.
10. Tighten the cover screws evenly in a star pattern.
11. Open the seacock, reconnect the battery, and start the engine.
12. Immediately check the pump and hose connections for any leaks.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
