Oil Drain Plug Gasket – Fits Suzuki Outboards 8-30HP (Replaces Suzu...
Product Details

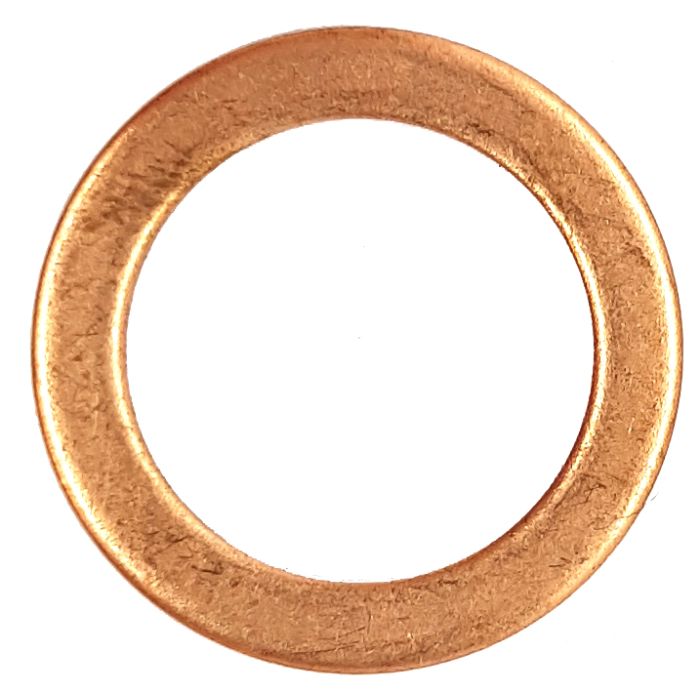

This high-quality aftermarket Oil Drain Plug Gasket – Fits Suzuki Outboards 8-30HP (Replaces Suzuki 09168-12017) ensures a secure seal for your engine's oil pan. It is designed for a wide range of Suzuki 4-Stroke outboard models, primarily from 8HP to 30HP, including the DF9.9, DF15, DF20, DF25, and DF30 series. Fitment years typically span from 1996 to current production, though this can vary by specific model.
This component is a direct replacement for Suzuki OEM part number 09168-12017.
- Installs on the engine oil pan drain plug.
- Suzuki recommends replacing this gasket during every engine oil change to prevent leaks.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 09168-12017 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This gasket is known to fit the following Suzuki outboard models. Please verify your specific engine model and year for accurate fitment.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF9.9A | 9.9 | 4-Stroke | 09168-12017 | ||
| Suzuki | DF9.9B | 9.9 | 4-Stroke | 09168-12017 | ||
| Suzuki | DF15A | 15 | 4-Stroke | 09168-12017 | ||
| Suzuki | DF20A | 20 | 4-Stroke | 09168-12017 | ||
| Suzuki | DF25A | 25 | 4-Stroke | 09168-12017 | ||
| Suzuki | DF30A | 30 | 4-Stroke | 09168-12017 | ||
| Suzuki | DF8A | 8 | 4-Stroke | 09168-12017 | Also covers 8-25HP range | |
| Suzuki | DF200 | 200 | 4-Stroke | 09168-12017 | ||
| Suzuki | DF4 | 4 | 4-Stroke | 09168-12017 | Listed as compatible by one retailer, but conflicts with 8-25HP range. | |
| Suzuki | DF6 | 6 | 4-Stroke | 09168-12017 | Listed as compatible by one retailer, but conflicts with 8-25HP range. | |
| Suzuki | DF9.9 | 9.9 | 4-Stroke | 1996–2004 | 09168-12017 | |
| Suzuki | DF15 | 15 | 4-Stroke | 1996–2012 | 09168-12017 | |
| Suzuki | DF25 | 25 | 4-Stroke | 09168-12017 | ||
| Suzuki | DF30 | 30 | 4-Stroke | 09168-12017 |
Technical Specs
- Product Type
- Oil Drain Plug Gasket
- Gasket Dimensions
- 12x17x1 mm
- Installation
- Engine Oil Pan
- Package Dimensions
- 6.0 x 5.0 x 0.2 in (152.4 x 127 x 5.08 mm)
- Shipping Weight
- 0.1 lbs (0.045 kg)
What’s in the Box
- 1 x Gasket (Replaces 09168-12017)
Installation Notes
- Position a suitable oil drain pan under the engine's oil drain plug.
- Carefully remove the drain plug and allow the used oil to drain completely.
- Remove and discard the old gasket from the drain plug. Thoroughly clean the plug and the sealing surface on the oil pan.
- Place the new gasket onto the drain plug.
- Reinstall the drain plug with the new gasket and tighten to the manufacturer's specified torque. Do not overtighten, as this can damage the threads or gasket.
- Refill the engine with the correct type and amount of new motor oil as specified in your owner's manual.
Troubleshooting & FAQ
How often should I replace this gasket?
For best results and to prevent oil leaks, Suzuki recommends replacing the oil drain plug gasket with every engine oil change.
Will this gasket fit my Suzuki DF4 or DF6 outboard?
While some retailers list this part as compatible with DF4 and DF6 models, most sources indicate it primarily fits engines in the 8HP to 30HP range. This is a known data conflict. We recommend verifying the part number in your owner's manual or by measuring your existing gasket to ensure a match.
What are the signs of a failing drain plug gasket?
The most common sign of a failing or worn-out gasket is an active oil drip or seepage from the drain plug area after the engine has been run. Over time, the gasket can compress, harden, or crack, losing its ability to create a proper seal.
Why are the year ranges missing for many compatible models?
Many parts suppliers provide compatibility data by engine model series (e.g., DF25A) without specifying exact production years. We include known year ranges when available but recommend cross-referencing your engine's serial number or original part number to confirm fitment.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
