Product Details

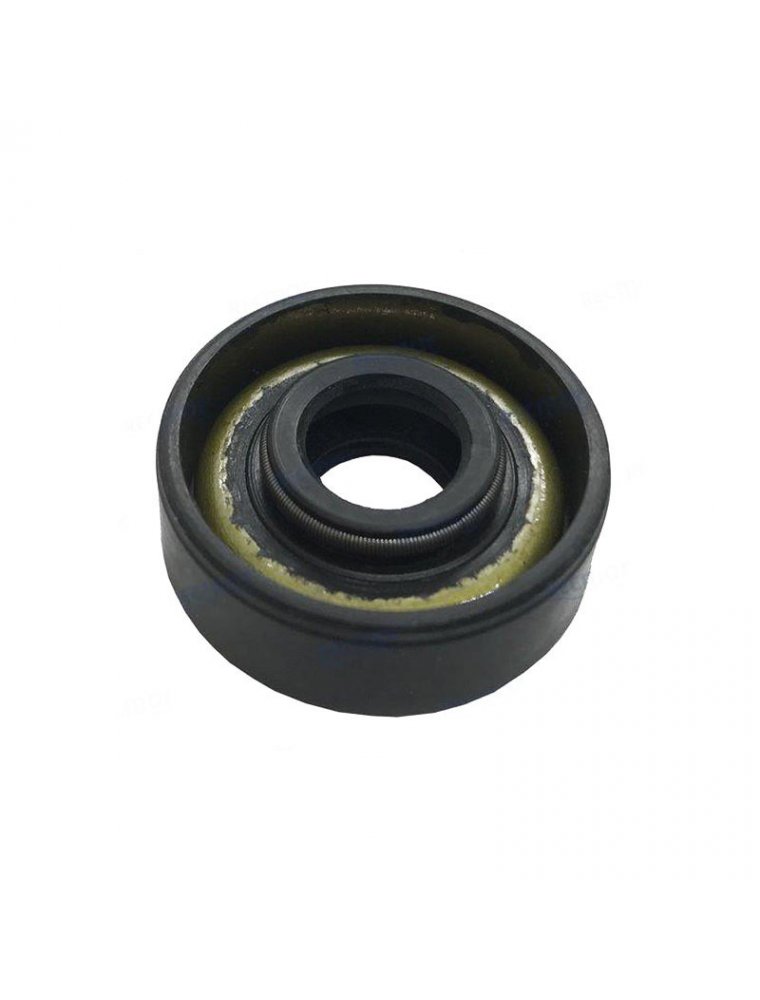

This high-quality Oil Seal – Fits Suzuki DT 2HP to 9.9HP is an essential component for maintaining the integrity of your propeller shaft. It is designed for a wide range of Suzuki 2-Stroke outboard motors, including 2HP, 2.2HP, 3.5HP, 4HP, 4.5HP, 5HP, 7.5HP, 9HP, and 9.9HP models manufactured between 1977 and 2005.

This part serves as a direct replacement for Suzuki OEM part numbers 09289-10005 and the superseded 09289-10003.

Engineered for a direct replacement installation.
Constructed with marine-grade oil resistance for durability in harsh environments.
Package includes one propeller shaft oil seal.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Notes
Suzuki	09289-10005
Suzuki	09289-10003	Superseded by 09289-10005

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Suzuki	DT2	2	2-Stroke	1977–1982	09289-10005	Supersedes 09289-10003
Suzuki	DT2.2	2.2	2-Stroke	1986–2005	09289-10005	DT2.2G-Y (1986-00), DT2.2 K1-K5 (2001-05)
Suzuki	DT3.5	3.5	2-Stroke	1977–1982	09289-10005
Suzuki	DT4	4	2-Stroke	1977–1979	09289-10005
Suzuki	DT4.5	4.5	2-Stroke	1977–1979	09289-10005
Suzuki	DT5	5	2-Stroke	1977–1979	09289-10005
Suzuki	DT7.5	7.5	2-Stroke	1977–1979	09289-10005
Suzuki	DT9	9	2-Stroke	1977–1979	09289-10005

Technical Specs

Product Type: Propeller Shaft Oil Seal
Installation: Direct replacement
Dimensions (Seal): 10mm x 26mm x 9mm (ID x OD x Width)
Dimensions (Product): 1.0cm x 9.8cm x 12.5cm
Housing Material: Rubber with metal casing
Operating Temperature: -20°C to 100°C (-4°F to 212°F)
Other Technical Attributes: Marine-grade oil resistance

What’s in the Box

1 x Oil Seal (Replaces 09289-10005)

Installation Notes

Disconnect the battery and ensure the engine is off and cool.
Remove the propeller and then the gearcase/lower unit assembly per your service manual.
Carefully extract the old propeller shaft oil seal using an appropriate seal puller, avoiding damage to the housing.
Clean the seal housing thoroughly, removing any old sealant, corrosion, or debris.
Lightly lubricate the new seal with marine grease on its outer edge and inner lip.
Press the new seal into place evenly using a suitable driver or socket until it is seated correctly and flush.
Reassemble the gearcase and propeller, torquing all fasteners to manufacturer specifications.
After reassembly, check gear lube level and inspect for leaks after the first use.

Troubleshooting & FAQ

How do I know if this oil seal will fit my Suzuki outboard?

Verify your engine model and year against the compatibility list on this page. This seal fits specific Suzuki DT 2-Stroke models from 2HP to 9.9HP (1977–2005). Always compare the listed dimensions (10mm x 26mm x 9mm) with your old part before ordering.

What are the signs of a failing propeller shaft oil seal?

Common indicators include visible oil leaks around the propeller shaft area of the lower unit, water intrusion into the gearcase (milky or discolored gear lube), or a noticeable film of oil on the water surface near the outboard.

Is any special tool required for installation?

A seal puller is recommended for safely removing the old seal without damaging the housing. To install the new seal, use a press or a correctly sized socket or seal driver to ensure it seats evenly without distortion.

How often should this propeller shaft seal be replaced?

Seals should be inspected during regular lower unit service (e.g., water pump replacement) or at least every 1-2 seasons, depending on usage. It is best practice to replace them whenever the gearcase is disassembled or if any signs of leakage are present.

Can I use this seal on a model not listed in the compatibility chart?

We do not recommend using this part for models not explicitly listed. The manufacturer data only confirms fitment for the years and models provided. To ensure a proper fit and prevent gearcase failure, only use this seal if your model is listed in the compatibility table.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
