Reed Block Housing Gasket – Fits Mercury (Replaces Mercury 27-96761...
Product Details

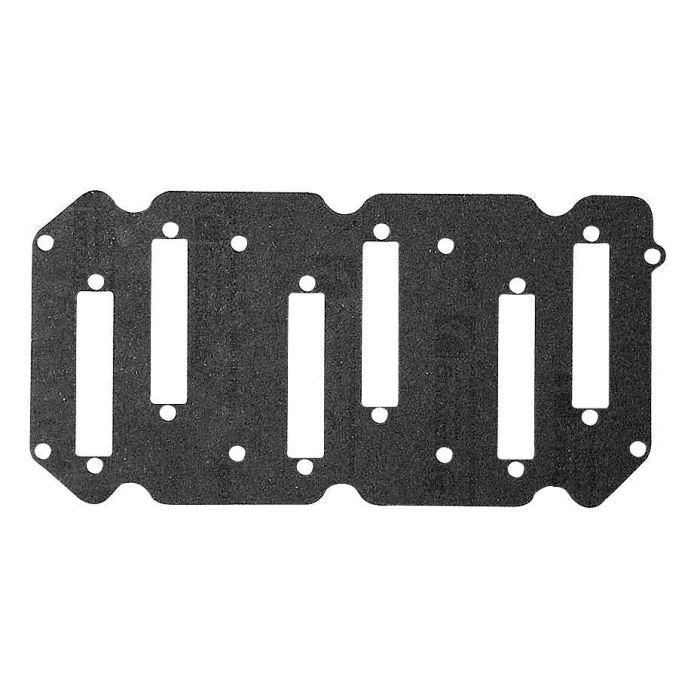

This Reed Block Housing Gasket is engineered for a precise fit on Mercury/Mariner 200 hp 2-Stroke V-6 engines from 1978–1988 and various Mercury Race Outboard models, including the MOD-VP, SST-140 Carburetor, and 2.4L Carbureted series.
It serves as a direct interchange for Sierra part number 18-2510 and GLM 32450, ensuring reliable performance and sealing.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 27-96761 |
| Mercury | 27-967611 |
| Sierra | 18-2510 |
| GLM | 32450 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Mercury/Mariner models: Ensure the serial number falls within the specified ranges for a precise fit.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury/Mariner | V-200 | 200 | 2-Stroke | 1978–1988 | 27-967611 | Fits combined book series: 5624878 THRU 0C100860 and 0C100861 THRU 0C291519 |
| Mercury | MOD-VP | 2-Stroke | 27-967611 | |||
| Mercury | SST-140 (Carburetor) | 2-Stroke | 27-967611 | |||
| Mercury/Mariner | 2.4L (Carb) | 2-Stroke | 0C175045 and Up | 27-967611 |
Technical Specs
- Product Type
- Gasket
- Dimensions
- Length: 1.25 in; Width: 7.0 in; Height: 14.0 in
- Weight
- 0.027 kg (0.06 lbs)
- Warranty
- 1 Year (RCR Brand)
- Other Technical Attributes
- Gasket, Reed Block Housing
What’s in the Box
- 1 x Reed Block Housing Gasket
Installation Notes
- Ensure the engine is off and cool, and disconnect the battery before starting.
- Relieve any pressure from the fuel system as per your engine's service manual.
- Remove the intake manifold or reed block assembly to access the gasket area.
- Thoroughly clean both mating surfaces, ensuring they are free of old gasket material, sealant, and debris.
- Carefully position the new gasket, aligning it with all passages and bolt holes.
- Reinstall the components and tighten all fasteners to the manufacturer’s recommended torque specifications.
- Reconnect the battery, start the engine, and inspect for any fuel or air leaks.
Troubleshooting & FAQ
How do I know if my reed block housing gasket has failed?
Signs of a failed reed block housing gasket include poor engine idling, difficulty starting, backfiring through the carburetor, or a noticeable loss of power. These symptoms are often caused by an air leak (vacuum leak) at the gasket seal.
Is any sealant needed when installing this gasket?
Generally, these gaskets are designed to be installed dry. However, always refer to your engine's specific service manual. Some mechanics apply a very light coat of gasket dressing or sealant, but overuse can block reed valves or fuel passages.
How often should this gasket be replaced?
This gasket should be replaced whenever the reed block housing is removed for service or inspection. It is a single-use component and will likely not seal properly if reused.
What is the difference between OEM and this aftermarket part?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, it is batch-inspected for consistency and quality.
How fast is shipping?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is the warranty and return policy?
This part is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact our support with your order details. Returns are accepted within our standard window for unused items in original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
