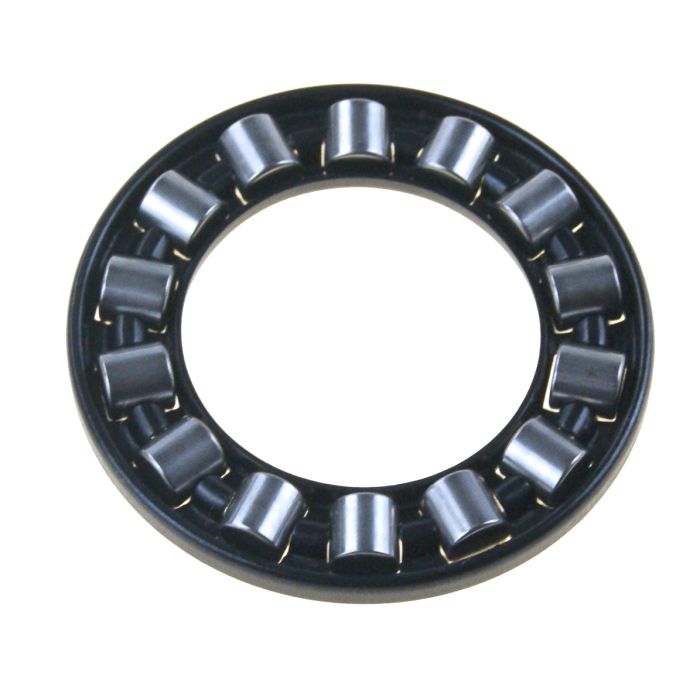

Transmission Bearing – Fits Suzuki DT40/DF40/DF50 (Replaces 09263-25062, 09269-25014)
Transmission Bearing – Fits Suzuki DT40/DF40/DF50 (Replaces 09263-25062, 09269-25014) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Transmission Bearing – Fits Suzuki DT40/DF40/DF50 (Replaces 09263-2...
Product Details
This is a direct replacement Transmission Bearing for a range of Suzuki and Johnson/Evinrude outboard engines. It is designed to fit Suzuki 40-50 HP 2-Stroke (DT series, 1984–1999) and 4-Stroke (DF series, 1999–2010) models, as well as Johnson/Evinrude 40-50 HP 4-Stroke models from 1999–2006.
This part serves as a direct interchange for Suzuki OEM part numbers 09263-25062 and 09269-25014, and Johnson/Evinrude part number 5031258.
- Installs in the lower unit gearcase assembly.
- Engineered as a sealed steel bearing for marine transmission applications.
- The package includes one bearing for a complete replacement.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 09263-25062-000 / 09263-25062 |
| Suzuki | 09269-25014-000 / 09269-25014 |
| Johnson/Evinrude | 5031258 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki Owners: This part fits a wide range of DT (2-Stroke) and DF (4-Stroke) models from 40 to 50 HP. Check your specific model code and year, especially for models with VIN-specific start dates.
For Johnson/Evinrude Owners: This part fits various 40-50 HP 4-stroke models manufactured between 1999–2006 that use OEM part 5031258.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT40 | 40 | 2-Stroke | 1989–2017 | 09263-25062 | |
| Suzuki | DT40C | 40 | 2-Stroke | 1984–1999 | 09263-25062 | |
| Suzuki | DF40 | 40 | 4-Stroke | 1999–2010 | 09263-25062 | |
| Suzuki | DF50 | 50 | 4-Stroke | 1999–2010 | 09263-25062 | |
| Suzuki | DF50TLY | 50 | 4-Stroke | 2000 | 09263-25062 | Beginning VIN# 05001F-030001 |
| Suzuki | DF50TLX | 50 | 4-Stroke | 1999 | 09263-25062 | Beginning VIN# 05001F-971001 |
| Suzuki | DF50TLK1-K10 | 50 | 4-Stroke | 2001–2010 | 09263-25062 | Multiple model years with sequential K-codes |
| Suzuki | DF50QHLY | 50 | 4-Stroke | 2000 | 09263-25062 | Beginning VIN# 05001F-030001 |
| Suzuki | DF50QHLX | 50 | 4-Stroke | 1999 | 09263-25062 | Beginning VIN# 05001F-971001 |
| Suzuki | DF50QHLK1-K2 | 50 | 4-Stroke | 2001–2002 | 09263-25062 | |
| Suzuki | DF40TLY | 40 | 4-Stroke | 2000 | 09263-25062 | Beginning VIN# 04001F-030001 |
| Suzuki | DF40TSY | 40 | 4-Stroke | 2000 | 09263-25062 | Beginning VIN# 04001F-030001 |
| Suzuki | DF40TLX | 40 | 4-Stroke | 1999 | 09263-25062 | Beginning VIN# 04001F-971001 |
| Suzuki | DF40TSX | 40 | 4-Stroke | 1999 | 09263-25062 | Beginning VIN# 04001F-971001 |
| Suzuki | DF40TLK1-K10 | 40 | 4-Stroke | 2001–2010 | 09263-25062 | Multiple model years with sequential K-codes |
| Suzuki | DF40QHLY | 40 | 4-Stroke | 1999 | 09263-25062 | Beginning VIN# 04001F-030001 |
| Suzuki | DF40QHLX | 40 | 4-Stroke | 1999 | 09263-25062 | Beginning VIN# 04001F-971001 |
| Suzuki | DF40QHLK1-K2 | 40 | 4-Stroke | 2001–2002 | 09263-25062 | |
| Johnson/Evinrude | Various | 40–50 | 4-Stroke | 1999–2006 | 5031258 | 4-Stroke models only |
Technical Specs
- Product Type
- Transmission Bearing
- Installation
- Gearcase/Lower Unit
- Dimensions
- 25×42×5 mm
- Housing Material
- Steel
- Other Attributes
- Sealed bearing for marine transmission application
What’s in the Box
- 1 x Bearing (replaces 09263-25062 / 09269-25014)
Installation Notes
- Disconnect the battery and ensure the engine is secure.
- Place a drain pan under the lower unit and remove the drain/fill screws to empty the gearcase oil.
- Remove the bolts securing the lower unit (gearcase) to the engine's midsection and carefully lower it.
- Following your engine's service manual, disassemble the gearcase to access the transmission components and locate the old bearing.
- Use appropriate bearing pullers to remove the worn bearing from its housing.
- Clean the bearing seat thoroughly, ensuring it is free of debris or burrs.
- Press the new bearing into place evenly, making sure it is fully seated.
- Reassemble the gearcase components, replacing any seals or gaskets as recommended by the service manual.
- Reinstall the lower unit, torquing the bolts to the specified values.
- Refill the gearcase with the correct type and amount of marine gear lubricant.
- Reinstall the drain/fill screws with new gaskets and test the engine's shifting and operation in a safe environment.
Troubleshooting & FAQ
How do I confirm this bearing fits my exact engine model?
The best way is to cross-reference the OEM part number from your engine's service manual or parts diagram. If it matches 09263-25062, 09269-25014 (for Suzuki), or 5031258 (for Johnson/Evinrude), this part is a compatible replacement. You can also check the detailed compatibility table.
Where is this bearing installed?
This bearing is located inside the gearcase, also known as the lower unit. It is a critical part of the transmission assembly that supports rotational components like the driveshaft or propshaft.
What are the signs of a failing transmission bearing?
Common symptoms include a grinding or whining noise from the lower unit, excessive vibration during operation, difficulty shifting gears, or finding metal shavings in the gearcase oil during a fluid change.
How often should this part be replaced?
There is no fixed replacement interval for this bearing. It should be inspected whenever the gearcase is serviced and replaced if there are any signs of wear, noise, roughness when turning, or damage.
Why does the Johnson/Evinrude compatibility list "Various" models?
Over the years, Johnson/Evinrude used Suzuki-built 4-stroke powerheads on some of their models. This bearing fits those specific 40-50 HP models made between 1999-2006. Due to branding variations, it's most reliable to confirm fitment using the OEM part number 5031258 rather than by a specific model name.
What is the difference between this and the OEM part?
This is an aftermarket part designed to meet or exceed OEM specifications for fit, form, and function. It offers a cost-effective solution without compromising on quality, using comparable materials and manufacturing processes.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
