Water Pump Impeller – Fits Yamaha & Mercury Mariner 9.9HP & 15HP Outboards (Replaces 682-44352-01-00, 47-84027M)
Water Pump Impeller – Fits Yamaha & Mercury Mariner 9.9HP & 15HP Outboards (Replaces 682-44352-01-00, 47-84027M) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller – Fits Yamaha & Mercury Mariner 9.9HP &...
Product Details

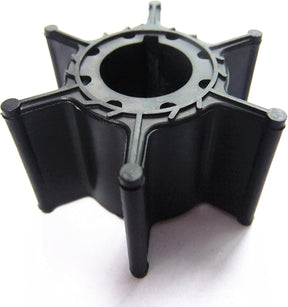

This aftermarket Water Pump Impeller – Fits Yamaha & Mercury Mariner 9.9HP & 15HP Outboards is a direct replacement part designed to restore cooling system performance. It is compatible with a range of Yamaha 9.9HP and 15HP 2-stroke (1984–1995) and 4-stroke (1985–2005) engines, as well as various international Mercury/Mariner 9.9HP and 15HP 2-stroke models.
This component serves as a direct interchange for Yamaha part numbers 682-44352-01-00 and 682-44352-03-00; Mercury/Mariner 47-84027M, 47-84027T, and 47-96619M; Sierra 18-3074; CEF 500320; and Mallory 9-45605.
- Installation: Engineered for direct OEM replacement fitment.
- Material: Constructed from durable neoprene with a plastic hub to ensure longevity in marine environments.
- Function: Critical for maintaining proper engine temperatures by circulating water through the cooling system.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Yamaha | 682-44352-01-00 | 682-44352-03-00 |
| Mercury/Mariner | 47-84027M | 47-84027T / 47-96619M |
| Sierra | 18-3074 | |
| CEF | 500320 | |
| Mallory | 9-45605 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha Owners: Please verify your engine's model and year range to ensure compatibility.
For Mercury/Mariner Owners: Fitment is determined by serial number. Please check that your engine's serial number falls within the specified range.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Yamaha | Standard 2-Stroke | 9.9 | 2-Stroke | 1984–1995 | 682-44352-01-00 |
| Yamaha | Standard 2-Stroke | 15 | 2-Stroke | 1984–1995 | 682-44352-01-00 |
| Yamaha | F9.9 | 9.9 | 4-Stroke | 1985–2005 | 682-44352-01-00 |
| Yamaha | FT9.9 | 9.9 | 4-Stroke | 1985–1990 | 682-44352-01-00 |
| Yamaha | T9.9 | 9.9 | 4-Stroke | 1991–2005 | 682-44352-01-00 |
| Brand | Model | Rated HP | Stroke | Serial No. Range | OEM Part No. |
|---|---|---|---|---|---|
| Mercury/Mariner | 15C | 15 | 2-Stroke | E-684-250101 and up | 47-84027M |
| Mercury/Mariner | 15C EL | 15 | 2-Stroke | E-684-550101 and up | 47-84027M |
| Mercury/Mariner | 15C M | 15 | 2-Stroke | M-684-000101 and up | 47-84027M |
| Mercury/Mariner | 15C ML | 15 | 2-Stroke | ML-684-300101 and up | 47-84027M |
| Mercury/Mariner | 15K | 15 | 2-Stroke | 6M7-100101 and up | 47-84027M |
| Mercury/Mariner | 9.9C | 9.9 | 2-Stroke | 682-032886 and up | 47-84027M |
| Mercury/Mariner | W15 | 15 | 2-Stroke | 684-083442 and up | 47-84027M |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct OEM Replacement
- Material
- Neoprene with Plastic Hub
- Number of Blades
- 6
- Dimensions
- 39.54mm (Diameter) × 21.94mm (Height)
- Shaft Diameter
- 13.20mm
- Color
- Black
- Weight
- 10g (0.35 oz)
- Use
- Cooling Systems (Water)
- OEM Reference
- Yamaha 682-44352-01-00 (Superseded by 682-44352-03-00)
- Engine Type
- 2-Stroke & 4-Stroke Compatible
- Maximum Horsepower
- 15HP
What’s in the Box
- 1 × Water Pump Impeller (Replaces 682-44352-01-00)
Installation Notes
- Disconnect the battery and remove the engine cover.
- Shift the outboard into neutral. Drain the gearcase oil.
- Remove the bolts securing the lower unit (gearcase) to the upper driveshaft housing.
- Carefully lower the gearcase to expose the water pump housing.
- Unbolt and remove the water pump housing cover.
- Slide the old impeller off the driveshaft, noting the keyway alignment.
- Clean the housing and inspect it for wear, replacing if necessary.
- Install the new impeller, aligning its keyway with the driveshaft's key. Rotate the driveshaft clockwise to help seat the blades.
- Reassemble the water pump housing, gearcase, and all components in reverse order.
- Refill the gearcase with fresh oil. Test the engine in water to confirm correct cooling system operation.
Troubleshooting & FAQ
How do I confirm this impeller fits my specific engine?
The best method is to match your engine's model, year, and (for Mercury/Mariner) serial number against the compatibility tables above. If you are unsure, compare the dimensions andOEM part numbers stamped on your existing impeller to the information in our listing.
What are the signs of a failing water pump impeller?
Common signs include a weak or non-existent "telltale" stream of water from the engine, engine overheating alarms, and reduced engine performance. Visible signs on the old impeller include cracked, brittle, or missing blades.
How often should I replace the water pump impeller?
As a preventative maintenance item, it is recommended to replace the impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. This interval can be shorter if you frequently operate in sandy, silty, or saltwater conditions.
Is this a complete water pump repair kit?
No, this listing is for the impeller only. Complete kits, which typically include gaskets, wear plates, and housing, are sold separately.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
