Water Pump Impeller Kit – Fits Sherwood Pumps (Replaces Sherwood 10077K, Onan 132-0375)

Product Details

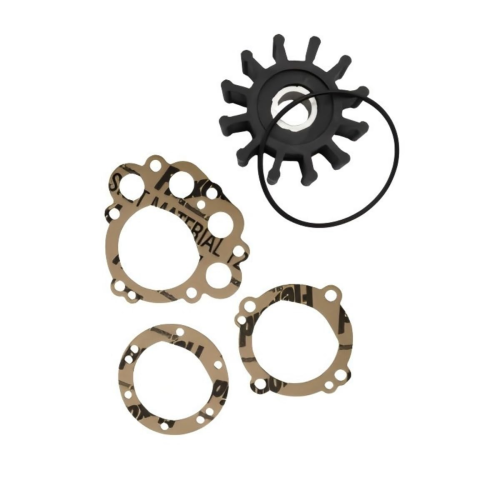

This is a complete Water Pump Impeller Kit – Fits Sherwood Pumps (Replaces Sherwood 10077K, Onan 132-0375), designed for raw water pumps on inboard marine engines and generators. It is compatible with Sherwood pump models R30G, G701, G702, H70, H80, and others.

This kit serves as a direct replacement for numerous part numbers from Sherwood, Onan, Westerbeke, Sierra, Crusader, Chris Craft, and more, ensuring broad interchange compatibility.

• Engineered for direct replacement installation.
• Made from durable neoprene rubber suitable for marine environments.
• Includes the essential impeller, O-ring, and gaskets for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This impeller is used in various Sherwood pumps fitted to engines from Westerbeke, Chris Craft, Gray Marine, and others.

Fits a wide range of Onan marine generators that utilize the 132-0375 impeller.

Technical Specs

Product Type

Water Pump Impeller Kit

Installation

Direct replacement

Impeller Width

25/32" (19.8-20mm)

Impeller Diameter

2-1/4" (57.1mm)

Shaft Diameter

1/2" (12.7mm)

Drive Type

Key drive (3/32" key)

Material

Neoprene rubber with brass insert

Number of Blades

12

Weight

1-1.8 ounces (28-51g)

Other Technical Attributes

Flexible impeller suitable for marine water-pumping duties including engine cooling, water transfer, and bilge pumping

What’s in the Box

• 1 x Impeller (Replaces Sherwood 10077K)
• 1 x O-Ring
• 3 x Gaskets

Installation Notes

1. Turn off the engine and close the raw water seacock.
2. Remove the cover plate from the water pump housing.
3. Carefully remove the old impeller. Needle-nose pliers may be helpful.
4. Clean the interior of the pump housing and the cover plate. Remove any old gasket material or debris.
5. Lightly lubricate the new impeller and housing interior with a water-resistant grease or soap.
6. Insert the new impeller, bending the blades in the direction of pump rotation if known.
7. Place the new gasket or O-ring onto the housing.
8. Reinstall the cover plate and tighten the screws evenly.
9. Open the seacock, start the engine, and immediately check for leaks and proper water flow.

Troubleshooting & FAQ

Safety & Important Info

• Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement part, not an OEM component.
• Professional installation is recommended for safety and performance.
